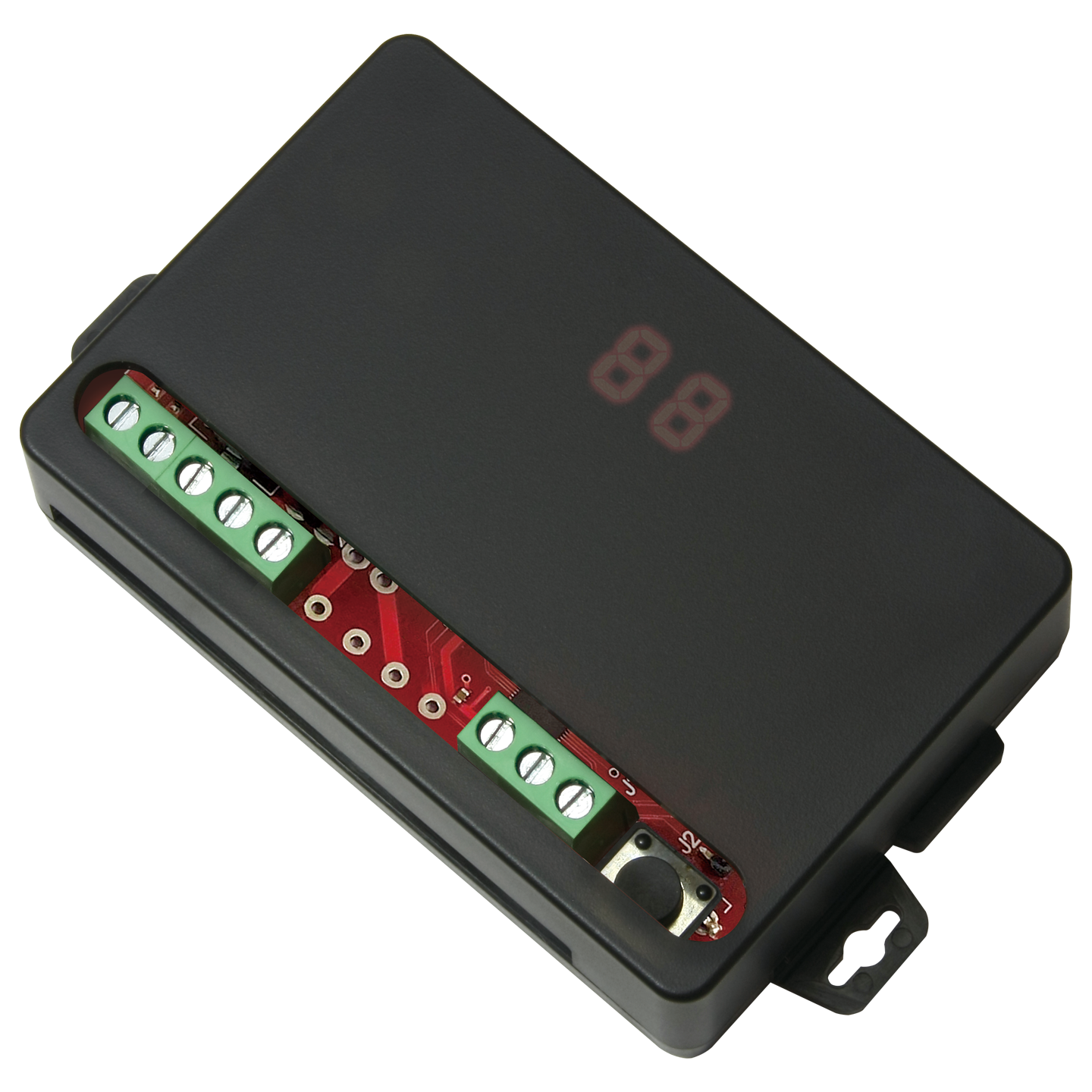

Seco-Larm - SK-910RD1-W - 1-Channel RF Receiver with Wiegand
Product Overview
The ENFORCER 1-Channel RF Receiver with Wiegand captures wireless RF signals from compatible transmitters and converts them into standard 26-bit Wiegand output for access control systems. It can operate as a Wiegand reader, controller, or stand-alone receiver, supporting flexible integration with ENFORCER and third-party access control panels.
Key Configuration
1-channel RF receiver with 1 Form C relay output. Supports Wiegand 26-bit reader, controller, or stand-alone operation. Can learn up to 240 codes from RF transmitters or Wiegand keypads/readers
Key Features
• Function: Converts compatible RF transmitter signals into Wiegand output.
• Integration: Transmits converted data directly to access control panels.
• Compatibility: Works with optional card readers featuring Wiegand output.
• Range: Supports operating distances up to 500 ft (150 m), or up to 1,000 ft (300 m) with the optional extended-range antenna.
• Frequency: Supports dual-frequency 315 MHz and 433.92 MHz operation with the optional SK-93ERSD Extended Range Antenna.
Technical Context
The receiver supports 26-bit Wiegand formats, allowing RF transmitter credentials to be used with compatible access control equipment. The SK-910RD1-W operates at 315 MHz and is compatible with 433.92 MHz transmitters only when used together with the SK-93ERSD Extended Range Antenna.
Installation Notes
Operating range depends heavily on installation conditions and the surrounding environment. For extended range or dual-frequency 315 / 433.92 MHz support, use the optional SK-93ERSD Extended Range Antenna.
| Technical Specifications | |
| Operating Frequency | 315MHz* |
| Memory Capacity | 240 |
| Operating Voltage | 10~24 VAC/VDC |
| Operating Current | Standby: 20mA@12VDC, 12mA@24VDC Active: 70mA@12VDC, 50mA@24VDC (both per channel) |
| Relay Output Modes | 0.5~99 sec momentary (default, 1s) 1~99 min momentary Toggle Latch Follow (validity) |
| Relay Contacts | Number: 1x Form C Rating: 10A@14VDC for N.C. 20A@14VDC for N.O. |
| Wiegand | 26-bit, selectable input or output (default – output) |
| Connectors | Screw terminals, +, -, with NO/NC/COM per relay, Wiegand GND/WGD0/WGD1 |
| Digital Display | 2-digit, 7-segment LED |
| Operating Humidity | 5~95%, non-condensing |
| Operating Temperature | -40°~167° F (-40°~75° C) |
| Dimensions | 4-3/16″ x 7/8″ x 2-3/8″ (107 x 23 x 60 mm) |
