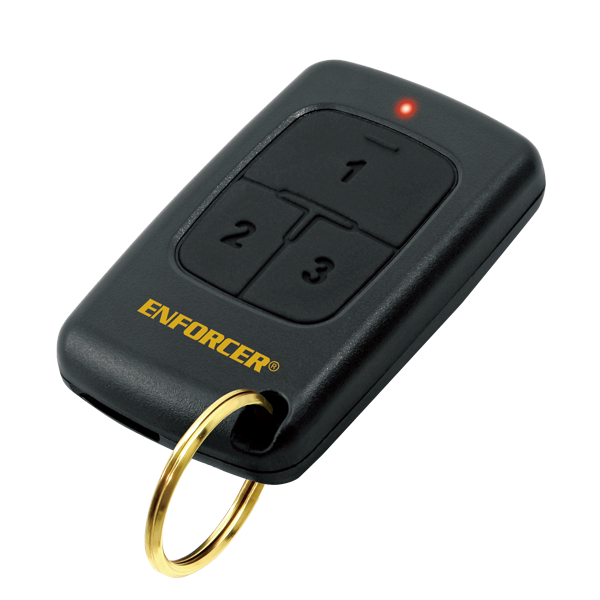

SECO-LARM - SK-917T3-GNQ - 3-Buttons, 7-Channels CODEBUMP™ RF Transmitter , Pendant, 315MHz*
Part number:
SK-917T3-GNQ
Price:

Make access control, security, home automation, gate operation, or any type of product wireless with RF transmitters and receivers from SECO-LARM. Regardless of project, SECO-LARM RF equipment is a profitable, easy-to-install add-on for any application.



Features:

*Special order item. Contact SECO-LARM for details.
Features:​

  • Over 18 quintillion possible codes
  • LED transmission indicator only appears when buttons are pressed
  • Operates up to 500ft (150m)**
  • RF Anti-scan protection
  • FCC and IC Certified
  • 315MHz (433.92MHz available)
  • Weatherproof (IP66)
  • Compatible with all 315MHz SECO-LARM receivers
  • Slimline design: 1-1/4″x2-3/16″x5/16″ (31.5x55x8 mm)
  • CODEBUMP™ codehopping models also available
  • Replacement batteries available: X-930-096 (CR2032)
  • Patented design

**Operating range will vary greatly depending on the installation and operating environment

Type3-Button RF Transmitter with 18 quintillion codes
RF Frequency315MHz
No. of Buttons3
Channels7
IP RatingWeatherproof IP66
No. of Codes18 quintillion possible codes
Dimensions1-1/4″x2-3/16″x5/16″ (31.5x55x8 mm)
Name
Description
Size
Downloads
File
Datasheet
0.9mb
