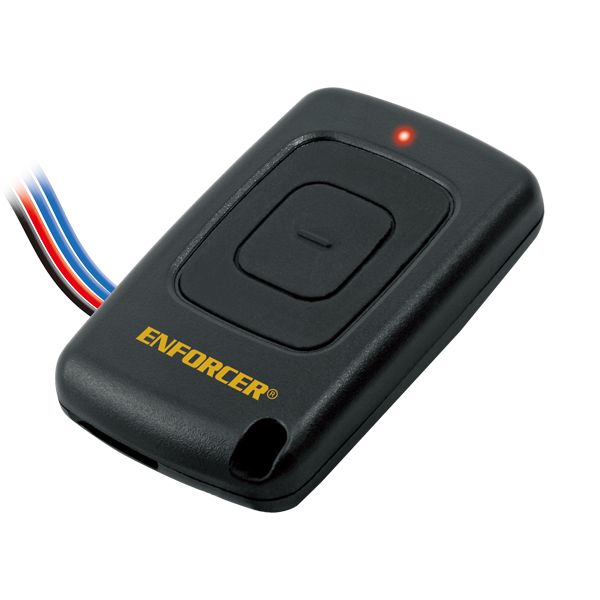

SECO-LARM - SK-919T1-GBWQ - 1-Button RF Transmitter for use with all SECO-LARM 315MHz receivers. Pre-coded. Wired for connection to buttons, sensors, etc., to remotely activate devices.
Part number:
SK-919T1-GBWQ
Price:
Make access control, security, home automation, gate operation, or any type of product wireless with RF transmitters and receivers from SECO-LARM. Regardless of project, SECO-LARM RF equipment is a profitable, easy-to-install add-on for any application.
Features:
- Powered by internal battery or external 3~13 VDC output regulated adapter (not included)
- Frequency 315MHz
- Operates up to 500ft (150m)*
- Over 68 billion (6.8×1010) possible codes
- LED transmission indicator
- Includes one 3VDC lithium battery (CR-2032)
- Compact size
- Compatible with all SECO-LARM SK-series receivers of the same frequency
- Also available without logo – SK-919T1-GBWUQ – 315MHz (FCC), SK-939T1-GBWUQ – 433.92MHz (CE)
| Type | 1-Channel Wired RF Transmitter |
| Wiring – Switch | Two 6″ wires for N.O. |
| Wiring – Power | Two 6″ wires for power input |
| Power – Battery | 3VDC battery (CR-2032, included) |
| Power – External | 3~13 VDC output regulated adapter |
| RF Frequency | 315MHz (FCC) |
| # of Buttons | 1 |
| Channels | 1 |
| Possible codes | Over 68 billion |
| Dimensions | 1-1/4″x2-3/16″x5/16″ (31.5x55x8 mm) |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
