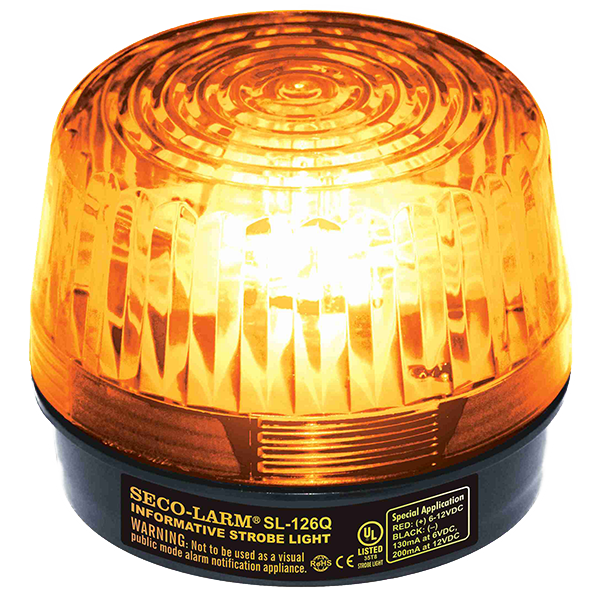

SECO-LARM - SL-126Q/A - Xenon Tube Strobe Light – Amber, 6~12VDC, UL Listed
Part number:
SL-126Q/A
Price:

6~12 VDC (2-wire connection) Strobe Light. “U”-Type Xenon tube. 100,000 Candlepower, over 90 flashes/min, 180mA current draw at 12VDC. UL listed. Amber lens.



Features:



  • For “informative” general signaling requirements
  • Incorrect polarity cannot damage circuit or draw current
  • Easy 2-wire installation, regardless of voltage. Also, if the strobe light is being powered by a battery, as the battery is drained the strobe light will continue to function
  • Low current consumption with long operating lifespan of over 300 continuous hours (2,000,000 flashes)
  • Includes choice of amber, blue, clear, green or red lens
  • Lens is made of high-impact resistant acrylic, case of high-impact resistant ABS plastic
  • SECO-LARM SL-126Q strobe lights come with a protective inner cover. This protects the high-voltage xenon tube when the colored lens has been removed
  • Use in temperature ranging from -22ºF (-30ºC) to 140ºF (60ºC)
  • For 6- to 12-Volt use
CircuitsAll solid-state
Input ConnectionsRed/Positive, Black/Ground
Leads#18 Gauge, 12″ long
Electrical ProtectionReverse polarity protected
Illumination100,000 Candlepower
Operating LifeOver 2,000,000 flashes (300 hours continuous)
Input voltage6~12 VDC
Operating Temperature-22º~140º F (-30º~60º C)
BaseHigh-impact black ABS
input current120mA±20% @ 6VDC 200mA±20% @ 12VDC
Flash RateOver 60 per minute at 6 VDC Over 90 per minute at 12 VDC
LensHigh-impact resistant acrylic
