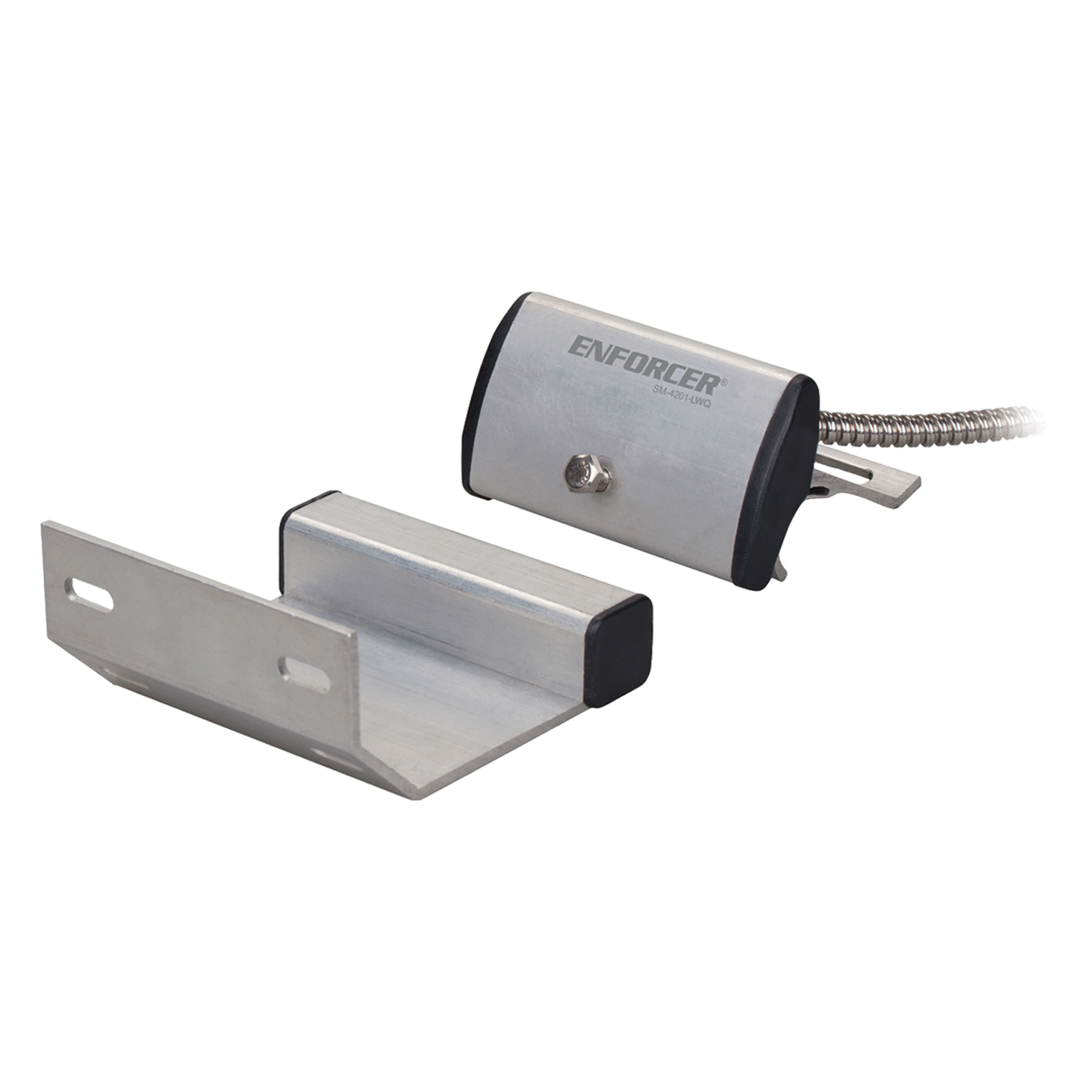

Seco-Larm - SM-4201-LWQ - Wide Track-Mount Overhead-Door Magnetic Contact

Product Overview

The SECO-LARM SM-4201-LWQ is a wide track-mount magnetic contact designed for industrial and residential overhead doors with large track-to-door gaps. Its adjustable channel width, rugged aluminum housing, armored cable leads, and IP65 weatherproof construction support reliable perimeter-security monitoring.

Key Configuration

Model: SM-4201-LWQ | Product Type: Wide track-mount overhead-door magnetic contact | Adjustable Channel Width: 2-5/8 to 4 in (66 to 101 mm) | Door Gap: Up to 3 in (76 mm) | Housing: Aluminum | Protection: IP65 | Cable: 36 in (91 cm) armored leads | Circuit: SPST closed-loop

Key Features

• · Magnetic contact for overhead-door security monitoring
• · Adjustable for door-channel widths from 2-5/8 to 4 inches (66 to 101 mm)
• · Supports overhead doors with a 3-inch (76 mm) gap
• · Rugged aluminum housing
• · IP65 weatherproof construction
• · 36-inch (91 cm) wire leads enclosed in armored cable
• · Iridium-plated contact surfaces for higher power handling and extended service life
• · SPST closed-loop circuit design
• · Mounting bracket included
• · Suitable for industrial and residential overhead-door applications

Technical Context

The SM-4201-LWQ monitors the magnetic relationship between an overhead door and its track-mounted contact. The wide-track design accommodates large installation gaps, while iridium-plated contacts provide durable switching performance in a closed-loop security circuit.

Installation Notes

Mount the contact and included bracket on the overhead-door track and align the magnet with the contact across the specified gap. Adjust the bracket for a 2-5/8 to 4-inch channel width, route the armored cable to the alarm panel, and maintain sealed connections appropriate for the IP65 installation environment.
