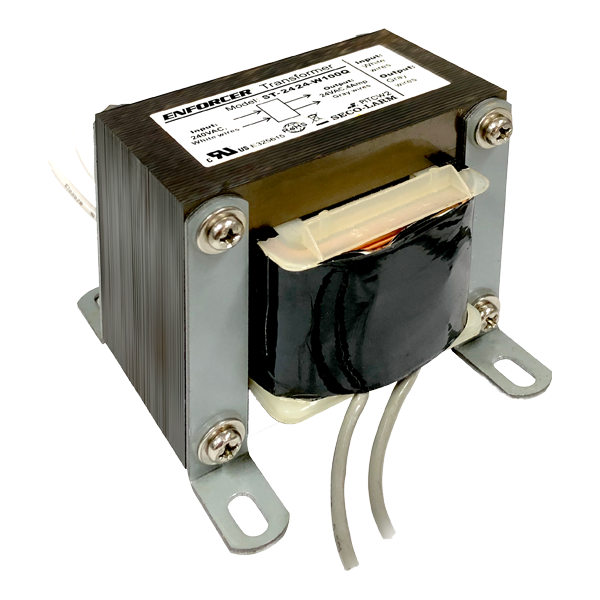

SECO-LARM - ST-2424-W100Q - Open-Frame Transformer
Part number:
ST-2424-W100Q
Price:
Open Frame Transformer - 240VAC Input, 24VAC Output 100VA
Features:
- Shielded windings to reduce Electromagnetic Interference (EMI).
- Temperature fuse protected
- Transient voltage suppressor protected
- UL recognized
| Output Voltage | 24 VAC |
| Supply current | 4 Amp., 100VA |
| Input Voltage | 240 VAC, 50/60 Hz |
| Input Wire | White, AWG#20, 9-7/16 in (24cm) |
| Output Wire | Gray, AWG# 18, 9-7/16 in (24cm) |
| Dimensions | 77x87x67 mm |
| Net Weight | 1.67 kg (3.69 lb) |
Name
Description
Size
Downloads
File
User Manual
0mb
File
Data Sheet
0.4mb
