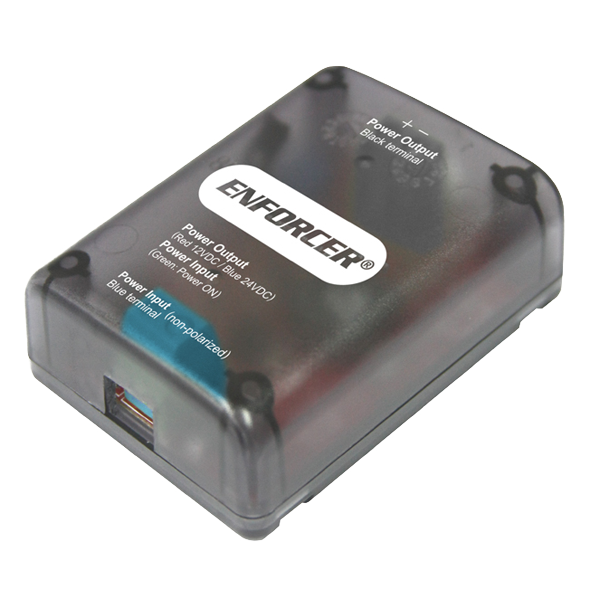

SECO-LARM - ST-LA130-TTQ - Power Converter to Step Down Voltage – 3A@12VDC, 1.5A@24VDC
Part number:
ST-LA130-TTQ
Price:

ENFORCER Power Converters “step down” voltage, converting low-voltage AC or DC into regulated DC outputs. These converters are useful for DC CCTV cameras, access controls, and many other applications where low-voltage DC output is required.



Features:



  • Three models available, providing varying degrees of low-voltage DC output
  • Built-in overload protection
  • Regulated and filtered output
  • Green LED indicates power input
  • Red and Blue LEDs indicate power output
Output Current3A@12VDC, 1.5A@24VDC
Input ConnectorTerminal block
Output ConnectorTerminal block
Input Voltage18~24 VAC/VDC for 12VDC, 24~28 VAC or 26~28 VDC for 24VDC
Output Voltage12/24 VDC
LED IndicatorsGreen: Power input, Red: 12VDC Power output, Blue: 24VDC Power output
Current Protection3A PTC Fuse
Overheat ProtectionBuilt-in
Overload ProtectionBuilt-in
Dimensions2-1/2″ x 1-7/8″ x 15/16″ (64 x 48 x 24 mm)
Name
Description
Size
Downloads
File
User Manual
0.4mb
File
Data Sheet
0.2mb
