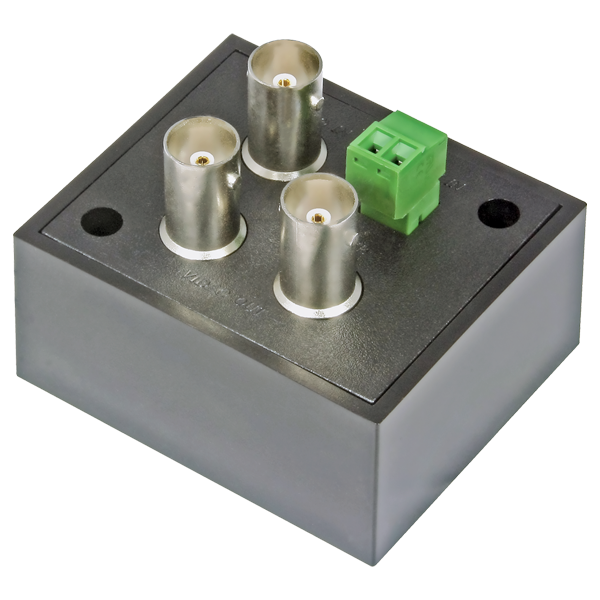

SECO-LARM - VA-1102B-WYQ - 4-in-1 HD Video Distributor – 2-Outputs
Part number:
VA-1102B-WYQ
Price:

The ENFORCER 4-in-1 HD Video Distributor is the ideal way to distribute a single video signal to multiple locations. Using noise-rejection circuitry, the 4-in-1 HD Video Distributor actively duplicates video signals to be sent to two separate locations.



Features:



  • 1 Input, 2 Outputs
  • TVI / CVI / AHD / Analog compatible
  • Distributes one video input to two video outputs
  • Connect to a video camera, multiplexer, DVR, etc.
  • Able to stack multiple units for additional outputs
  • Signals are cleaned and buffered to ensure clear video
  • LED Power indicator
  • Includes power adapter and DC jack connector
Number of Inputs1x BNC
Number of Outputs2x BNC
Video Output FormatHD-TVI / CVI / AHD / Analog
Video Input Level0.8~1.2Vp-p, 75Ω
Video Output Level1Vp-p, 75Ω
Image Gain6dB
Video Bandwidth350MHz, -3dB
Power Supply12VDC, 500mA
Current Draw60mA
Dimensions2-5/16″x1-15/16″x1-11/16″ (58x49x42 mm)
Operating Humidity0~95% non-condensing
Operating Temperature32°~131° F (0°~55° C)
Weight2.5-oz (70g)
Name
Description
Size
Downloads
File
User Manual
0.3mb
File
Data Sheet
0.3mb
