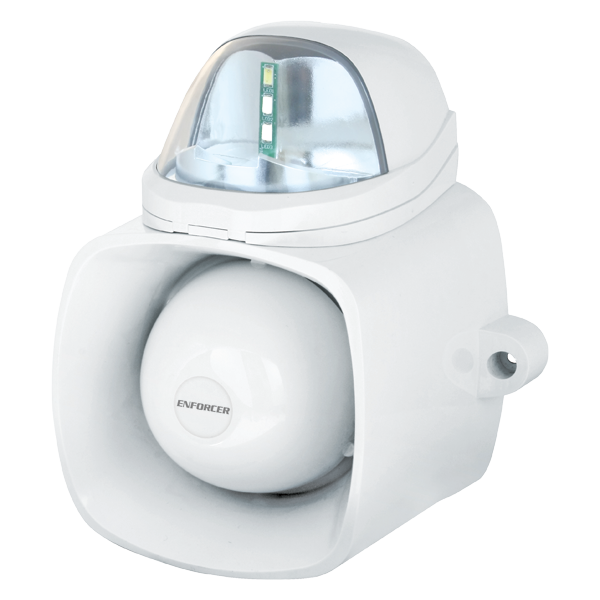

SECO-LARM - SH-816S-SQ/C - Self-Contained Siren/Strobe – Clear
Part number:
SH-816S-SQ/C
Price:

The ENFORCER Siren/Strobes are multi-purpose devices: siren, speaker, and optional strobe (SH-816S-SQ only). It can serve as a regular siren, but also has an audio input that can be used to playback audio or broadcast messages. The SH-816S-SQ series also includes a strobe light with a choice of amber, blue, clear, or red lenses and can be surface installed or to a standard single gang, double gang or C-type back box.



Features:

  • 9~15 VDC
  • Low current draw
  • 120dB Warble-tone siren
  • 25W Speaker for audio or broadcast system input (broadcast will interrupt the siren)
  • Built-in tamper alarm output
  • Weatherproof for outdoor/indoor use, IP65
  • Easy installation
  • Mount directly to wall or to most common back boxes
  • Bright LED strobe light
  • Strobe can be triggered separate from siren
  • Strobe available in amber, clear, blue, or red
TypeSiren/Strobe
Operating voltage9~15 VDC
Current Draw (max.) – Strobe190mA@12VDC
Current Draw (max.) – Siren680mA@12VDC
Current Draw (max.) – Both870mA@12VDC
Siren volume120dB
Speaker rating25W Peak
Strobe flash rate100 per minute
Tamper output100mA@30 VAC/VDC
IP ratingWeatherproof IP65
Operating humidity0~95%
Operating temperature-4°~131° F (-20°~55° C)
Housing materialWhite polycarbonate plastic
Lens ColorClear
Dimensions6-1/8″x7″x4-1/2″ (155x178x115 mm)
Weight2-lb 2-oz (957g)
Name
Description
Size
Downloads
File
Datasheet
0.8mb
File
Manual
0.4mb
