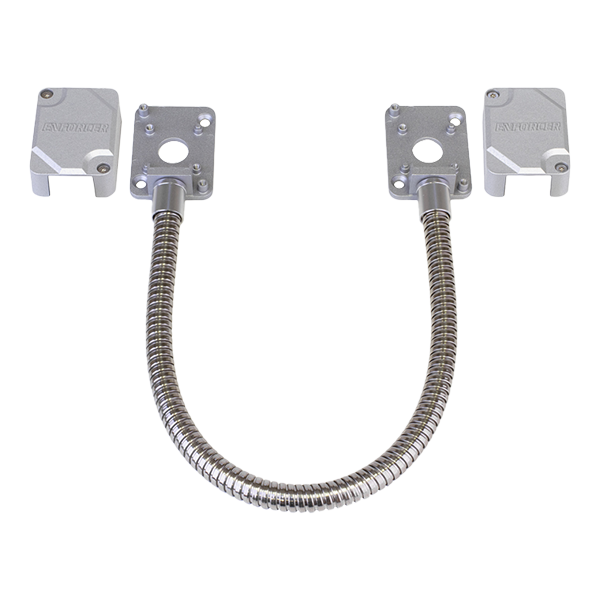

SECO-LARM - SD-969-M15Q/S - Stainless-steel armored door cord with removeable cover (Silver), cord length 15" (39cm).
Part number:
SD-969-M15Q/S
Price:

Armored Electric Door Cord – Removable Covers, Silver, 15” (39cm)



Features:

  • Designed to carry wiring to conduct power to electric locks or access systems
  • Once mounted, simply remove cover to access. Door cord stays in place. No need to remove from the door. Prevents stripping of the screws and mounting points
  • Surface-mounted
  • 15” (39cm) Stainless steel armored cord
  • Inside door-cord diameter: 5/16” (8mm)
  • Outside door-cord diameter: 7/16” (11mm)
  • End cap dimensions: 2-3/6″x7/8″x1-9/16″
  • Security screws (included) prevent tampering
  • Available in bronze or silver finish
End CapAluminum
Inside Door Cord Diameter5/16″ (8mm)
Outside Door Cord Diameter7/16″ (11mm)
Cord Length15″ (39cm)
Terminal BlockNo
Maximum CurrentNot applicable
ConstructionStainless-steel armored
Name
Description
Size
Downloads
File
Datasheet
0.7mb
File
Manual
0.3mb
