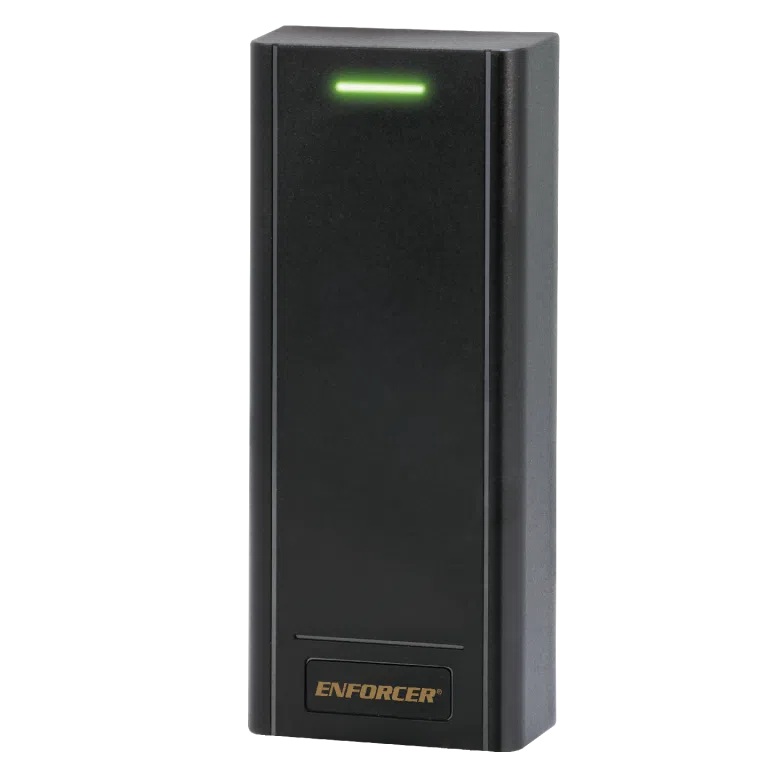

SECO-LARM - PR-3123-PQ - Stand-Alone Mullion Wiegand Proximity Reader – 1000 Users, EM 26 bits, EM 125 kHz, Outdoor rated – IP66, Extreme cold tolerance to -40° F (-40° C), 9~24 VDC Operation, Sturdy black ABS plastic housing
Part number:
PR-3123-PQ
Price:
Stand-Alone Mullion Wiegand Proximity Reader – 1000 Users, EM 26 bits, EM 125 kHz, Outdoor rated – IP66, Extreme cold tolerance to -40° F (-40° C), 9~24 VDC Operation, Sturdy black ABS plastic housing
Features:
- 12~18 VDC Operation
- Low current draw – 120mA max.
- Form C relay output – 2A@12VDC
- Built-in tamper alarm and external alarm output
- Outdoor rated – IP66 weatherproof
- Can serve as Wiegand output reader or controller, output and input – 26~44 bits
- EM 125kHz Proximity card reader
- 2-Door interlock
- Easy duplication of users to additional devices
- Bulk adding of multiple cards at a time
| Operating Voltage | 12~18 VDC |
| Current Draw | Standby: 30mA@12VDC Active: 120mA@12VDC (max.) |
| Outputs | Form C: 2A@12VDC Alarm:2A@12VDC Wiegand: 26~44 bits |
| Inputs | Wiegand: 26~44 bits, PIN input – 4, 8, or 10 bits Egress: N.O. Ground Door sensor: N.C. Ground |
| Card type | EM 125kHz |
| Enclosure material | Black ABS plastic |
| Operating temperature | -40°~140° F (-40°~60° C) |
| Operating humidity | 0~98% non-condensing |
| Dimensions | 1-7/8″x4-5/8″x13/16″ (48x117x20 mm) |
| Weight | 5-oz (140g) |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
File
Manual
0.6mb
