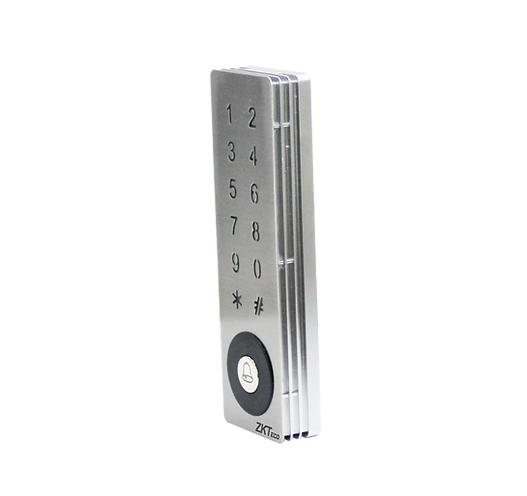

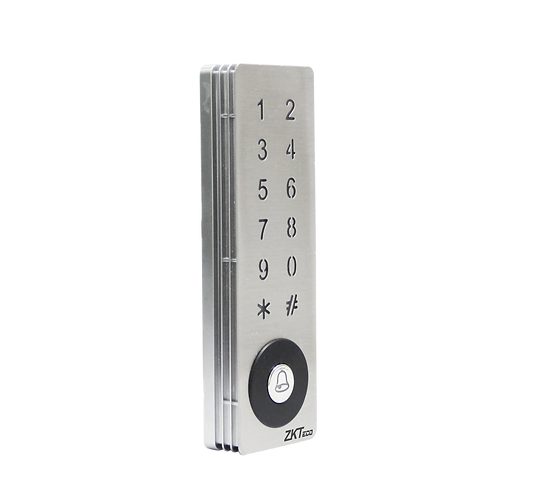

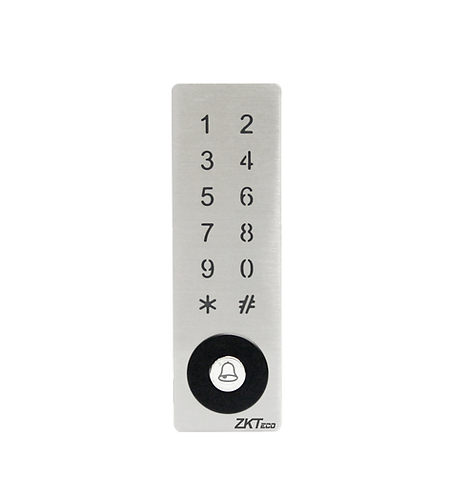

ZKTeco USA - SMK-V - Standalone metallic RFID Reader Controller
Part number:
SMK-V
Price:
- • IP65-rated vandal-proof metallic enclosure
- • Standard ZK 125 kHz 26-bit card reader
- • Relay outputs for electric lock and alarm
- • Auxiliary inputs for door status sensor and exit switch
- • Stores up to 1,000 cards
- • Wiegand-Out port can connect SMK-V to most all 3rd party (and ZKAccess) access control panels
- • Built-in speakers and LEDs provide users both audio and visual feedback
| Keypad | Blue back-lit, Numeric keys 0-9, Function keys *, #, Bell |
| LED indicator | blue and red |
| ID Card Capacity | 1,000 cards |
| PIN code Capacity | 10 codes |
| Log Capacity | N/A |
| Communication | N/A |
| Standard Functions | Single and dual-factor ID card and password authentication |
| Access Control Hardware Interface | Connects 3rd Party Electric Strike or Magnetic Lock, Door Sensor, Exit Button, Alarm |
| Wiegand Interface | Wiegand-Out port |
| Power Supply | 12V DC, 750mA |
| Operating Temperature | -4°F to 122°F |
| Operating Humidity | 20% - 80% |
| Dimensions (H x W x D) | Model SMK-V is 6.3 x 2 x .8 inches / Model SMK-H is 4.7 x 3.4 x .8 inches |
Name
Description
Size
Downloads
File
SMK-V_Datasheet.pdf
1.4mb
The SMK-V and SMK-H models have built-in 12V relay contacts that can be connected directly to an electric strike or magnetic door lock. For the highest level of security and programming flexibility, they also have a built-in Wiegand-Out port that can be connected to almost any access control panel, including ZKAccess C3 and InBio door controllers. The SMK-V and SMK-H come with a built-in ZKAccess 125 kHz 26-bit RFID card reader as standard. A Mifare card reader option is also available.
