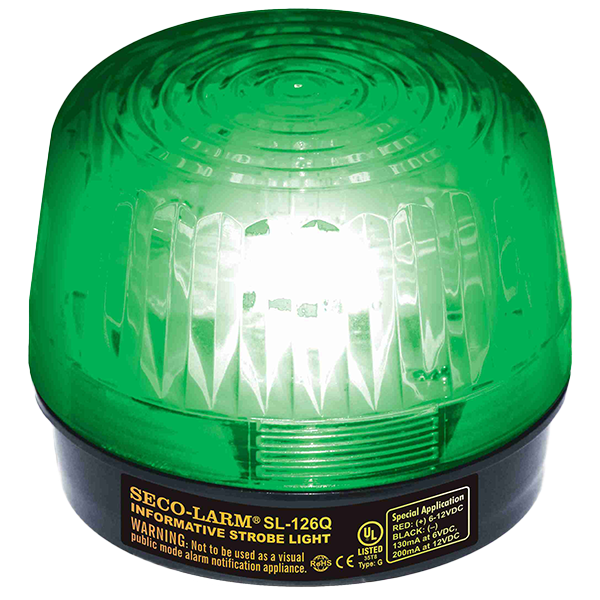

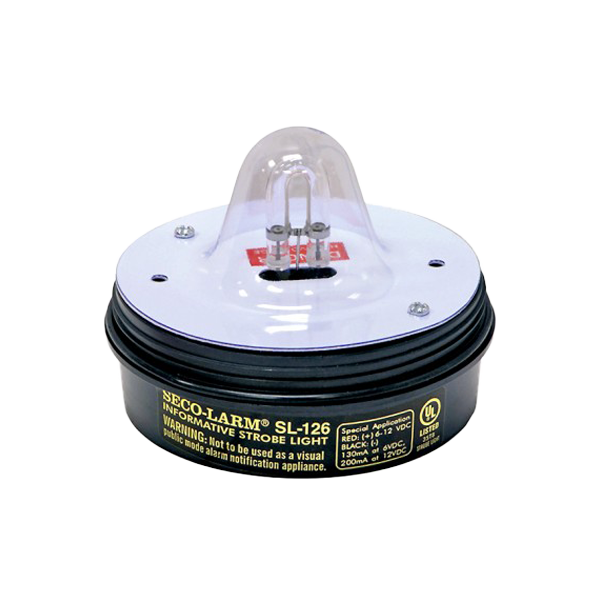

6~24 VDC (2-wire connection) Strobe Light. “U”-Type Xenon tube. 100,000 Candlepower, over 100 flashes/min, 150mA current draw at 24VDC. Green lens.
| Circuits | All solid-state |
| Input Connections | Red/Positive, Black/Ground |
| Leads | #18 Gauge, 12″ long |
| Electrical Protection | Reverse polarity protected |
| Illumination | 100,000 Candlepower |
| Operating Life | Over 2,000,000 flashes (300 hours continuous) |
| Input voltage | 6~24VDC |
| Operating Temperature | -22º~140º F (-30º~60º C) |
| Base | High-impact black ABS |
| input current | 30mA±20%@6VDC 120mA±20%@12VDC 150mA±20%@24VDC |
| Flash Rate | Over 30/minute at 6VDC. Over 70/minute at 12VDC. Over 100/minute at 24VDC. |
| Lens | High-impact resistant acrylic |
