SECO-LARM - SD-9773-KNEVQ - Black No Touch Surface-mount w/ Override Button IR
Part number:
SD-9773-KNEVQ
Price:

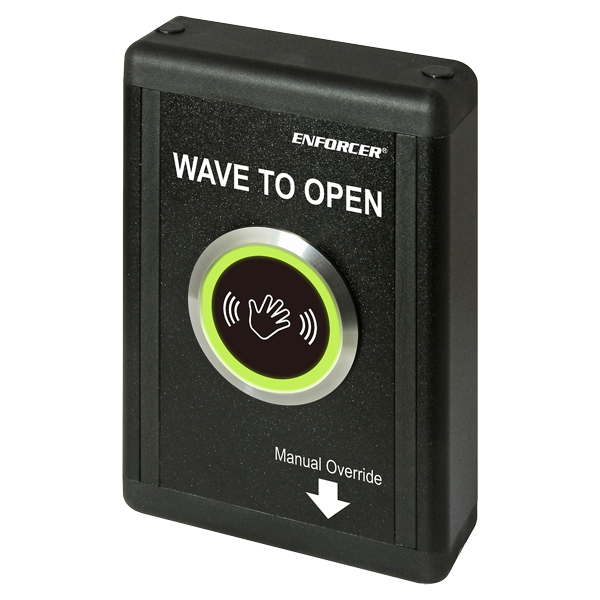

The SECO‑LARM SD‑9773‑KNEVQ is a surface‑mount IR no‑touch exit sensor with a manual override button in a black finish. It activates by simply waving a hand, making it ideal for hospitals, clinics, labs, cleanrooms, schools, factories, and offices where touchless operation reduces contamination risk. A manual override button provides reliable operation if the sensor is disabled.
Key Features:
- • Adjustable sensor range up to 6″ (15cm)
- • 1A relay, adjustable trigger duration 0.5~30 seconds or toggle
- • LED illuminated sensor area for easy identification
- • Selectable LED colors (turns from red to green or green to red) when sensor is activated
- • Aluminum alloy and ABS plastic housing
- • IP54 Weather-resistant for outdoor use
| Operating Voltage | 12~24 VDC |
| Current Draw | Standby (red): 20mA@12VDC / 26mA@24VDC Triggered (green): 26mA@12VDC / 32mA@24VDC Standby (green):16mA@12VDC / 20mA@24VDC Triggered (red): 31mA@12VDC / 39mA@24VDC |
| Relay Type | SPDT dry contact, 1A@24VDC |
| IP Rating | Weatherproof IP54 |
| Response Time | 10ms |
| LEDs – Standby | Red (reversible to green) |
| LEDs – Triggered | Green (reversible to red) |
| Output Time | 0.5~30 s, toggle |
| Range | 1-9/16″~6″ (4~15 cm) |
| Operating Temperature | -4°~131° F (-20°~55° C) |
| Weight | 9.5-oz (270g) |
| Dimensions | 3-1/8″x 4-1/2″x1-1/8″ (80x115x28mm) |
Name
Description
Size
Downloads
File
Datasheet
0.9mb
File
Manual
0.3mb
