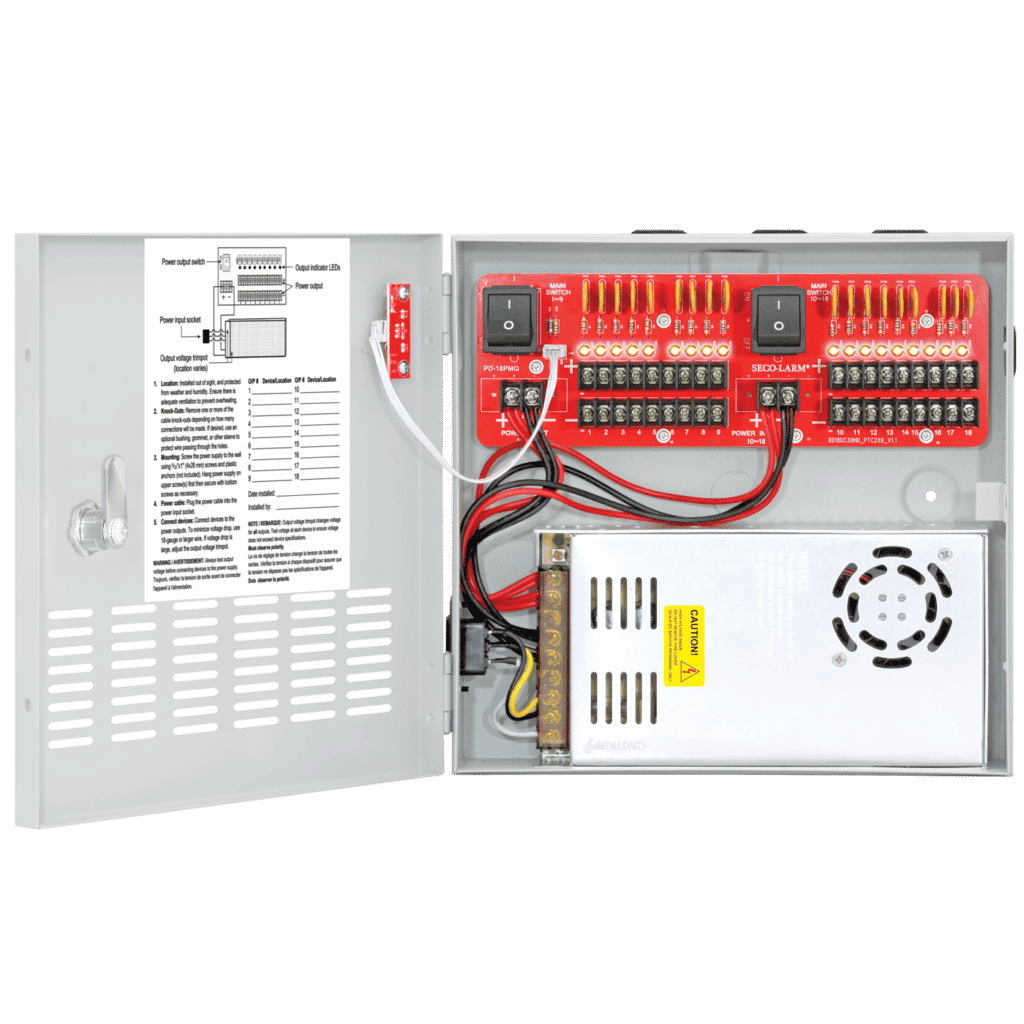

The ENFORCER 12VDC Switching CCTV Power Supply is an efficient solution for powering CCTV installations. Each unit distributes power to multiple CCTV devices and provides short circuit and overheat protection.
Features:
Outputs | 18 |
Total supply current | 20A |
Max. current per output | 1.6A |
Output fuse | PTC |
Output voltage | 11.0~13.8 VDC (adjustable by trimpot, ±10% (47~63 Hz) |
Input voltage | 110/220 VAC (50/60 Hz) |
LED indicators | Cover -Green: AC Input, Red: DC Output PDM -Red: DC Output |
Operating humidity | 90% (non-condensing) |
Operating temperature | 32°~104° F (0°~40° C) |
Dimensions | 10″x10-5/16″x3-1/8″ (254x262x79 mm) |
Weight | 6-lb 1-oz (2.76kg) |
