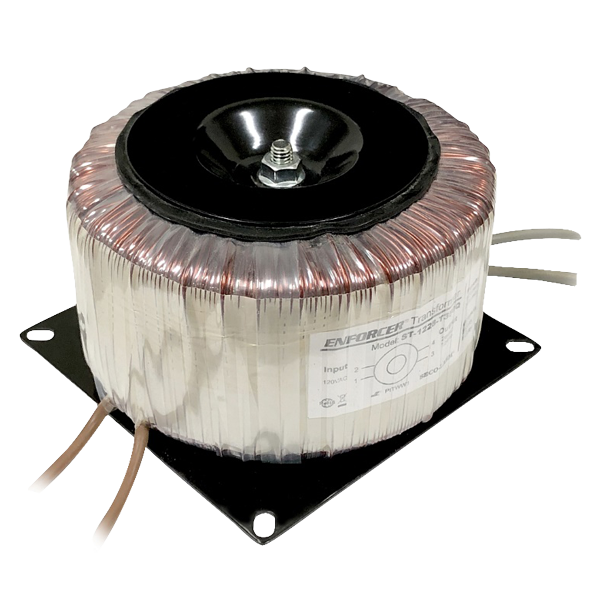

SECO-LARM - ST-1228-T350Q - Toroidal Transformer - 110VAC Input, 28VAC Output 350VA
SECO-LARM - ST-1228-T350Q - Toroidal Transformer - 110VAC Input, 28VAC Output 350VA
SECO-LARM - ST-1228-T350Q - Toroidal Transformer - 110VAC Input, 28VAC Output 350VA

SECO-LARM - ST-1228-T350Q - Toroidal Transformer - 110VAC Input, 28VAC Output 350VA

Part number:
ST-1228-T350Q
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

Toroidal Transformer - 110VAC Input, 28VAC Output 350VA



Features:

  • Shielded windings to reduce Electromagnetic Interference (EMI).
  • Temperature fuse protected
  • Transient voltage suppressor protected
  • Mounting plate for easy installation
Supply current12.5 Amp., 350 VA
Input Voltage120 VAC, 50/60 Hz
Input WireBrown, AWG# 18, 10 in (25 cm)
Output WireGray, AWG# 14, 10 in (25 cm)
Dimensions113x117x70 mm
Net Weight2.90 kg
Name
Description
Size
Downloads
File
User Manual
0.1mb
File
Datasheet
0.3mb
