Trendnet - TI-CA4K - Outdoor IP68 Weatherproof Enclosure with 350W Power Supply

Name: Trendnet - TI-CA4K - Outdoor IP68 Weatherproof Enclosure with 350W Power Supply
Brand: Trendnet
SKU: TI-CA4K

Part number:

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads Technical Overview

• Supports up to 16-port TRENDnet industrial switches
• IP68 weather rated enclosure
• IK10 impact protection
• Power supply supports up to 350W (55V DC, 6.3A)
• 20kA @ 8/20 μs surge protection
• Rugged polycarbonate construction
• Wall mounting hardware included
• Add TI-BK01 or TI-BK02 bracket to use with TRENDnet’s industrial switches, fiber converters, and PoE injectors (sold separately)

Hardware	• IP68 • IK10 • Polycarbonate • FIPFG sealing (Gasket material: Polyurethane foam) • Hinged door • Waterproof door lock • 11 cable glands • Wall mount • Flammability: UL 94 V-0 • UV resistance: UL 746C • Salt spray: IEC 60068-2-52 • Halogen free
Power	• Input: 100-240V AC • Output: 350W, 55V DC 6.3A • DIN-Rail: TS-35/7.5 or 15 • Solid wire (AWG): 12-24 • Stranded wire (AWG): 12-24 • 18 AWG power cable included
Operating Temperature	-30° – 70° C (-22° – 158° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	400 x 300 x 150mm (15.75 x 11.8 x 5.9 in.)
Weight	3.7kg (8.2 lb.)
Surge Protector	• Maximum Continuous Operating Voltage: 150 Uc (Vac), 200 Ucpv (Vdc) • Current Impulse (8/20μs): 20 In (kA), 40 Imax (kA) • Voltage Protection Level (@ln): <0.8 Up (kV) • Temporary Overvoltage: 175 TOV (V/5s) • Working Current: <0.1 IPE (mA)
Certifications (for power supply)	• CE • FCC • UL 62368 • CB IEC 62368
Warranty	• Case: Lifetime • Power supply: 1 year • Surge protector: 1 year

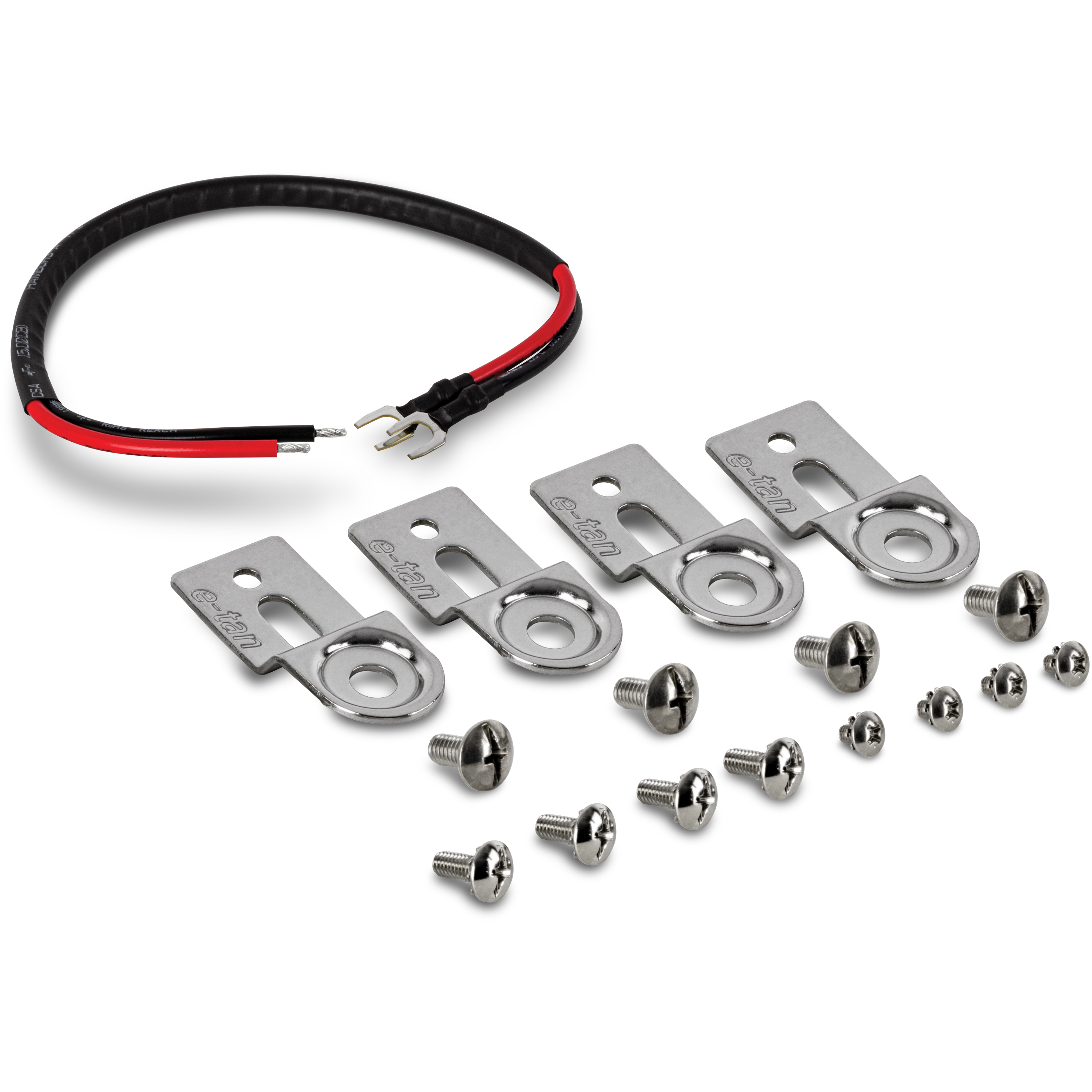

Package Contents	• TI-CA4K • Wall-mount accessories and power cable

Name

Description

Size

Downloads

File

TI-CA4K - Outdoor IP68 Weatherproof Enclosure - Datasheet.pdf

0.3mb

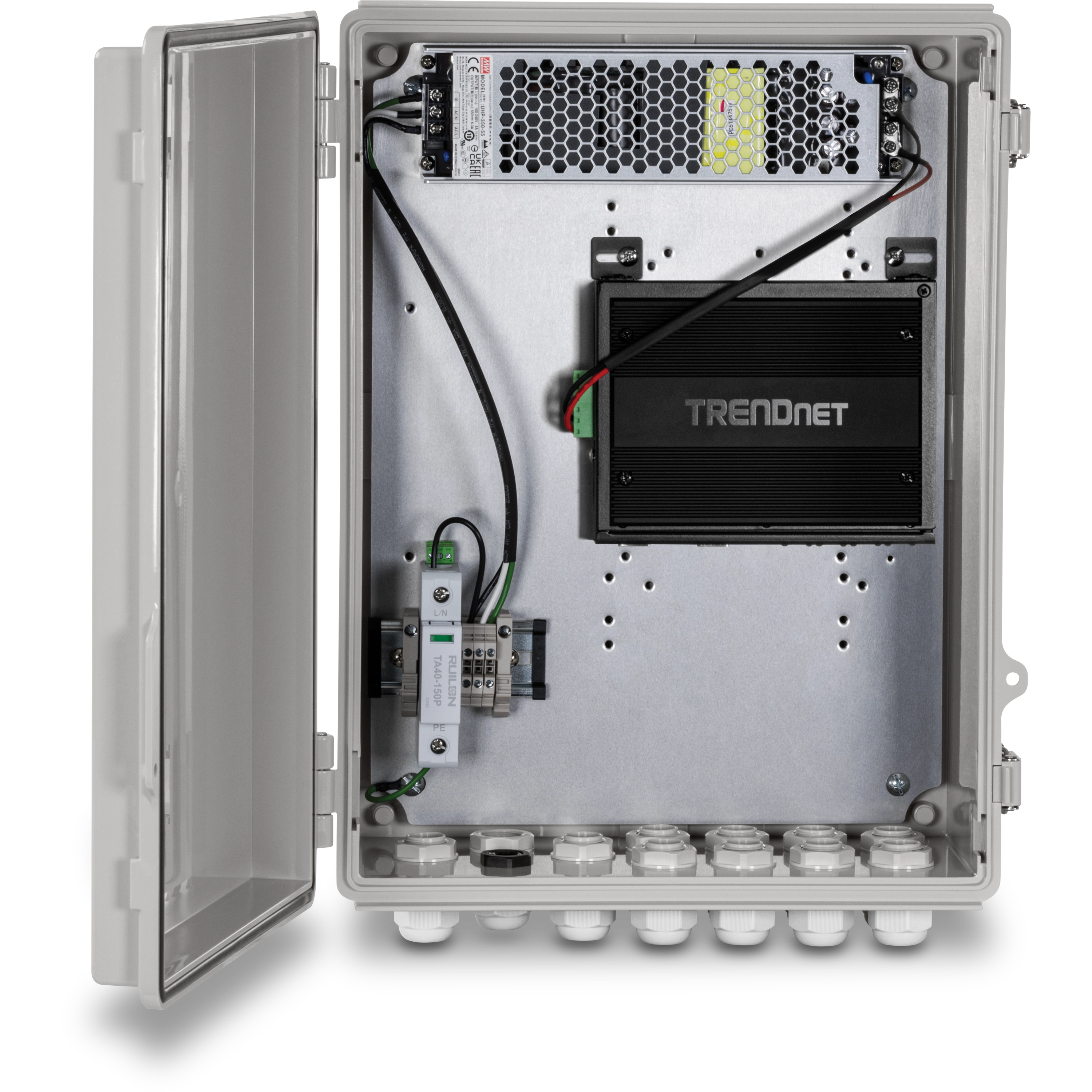

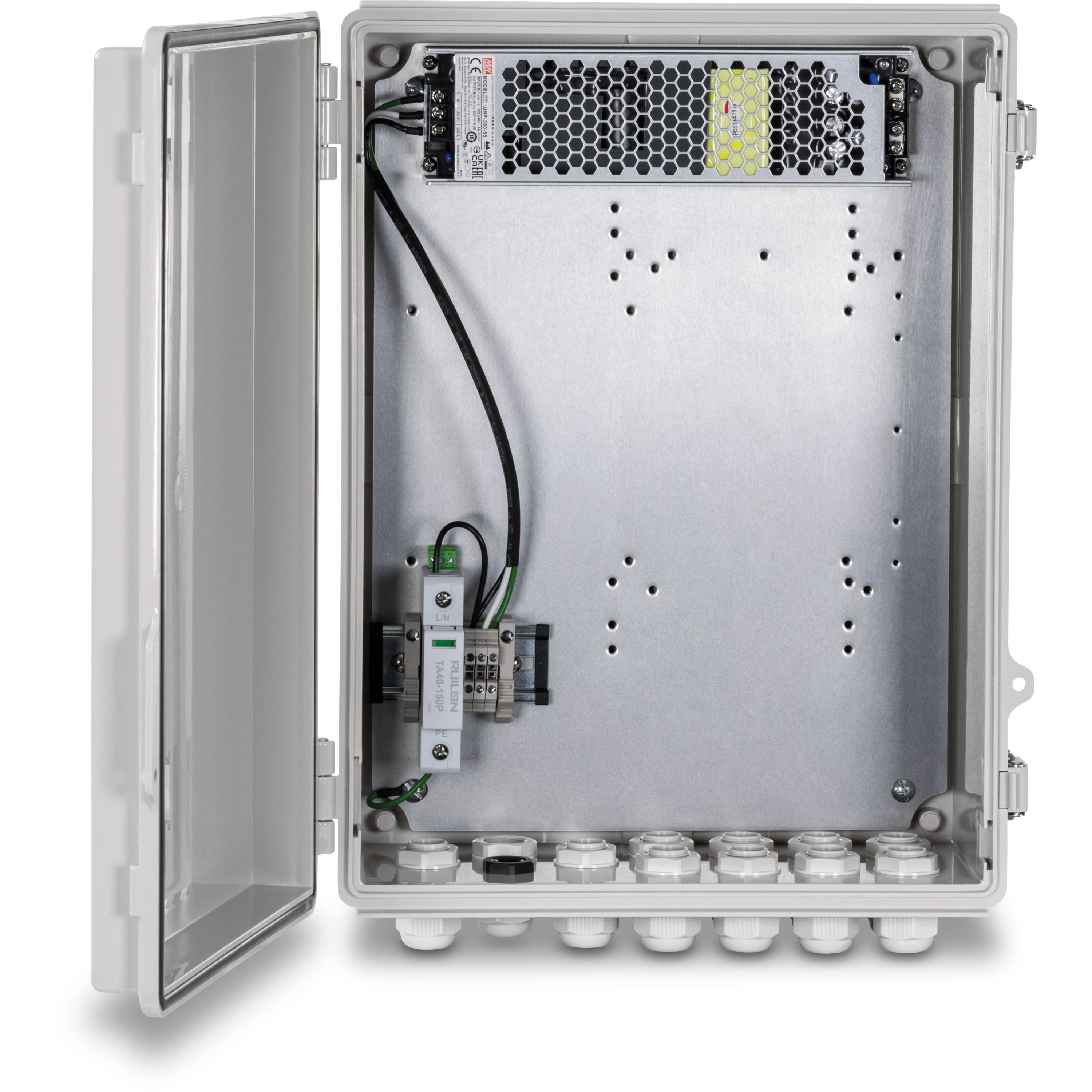

The TRENDnet Outdoor IP68 Weatherproof Enclosure with Power Supply model TI-CA4K is ideal for use with TRENDnet’s range of industrial switches, fibre converters and PoE injectors. The internal mounting holes of the outdoor network cabinet offer a secure and convenient installation method for industrial devices, protecting them from the elements. The extreme operating temperature range of -30° to 70°C (-22° to 158°F) enables installation in environments that are either very hot or very cold. This robust outdoor network enclosure comes with a power supply that can provide up to 350 W (55 V DC, 6.3 A) to industrial equipment such as PoE switches, injectors, and wireless access points.
