Trendnet - TI-OE110 - Industrial Waterproof Gigabit PoE+ Extender

Name: Trendnet - TI-OE110 - Industrial Waterproof Gigabit PoE+ Extender
Brand: Trendnet
SKU: TI-OE110

Part number:

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads Technical Overview

• Easy installation
• Extends 100m for a total distance of up to 200m (656 ft.) for PoE and non-PoE device
• Daisy chain up to two units for a total PoE network extension of up to 300m (984 ft.)*
• Supports PoE (15.4W) and PoE+ (30W)
• Extreme operating temperature range of -40°– 75° C (-40° – 167° F)
• IP67 rated waterproof enclosure
• Compact design
• PoE powered – no external power adapter required
• NDAA / TAA compliant (U.S. and Canada only)

Standards	• IEEE 802.3 • IEEE 802.3u • IEEE 802.3x • IEEE 802.3ab • IEEE 802.3af • IEEE 802.3at
Device Interface	• 1 x Gigabit PoE+ in port • 1 x Gigabit PoE+ out port • LED Indicators
Data Transfer Rate	• Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) • Gigabit: 2Gbps (full duplex)
RAM Buffer	128KB
MAC Address Table	2K
Jumbo Frame	9KB
Power	• PD Power Input: 802.3af 15.4W / 802.3at 30W • PoE Power Output: Up to 26W (max.)* • 6kV Surge Protection • Max. consumption: 1.7W (without PoE)
Enclosure	• IP67 rated • Tool-less design
MTBF	2,517,107 hrs @ 25° C
Operating Temperature	-40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	165 x 25mm (6.5 x 0.98 in.)
Weight	96g (3.4 oz.)
Certifications	• CE • FCC • LVD • IEC 60068-2-27 (Shock) • IEC 60068-2-31 (Freefall) • IEC 60068-2-6 (Vibration)
Warranty	3 year

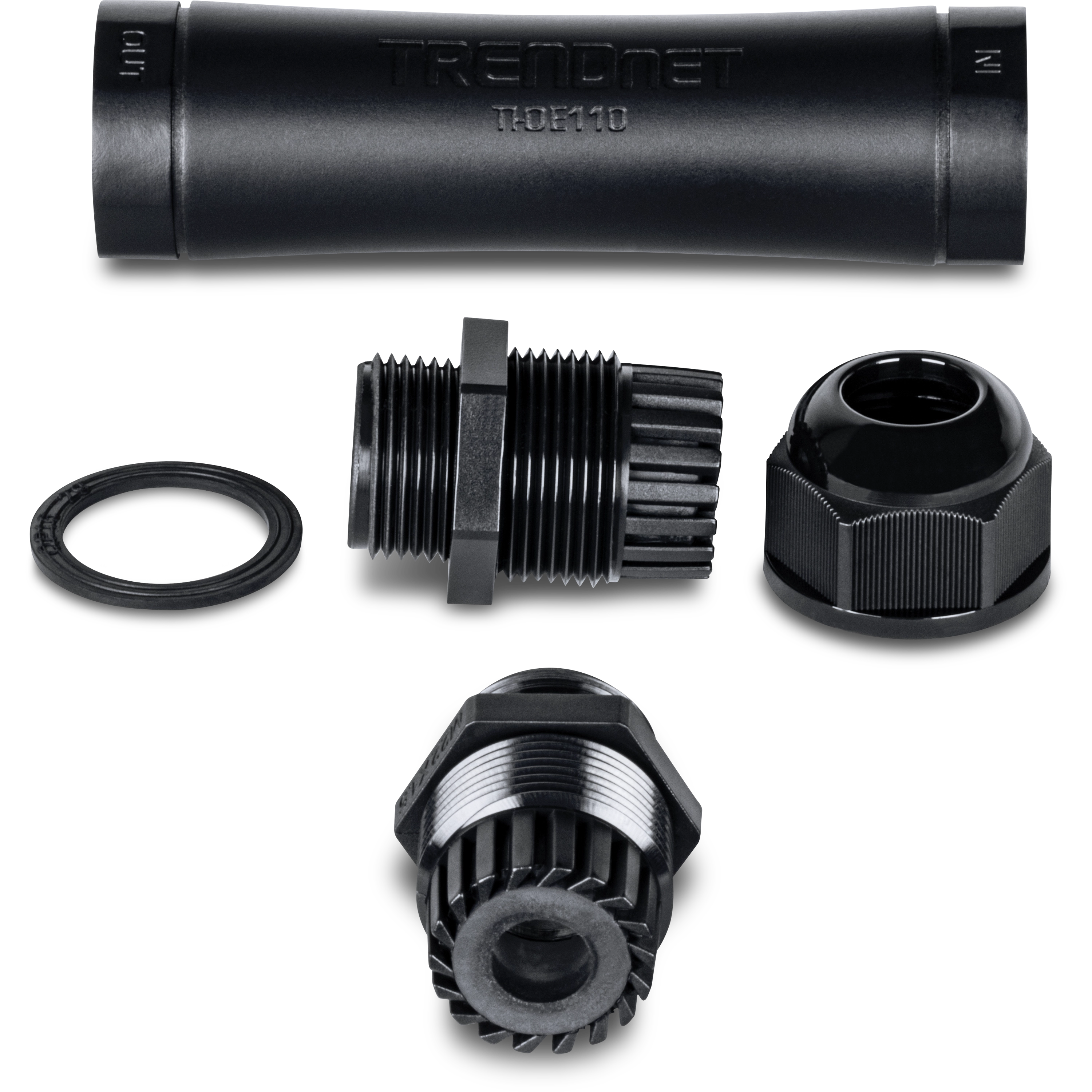

Package Contents	• TI-OE110 • 2 x Removable cable glands

Name

Description

Size

Downloads

File

TI-OE110 - Industrial Waterproof Gigabit PoE+ Extender - Datasheet.pdf

0.2mb

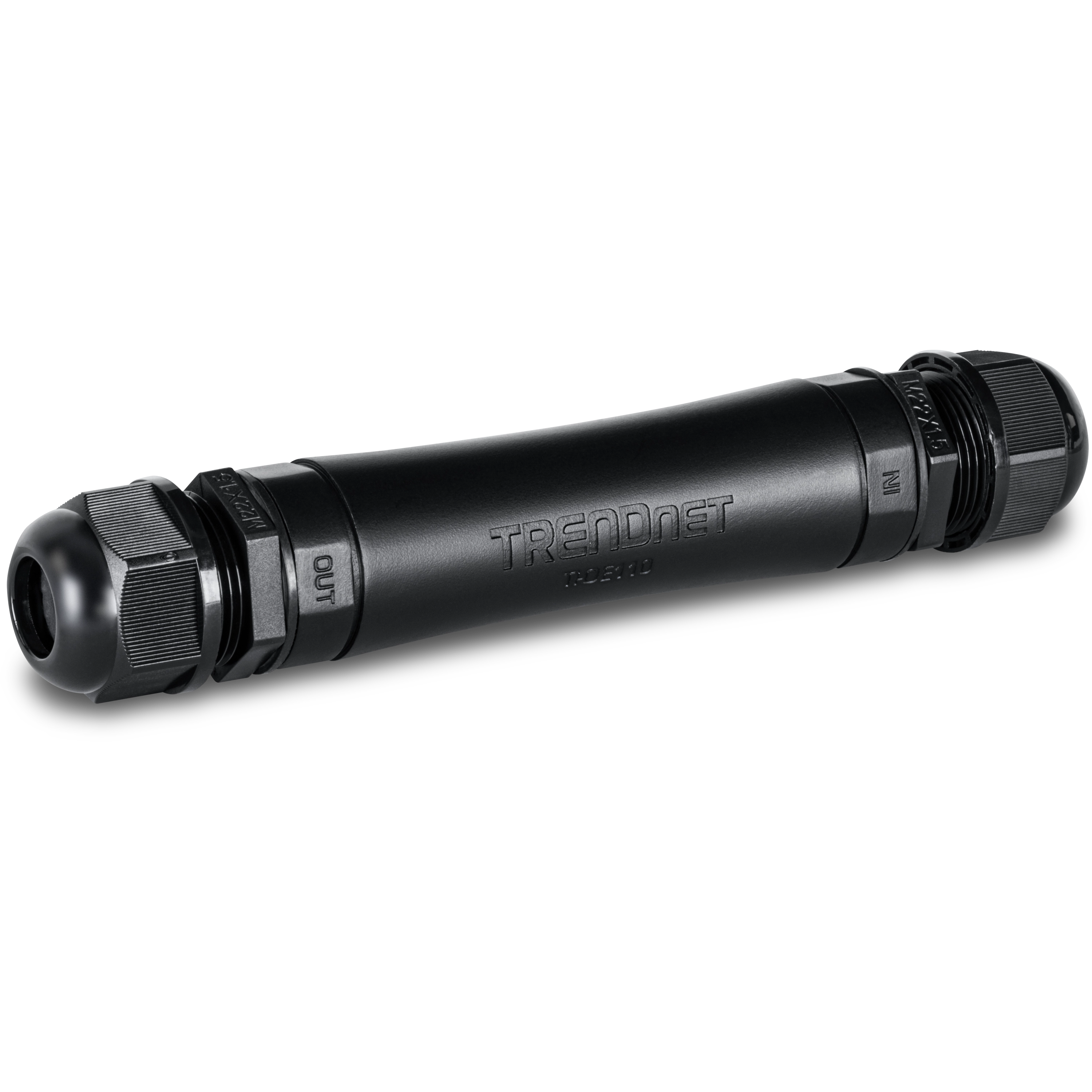

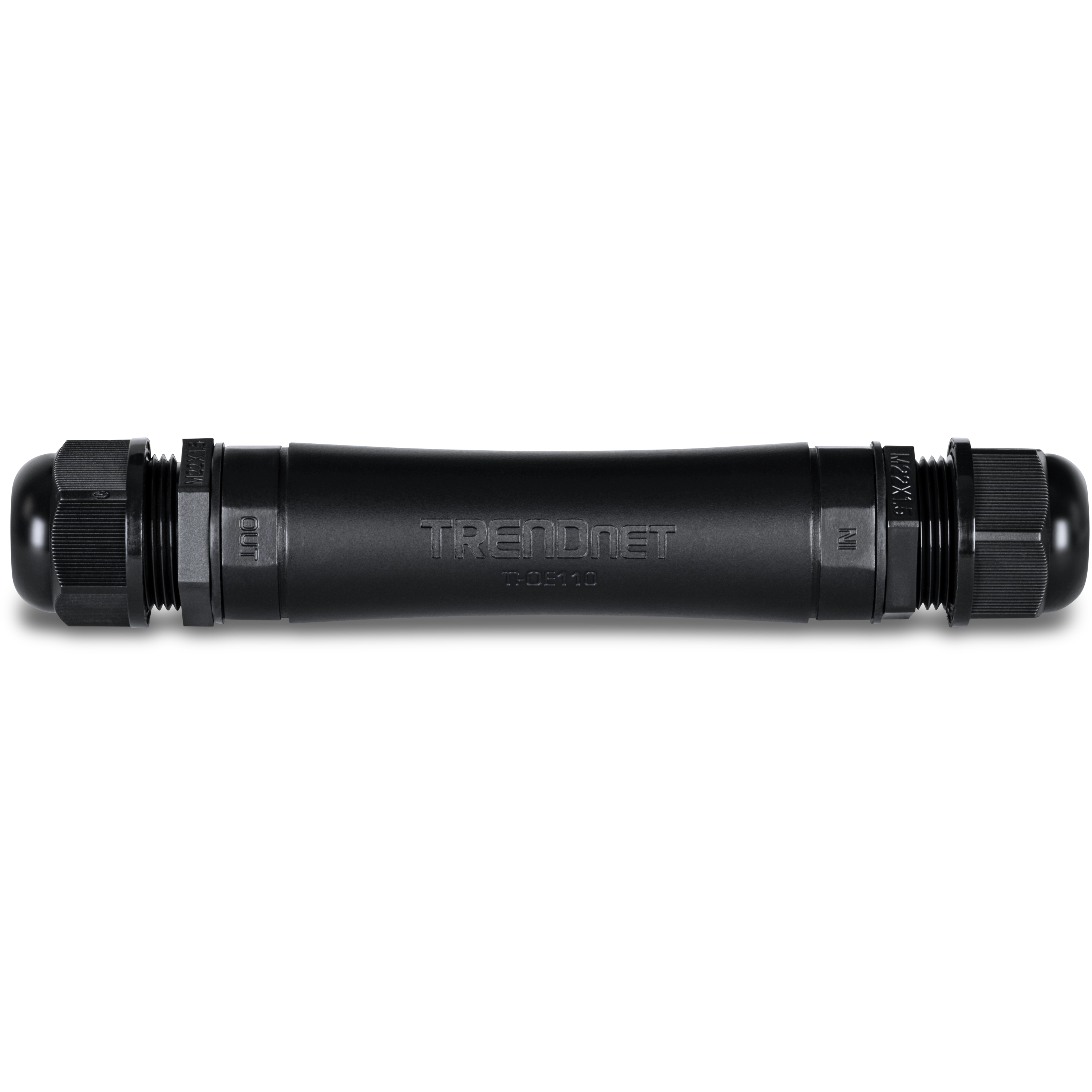

TRENDnet’s Industrial Waterproof Gigabit PoE+ Extender model TI-OE110 takes a single PoE+ connection and extends it by up to 100 metres (328 feet) to enable the installation of PoE or non-PoE devices in remote locations. Up to two outdoor PoE+ extenders can be daisy-chained for a total PoE network extension of 300 metres (984 feet) away from the PoE power source equipment. This industrial outdoor PoE+ extender conveniently auto-detects PoE or PoE+ connections and features a rugged, IP67-rated waterproof enclosure for flexible installation.
