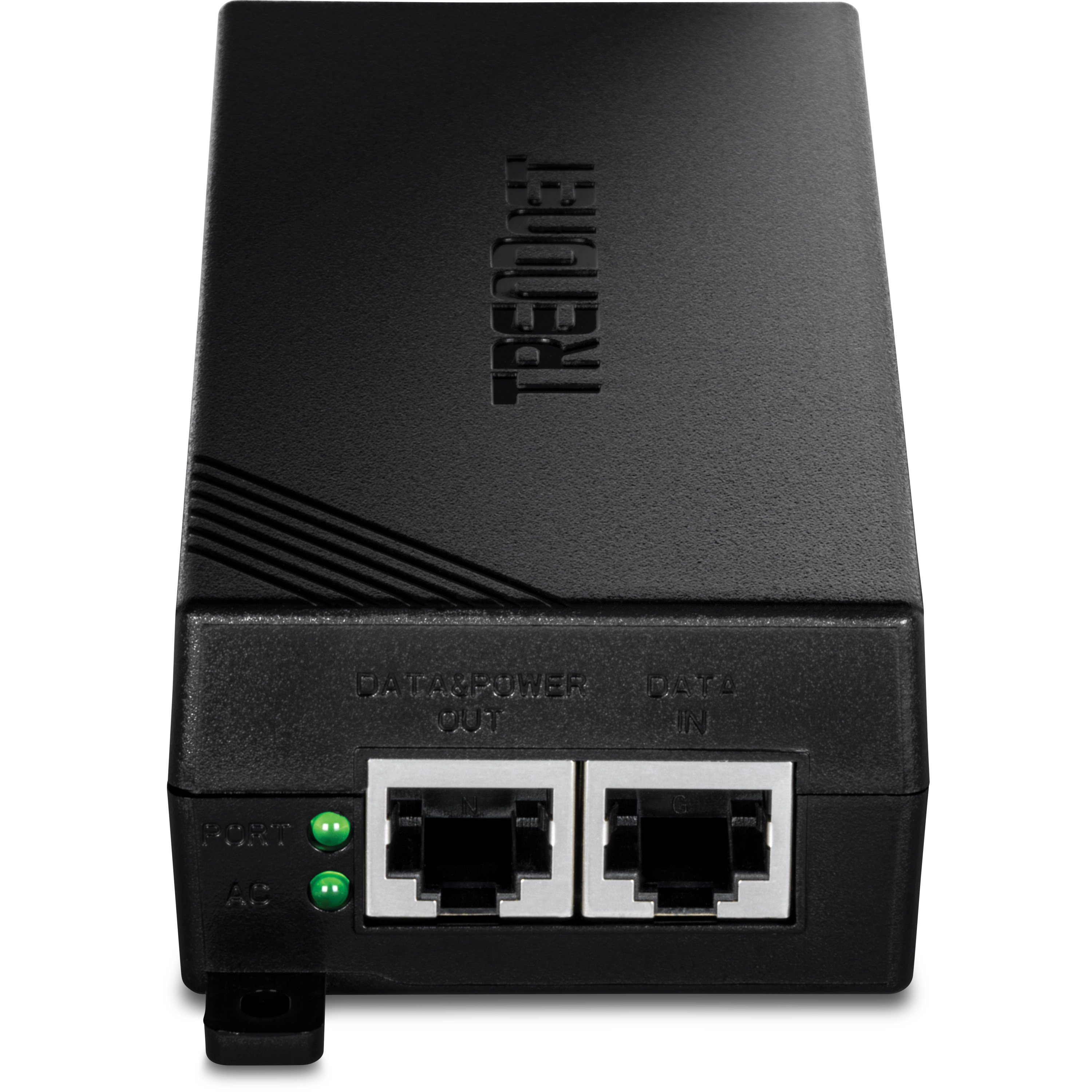

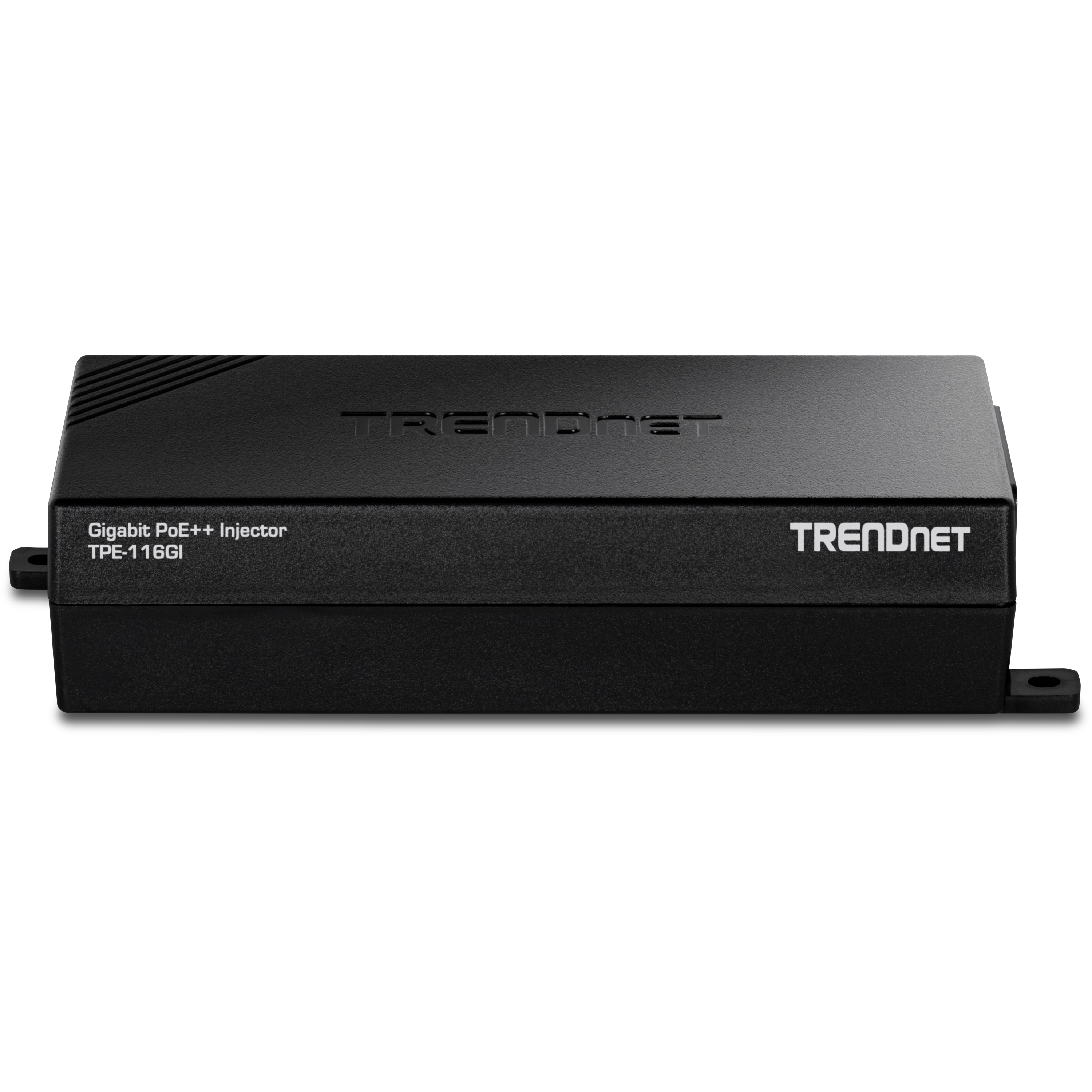

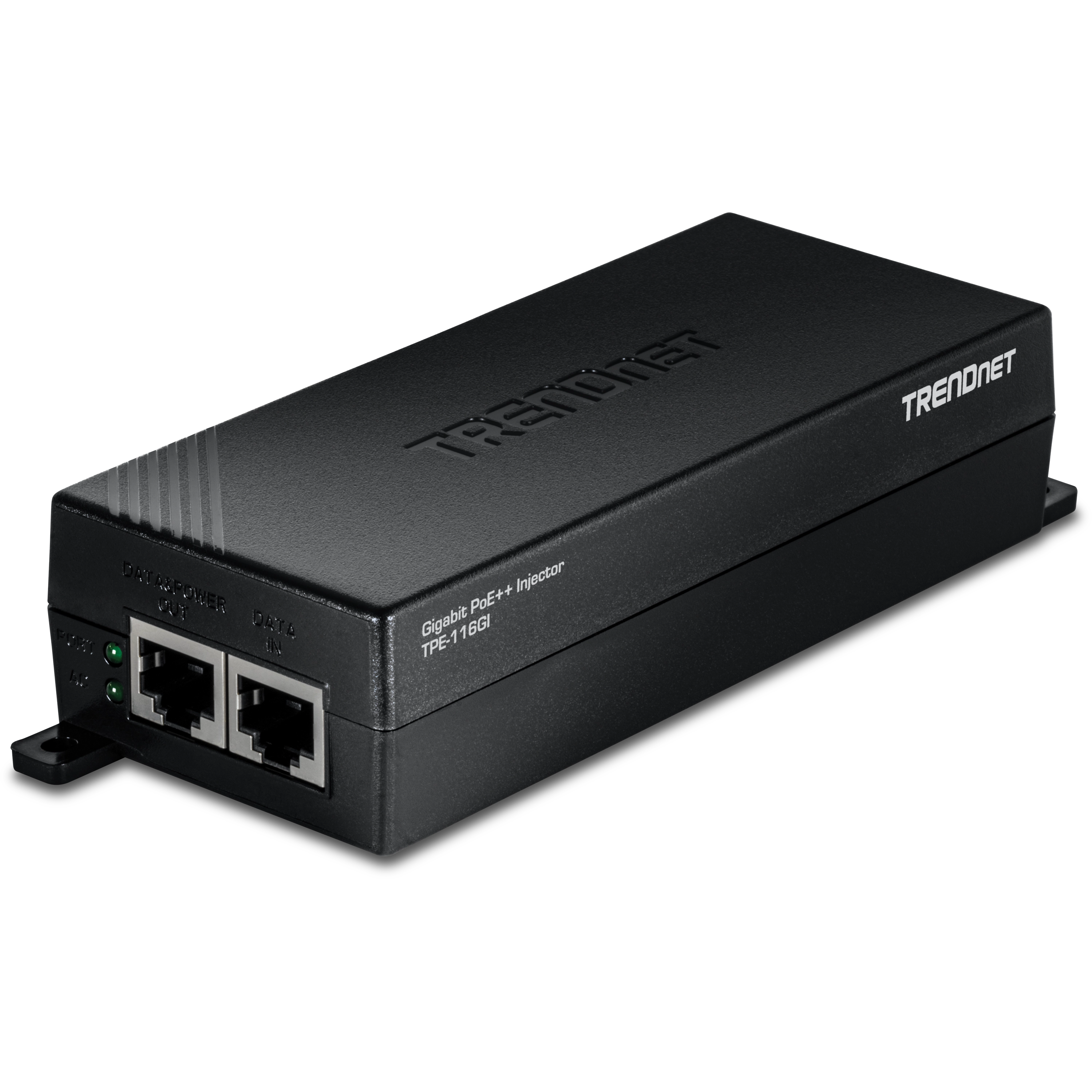

Trendnet - TPE-116GI - Gigabit 60W PoE++ Injector
• Supplies PoE (15.4W), PoE+ (30W) and PoE++ (60W)
• Network a PoE device located up to 100 meters (328 ft.) away
• Converts a non-PoE gigabit port to a PoE gigabit port
• Save on installation and equipment costs
• Wall mountable for installation flexibility
• Built-in internal power supply
• IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt compliant
• NDAA / TAA compliant (U.S. and Canada only)
| Standards | • IEEE 802.3 • IEEE 802.3u • IEEE 802.3ab • IEEE 802.3af • IEEE 802.3at • IEEE 802.3bt |
| Device Interface | • 1 x Gigabit port (data) • 1 x Gigabit PoE++ port (data + power) |
| PoE | Pins 1, 2, 4, 5 for power + and pins 3, 6, 7, 8 for power – Max. PoE Budget: 60W |
| Power | Input: 100-240V, 50/60Hz, 1.5A max |
| Power Consumption | Max. 0.9W (without PD) |
| Temperature | 0° – 40° C (32° – 104° F) |
| Humidity | Max. 90% non-condensing |
| Certifications | CE, FCC, ETL, LVD |
| Dimensions | 155 x 58 x 34mm (6.1 x 2.28 x 1.33 in.) |
| Weight | 214g (7.54 oz.) |
| Warranty | 3-year |
| Package Contents | • TPE-116GI • Power cord (1.5m / 5 ft.) |
The TRENDnet Gigabit 60W PoE++ Injector TPE-116GI combines electrical power with a Gigabit network connection. Its auto-sensing technology conveniently delivers the correct wattage needed to power your PoE devices. Simply connect the PoE++ injector to a non-PoE gigabit switch and run an Ethernet cable with data and power to network a PoE device up to 100 metres (328 feet) away. You can network a variety of PoE devices, including wireless access points, IP cameras, VoIP phone systems, IPTV decoders, access controls and more.
