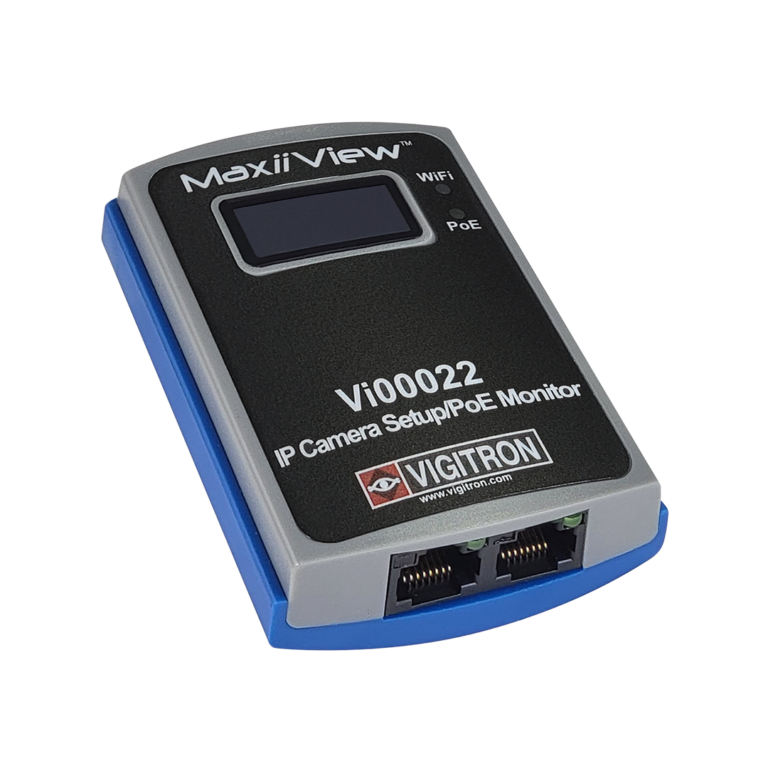

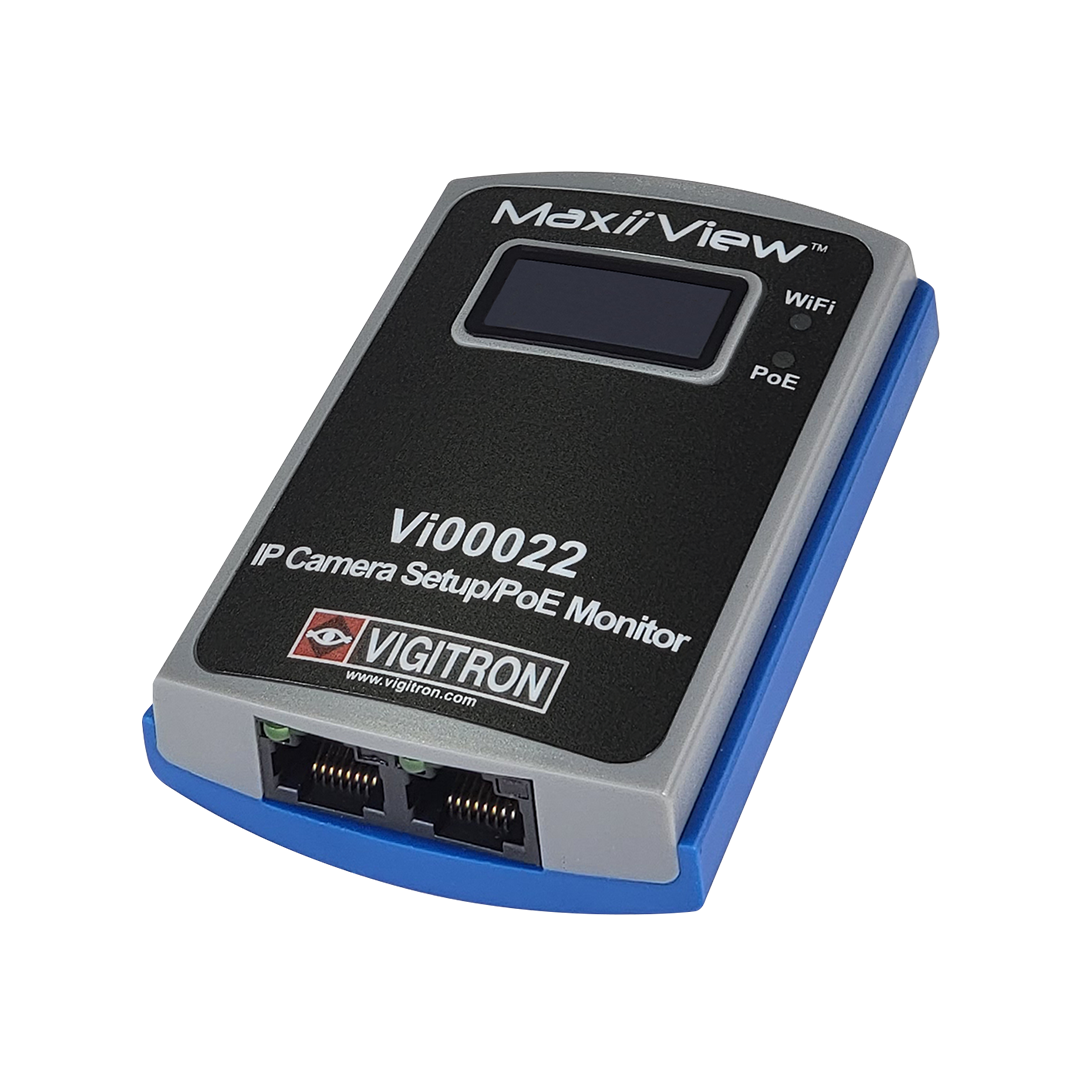

Vigitron's patent pending Vi00022 wireless camera setup tool offers a fast and reliable method for focusing and adjusting the view of IP cameras in the field. The connected IP camera image is transmitted through WiFi connection allowing for quick in-field view of image.
The Vi00022 is platform-independent and provides the ability to view IP camera image on smartphones, tablets, or computers operating with Android, iOS, or WindowsTM platforms by entering the connected device's user name and password.

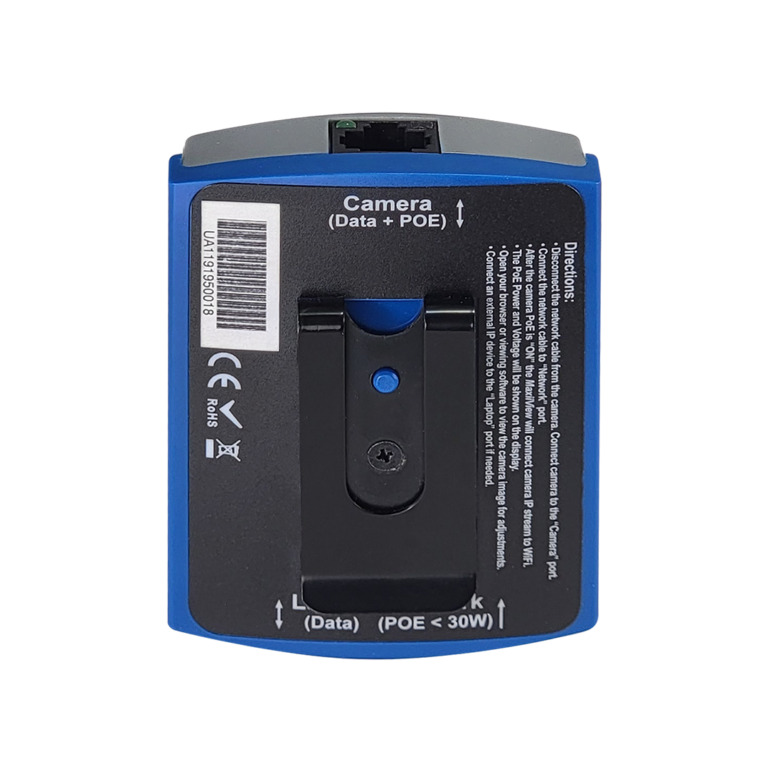

It also provides digital read-out-of-real-time PoE voltage and power at the input of the camera taking the guesswork out of installation. The Vi00022 can be connected to any PoE device to view voltage and power at the device input. It is very compact and light that can easily fit in a pocket or mounted on the installer's belt using its built-in belt clip. It does not need a local power source and uses only PoE power from the network to power itself and the connected camera. The Vi00022 is an ideal IP camera installation or debugging tool that saves time and money in the installation of IP cameras.
Features:
- Simplifies and speeds up installation and Camera positioning
- The compact and lightweight design makes it possible to operate it hands-free.
- Complies with IEEE 802.3af/at PoE standards, and can deliver up to 36W of PoE.
- Monitors PoE voltage and power on its OLED display.
- Enables focusing and adjusting the camera view through wired and wireless connections to the camera for viewing images on cell phones, tablets, or laptops.
- Compact design, light, and easy to use.
- Verifies camera connection and PoE from the network.
- Includes a built-in 3 port switch.
- Patented design.
| Electrical | - |
| Power | 2W, Uses PoE, no external power supply needed |
| Connectors | “Network”: RJ-45, 10/100Mbps, PoE in “Laptop”: RJ-45, 10/100Mbps, No PoE out “Camera”:RJ-45, 10/100Mbps, PoE out |
| Wire Compatibility | Cat5e, Cat6, Cat6a |
| IP Address | IvP4 Auto or Manual |
| IP Setting | IP Address automatic or programmable subnet |
| Security | WPA2-PSK with user configurable password |
| SSID | User configurable |
| Frequency | Default 2.4 Ghz b/g/n. |
| LED Indicators | Activity: Green LED on each RJ45 Connector PoE: Green LED Wireless Transmission: Blue LED |
| Number of clients | 12, Maximum |
| Wifi operating Distance | 50 feet, 15m |

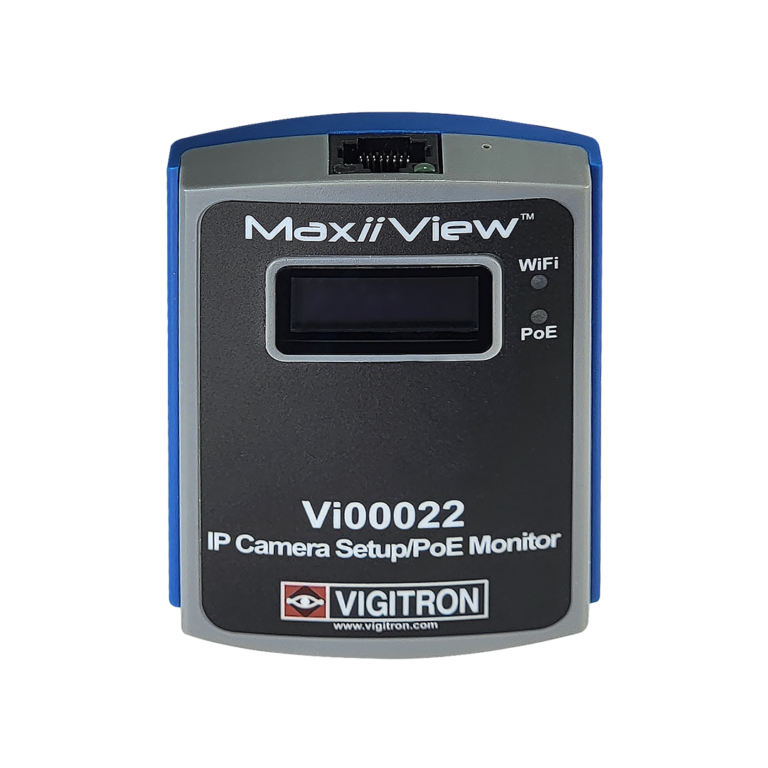

| Display | 128x32 monochrome OLED display |
| PoE Standards | IEEE 802.3af, IEEE 802.3at, and most non-standard PoE sources up to 36W |
| Regulatory | - |
| Safety | CE |
| Environmental | RoHS, WEEE |
| Regulatory | - |
| FCC | FCC Part 15, Subpart B, Class B 2010 |
| Safety | CE |
| Environmental | RoHS, WEEE |
| Environmental | - |
| Humidity | 0 to 95%, non-condensing |
| Temperature | Operating: -20°C to +50°C Storage: -20°C to +50°C |
| Mechanical | - |
| Dimensions | 3.36 x2.56 x1.19 in., 8.53x6.5 x3 cm(HxWxL) |
| Weight | 0.181 lb; 82 g |
| Housing | ABS plastic, UL rating of 94V-0 |
