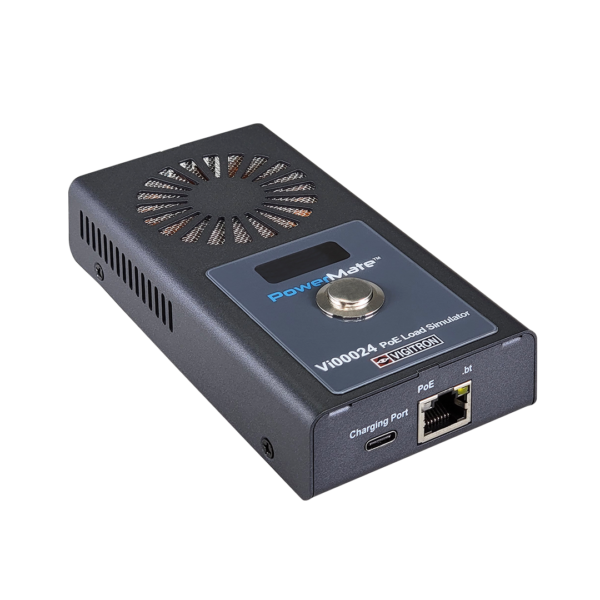

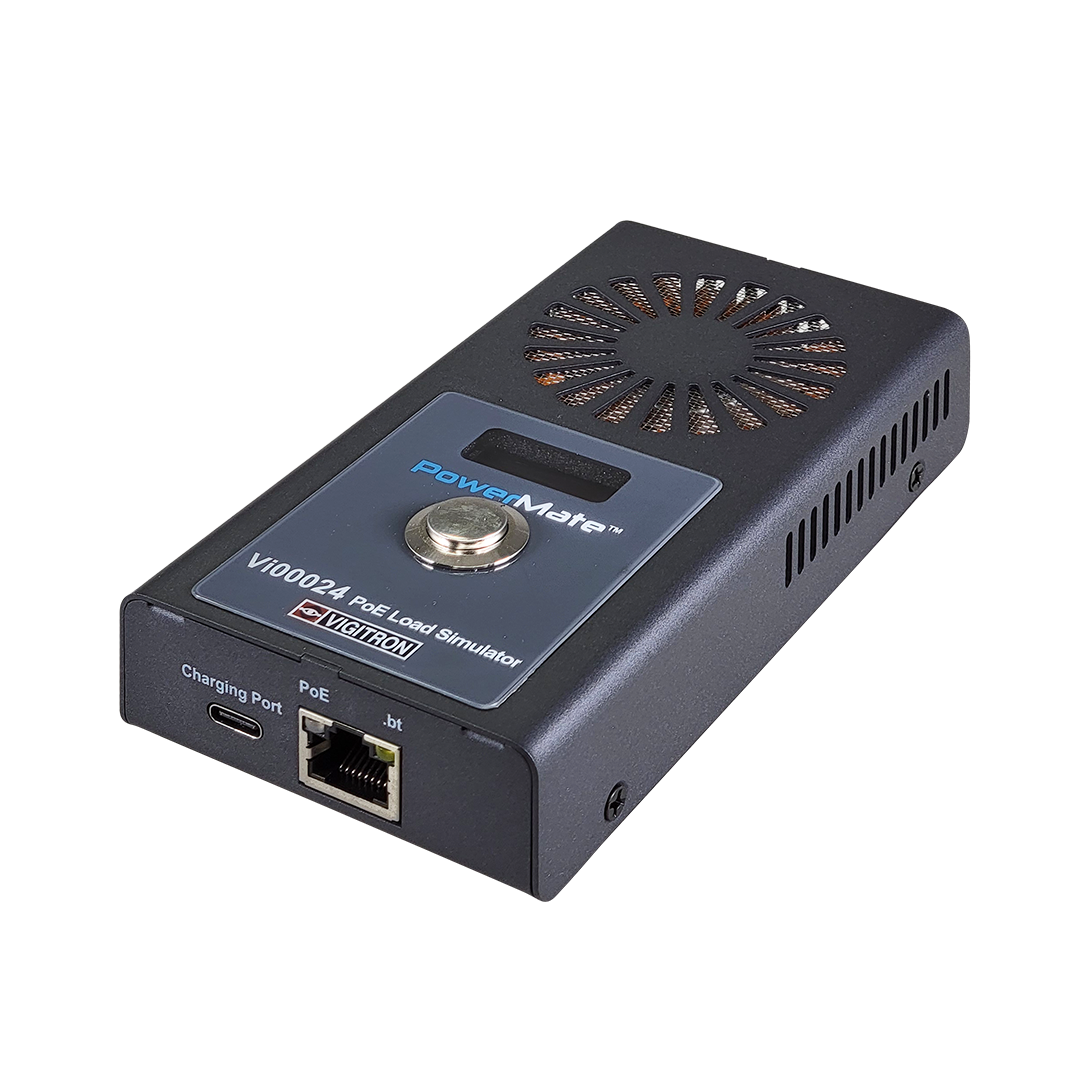

Vigitron’s patent-pending Vi00024 is an innovative test tool that installation reliability by measuring PoE capacity at any point of networks before installing a camera. The Vi00024 simulates PoE devices and measures the maximum PoE capacity received from the PoE source over the network. It is compliant with IEEE 802.3af/at/bt standard up to 74W.

The Vi00024 operates in both Manual and Auto modes. In manual mode, the user can manually increase the PoE consumption of the Vi00024 until it reaches the maximum available PoE. In the auto mode, the Vi00024 with the push one bottom can measure the maximum available PoE in a few seconds. The Vi00024 includes a rechargeable battery that, can be charged via a USB type C connector using any standard USB charger. It is very low power and with a full charge can operate for several days.

The Vi00024’s compact and lightweight construction makes it easy to carry and use. It is easy to use and helps to speed up installations and prevent service calls by locating and helping to solve PoE problems.

Features:

• Confirms if a network can provide sufficient PoE power before installing the camera
• Measures the maximum PoE power at any point of a network
• Compliant to IEEE 802.3af/at/bt standard PoE up to 74W
• Operates in auto or manual mode to measure maximum available PoE
• Displays the PoE power and voltage on its OLED Display
• Compatible with 10/100/1000 Base-T Ethernet
• Its built-in rechargeable battery can last several days of operation
• Patent pending
