Vigitron - Vi00103W - NetMux Weatherproof Ethernet and PoE Port Multiplexer

Product Overview

The Net Mux Vi00103W is an IP66-rated weatherproof multiplexer that connects two IP/PoE devices to a single PoE switch over one Cat5/6 cable. It delivers up to 37W per device and is fully compliant with IEEE 802.3af/at standards, requiring no external power for operation. This compact solution simplifies outdoor installations by doubling port capacity without the need for additional cable runs.

Key Configuration

• • Ethernet interface: 10BASE-T and 100BASE-T
• • PoE compatibility: IEEE802.3af/at, up to 37W per port
• • Power source: no external power needed
• • Weatherproof rating: IP66 (TX module)
• • Operating temperature: -40°C to +65°C; storage: -40°C to +70°C

Key Features

Connects two IP/PoE devices over a single Cat5/6 cable, significantly reducing installation time and costs. This self-powered solution features a weatherproof (TX) module for outdoor use and is fully CE, FCC, RoHS, and WEEE compliant.

Technical Context

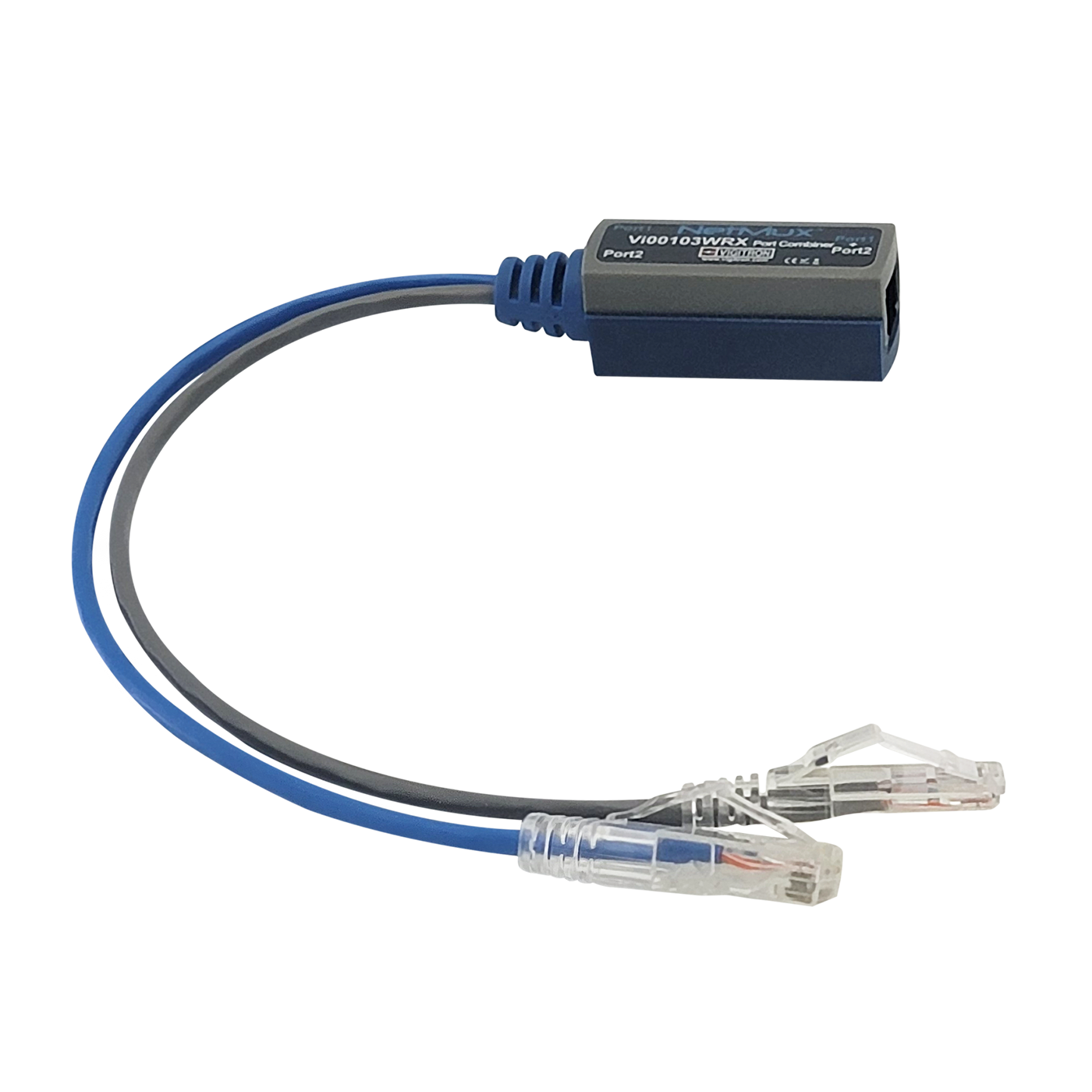

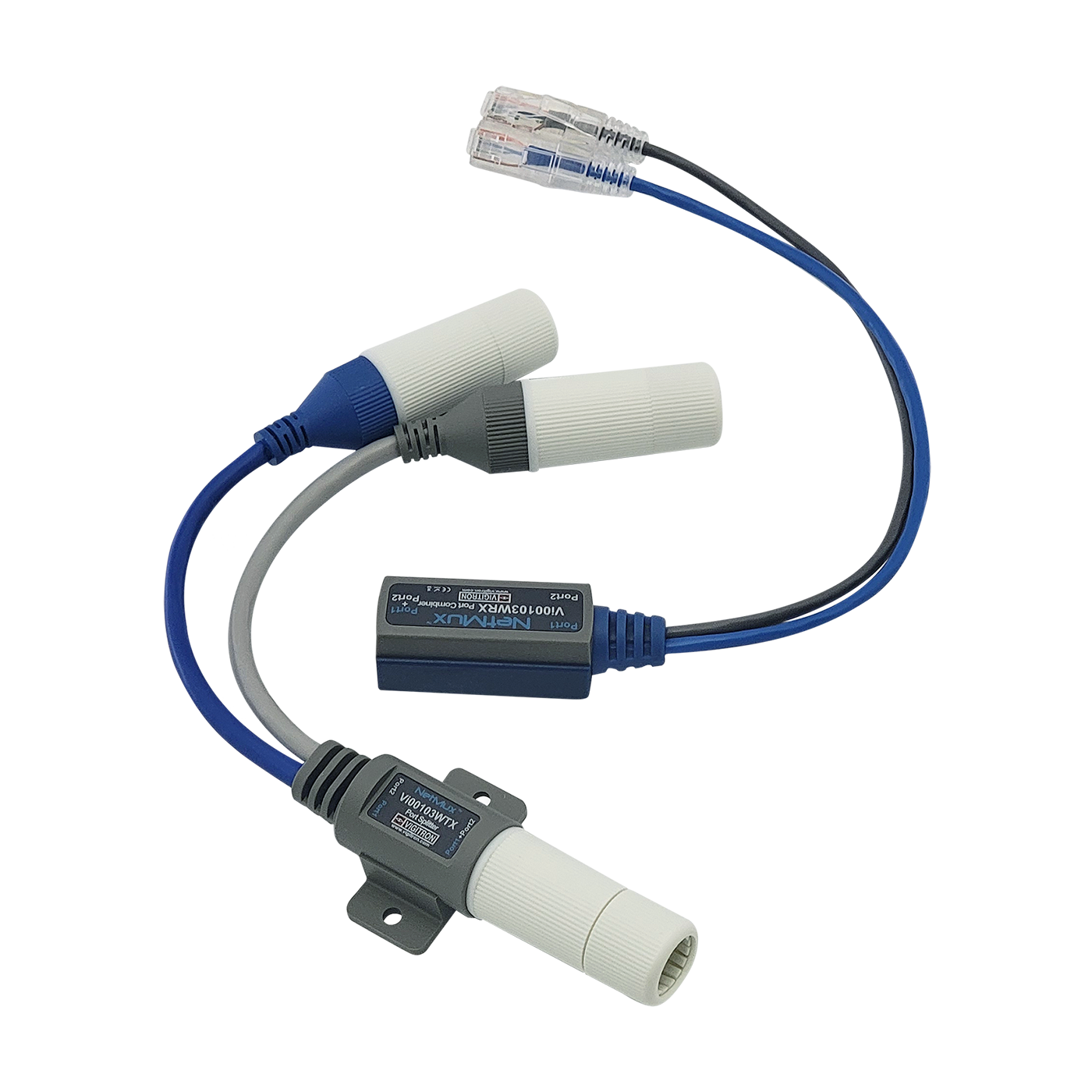

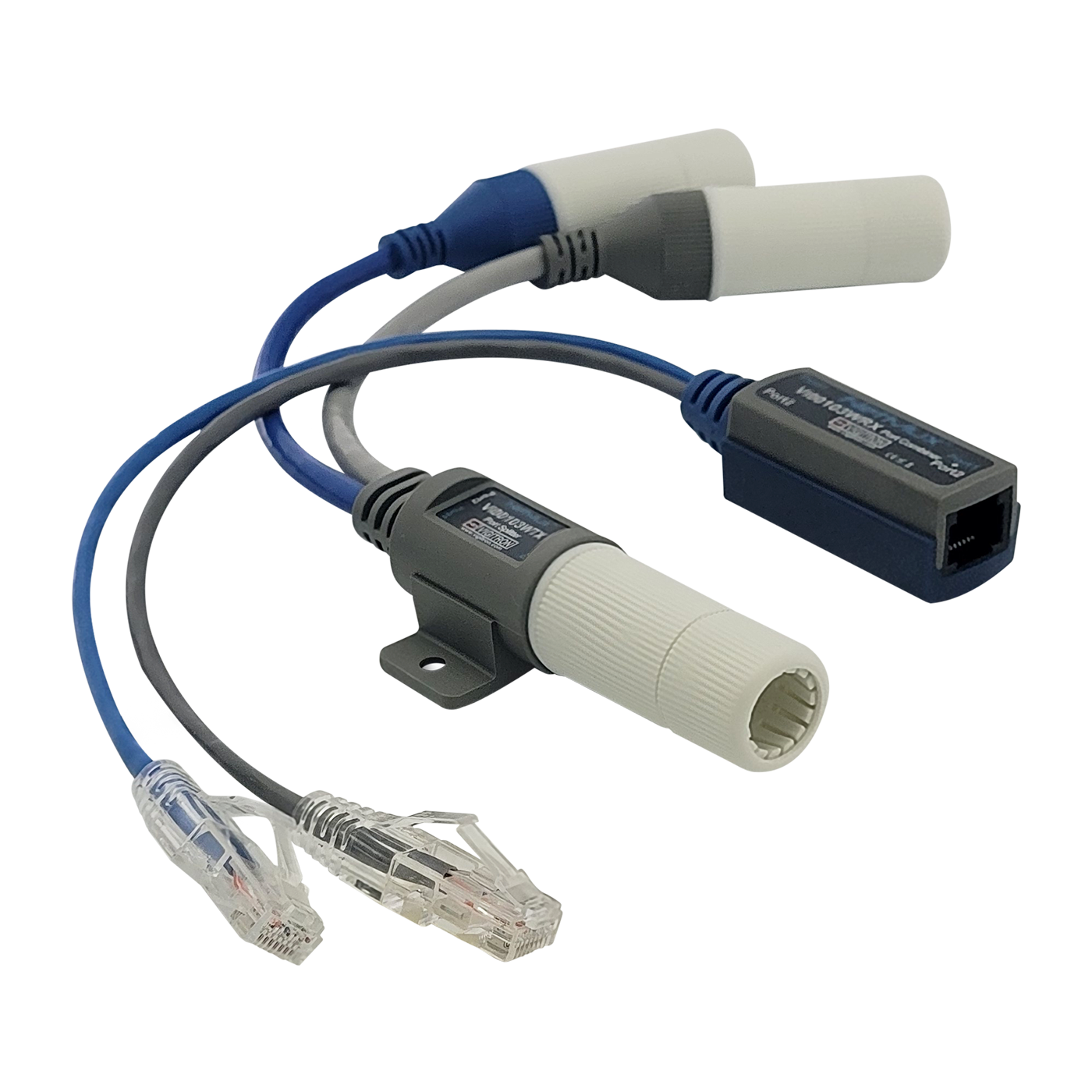

The features receiver with two male and one female RJ45 connectors, paired with a Vi00103WTX transmitter module equipped with three weatherproof female RJ45 pigtails. Both units operate reliably in 0–95% non-condensing humidity, ensuring stable connectivity for outdoor and high-moisture environments.

Installation Notes

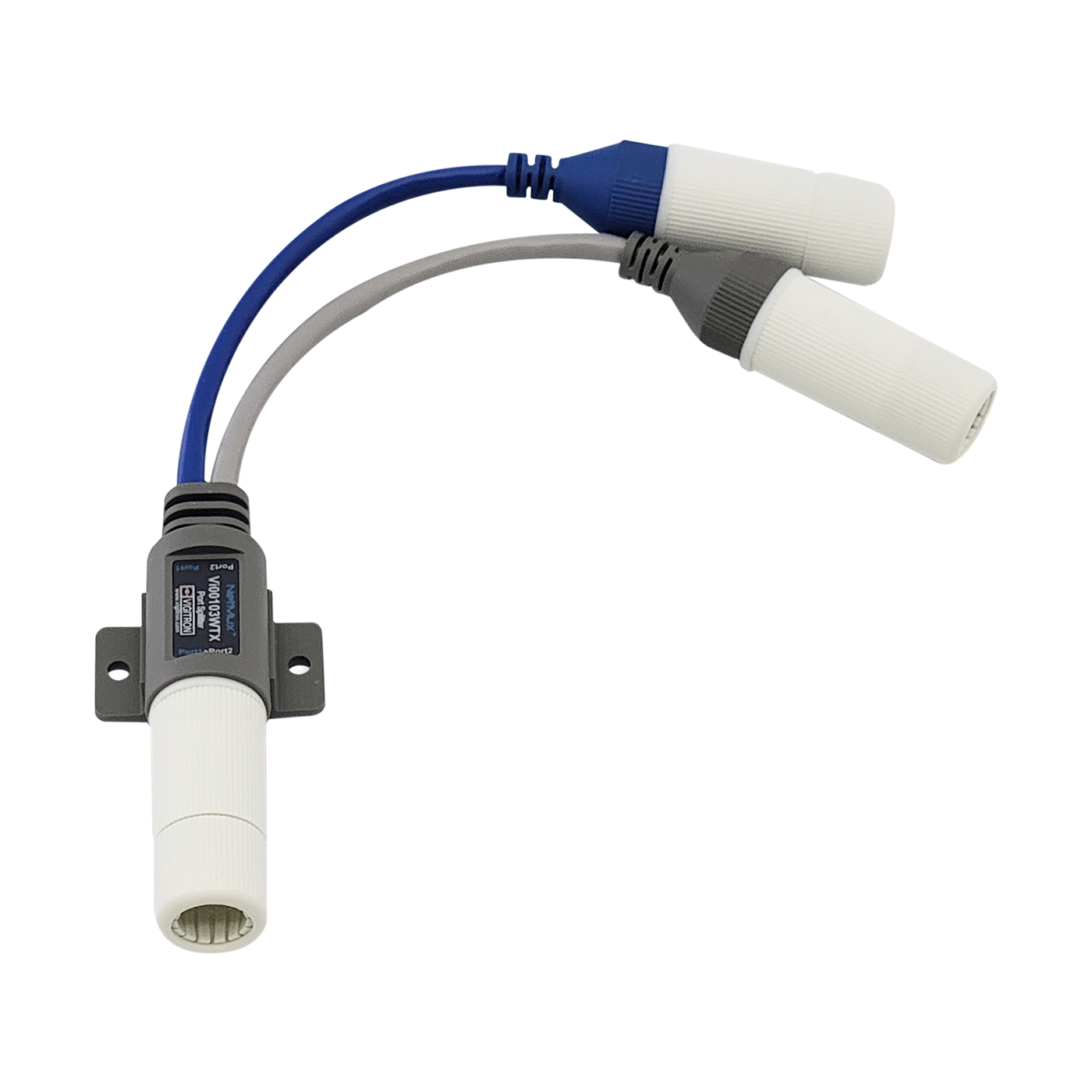

The compact Vi00103RX 31g features 10-inch pigtails, while the IP66-rated Vi00103TX is 75 g and includes 7.7-inch pigtails for rugged outdoor use. Both modules operate reliably from -40°C to +65°C.
