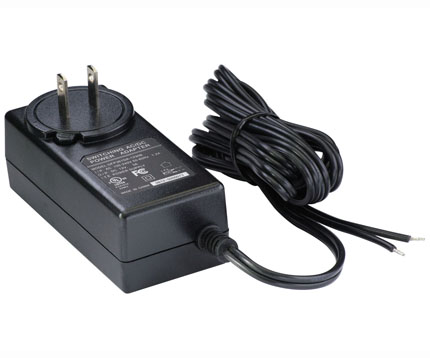

Vigitron - Vi0014 - Wall Mount Power Supply, 12 VDC @ 3 A, 90-240 VAC Input
Part number:
Vi0014
Price:
Vigitron’s Vi0014 is a highly reliable, 36W single-output 12VDC power adapter that meets the power requirements of analog and IP CCTV products. This product is equipped with a 3-pin Standard I AC power plug that can accept AC input 100VAC to 240VAC.
It provides over Voltage Protection, Short Circuit Protection, and Over Current Protection to protect powered devices when any of these conditions occur. The Vi0014 intelligent system will evaluate fault conditions and once no longer present will return power to normal operations.
Features:
- Universal AC input / Full range100 ~ 240VAC
- High efficiency and low operation temperature
- Soft-start current can reduce the AC input impact efficiency
- Provides Short circuit, Overload, Over voltage protection
- Fully enclosed plastic case
- Compact size, light weight
- 100% full-load burning test
- Installed with EMI filter
- 1 year warranty
| Electrical | |
| Input Voltage | Universal 100~240 VAC @ 47~63 Hz |
| Inrush Current | 50A maximum @ any input range |
| Cold start | 25°C @ full load |
| Output Voltage | Voltage +12VDC +/- 5% @ 3A |
| Output Power | 36W |
| Ripple/Noise | 120mV @ full load with 20 mHz bandwidth |
| Output | Striped Wired |
| Average Efficiency | >=81% @ 115 VAC and max load |
| Protection | Over voltage protection (OVP) Over current protection (OCP) Short circuit protection (SCP) Automatic recovery after fault is removed |
| Regulatory | |
| FCC, CE UL | (under ZF120A-1203000 part number) |
| EMS | Immunity EMC Directive 2004/108/EC, (EN55022 / EN55024) |
| Environmental | |
| Humidity | 20% ~ 80% RH |
| Temperature | Operating: 0°C to +60°C (32°F to +140°F) Storage: -20°C to +80°C (-4°F to +176°F) |
| Relative Storage | 10% ~ 90% |
| Cooling | Natural air, no fan required |
| Input | |
| Current | 3A maximum @ 115/230 input range |
| Mechanical | |
| Dimensions | Case: 3.39 x 1.89 x 1.22 in., 86 x 48 x 31 mm (LxWxH) |
| Weight | 0.375 lbs. (170g) |
| Cable Length | 70 in., 1778mm |
