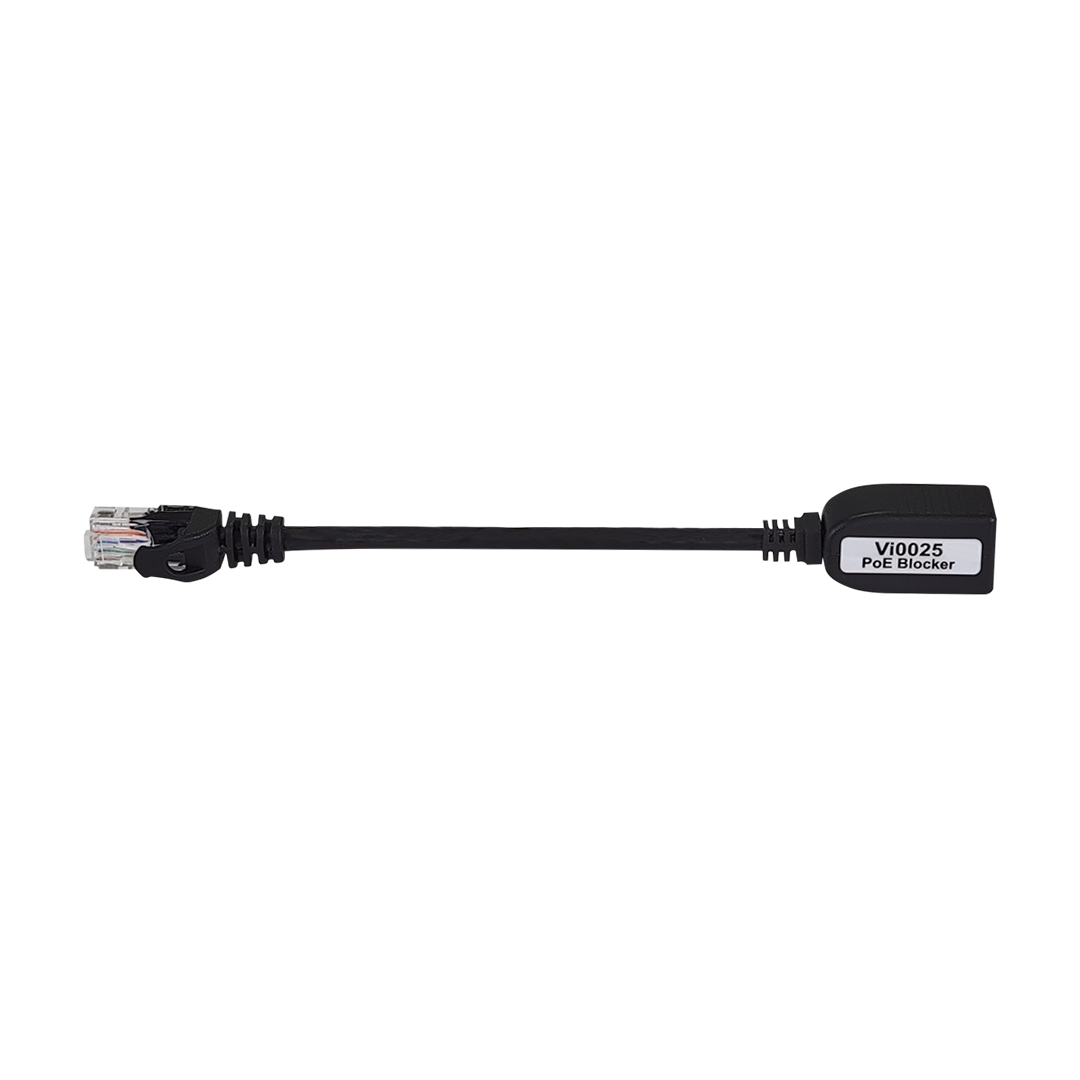

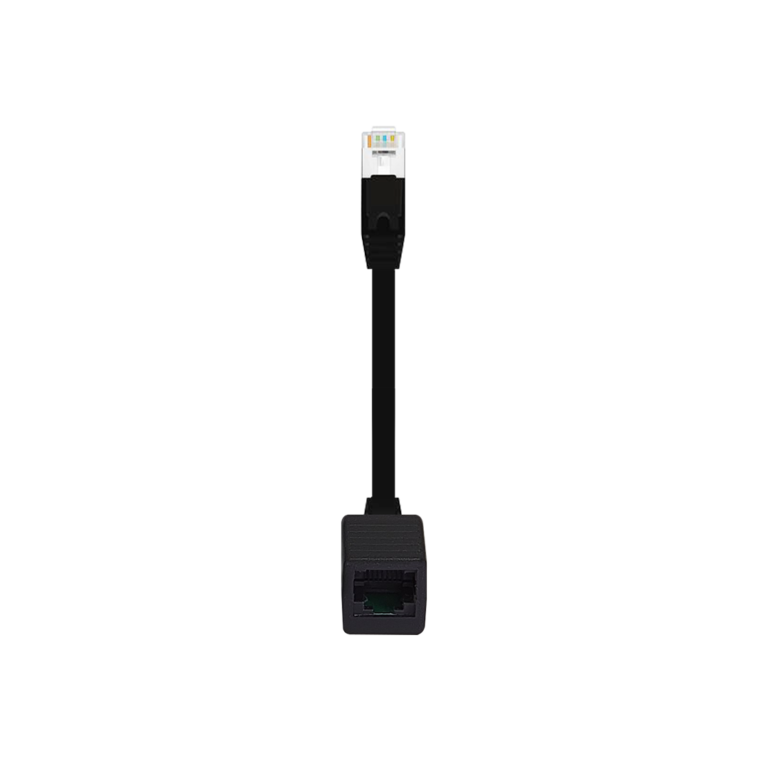

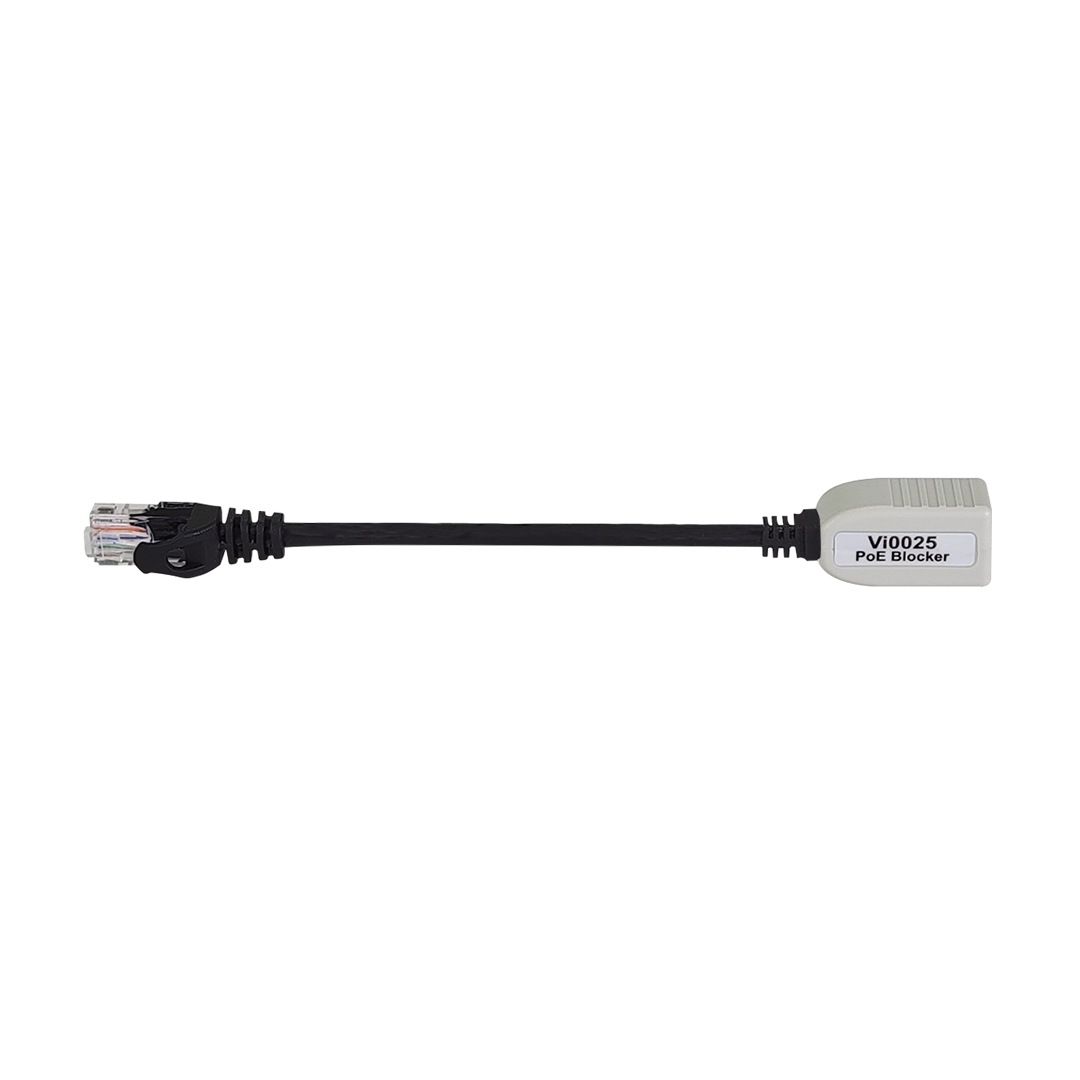

Vigitron - Vi0025 - PoE Blocker for blocking PoE from "always on" PoE sources
Part number:
Vi0025
Price:
Vigitron’s Vi0025 is used to block PoE from passing through to non-powered PoE devices preventing potential equipment damage but allowing other PoE enabled products to be powered normally.
Features:
- Blocks PoE power but allows the flow of data to prevent the “AlwayOn” PoE sources to damage connected PoE equipment
- Compatible with 10/100/1000Base-T
| Electrical | - |
| Connectors | Data and PoE Input: Female RJ45 Data Side: Male RJ45 |
| Compatibility | All types of PoE formats |
| Regulatory | - |
| Safety | CE |
| Environmental | RoHS, WEEE |
| Environmental | - |
| Humidity | 0 to 95%, Non-Condensing |
| Temperature | Operating: 0°C to +50°C Storage: -20°C to +70°C |
| Mechanical | - |
| Dimensions | 8.6 in., 21cm Total length |
| Weight | 0.37lbs (16g) |
| Housing | ABS plastic, UL rating of 94V-0 |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
Product_Drawing.pdf
0.1mb
File
Application-Drawing
0.2mb
