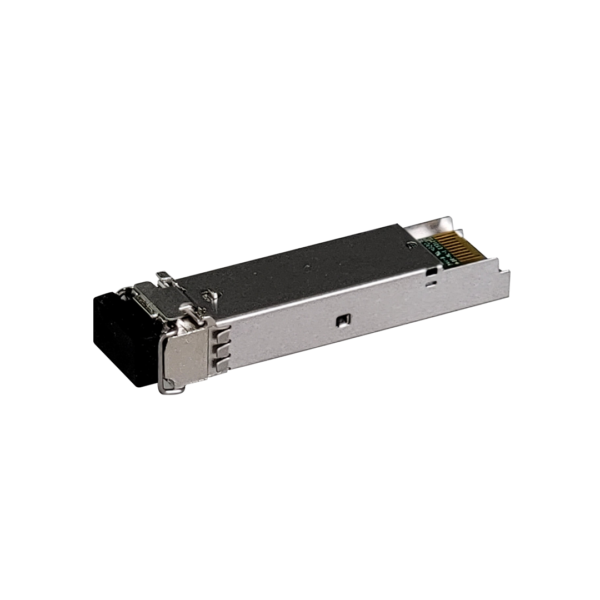

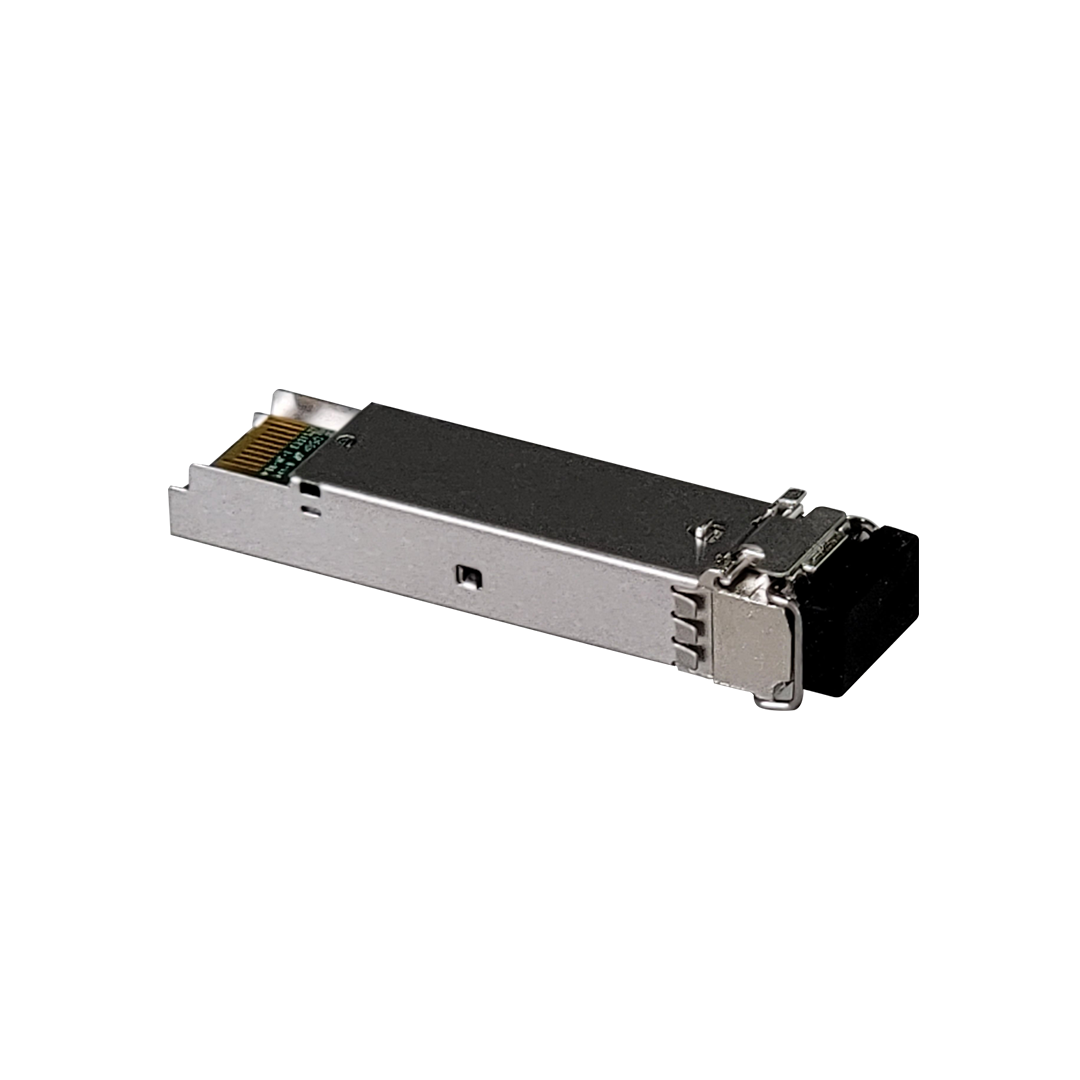

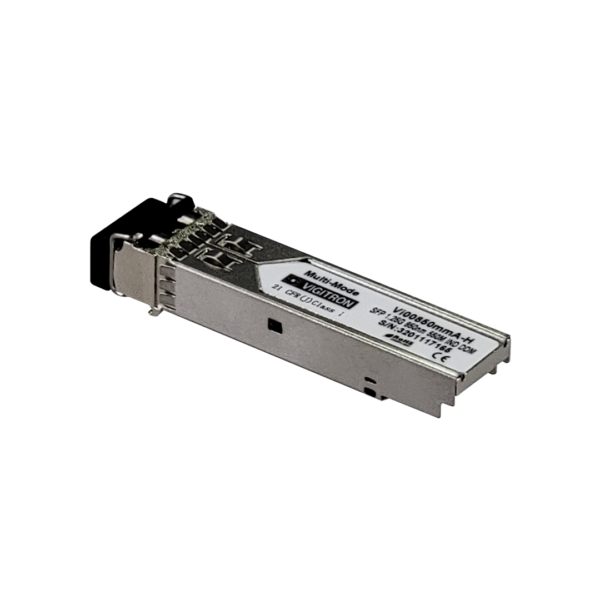

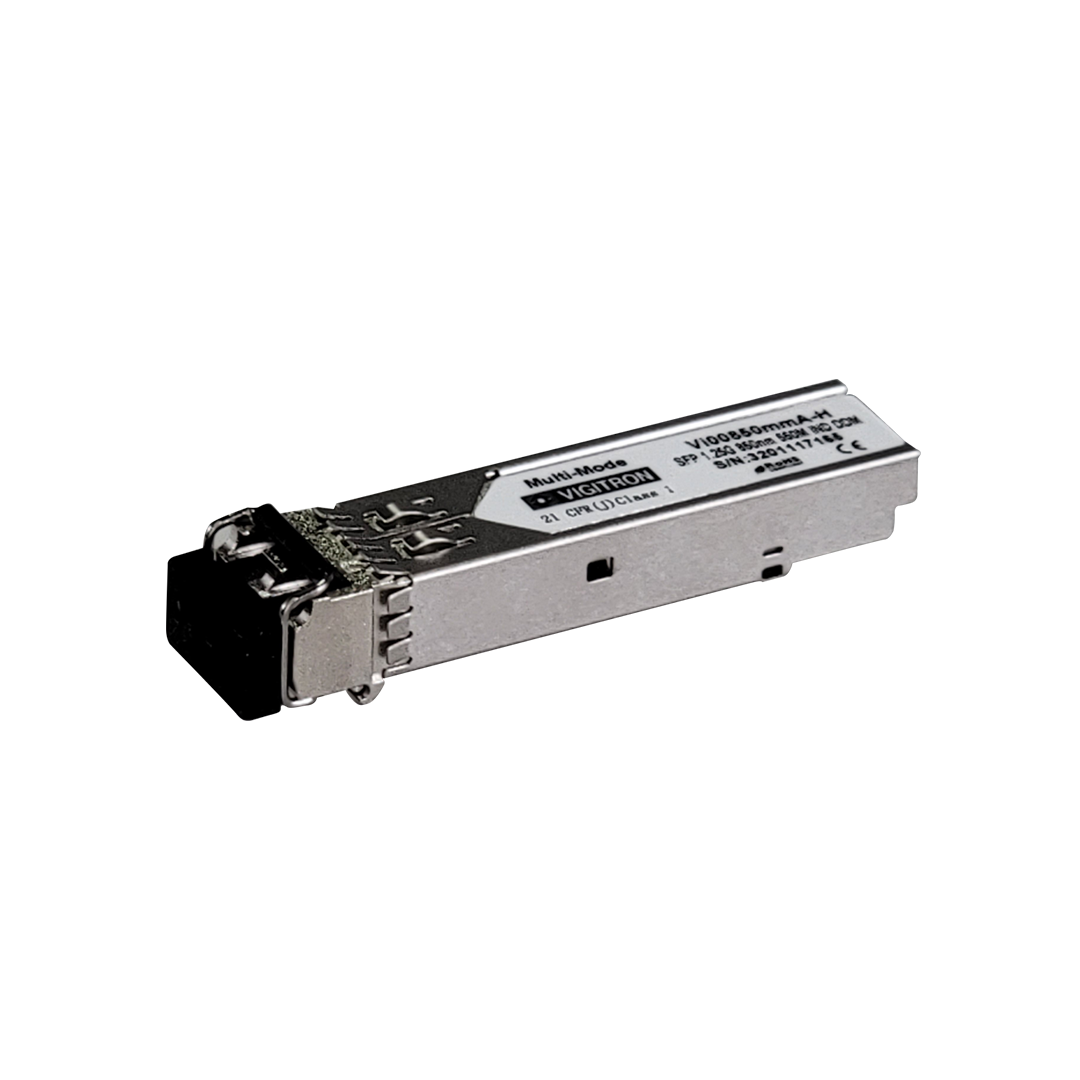

The Vi00850MMA-His an 850 nm SFP transmitting on multimode fibers that are compatible with the MultiSource Agreement (MSA). The Vi00850MMA-H is designed to work with any device conforming to the MSA standards. It operates on 50/125um fiber cables up to 550 meters (1815 feet). The Vi00850MMA-H is also compatible with 62.5/125 um fiber for a distance of up to 300 meters (990 feet). The Vi00850MMA-H is the perfect solution for interfacing with existing fiber cable installations for single/multiple camera transmission or short-haul backbones.

Features:

• Compliant with SFP MSA and SFF-8472 standard for Digital Diagnostic Monitoring Interface
• Compliant with IEEE802.3z Gigabit Ethernet standard
• Compliant with industry-standard small form pluggable (SFP) package
• Duplex LC connector
• Conforms to MultiSource Agreement for SFP
• Distances of 550m using 50/125um fiber and 300m using 62.5/125 cable
• Single power supply 3.3V
• TTL signal detect indicator
• Hot-pluggable
• Class 1 laser product complies with EN 60825-1
• Hardened wide operating temperature range of -40°C to +75°C
