Vigitron - Vi01310MMG1-H - 1310nm Multi-Mode Hardened SFP 1G

Product Overview

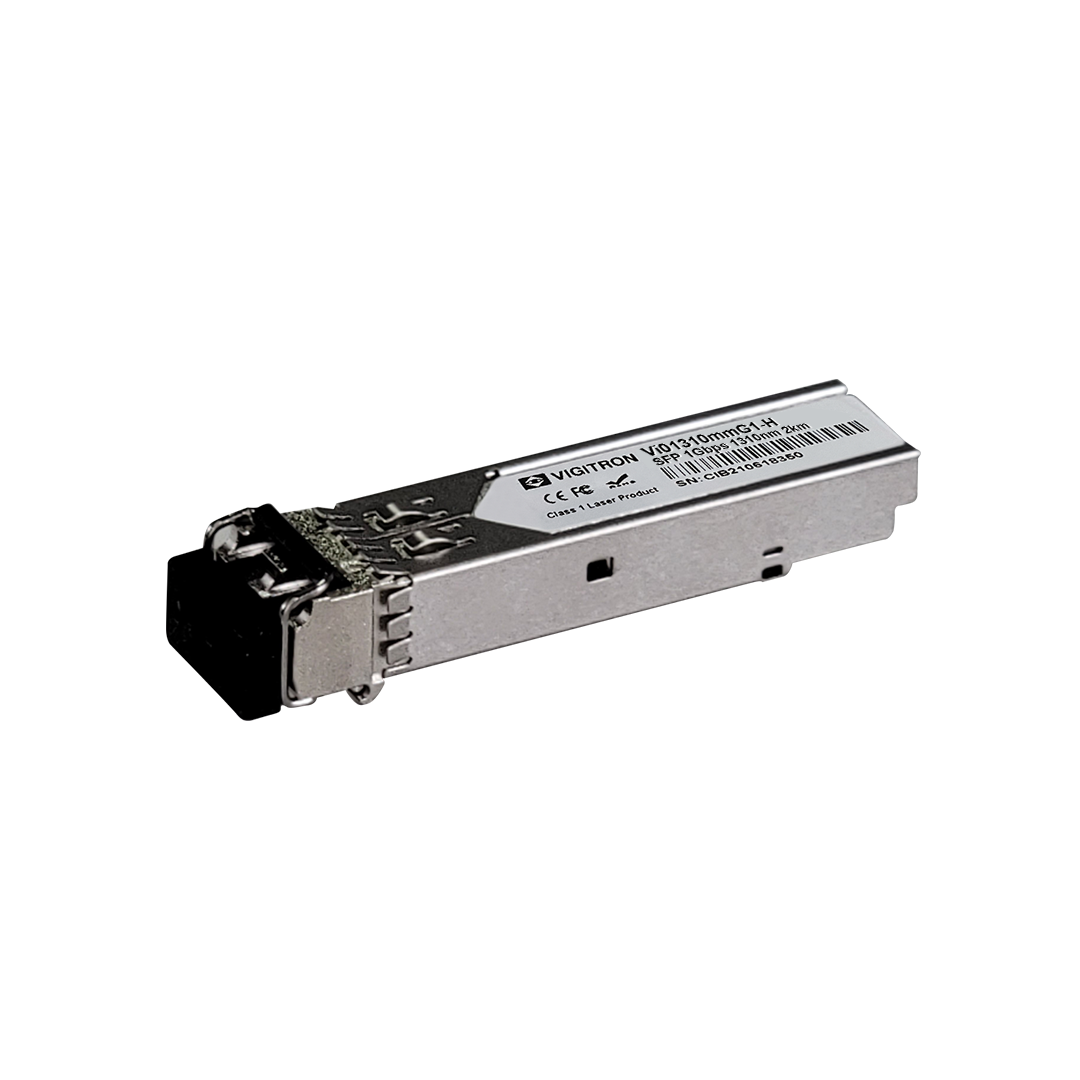

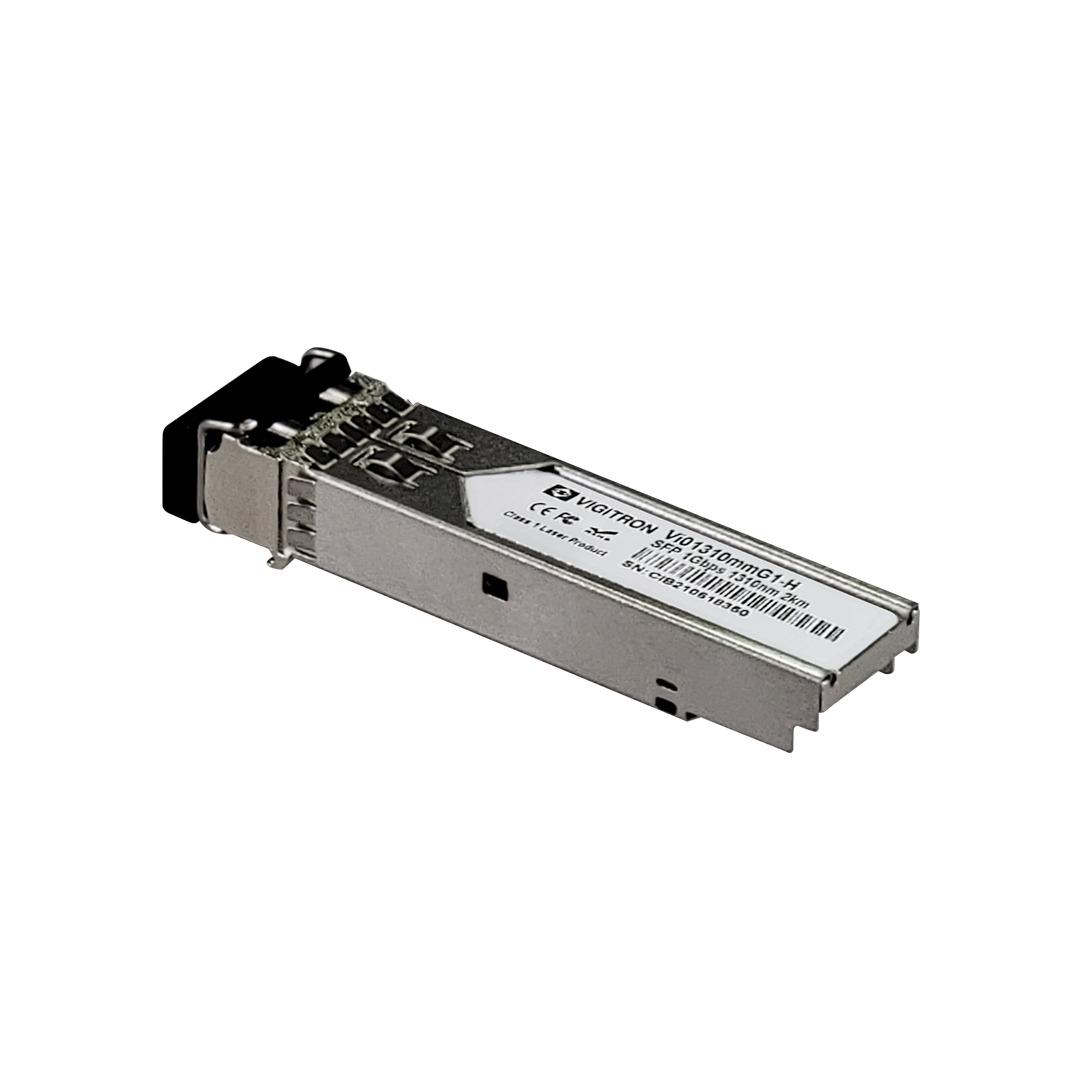

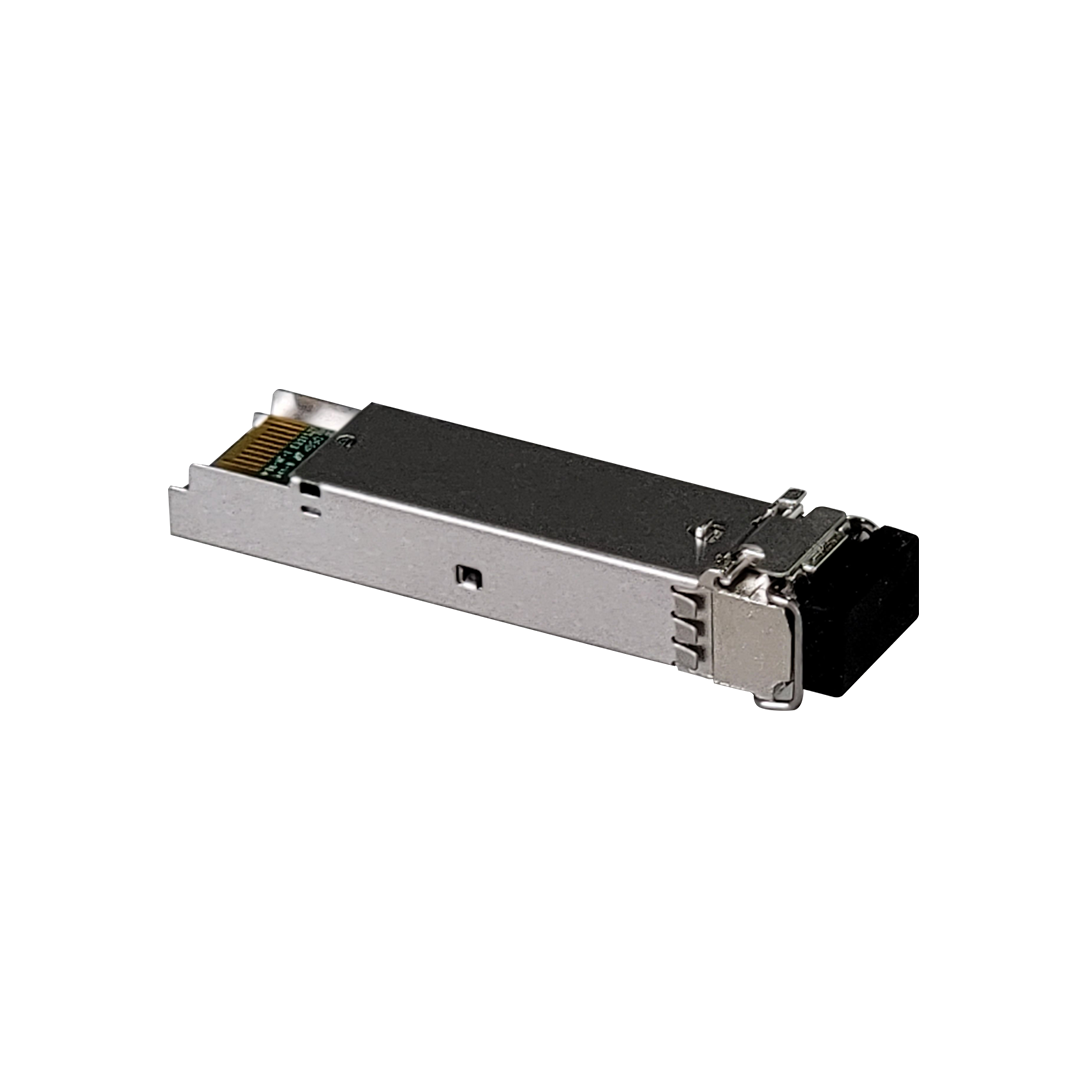

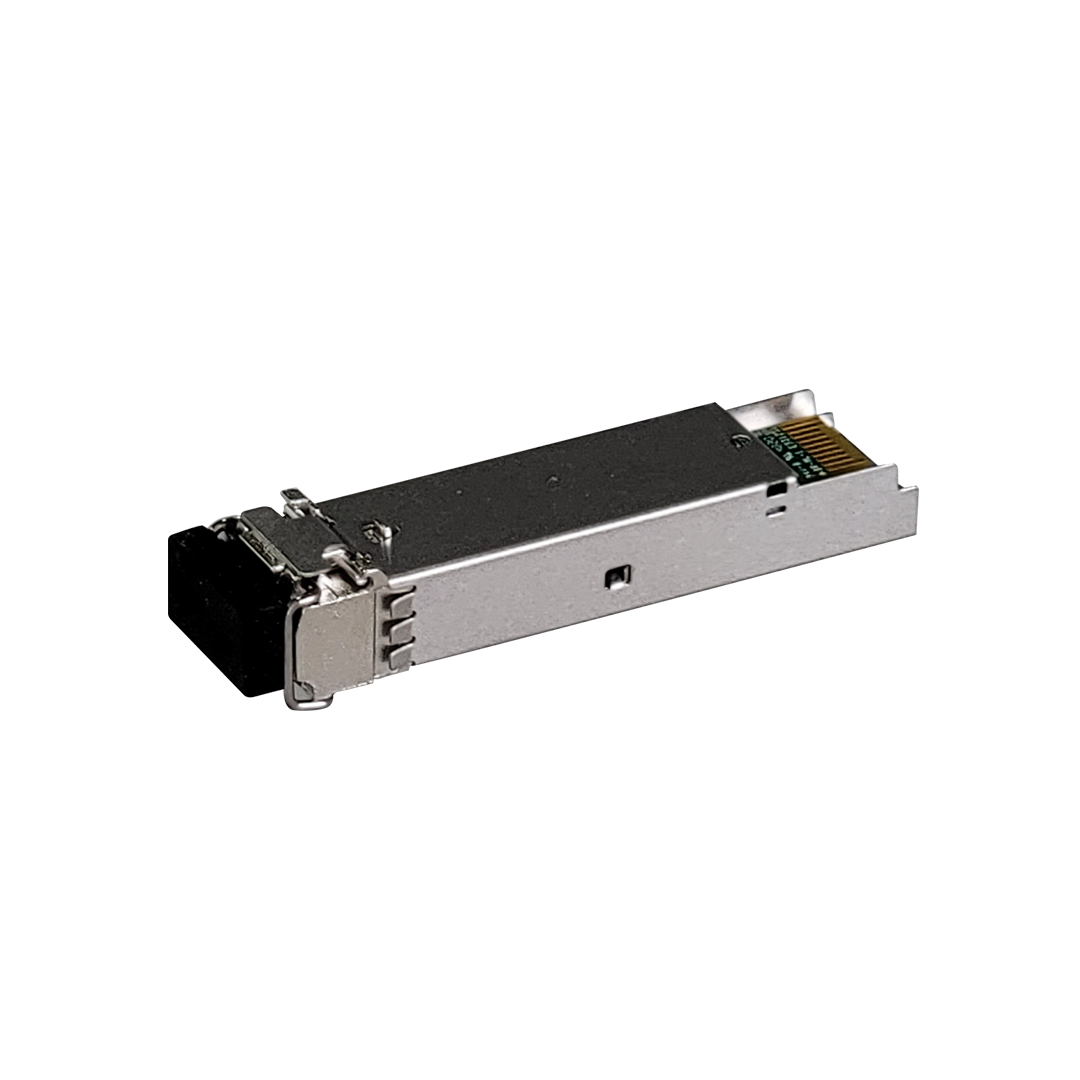

The Maxii Fiber Vi01310MMG1-H is a hardened 1G multi-mode SFP transceiver featuring a 1310nm wavelength and a duplex LC connector. Compliant with IEEE 802.3z standards, it supports 1.25Gbps transmission over distances up to 2km. Its hot-pluggable design is built for extreme environments, operating reliably from -40°C to +75°C, and meets Class 1 laser safety requirements per EN 60825-1.

Key Configuration

• • Transmission speed: 1.25 Gbps
• • Wavelength: 1310 nm
• • Fiber type: single mode
• • Distance: 2 km
• • Connector: duplex LC

Key Features

Compliant with SFP and SFF-8472 standards, featuring a digital diagnostic monitoring interface and a TTL signal detect indicator. This hot-pluggable module operates on a single 3.3V power supply and meets all CE, RoHS, and WEEE regulatory requirements for reliable, standardized network integration.

Technical Context

Operates on a 3.1V to 3.5V supply voltage with a low 250mA current draw and features a TTL signal detect. Built from durable metal alloy, this compact module is compatible with IEEE 802.3z and SONET OC-24-LR-1 standards. It is a certified Class 1 laser product weighing 15 g, measuring 0.41" × 2.2" × 0.53".

Installation Notes

Utilizes an industry-standard hot-pluggable SFP form factor with a duplex LC connector. Engineered for extreme reliability, it supports a wide operating temperature range of -40°C to +75°C and can be stored in conditions from -40°C to +85°C, ensuring stable performance in demanding industrial environments.
