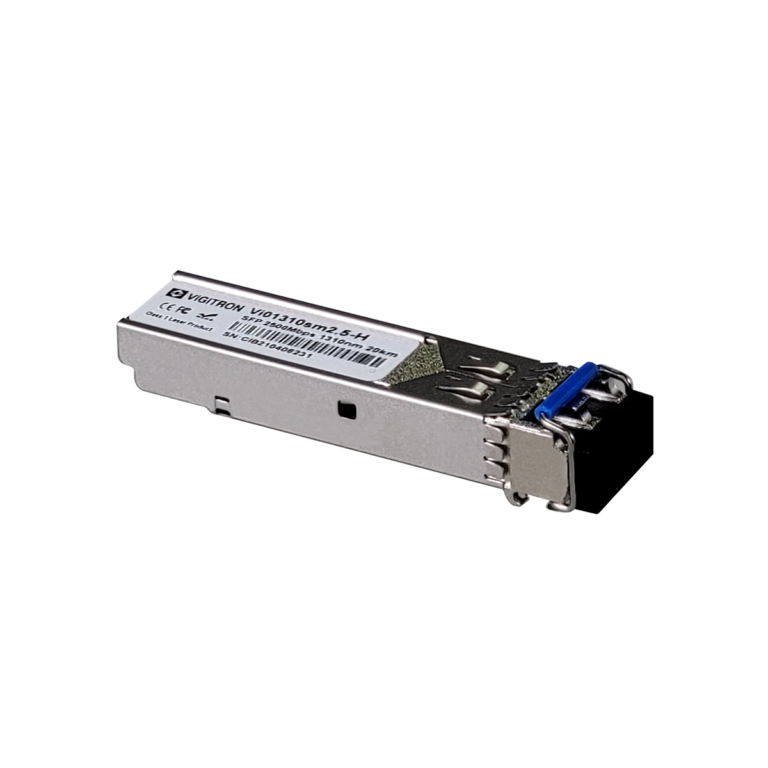

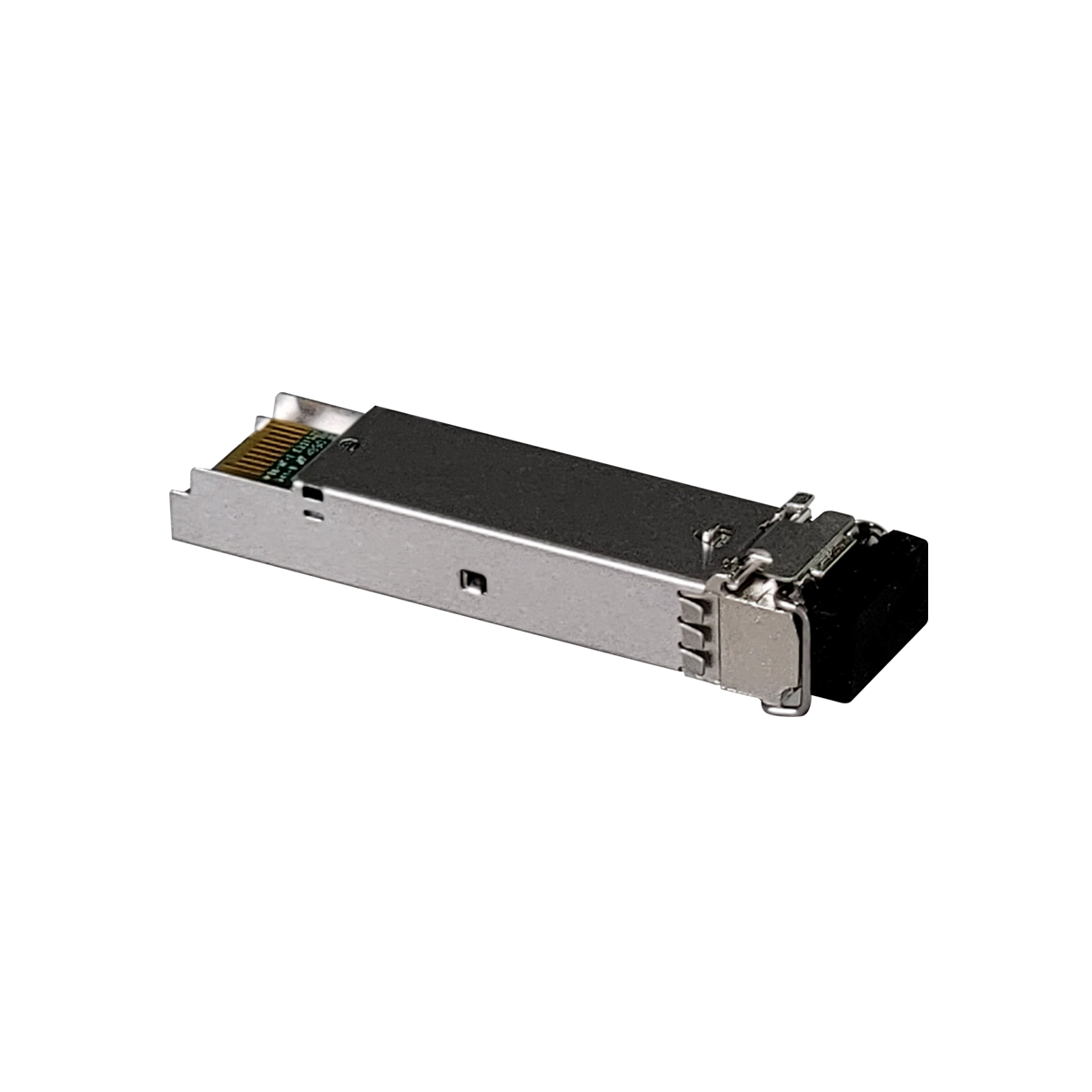

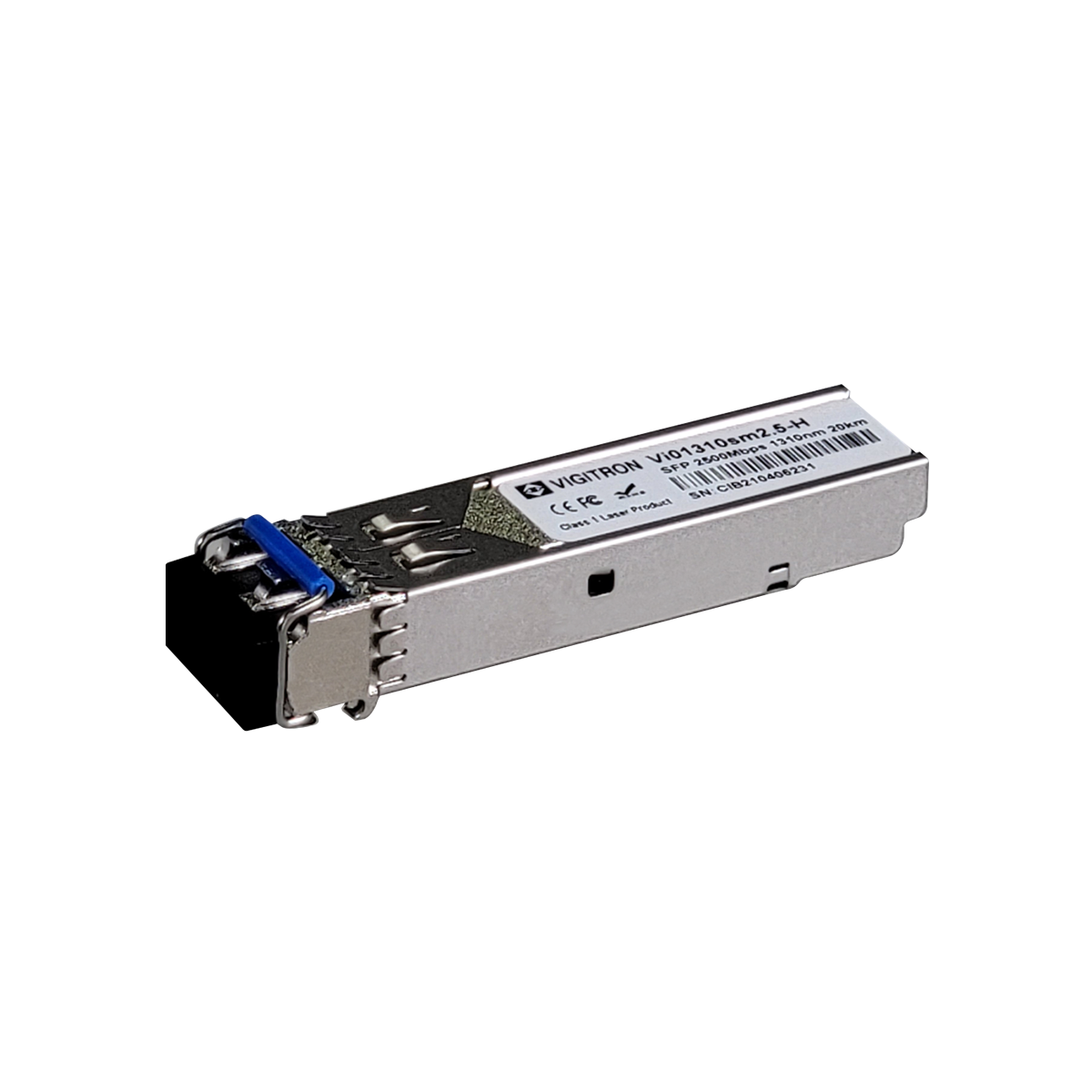

Vigitron - Vi01310sm2.5-H - 1310nm 2.5Gbps Single Mode Hardened SFP
Part number:
Vi01310sm2.5-H
Price:
Vi01310SM-H is a 1310 nanometer SFP transmitting on single mode fiber. Compatible with the MultiSource Agreement (MSA), the Vi01310SM-H is designed to work with any device conforming to the MSA standards. The Vi01310SM-H compatible with 9/125um fiber for distances up to 20km (over 12 miles). The Vi01310SM-H is the perfect solution for interfacing between network switches and Network Video Recorders over long distances.
Features:
- Compliant with IEEE802.3z 2.5 Gigabit Ethernet Standard
- Conforms to MultiSource Agreement for SFP and SFF-8472 for digital diagnostic monitoring interface
- Distances of 20km (1000Base-LX)
- Duplex LC connector
- Industry-standard small form pluggable (SFP) package
- Single power supply 3.3V
- TTL signal detect indicator
- Hot-pluggable
- Class 1 laser product complies with EN 60825-1
- Compatible 9/125um cable
- Compatible with SONET OC-24-LR-1
- Hardened wide operating temperature range of -40°C to +75°C
| Specifications | |
| Electrical | |
| Supply Voltage | 3.1V to 3.5V |
| Current | 300mA |
| Signal Detect | TTL |
| Compatible with | SONET/SDH, Fast Ethernet standard |
| Fiber Type | Multi-mode |
| Transmission Distance | 550m using 50/125 um fiber 300m using 62.5/125 um fiber |
| Transmission Speed | 1.25 Gbps |
| Wavelength | 850nm |
| Regulatory | |
| Safety | CE |
| Environmental | RoHS, WEEE |
| Environmental | |
| Humidity | 0 to 95%, non-condensing |
| Temperature | Operating: -40°C to +75°C Storage: -40°C to +85°C |
| Mechanical | |
| Dimensions | 0.41 x 2.2 x 0.53 in (10.5 x 57 x 13.7mm) |
| Weight | 0.035 lbs (15g) |
| Material | Metal Alloy |
