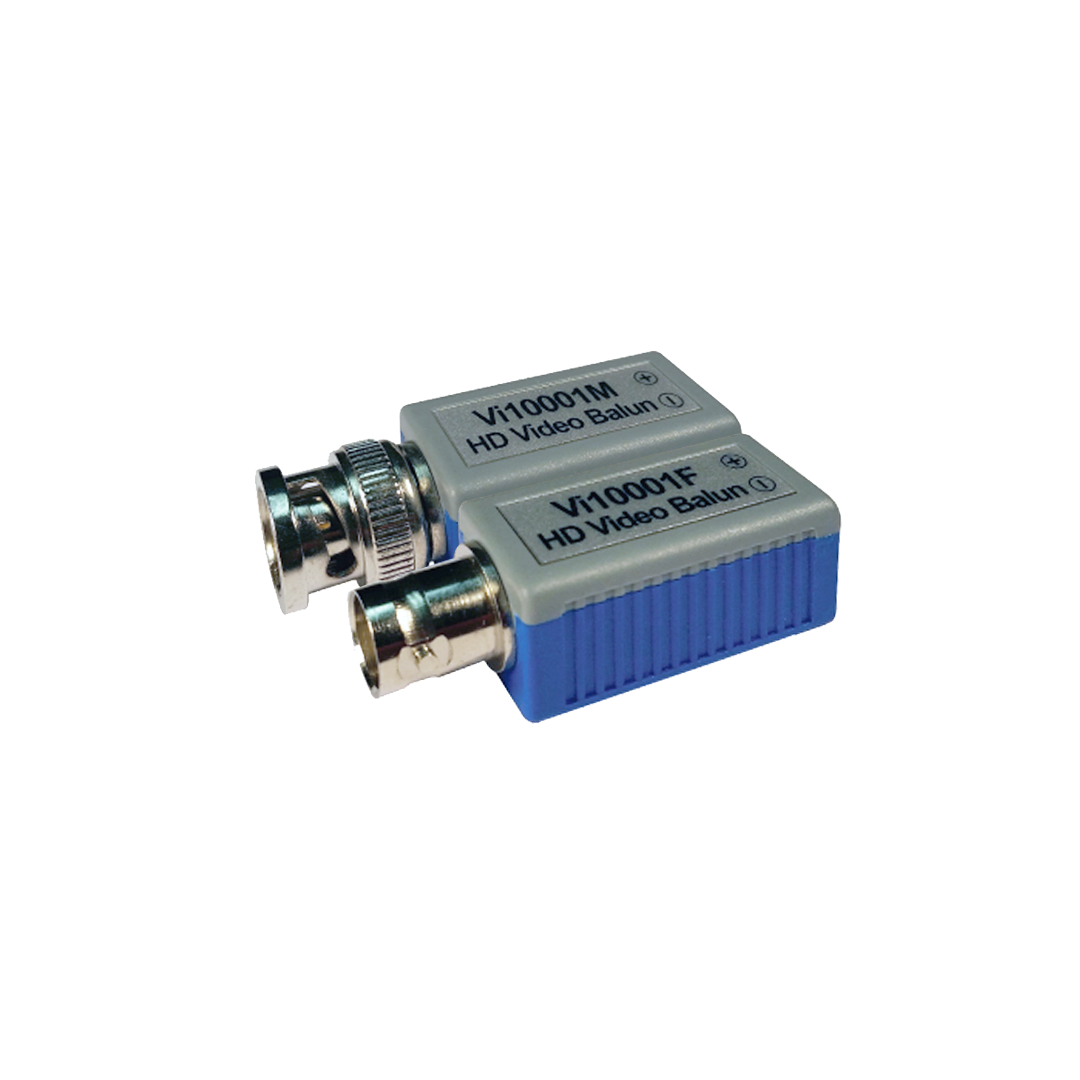

Vigitron’s Vi10001F and Vi10001M are passive HD video transmission devices that transmit HD video over unshielded twisted pair wires for average distances of up to 800 feet (244m). Greater distances up to an average of 1,200 ft. can be achieved by combining these passive baluns with active transmitters. The Vi10001F and Vi10001M are compatible with all major HD formats such as HD-TVI, HD-CVI, AHD. They can use Cat 5e or Cat 6 cable and do not require any power source. They mount directly to cameras and HD recorders without the need for additional cabling. The Vi10001F and Vi10001M are the perfect solutions for easy and cost-effective applications requiring twisting pair and existing applications where twist pair cables are already installed.
Features:
- Transmits HD signals over extended distances up to 800 ft. (244m)
- Supports HD-TVI, HD-CVI, and AHD formats
- No power required
- Compact size for easy installation
- Direct connection to HD format recorders
- Converts BNC coax to single-pair twisted wire
- Easy and cost-effective conversion of existing analog twisted pair installation to HD
| Electrical | |
| Video Frequency | HD-TVI, HD-CVI, AHD |
| Frequency | 0 to 45Mhz |
| Coax | 75 Ohms |
| Twisted Pair | 100 Ohms +/- 20%, 24 AWG minimum Up to 800 ft. (244m)* unshielded category 2-7 |
| Insertion Loss | 0.3 dB |
| CMRR | 60 dB |
| Power | No power required |
| Connectors | Video: Male BNC UTP: Terminal block |
| Environmental | |
| Humidity | 0% to 95%, non-condensing |
| Temperature | Operating: -10°C to +50°C Storage: -30°C to +70°C |
| Mechanical | |
| Dimensions | Vi10001F: 1.86x0.64x0.70 in., 4.7x1.6x1.8 cm (HxWxL) Vi10001M: 2.04x0.64x0.70 in., 5.2x1.6x1.8 cm (HxWxL) |
| Weight | 0.2 lbs (7g) |
| Housing Material | ABS plastic, UL rating of 94V-0 |
