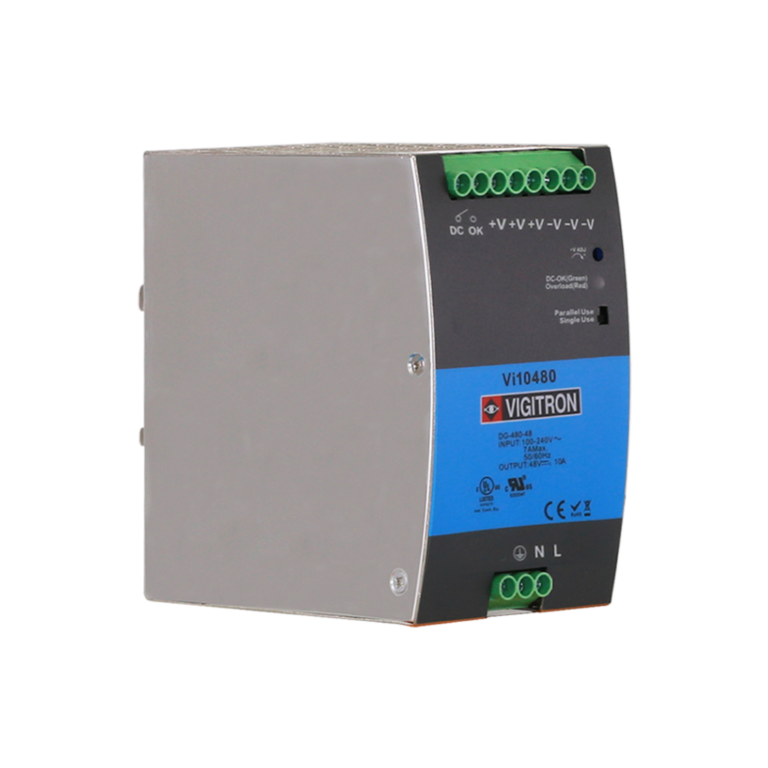

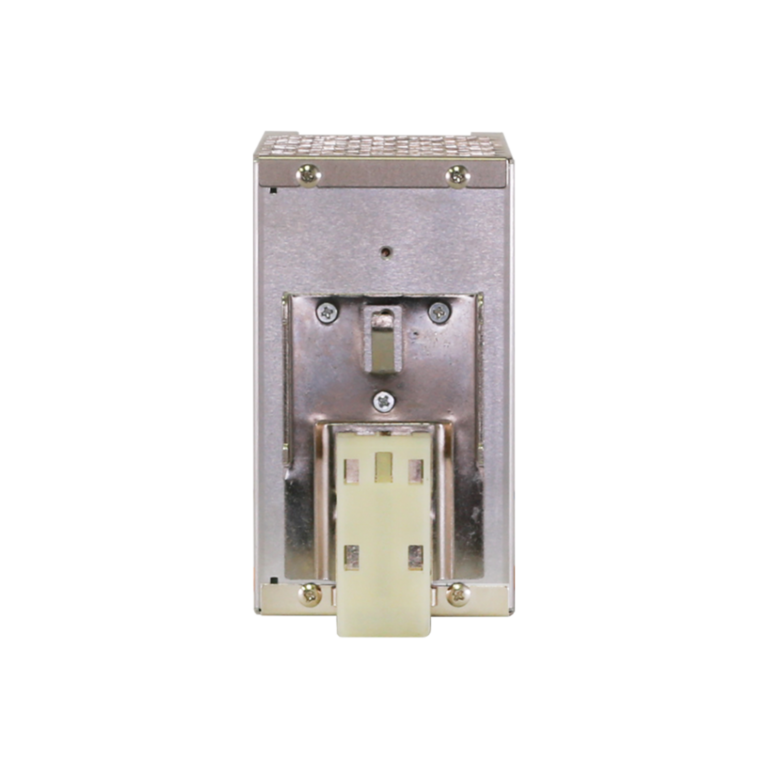

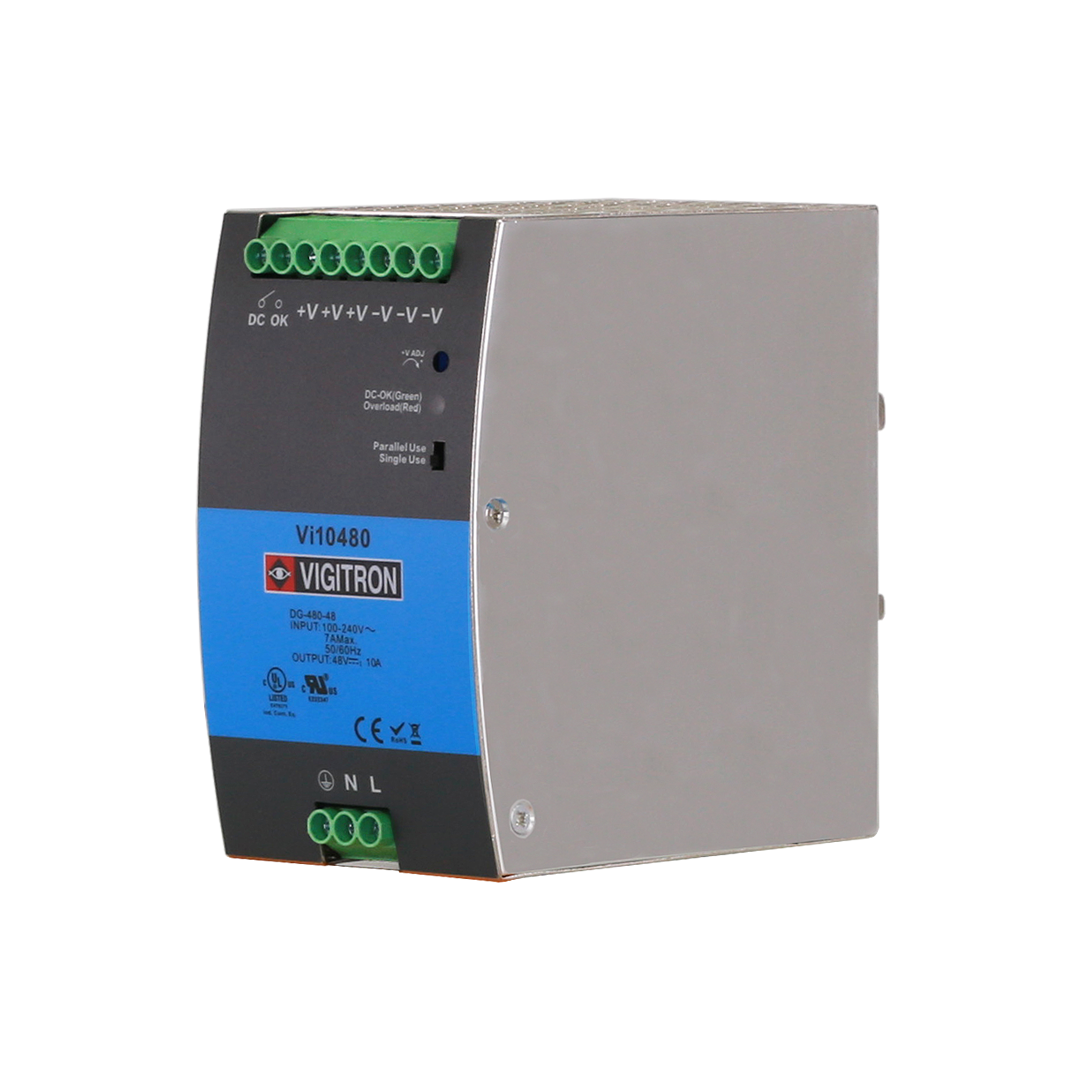

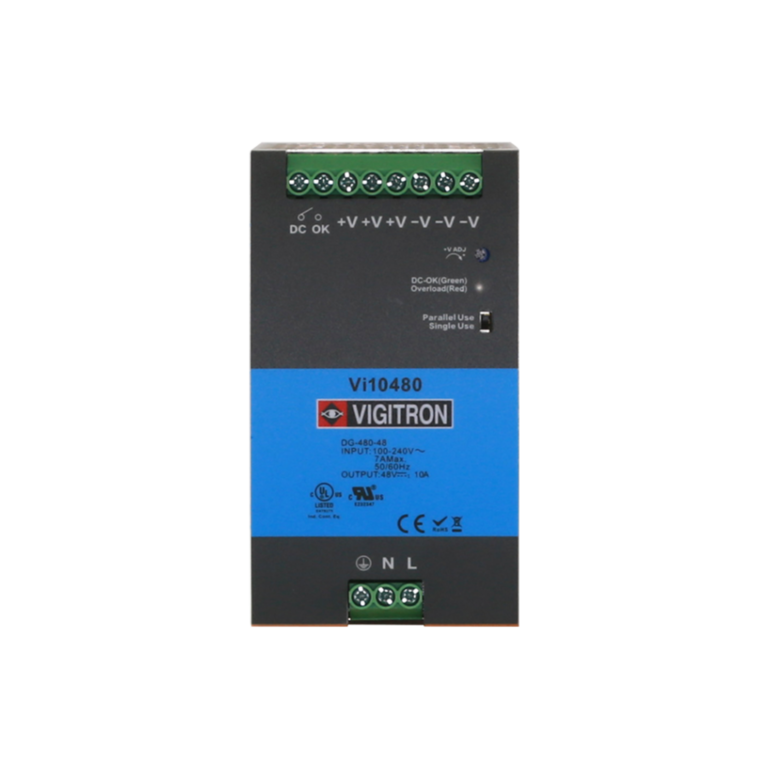

Vigitron’s MaxiiPower Vi10480 Din Rail Power Supply is designed for hardened applications. A wide operating temperature range of -25ºC to 70ºC assures reliable operation for many mission critical operations. It provides many features designed for its own protection and connection to the device its powering. The Vi10480’s combined a 150% peak load up to 720W, over current protection and current limiting will protect itself and powered devices. An alarm relay provides notification in the event of failures. Outputs of multiple Vi10480s can be connected together to increase the total power or serve as a back up supply. Multiple DIN Rail mountings simplifies installation. The Vigitron Vi10480 can be configured for a variety of applications providing both additive and back up power.
Features:
- High efficiency up to 94% with universal AC input range 85~264VAC
- 480W output at 48~56VDC with 150% (720W) peak load capacity
- Hardened with wide operating temp -25°C~70°C
- Support 1+1 or N+1 redundant system
- Built-in current sharing function
- Built in DC OK relay contact
- Output protections: OVP/OLP/SCP/OTP
- Easy Fuse Tripping due to High Overload Current
- 100% full load burn-in test
- Free air convection
| Electrical | - |
| Output | - |
| Output Power | 480W, 48-56VDC (Adjustable) @ 10A Max. |
| Ripple and Noise | ≤480mV at 0~70°C ≤480mV at -25°C |
| Voltage Accuracy | ±3.0% |
| Line Regulation | ±0.5% |
| Load Regulation | ±1.0% |
| Set-up Time | <3S@230VAC |
| Hold up Time | ≥20mS (230VAC input, Full load) |
| Temperature Coefficient | ±0.03%/°C |
| Overshoot / Undershoot | <5.0% |
| Input | - |
| Voltage Range | 85VAC~264VAC, 130VDC-350VDC |
| Frequency Range | 47Hz~63Hz |
| Power Factor | 0.99/110VAC, 0.95/230VAC |
| Efficiency | 0.938 |
| AC Current | <7.0 A/100VAC, <3.5A/230VAC (max.) |
| Inrush Current | <20A/110VAC, <40A/230VAC, Cold start |
| Leakage | Input-Output <0.25mA, Input-PG:<3.5mA |
| Protection | - |
| Over Load | 110%~150% of rated current, Auto recovery |
| Over voltage | 58~63VDC, constant voltage, Auto recovery |
| Over temperature | 115±5°C , shut down O/P, Auto recovery |
| Short Circuit | Long-term mode, Auto recovery |
| DC-OK LED | On: when output is up to 90% of rated output voltage Off: when output is down to 80% of rated output voltage |
| DC-OK Relay | Max 30V/1A or 60V/0.3A or 30Vac/0.3A, Resistive load |
| Regulatory | - |
| Safety | UL508, UL60950, EN60950, CE |
| EMC Emission | EN55022, EN55024, FCC PART 15 Class B |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11; heavy industry level |
| Environmental | RoHS, WEEE |
| Environmental | - |
| Humidity | Operating:20 to 90%, non-condensing Storage: 5 to 95%, non-condensing |
| Temperature | Operating: -40°C to +75°C Storage: -40°C to +85°C |
| Mechanical | - |
| Dimensions | 5x2.8x4.9in, 127x70x124mm (LxWxH) |
| Weight | 2.54 lbs (1.15Kg) |
| Material | Sheet Metal |
