Vigitron - Vi20101 - MaxiiGuard 1G Ethernet Surge Protector
Product Overview

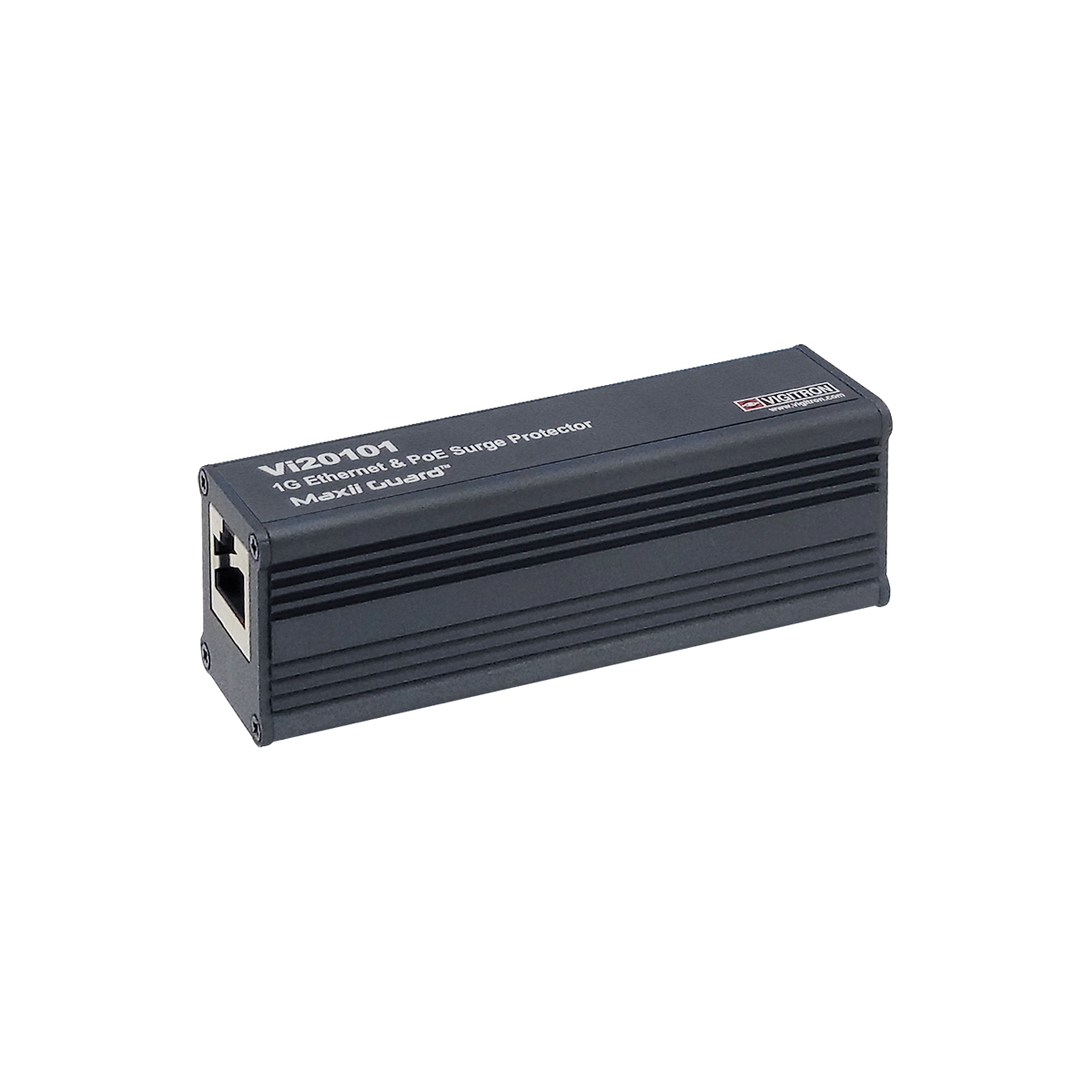

The Maxii Guard Vi20101 is a compact, in-line surge protector designed to plug directly into 10/100/1000 Base-T ports. It supports high-power 802.3af/at/bt PoE up to 90W and provides a robust 20kA per pair surge current rating for both standard and extended Ethernet runs. Certified to EN61000-4-5 and EN55024 standards, it ensures reliable protection for mission-critical networked equipment.
Key Configuration
- • Network Compatibility: Supports 10/100/1000 Base-T Ethernet interfaces.
- • PoE Support: Compatible with 802.3af/at/bt standards (up to 90W).
- • High Surge Rating: 20kA per pair protection across all four pairs (1-2, 3-6, 4-5, 7-8).
- • Advanced Protection: Withstands 10KV common mode and 1.5KV differential mode surges.
- • Compact Design: Measures 1.23" × 1" × 3.5" and weighs 79 g (0.172 lb).
Key Features
The Vi20101 features a nominal line voltage of 44-57V with a 20kA maximum discharge current and ultra-low capacitance <1.5pF for signal integrity. It supports up to 2A on 4 pairs and offers flexible grounding via an M3 stud, shielded RJ45, or DIN rail. Fully certified FCC Class B, CE, RoHS, and designed to meet NEMA TS2 and UL497B standards, this module ensures high-performance surge suppression with minimal leakage.
Technical Context
It is an NDAA-compliant in-line surge protector that plugs directly into ports, eliminating the need for extra grounding cables. Compatible with Cat5 to Cat6a, it features a rapid <200ns response time and a failsafe short-circuit mode.
Installation Notes

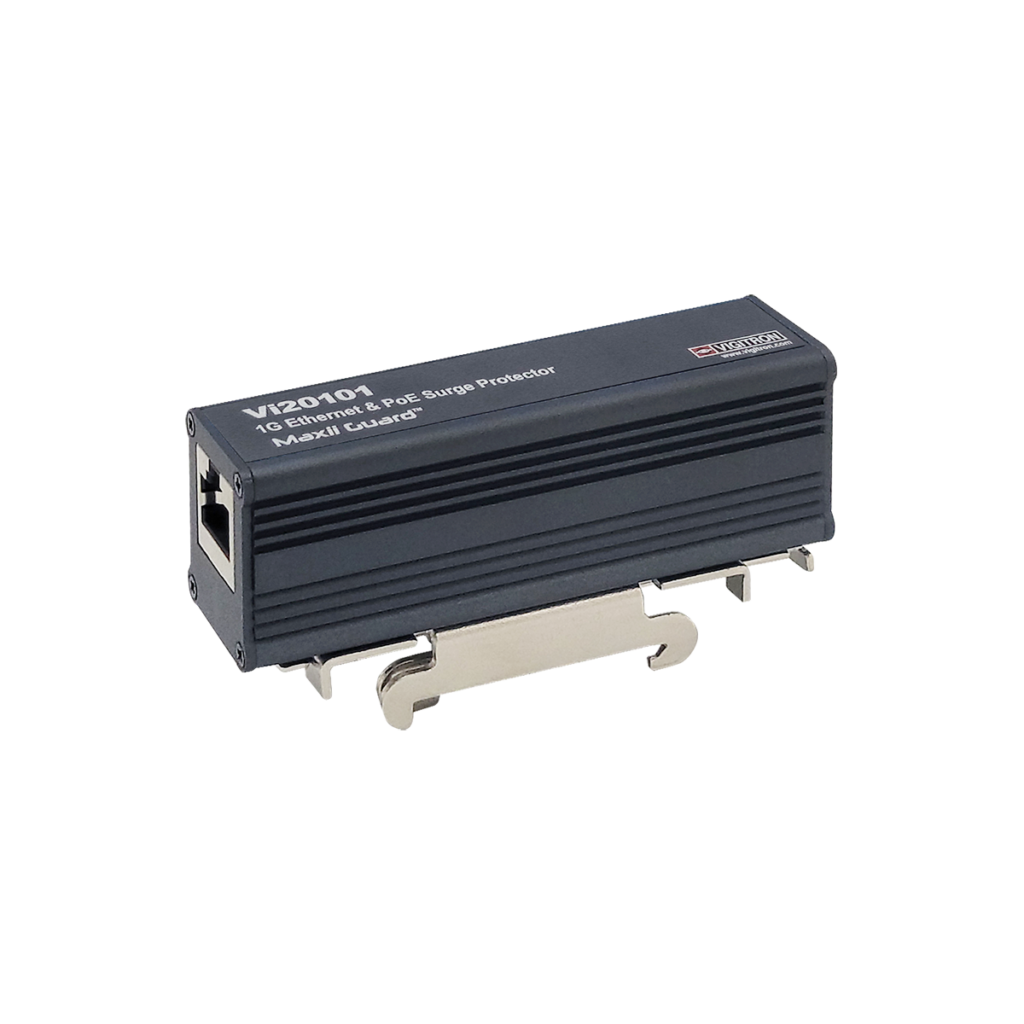

Featuring dual male RJ-45 connectors, the Maxii Guard Vi20101 is built for extreme environments, operating from -40°C to +85°C at altitudes up to 5,000 meters. This IP40-rated module includes both a 35mm DIN rail adapter and a wall mount kit for flexible, high-density installation in rugged or industrial settings.
| Electrical | |
| Ethernet Interface | IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T |
| PoE Standards | IEEE802.3af (15W), IEEE802.3at (30W), IEEE802.3bt (90W) |
| Surge Current Rating | 20kA / Pair |
| Nominal Line Voltage | 44-57V |
| DC Voltage (Max) | 90V (@ 100V/s) |
| Impulse (Max) | Spark-Over Voltage 500V (C3 Category 1KV/μs) |
| DC Holdover | 60V (<150ms) |
| Nominal Current | 1A on 2 pairs, 2A on 4 pairs |
| PoE Surge Protection | Common Mode Protection: (10/700us): 10KV Differential Mode Protection: (10/700us): 1.5KV |
| Leakage Current | <1μA |
| Capacitance | <1.5pF |
| Impulse Current | 2kA (D1 Category 10/350μs x 1) |
| Line/Line Nominal Discharge Current | 1.25kA (C2 Category) |
| Line/Earth Nominal Discharge Current | 10kA (C2 Category 8/20μs x 5) |
| Maximum Discharge Current | 20kA (8/20μs x 1) |
| Protected Pairs | 1-2, 3-6, 4-5, 7-8 |
| Failsafe Mode | Short-Circuit / Cut-Off |
| Response Time | <200ns |
| Ethernet Cable | Category 5, 5e, 6, 6a |
| Connectors | 2 x Male RJ-45 |
| MTBF | >500,000 hours |
| MTBF Standard | Telcordia SR-332 GF 30°C |
| Compliances | |
| Tested and Certified for | IEC 61000-4-2: ESD @ 15Kv (air), 8Kv (contact) IEC 6100-4-5: Lightning @ 8/20us IEC 61000-4-2: 2006 EN 55024 |
| Compliance Category | Category B |
| Let through Voltage | 15Kv (air), 8Kv (contact) |
| Regulatory | |
| EMI | EN 55032 Class B, CISPR 32 |
| FCC | Part 15B Class B |
| EMS | EN 55035 Class B |
| Surge | IEC/EN 61643-21, EN 61000-4-5 (Class 4) |
| Shock | IEC 60068-2-27 |
| Free Fall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Safety | CE |
| Environmental | RoHS, WEEE |
| Designed to meet | NEMA TS2 & UL497B |
| Supply Chain | NDAA Compliant |
| Environmental | |
| Humidity | 0 to 95%, non-condensing |
| Temperature | Operating: -40°C to +85°C Storage: -40°C to +85°C |
| Operating Altitude | Up to 5000 meters |
| IP Rating | IP40 |
| Mechanical | |
| Dimensions | 1.23 x 1 x 3.5 in, 31 x 25 x 88 mm (HxWxL) |
| Weight | 0.172 lb, 79 g |
| Material | Extruded Aluminum |
| Ground Connection | 1x M3 Earth Stud or Shielded cable to a grounded RJ45 port or DIN Rail Adapter when the Rail is grounded |
| Included Accessories | |

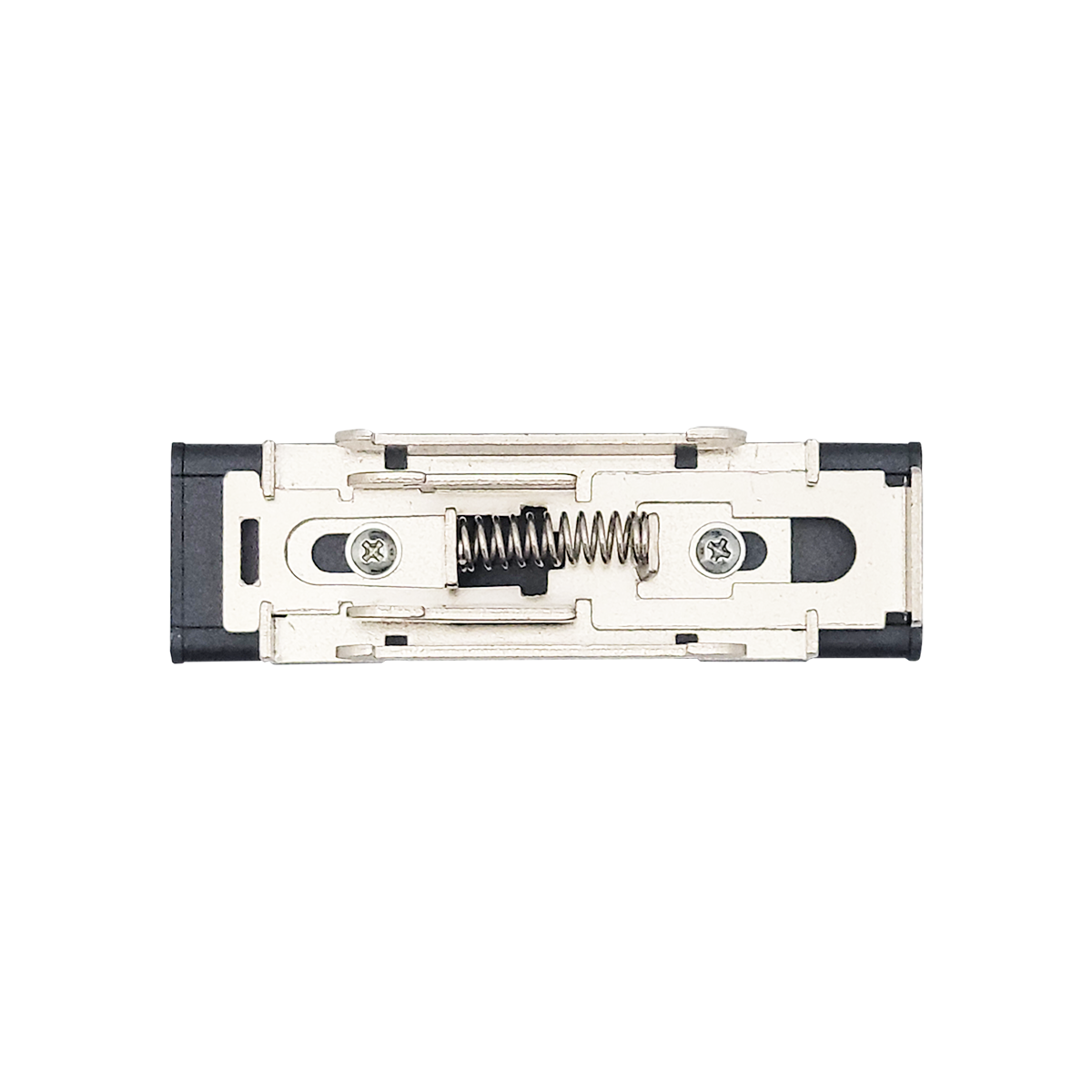

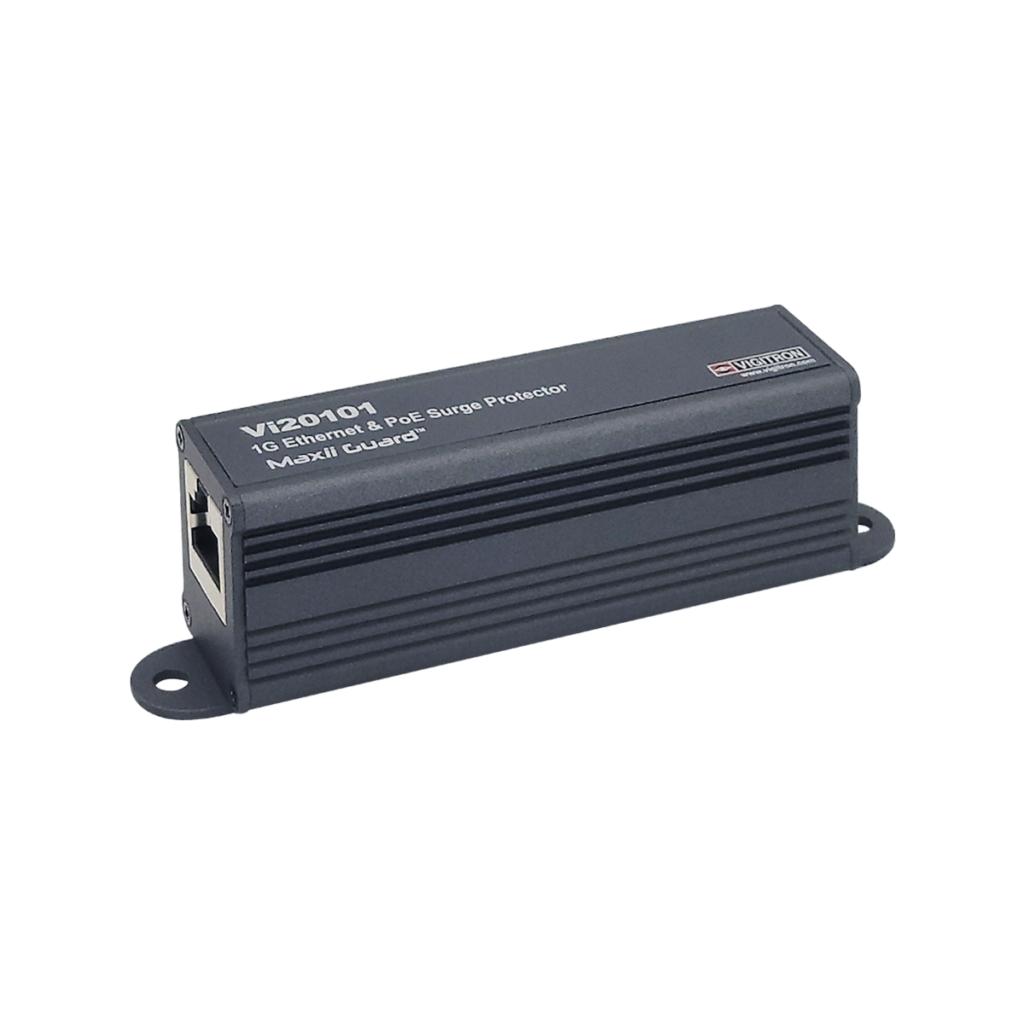

| Mounting Options | 35 mm DIN Rail Adapter (0.14kg / 0.31lb) Wall Mount Adapter |
