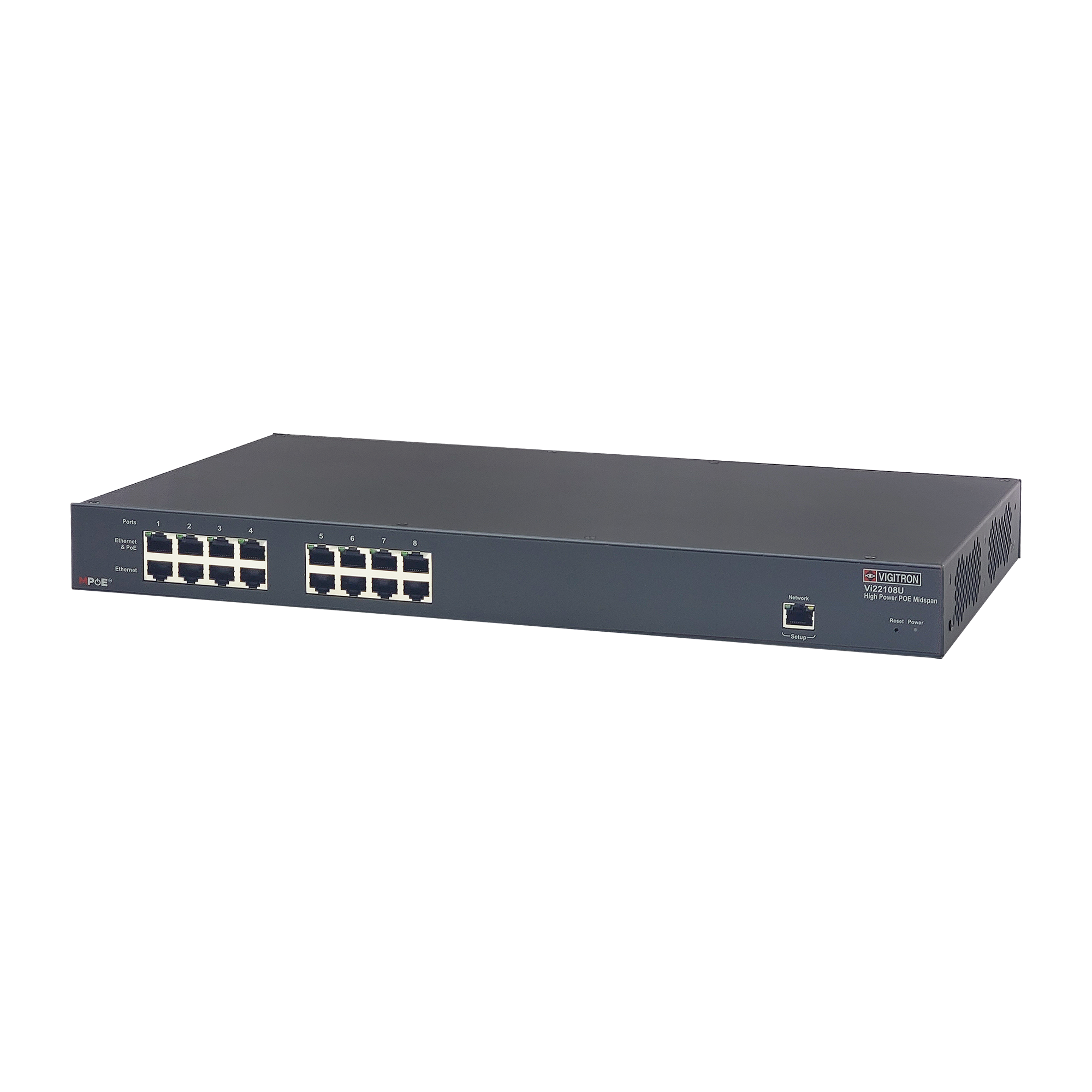

Vigitron - Vi22108U - MPoE 8-Port MaxiiPower af/at/bt 90W Managed PoE Midspan, 800W PS

Product Overview

The M PoE Vi22108U is a high-density 8-port managed midspan designed for high-bandwidth 10/100/1G/2.5G Base-T networks. It delivers up to 90W per port (IEEE 802.3bt Classes 0–8) with a robust 730W total PoE budget and is backward compatible with most legacy high-power devices. Managed via an exclusive MPoE GUI, it includes dual watchdog monitors to ensure continuous power delivery and internal communication stability.

Key Configuration

• • Ethernet interface: 10/100/1000/2500 Base-T; UTP: Category-5 or higher
• • Output power: 802.3af/at/bt Class 0-8 up to 90W PoE++ (74W)
• • PoE budget: 730W; total power supply: 800W
• • AC input power: 90-264VAC, 50-60Hz, 9A @ 90VAC, 3.5A @ 200VAC
• • Dimensions: 1.75" × 17" × 12" (4.3 × 43 × 30.5 cm); weight: 10.5 lb (4.76 kg)

Key Features

It ensures continuous uptime via automatic PoE restart on link failure and dual watchdog monitors for power and data. Additional capabilities include 9600-byte jumbo frame support, a forced power mode for complex wiring, and front-panel status LEDs for instant diagnostics.

Technical Context

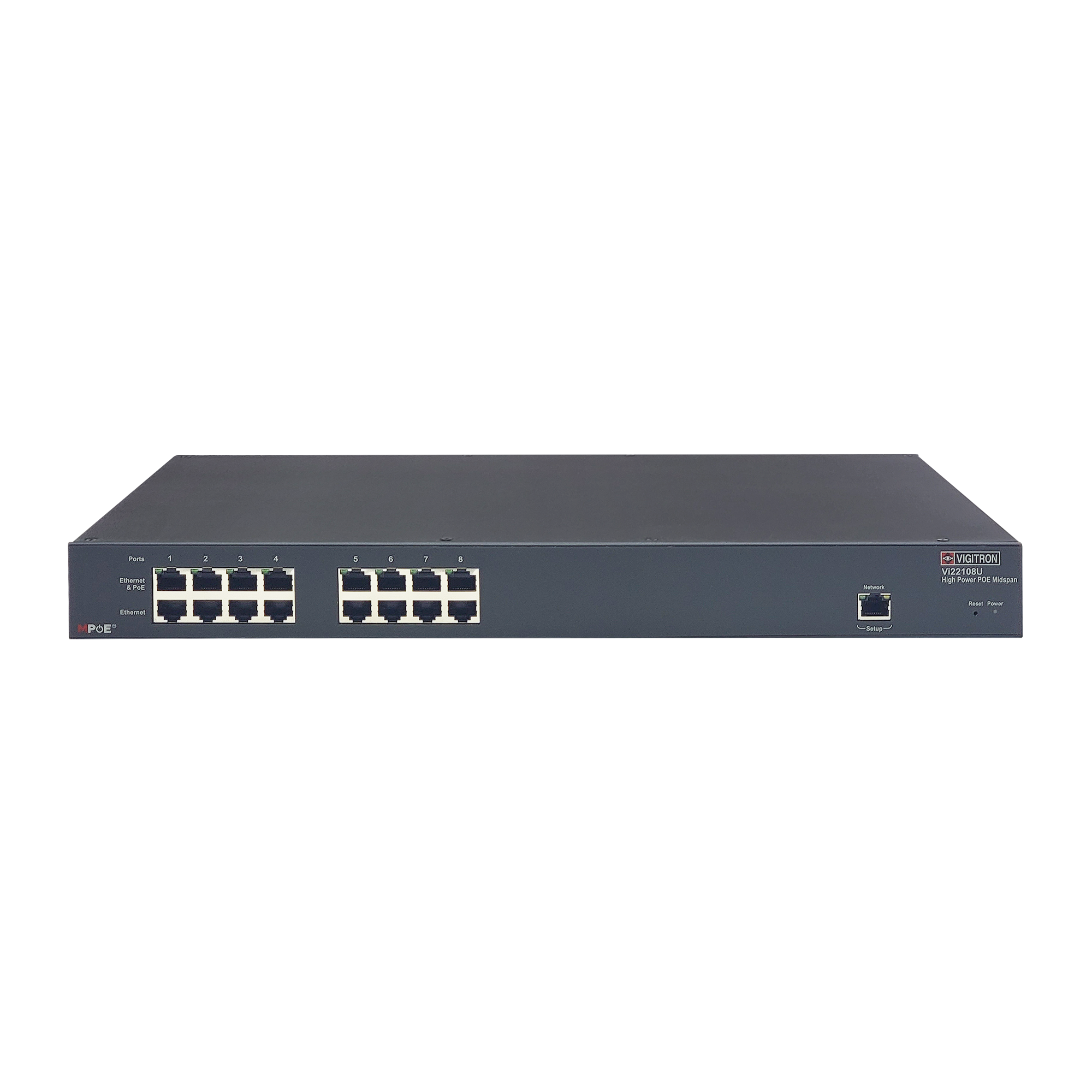

Equipped with shielded RJ-45 connectors for Ethernet input, data/PoE output, and a dedicated setup port, along with a standard IEC 320-C14 power inlet. It features a green PoE status LED for immediate visual confirmation of power delivery. The unit is fully compliant with FCC Part 15 Class B, CE, RoHS, and WEEE standards, meeting rigorous EN 55022 and EN 61000 requirements for emissions and interference.

Installation Notes

It has a durable sheet-metal housing and an operating range of -10°C to +40°C. Includes 19" rack-mount brackets, rubber feet for desktop placement, and a 7 ft IEC power cord. Designed for reliable performance in environments with up to 90% non-condensing humidity.
