Vigitron - Vi22116U - MPoE 16-Port MaxiiPower af/at/bt 90W Managed PoE Midspan, 800W PS

Product Overview

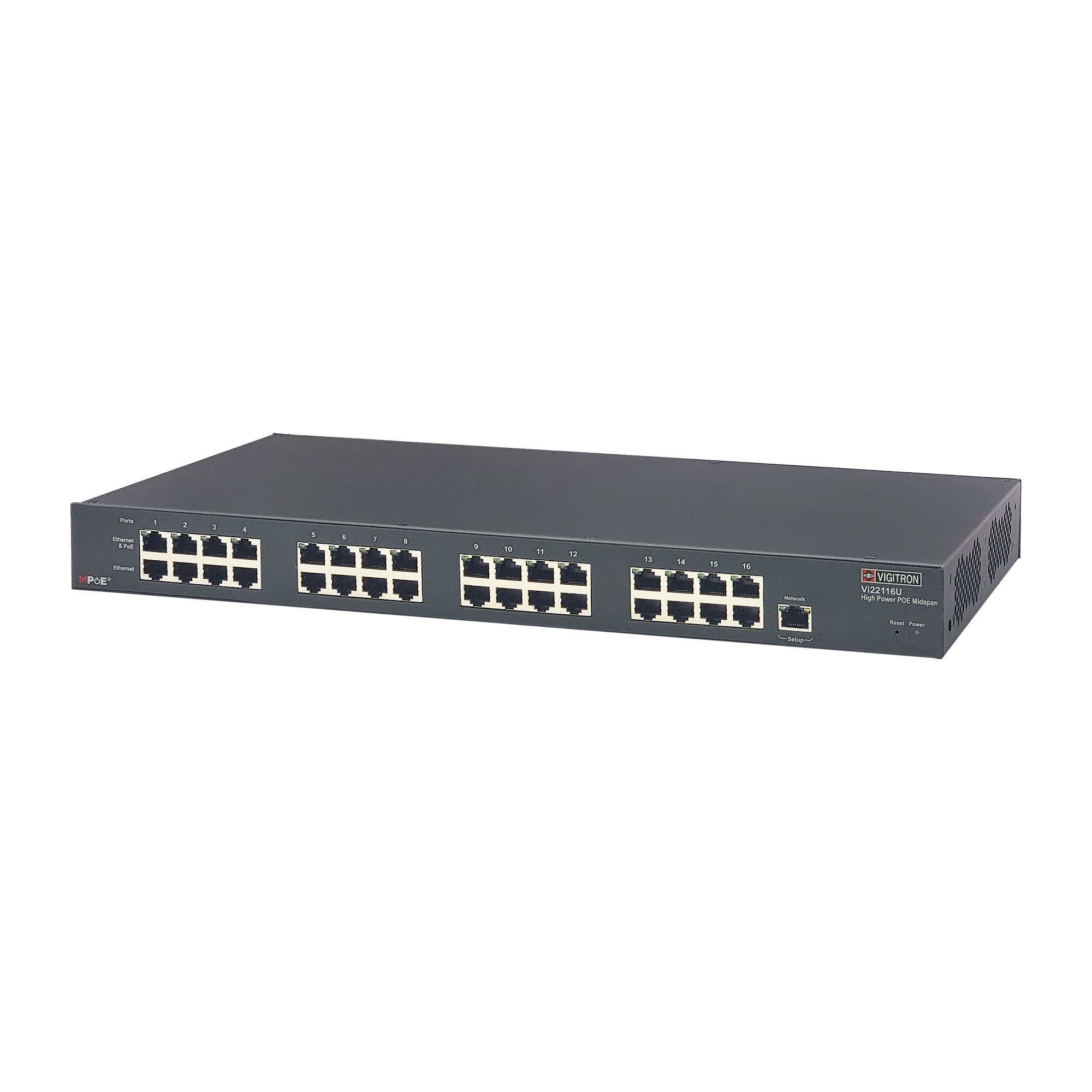

The PoE Vi22116U is a high-performance 16-port managed midspan supporting 10/100/1G/2.5G Base-T networks. It delivers up to 90W per port (IEEE 802.3bt) with a substantial 730W total PoE budget and full backward compatibility for legacy devices. System reliability is maintained via an intuitive MPoE GUI and dual watchdog monitors that ensure stable power delivery and internal communications.

Key Configuration

• • Ethernet interface: 10/100/1000/2500 Base-T; UTP: Category-5 or higher
• • Output power: 56 VDC, 90W max per port
• • PoE budget: 730W; total power supply: 800W
• • AC input power: 90-264VAC, 50-60Hz, 9A @ 90VAC, 3.5A @ 200VAC
• • Dimensions: 1.75" × 17" × 12" (4.3 × 43 × 30.5 cm); weight: 11 lb (5 kg)

Key Features

It features an MPoE GUI for rapid programming, verification, and profile management. It maximizes reliability with automatic PoE restart on link failure and dual watchdog monitors for power and data. Additional features include a forced power mode with safety safeguards for difficult wiring, firmware upgradeability, and front-panel LEDs for instant status reporting.

Technical Context

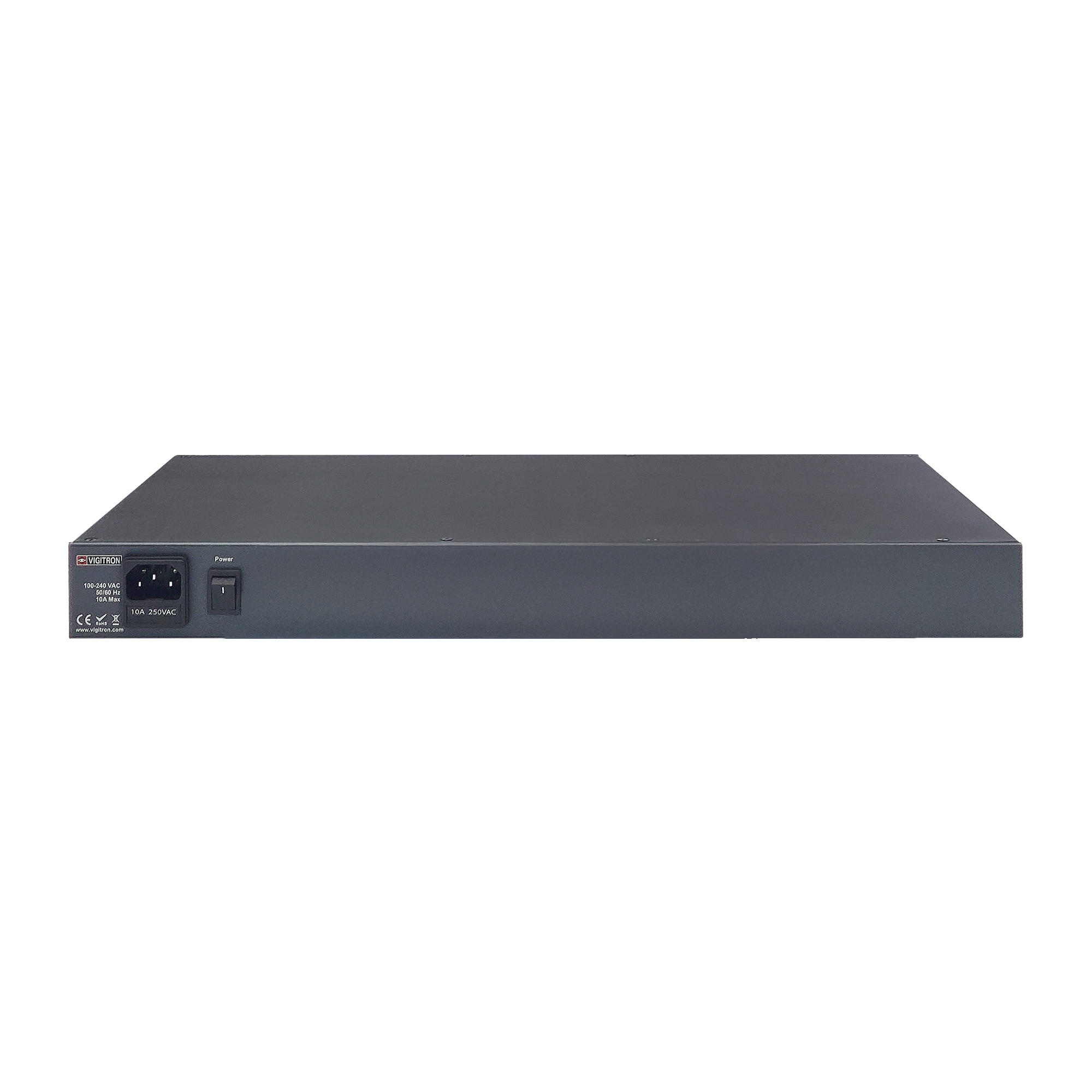

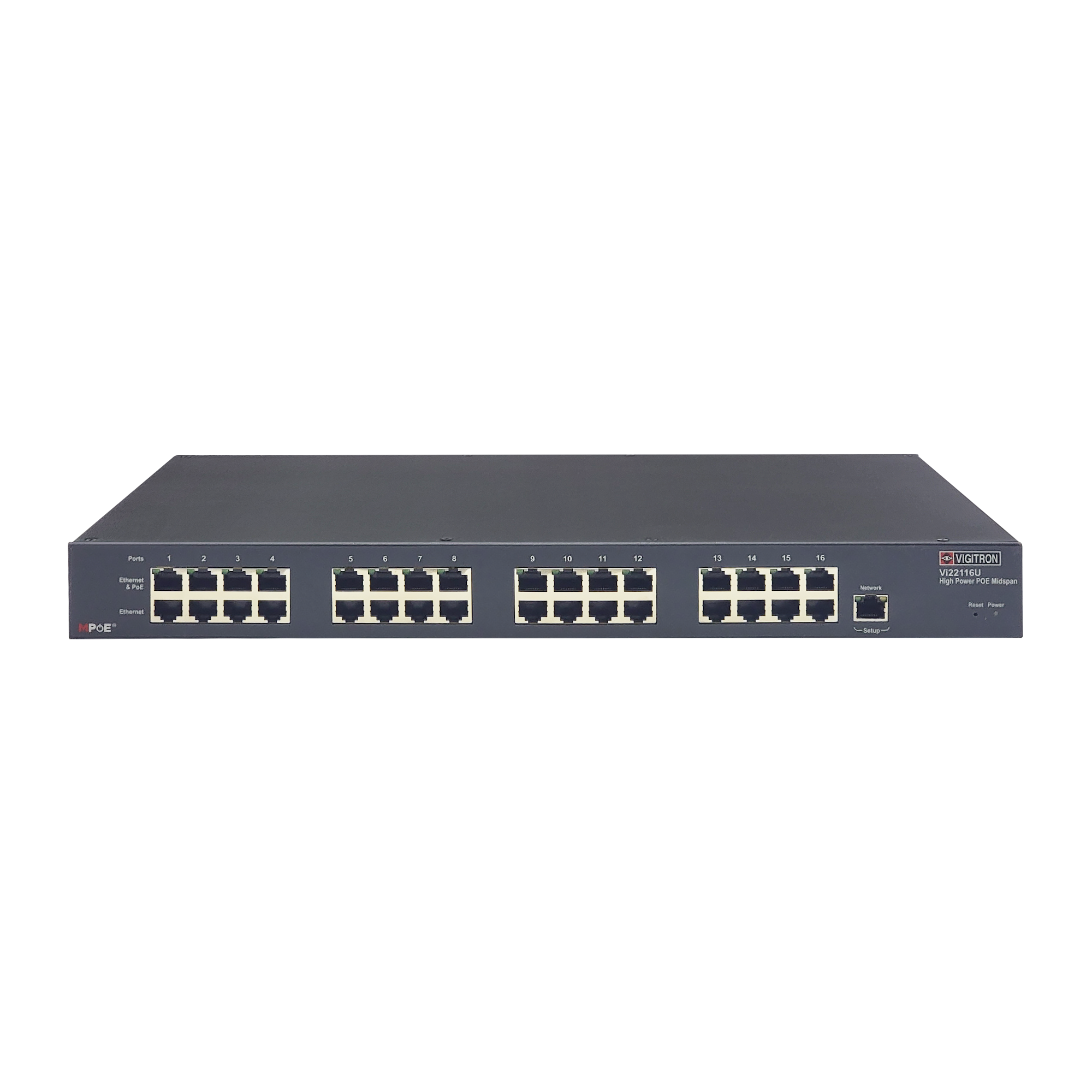

The RJ-45 connectors for Ethernet input, data/PoE output, and a dedicated setup port, plus a standard IEC 320-C14 power inlet. It includes a green PoE status LED for immediate visual confirmation and is fully compliant with FCC Part 15 Class B, CE, RoHS, and WEEE standards, meeting rigorous EN 55022 and EN 61000 requirements for emissions and interference.

Installation Notes

Housed in a durable sheet metal chassis with an operating range of -10°C to +40°C and up to 90% non-condensing humidity. It includes 19" rack-mount brackets, rubber feet for desktop use, and a 7 ft IEC power cord, ensuring flexible installation in both rack and standalone environments.
