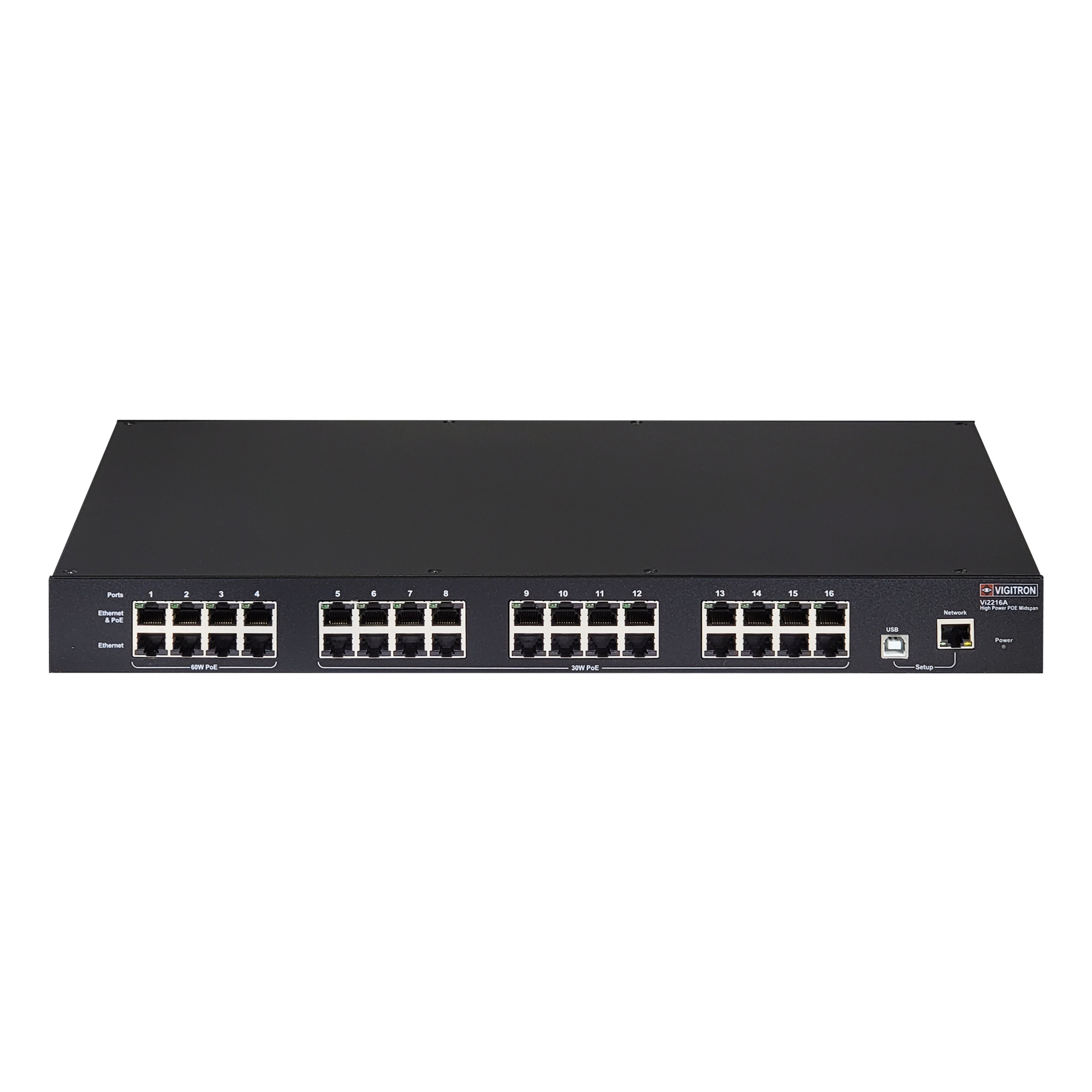

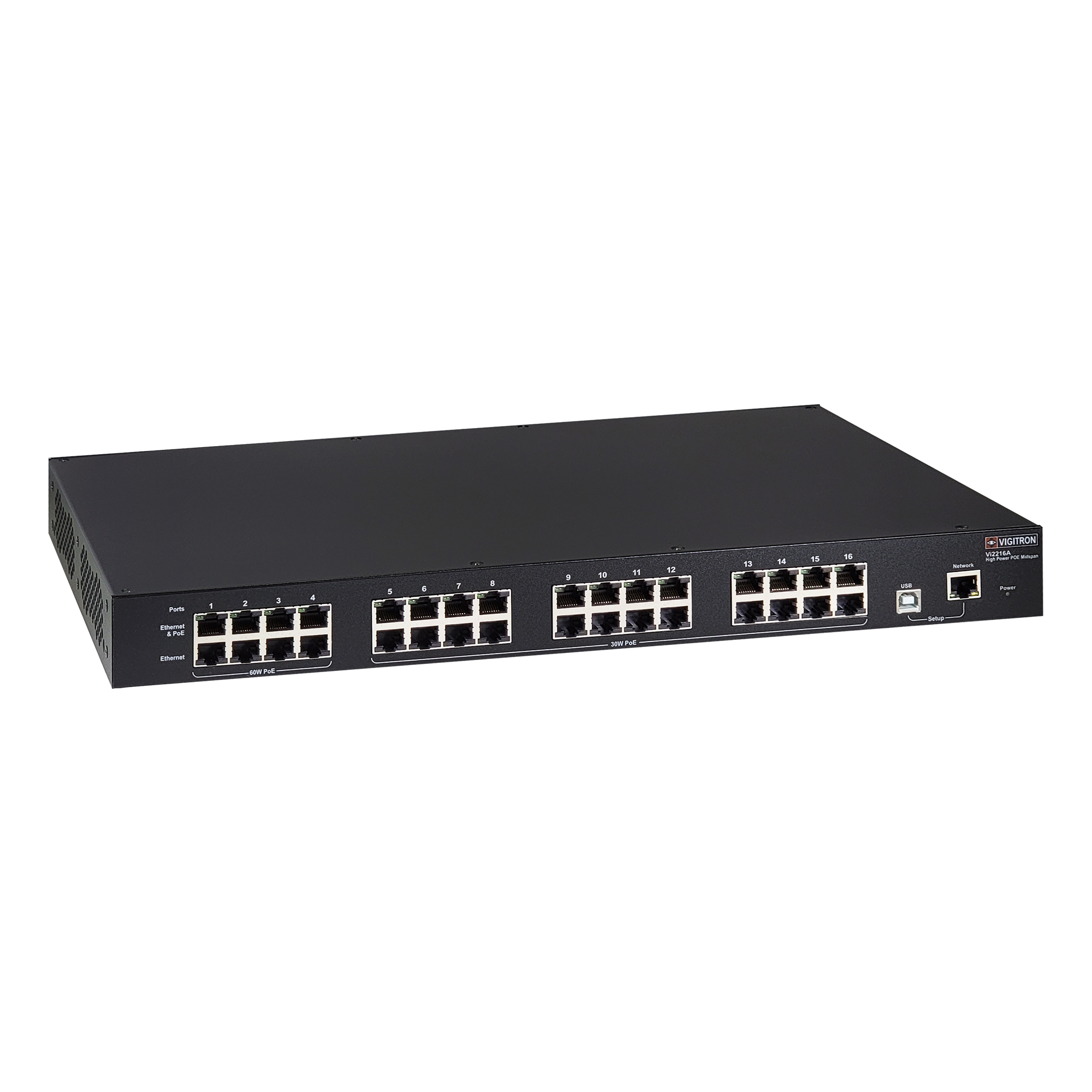

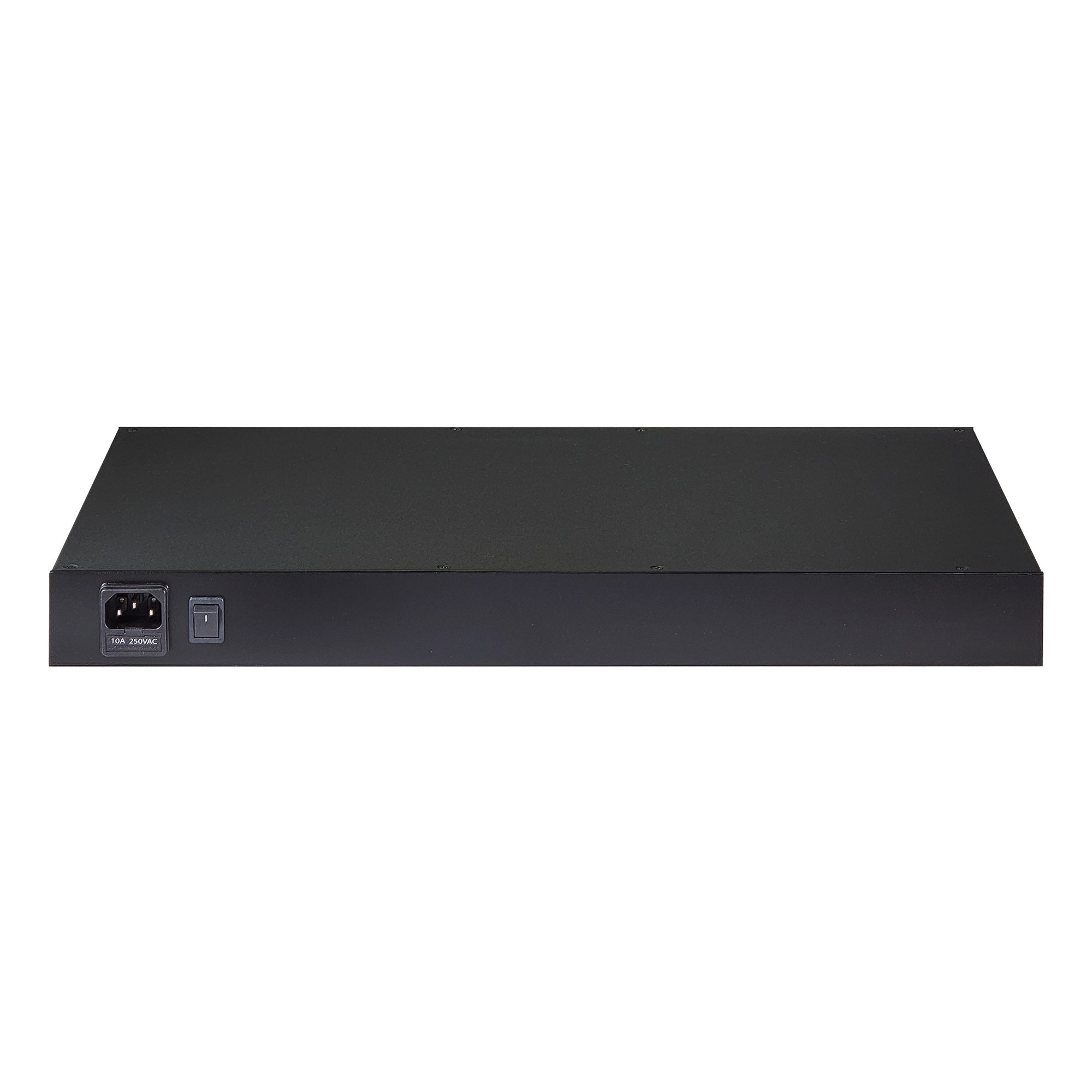

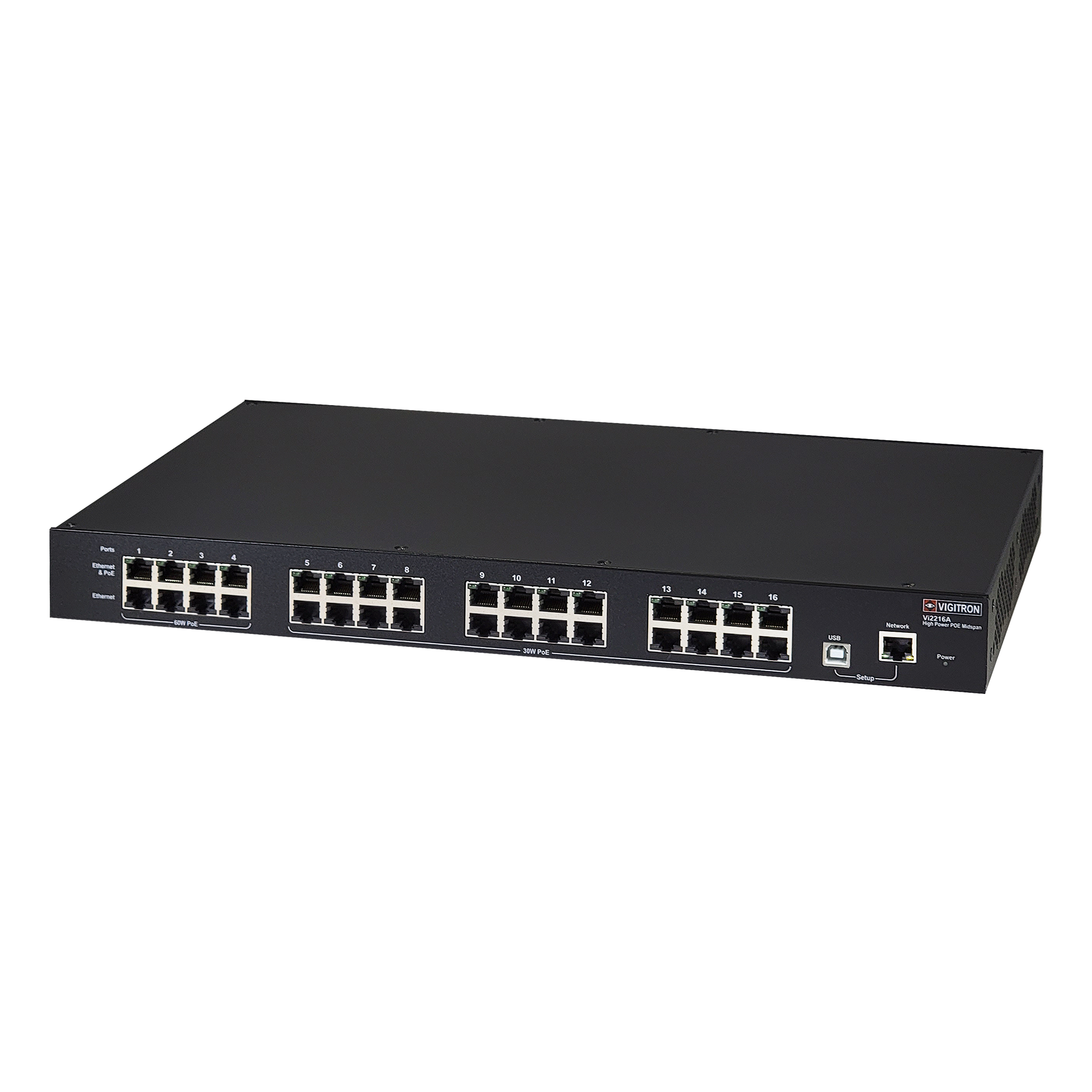

The MaxiiPower Model Vi2216A is 16-port high power PoE midspan. It is compatible with 10/100/1000BaseT Ethernet networks. It meets IEEE 802.3af and IEEE 802.3at standards and UPoE+ delivering up to 36W per port simultaneously and up to 72W on each port of 1-4. The Vi2216A is fully manageable by an easy-to-use GUI that can be accessed via direct connection to the USB port or remotely over network connections. It is equipped with LEDs to provide power status. No IP settings or configurations are required, and it is completely transparent to the Ethernet network and higher-layer protocols.

The MaxiiPower midspans are 1U high and can be easily installed in 19” racks. They are ideal for a wide range of CCTV or IT applications that require high power such as IP cameras, wireless access points or VoIP to be connected to a central LAN switching fabric with ease.

Features:

• 16 ports of IEEE 802.3.af/at and UPoE+ compliant PoE for 10/100/1000 Base-T networks
• Deliver up to 36W per port simultaneously on all ports for total of 550W
• Ports 1-4 can provide up to 72W each
• Per-port delayed PoE power up programmable for reducing start-up power surges
• Automatically senses PD power class and single or dual PD devices
• LED Indicators provide power on each port
• Provides high data rate and high power for long-distance, ideal for Mega-pixel cameras
• 19”, 1U rack or wall mountable
• Fully transparent to Ethernet networks and higher layer protocols
• Fully manageable with Windows GUI accessible through a local USB port or network connection with default plug-and-play option
• No IP address programming or other networking setup required
• Limited lifetime warranty
