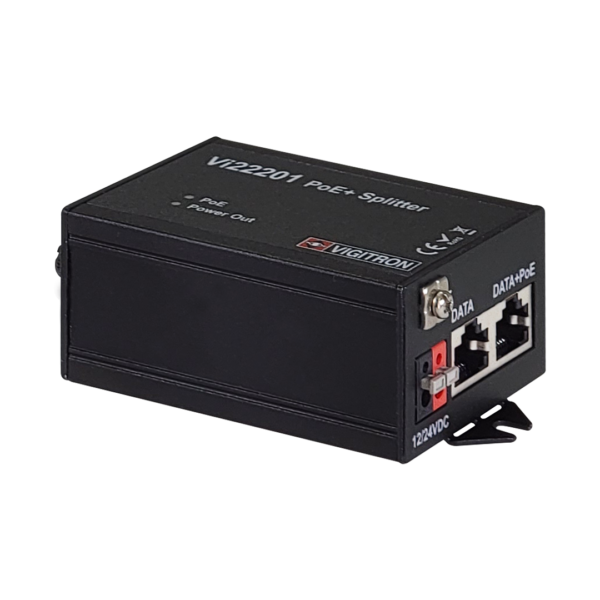

Vigitron - Vi22201 - MaxiiPower™ IEEE802.3af/at PoE splitter 12/24VDC @ 24W output
Part number:
Vi22201
Price:
The Vi22201 is a PoE splitter that is fully compliant with IEEE 802.3af and with IEEE 802.3at standards. When used with a PoE switch or PoE Midspan, it separates PoE from Ethernet data and regulates the PoE high voltage to 12VDC or 24VDC.

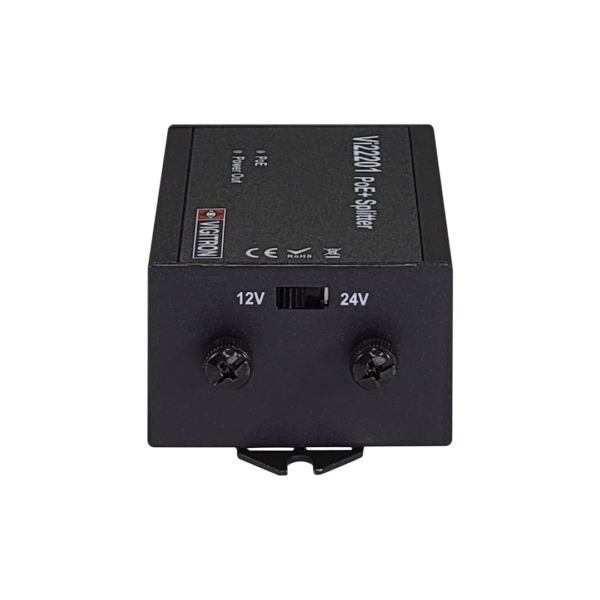

It is designed to power Non-PoE IP devices and can provide 12VDC or 24VDC output up to 30W. The output voltage is selected by a slide switch. The Vi22201 is equipped with over-current protection to safeguard connected devices and can operate at an extended temperature of -40°C to +85°C. It is cost-effective and compact in size and fits easily in most camera housings.
The Vi22201 is an ideal solution that provides remote power to non-PoE IP devices to save installation time and cost.
Features:
- Separates PoE from Ethernet
- Convert IEEE 802.3at PoE power to 12/24VDC
- Compatible with all IEEE 802.3af/at PoE sources
- Pass through data and PoE for device IP control and monitor
| Specification | |
| Electrical | |
| Ethernet Interface | Standard 10/100Mbps |
| Data Rate | Auto select 10/100Mbps Full speed / Full duplex |
| Power Consumption | Based on input power |
| Power Input | IEEE 802.3af, 15.4W IEEE 802.3at, 30W |
| Power Output | 12V DC @ 2.5A 24VDC @ 1.25A |

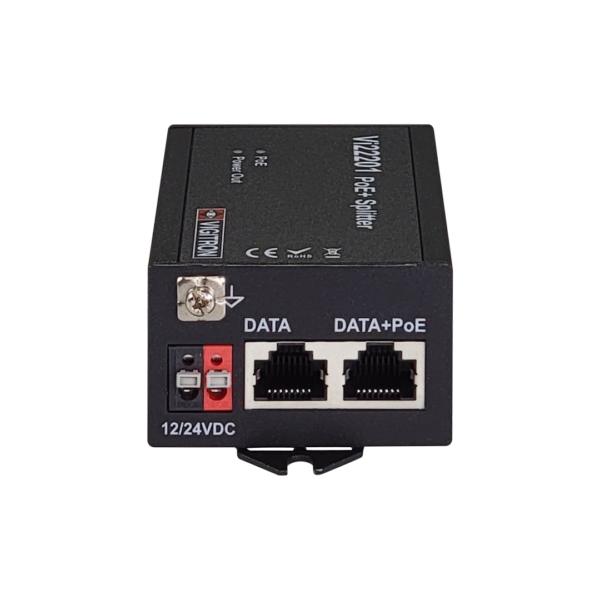

| Connections | Input Power and Data: RJ45 Power Out: Push Connector Data: RJ45 |
| Status LEDs | PoE: Red 12/24VDC Output Available: Green |
| Data Interfaces and Compliances | RFC 768 UDP, RFC 2068 HTTP RFC 793 TCP, RFC 791 IP RFC 1783 TFTP, RFC 894 IP over Ethernet RFC 2544 TCP/IP Packet Transmission |
| PoE Compatibility | IEEE 802.3af / Class 0,1,2,3 IEEE 802.3at / Class 4 |
| Regulatory | |
| Safety | CE |
| Environmental | RoHS, WEEE |
| Environmental | |
| Humidity | 0 to 95%, non-condensing |
| Temperature | Operating: -40°C to +85°C Storage: -65°C to +150°C |
| Mechanical | |
| Dimensions | 1.36x2.13x2.91 in., 34.5x54.1x73.9 cm (HxWxL) |
| Weight | 0.25 lb, 115 g |
| Material | Extruded Aluminum |
| Accessories | |
| Mounting clips | |
| Din rail adapter | |
