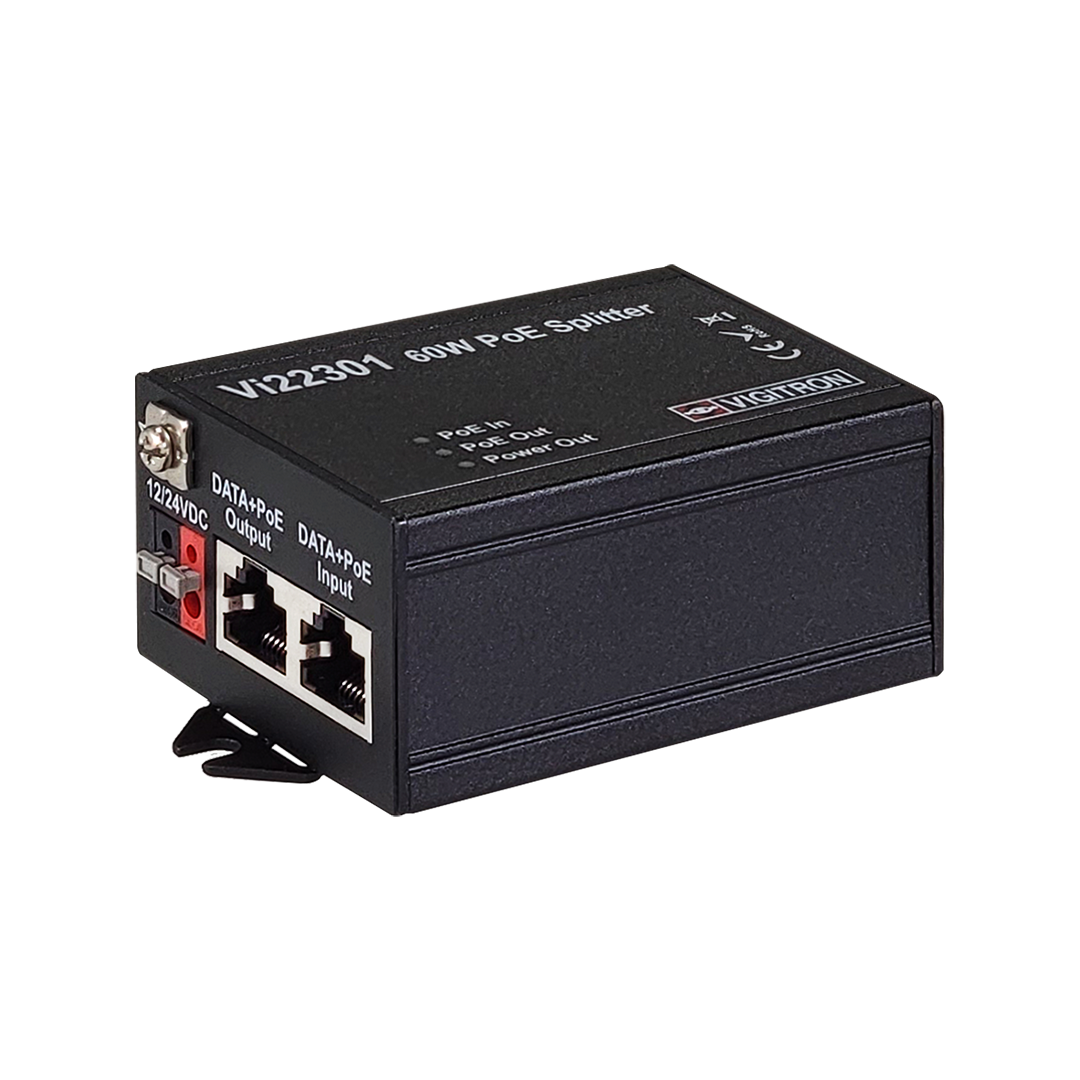

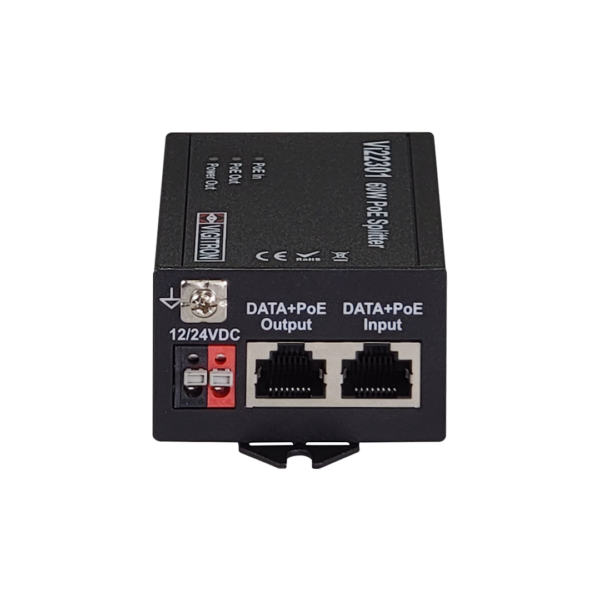

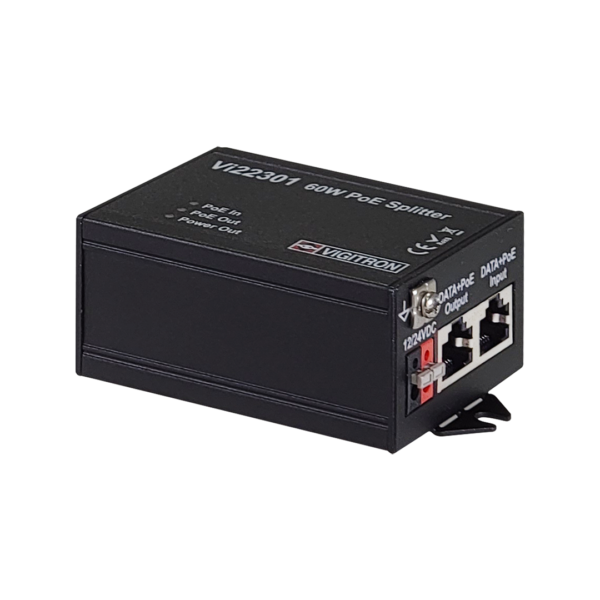

The Vi22301 is a PoE splitter providing up to 30W of PoE and 12VDC or 24VDC. It is the perfect solution for powering both PoE devices such as IP cameras and devices requiring DC power such as LED and emergency phone systems.

The Vi22301 can also be used with IP PTZ dome cameras that require PoE power for the camera and DC power for heaters and blowers. It eliminates the need for running a separate power cameras reducing installation costs to a single IP PoE power camera.

Features:

• Provides both PoE and either 12VDC or 24VDC for powering multiple units with a single PoE input
• Cost-effective solution for powering both IP cameras, security, and emergency phone and lighting systems
• Convert IEEE 802.3at PoE power to 12VDC or 24VDC
• Maintains IP data throughput
• Provides DC power to non-PoE devices
• Compatible with all IEEE 802.3af/at and 60W PoE sources
• Compatible with Vi2300A UTP and Vi2400A coax extenders for distances up to 2,000 ft.
