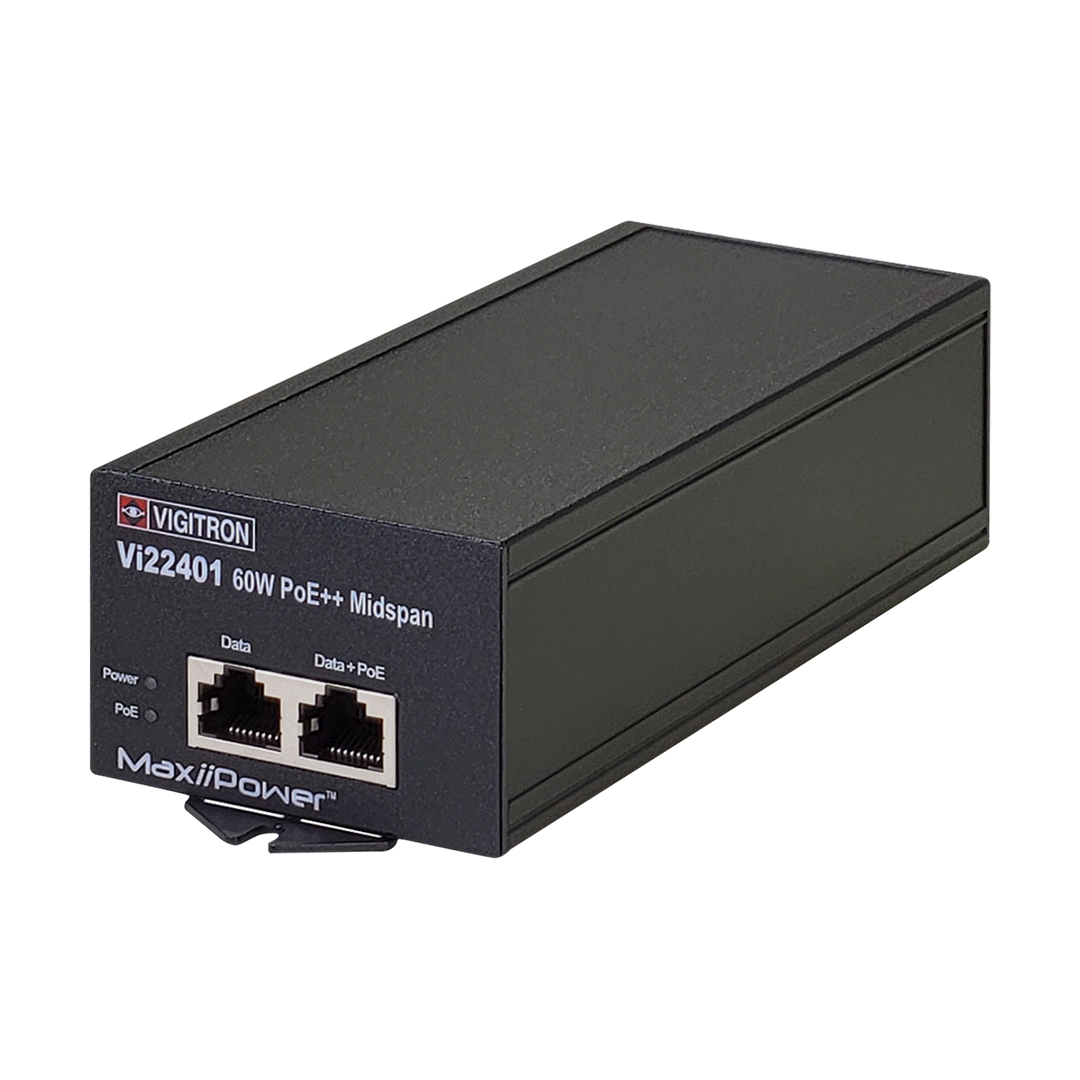

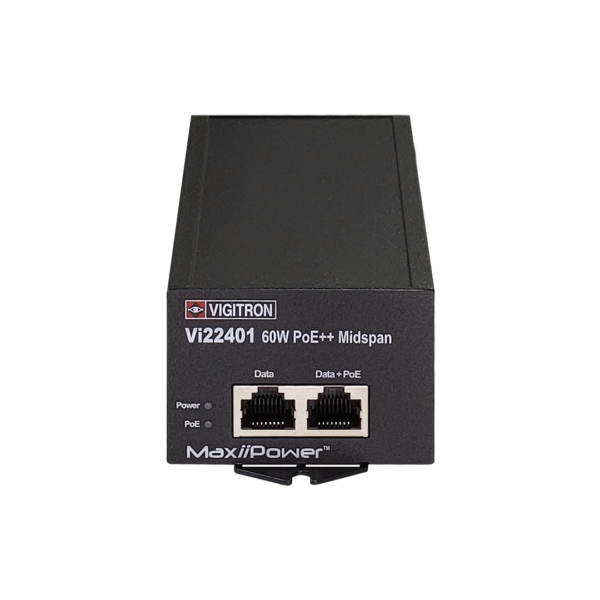

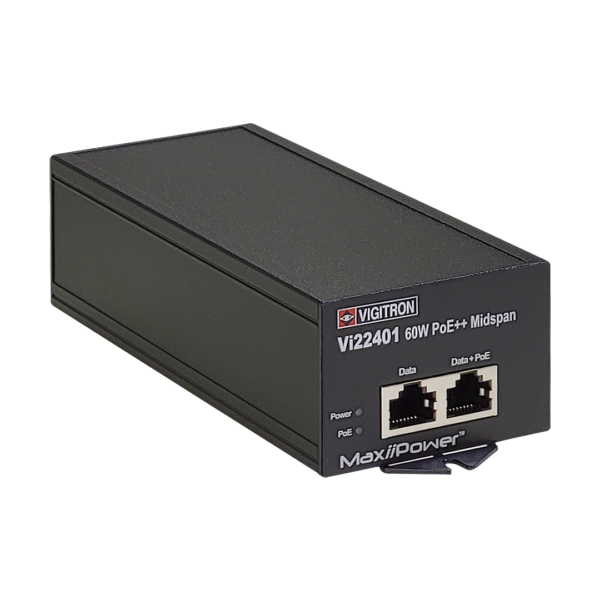

Vigitron’s MaxiiPower Vi22401 is a high-power single port Midspan compliant to IEEE 802.3af/at up to 60W. It is a cost-effective solution for powering a wide range of IP cameras that offers all standard PoE safety features including detection, connection/disconnection, and fault protection. With a transmission bandwidth of up to 1Gbps, its application has virtually no bandwidth limitations and interfaces with the highest megapixel cameras.

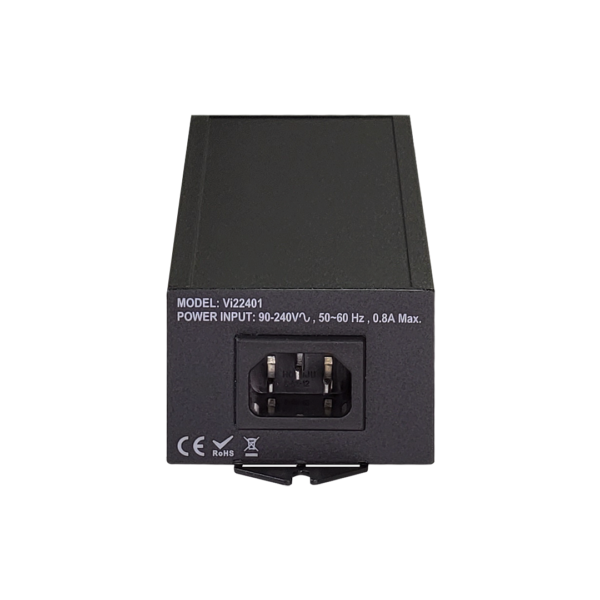

The Vi22401 includes a 65W built-in power supply and does not require an external power supply. It is compact size, easy to install, and ideal for use in environmental enclosures or other space-restricted applications. It provides a wide operating temperature range that meets the requirements for outdoor operation in weatherproof enclosures.

The Vi22401 complies with all network transmission standards and is an ideal solution for powering any PoE-powered devices that require high power PoE devices requiring up to 60W.

Features:

• Single port IEEE 802.3.af/at/60W PoE compliant for 10/100/1000 Base-T networks
• Built-in 65W universal power supply
• Delivers up to 60W PoE for high power applications
• Automatically senses single or dual PD devices
• Complies with IEEE 802.3 safety standards for automatic detection and over-current protection
• Built-in PoE surge protection
• Provides high data rate and power for Megapixel IP camera applications
• Tested to RFC 2544 packet transmission standards
• Compact design
