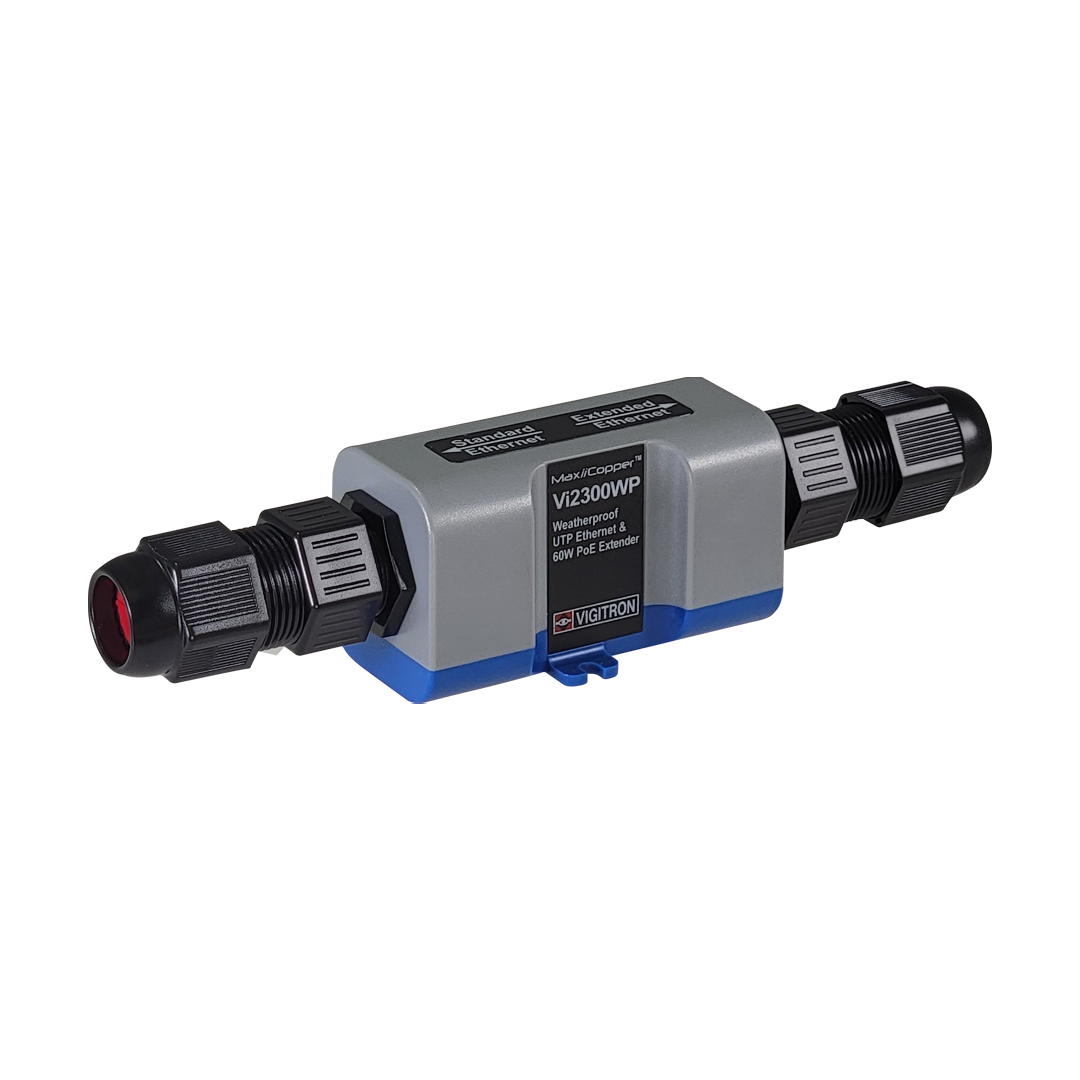

Vigitron’s MaxiiCopper™ Vi2300WP UTP Ethernet extender brings new performance standards to the growing need for high-speed transmission of full bandwidth Ethernet and high-power PoE over extended distances. Its compact IP67 weatherproof design is perfect for any outdoor application. The ability to power PoE cameras at distances up to 2,500 ft. (757m), without the need for a local power source, makes it the perfect solution for parking lots, car lots, loading docks, and perimeter security applications. Its unique Symmetric Bandwidth (SBW™) assures full bandwidth transmission is maintained over the entire operational distance for both uploads and downloads with Virtual Zero Packet Loss (VZPL™). It can use 1 pair or 4 pairs of UTP and requires no switch setting or network programming.

The Vi2300WP is designed for the hardest environmental conditions with total dust protection, water immersion, and an operating temperature range of -40°C to +75°C.

The patent-pending Pass-Through-PoE (PTPTM) eliminates the need for local power supplies and outlets allowing a single PoE source, such as a PoE network switch, to provide power to both transceivers and the PoE camera. The Vi2300WP can pass through up to 74W, UPoE is compliant. It is type-tested under NEMA-TS2 environmental standards for extended temperature range -40°C to +75°C. It is low power and can easily fit inside most cameras housing and junction boxes. Best of all, it is MegaPixel Certified (MPC™), the type tested to network packet performance standards, and compatible with all major camera brands to assure you of error-free and reliable operations.

The Vi2300WP is the perfect solution for a wide variety of extended distance data and power transmission applications such as warehouses, parking lots, campuses, and casinos.

Features:

• Conforms to IP67 standards with total dust and moisture protection
• IEC 60068-252 certified for operation in salt-laden environments
• Easy to install and does not require connector removal
• Requires no switch setting or network programming
• Extended Pass-Through PoE (EPTP™) compatible with 802.3af, at, bt up to 74W
• Mega-Pixel Certified (MPC™) High data rate, ideal for high bandwidth requirements of Mega-pixel cameras, multiple IP cameras systems, and cameras transmitting Jumbo Frames
• Symmetric Bandwidth (SBW™) provides consistent upload and download with Virtual Zero Packet Loss (VZPL™)
• Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
• Supports one-pair or four-pair UTP wires with built-in transceiver cable connectivity tester
• Type tested for -40°C to +75°C conforming to NEMA-TS2 testing standards
• Complies to major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPS
