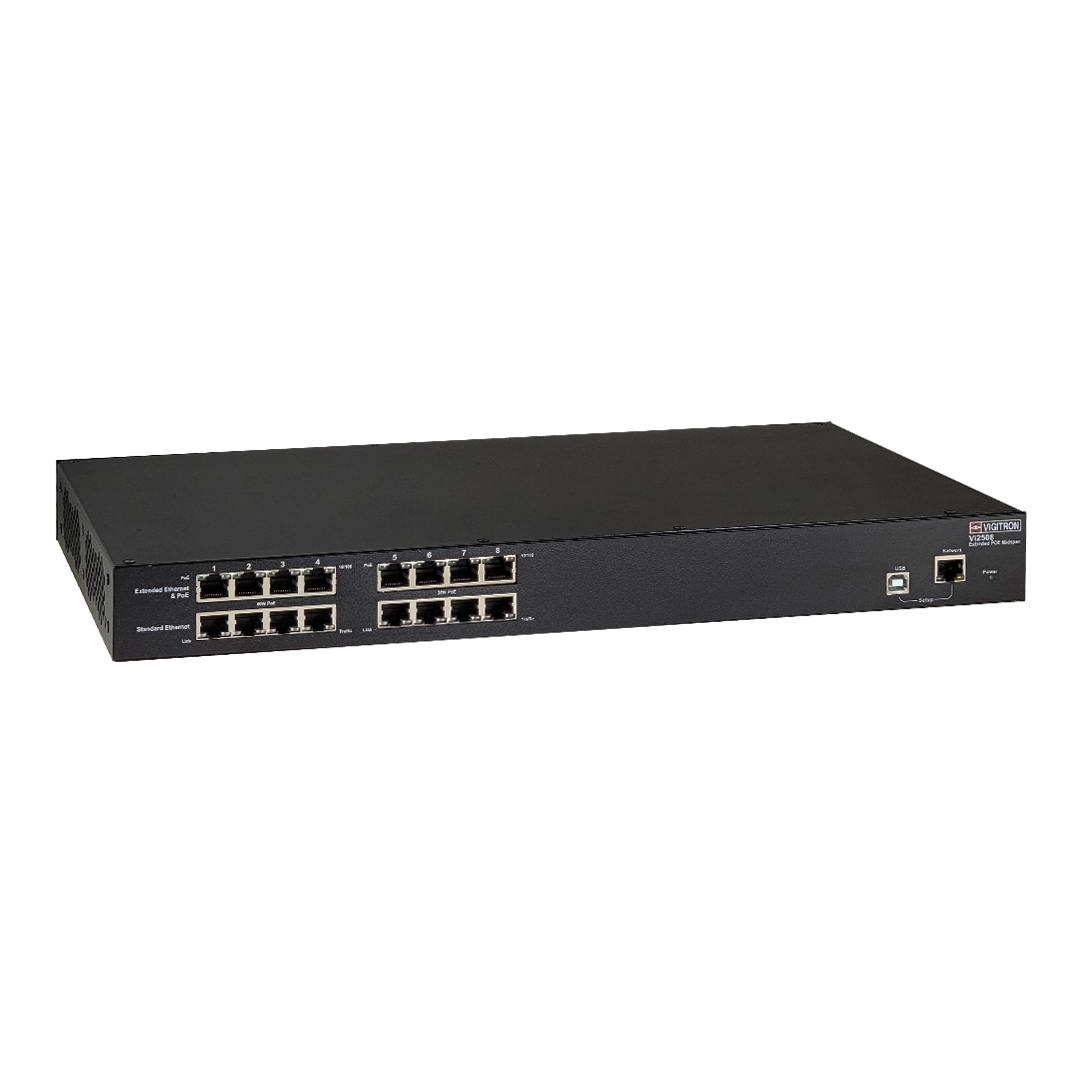

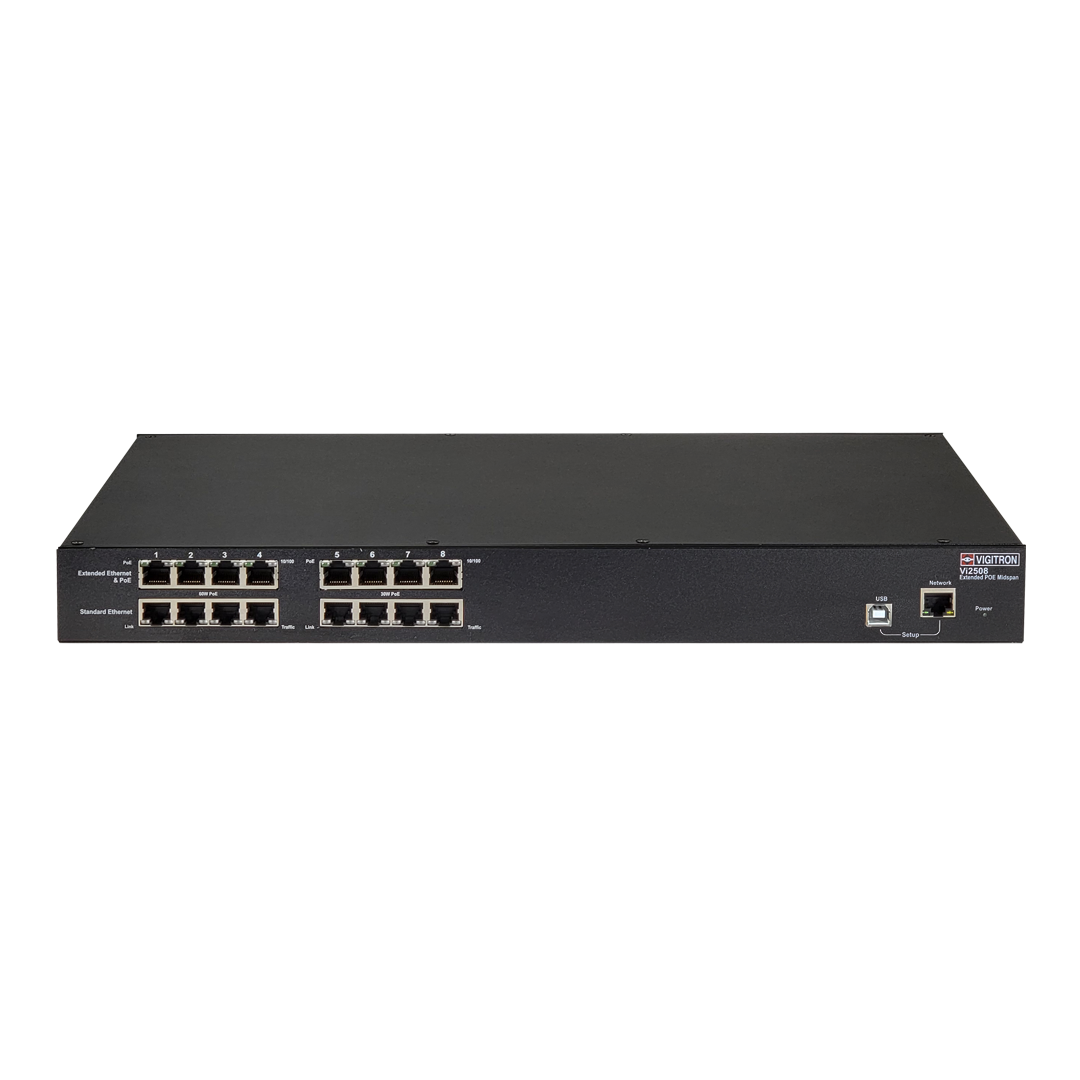

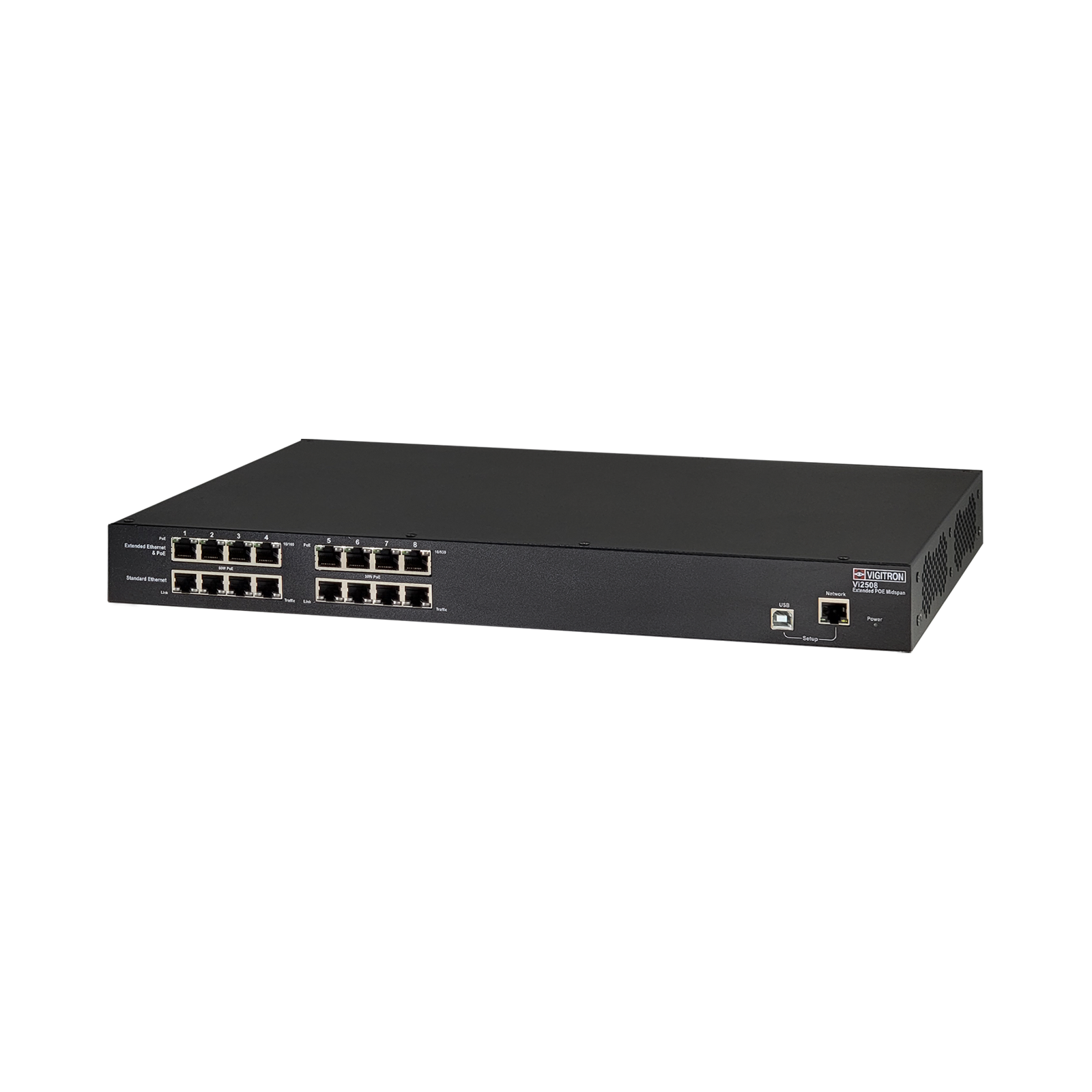

MaxiiPower Vi2508 is a managed 8-port extended UTP PoE midspan designed to meet the most demanding IP camera data and PoE requirements at extended distances. It is fully manageable and provides up to 36W per port, on all ports and 72W PoE on Ports 1-4 for high power applications such as PTZ cameras. The Vi2508 provides extended distance transmission over UTP using Vigitron's unique Symmetric Bandwidth (SBW) technology.
With only a transceiver and no additional power source at the camera site, the Vi2508 can provide full 802.3.af, 802.3at on all ports to PoE cameras. It is fully transparent to the Ethernet network and higher-layer protocols and requires no IP setting or configurations. The PoE controller provides auto mode with no programming required.
The PoE is fully manageable by an easy-to-use Windows based GUI that can be accessed via direct connection to the USB port or remotely over network connections. It also operates in auto mode with no programming required. The standard accessory client software provides full security, discovery for all Vigitron Midspans’ set up, and individual port monitoring. The built-in Ethernet extender technology simplifies the installation and lowers the cost of the system by eliminating the need for standard PoE midspans with far limited PoE power and protection capability.
MaxiiPower midspans provide status LEDs to indicate power and transmission status to indicate potential problem areas. The PoE is fully manageable by an easy-to-use GUI that can be accessed via direct connection to the USB port or remotely over network connections.
The Vi2508 is a 1 U height installed in 19” racks. It is ideal for a wide range of CCTV or IT applications that require high power such as IP cameras, wireless access points or VoIP installed at extended distances.
Features:
Electrical | |
Ethernet Interface | Standard 10/100BaseT |
Data Rate | Auto select 10/100 Mb/s Full speed / full duplex at maximum rated distances |
UTP | 100 Ohm +/- 20%, Cat5 or better 10BaseT: up to 3,000 ft. (914 m) 100BaseT: up to 2,100 ft. (640 m) |
Power Consumption | 12 VDC, 1.8 W w/PoE, 1.5 W w/external power supply |
Status LEDs | Power On Standard Ethernet: Traffic, Link Extended Ethernet: Traffic, 10/100BaseT |
Connectors | Ethernet Interface: RJ-45 Connector Extended Interface: RJ-45 Connector Power: 2-pin Pluggable Terninal Block |
RFC | 2544 TCP/IP Packet Transmission |
PoE Compatibility | IEEE 802.3af, at, bt PoE Standards up to 74W |
RFC | 2544 TCP/IP Packet Transmission 768 UDP, 2068 HTTP, 793 TCP 791 IP, 1783 TFTP, 894 IP over Ethernet |
Jumbo Frame Support | Up to 9,600 bytes |
Regulatory | |
FCC | Part 15, Subpart B, Class B 2010 |
Emissions | EN 5502:2006+A1:2007, EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-3-3:2008, EN 55024:1998+A1:2001+A2:2003 |
Safety | CE |
Environmental | RoHS |
Environmental | |
Humidity | 0 to 95%, non-condensing |
Temperature | Operating: -40°C to +75°C Storage: -40°C to +85°C |
Mechanical | |
Dimensions | 1.15x1.6x3.73 in., 3.0x4.0x9.5 cm (HxWxL) |
Weight | 0.212 lb, 96 g |
Material | Extruded Aluminum |
