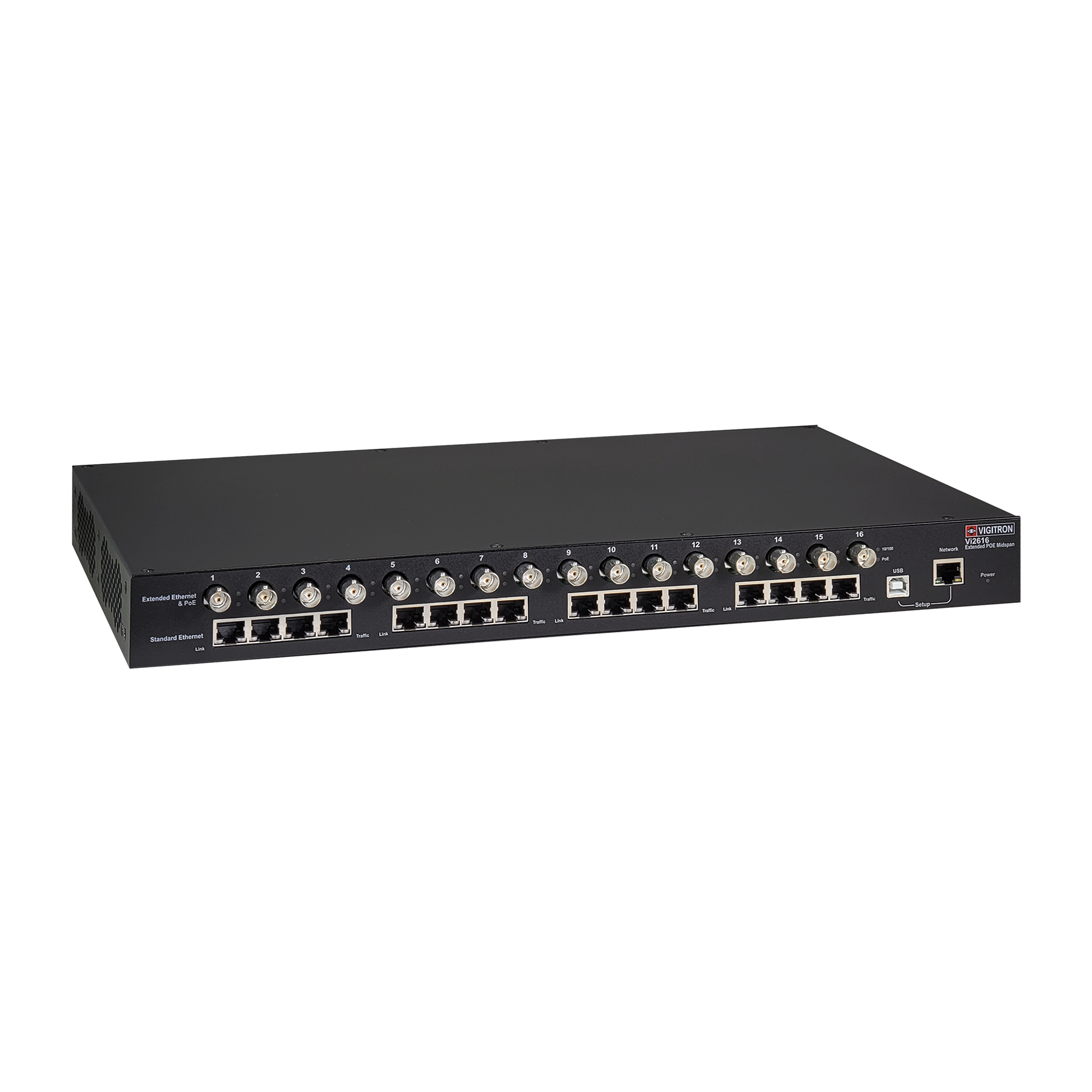

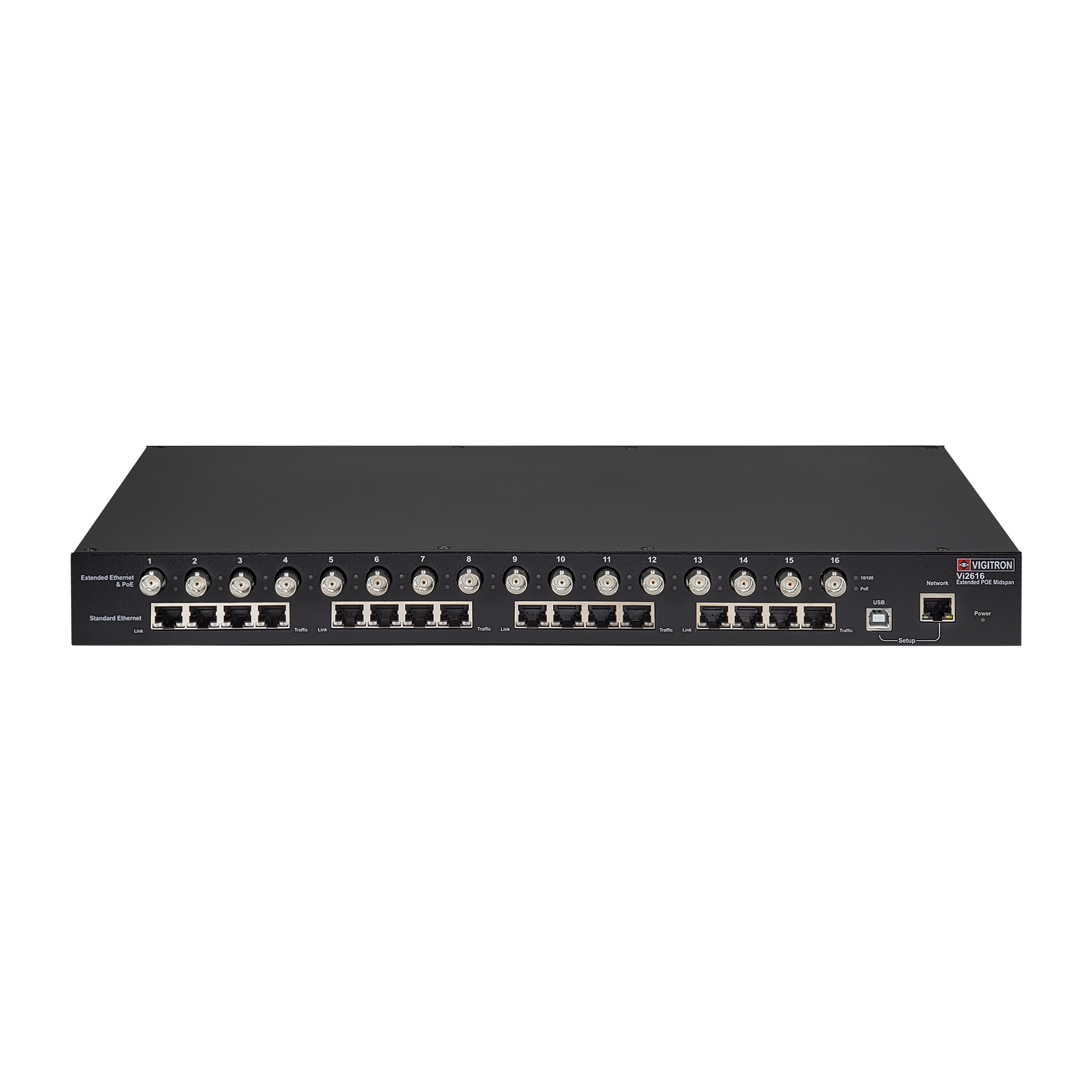

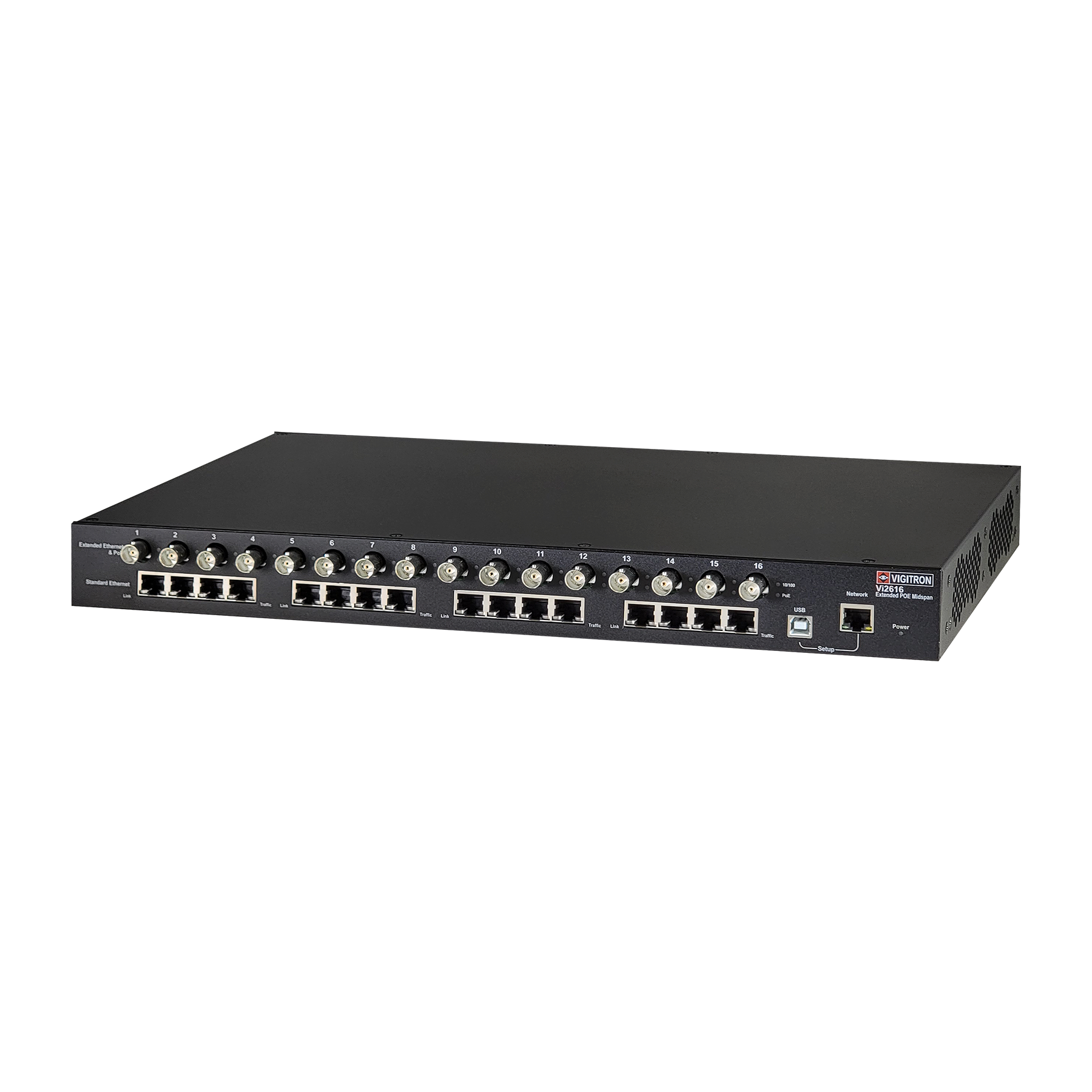

MaxiiPower Vi2616 extended midspan is designed to meet the most demanding IP camera data and PoE requirements at extended distances over Coax cables. It is fully manageable and can provide full 802.3.af and 802.3at up to 36W per port, with no power-sharing. The Vi2600 series provides extended distance transmission over Coax using Vigitron's unique Symmetric Bandwidth (SBW) technology. It is fully transparent to any standard Ethernet network and higher-layer protocols and requires no IP setting or configurations. The built-in Ethernet extender technology simplifies the installation and lowers the cost of the system by eliminating the need for standard PoE midspans with far limited PoE power and protection capability.

MaxiiPower extended midspans provide status LEDs to indicate power and transmission status to indicate problem areas. The PoE is fully manageable by an easy to use Windows based GUI that can be accessed via direct connection to the USB port or remotely over network connections. It also operates in auto mode with no programming required. The standard accessory client software provides full security, discovery for all Vigitron Midspans’ set up, and individual port monitoring.

The MaxiiPower extended midspans are 1 U high to be installed in 19” racks. They are ideal for a wide range of CCTV and IT applications that require high power such as IP cameras, wireless access points or VoIP installed at extended distances.

Features:

• High power midspan with built-in Ethernet extender for distances up to 5,000 ft (1,524m)
• 16 ports of IEEE 802.3.af/at compliant up to 36W per port simultaneously on all ports with no power management required
• Per-port delayed PoE power up programmable for reducing start-up power surges
• Provides 802.3.af (12.95W) up to 1,500 ft.(457m) and 802.3.at (25.5W) up to 500 ft.(152m)
• Fully manageable with Windows GUI accessible through a local USB port or network connection with default plug and play option
• Managed in-rush current prevents shut down during camera events such as start-up, day/night, auto back focus heater and blower turn on, and PTZ operation
• LED Indicators provide power status on each port
• Saves time and installation costs by using existing coax cable. Easy conversion from analog to IP systems
