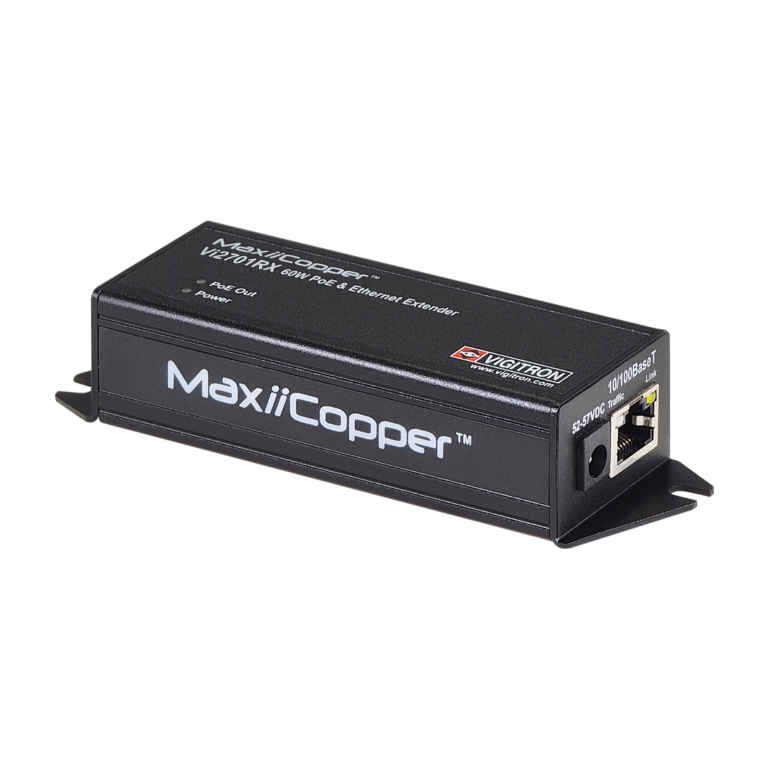

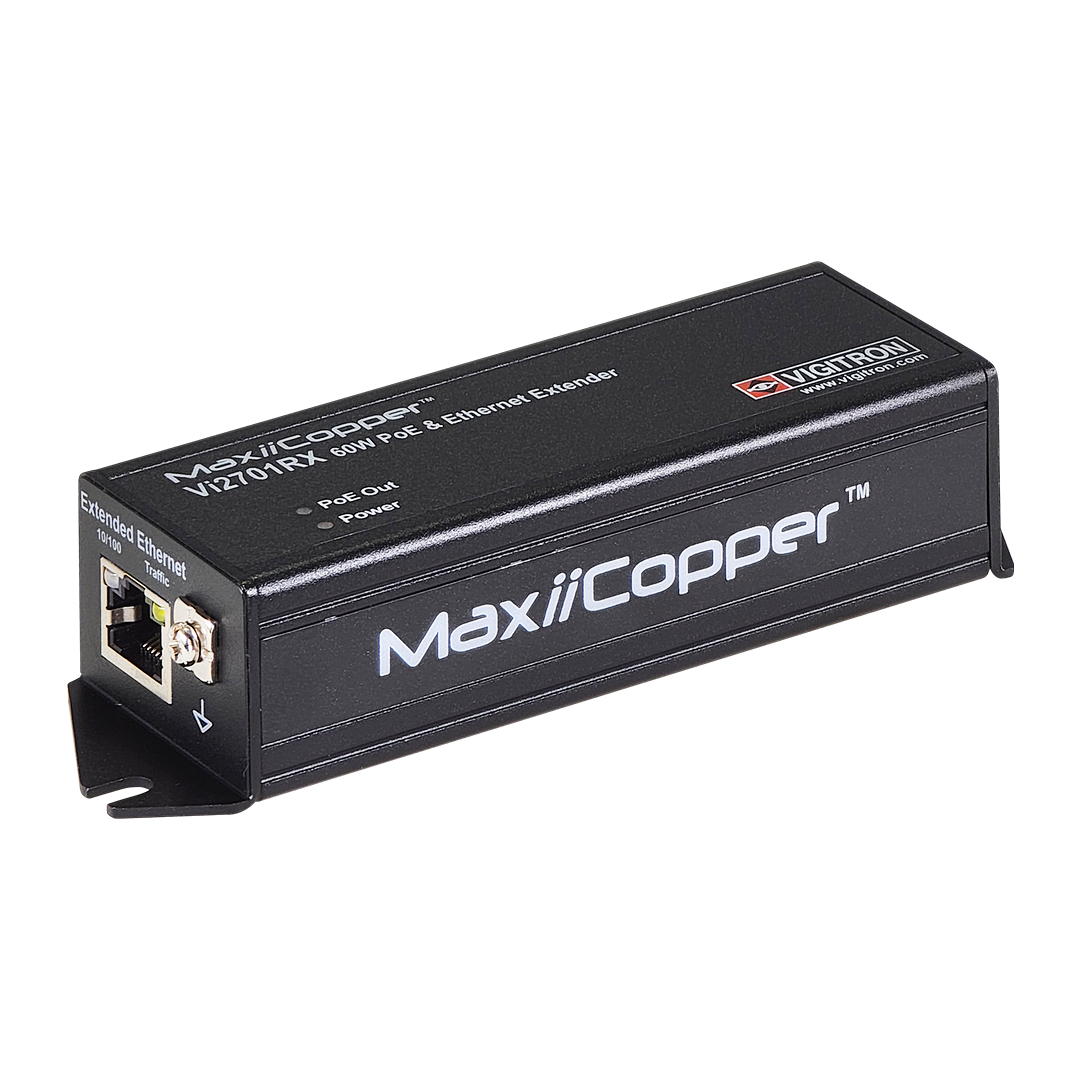

Vigitron’s MaxiiCopper Vi2701RX remote unit is designed to meet the growing need for Ethernet and PoE transmission of high power cameras and other PoE powered devices. It is able to provide up to 74W PoE power beyond Ethernet standard distances and eliminate the need for expensive remote-site power supplies, significantly lowering system installation and operating costs. The Vi2701RX supports both single PD or dual PD PoE cameras. It is compatible with Vigitron's Vi2701TX and Vi2300 series UTP Extenders.
The Vi2701RX includes unique features that assure high performance required to support the largest Megapixel cameras. The Vi2701RX’s Symmetric Bandwidth (SBW) assures full bandwidth transmission is maintained over the entire operational range for both uploads and downloads with Virtual Zero Packet Loss (VZPL). The MaxiiCopper Vi2701RX can easily fit inside most camera housings and junction boxes. It is MegaPixel Certified (MPC), type tested to network packet performance standards, along with major manufacturer compatibility testing to guarantee error-free and quality operation. Installation cost savings, tested and proven performance, and major camera manufacturer compatibility all go into making Vigitron’s MaxiiCopper Vi2701RX, a great choice for extended distance data and PoE power transmission.
Features:
- Provides Ethernet data and PoE power up to 60W to extended distances
- It extends Ethernet and PoE up to 3,000 feet (914m) of UTP cables
- Up to 74W can be provided to the Vi2701RX and Vi2300 extender series
- Provides IEEE 802.3af,at, UPoE PoE up to 74W
- Meets the increasing requirements for high power PoE fixed and domes cameras
- MegaPixel Certified (MPC) high data rate, for virtual loss free transmission of cameras requiring Jumbo Frame transmission
- Symmetric Bandwidth (SBW™) provides consistent upload and download with Virtual Zero Packet Loss (VZPL) over total specified distance
- Type tested to RFC 2544 TCP/IP network bandwidth packet transmission standards and Jumbo Frame Transmission
- Wide operating temperature of -20°C to +75°C
- Compliant to IEEE 802.3af/at and can drive loads with one PD or 2 PD remote PoE loads
| Electrical | - |
| Ethernet Interface | Standard 10/100BaseT |
| Ethernet Rate | 10/100 Mb/s, Auto selectable Full speed / full duplex at maximum rated distance |
| UTP** | 100 Ohm +/- 20%, 3,000 feet (914 m) at 10BaseT 2,100 feet (640 m) at 100BaseT |
| Power Input | IEEE 802.3af,at, UPoE up to 74W |
| PoE Output | 56V, @ 60W max |
| Status LEDs | Power Standard Ethernet: Traffic, Link Extended Ethernet: Traffic, 10/100BaseT |
| Connectors | Ethernet Interface: RJ-45 Connector Extended Interface: RJ-45 Connector Output Power: 2-pin Pluggable Terminal Block |
| RFC | 2544 TCP/IP Packet Transmission |
| Compatible with | IEEE 802.3af PoE, IEEE 802.3at PoE, UPoE |
| RFC | 768 UDP, 2068 HTTP, 793 TCP 791 IP, 1783 TFTP, 894 IP over Ethernet |
| Regulatory | - |
| Safety | CE, UL, cUL |
| Environmental | RoHS |
| Environmental | - |
| Humidity | 0 to 95%, non-condensing |
| Temperature | Operating: -20°C to +75°C Storage: -40°C to +80°C |
| Mechanical | - |
| Dimensions | 1.4 x 2.15 x 4.15 in, 3.5 x 4.3 x 10.4 cm (HxWxL) |
| Weight | 0.37 lb (167 g) |
| Material | Aluminum |
