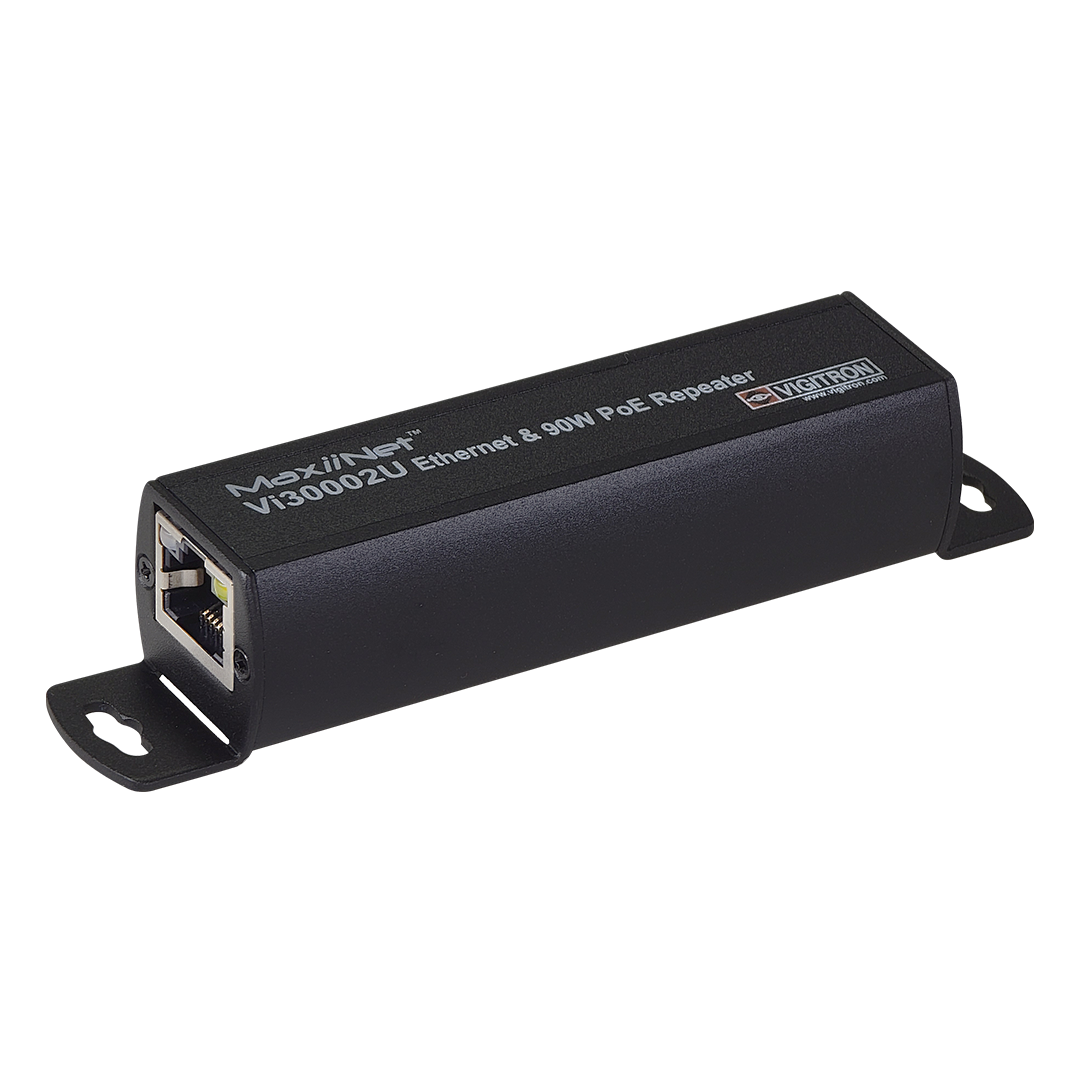

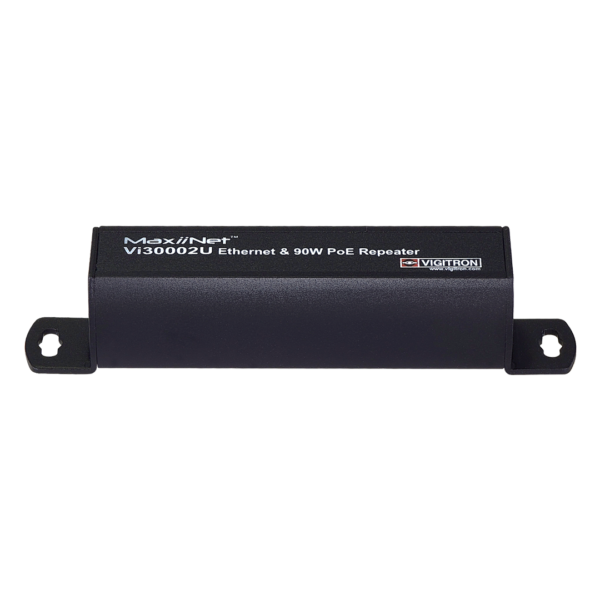

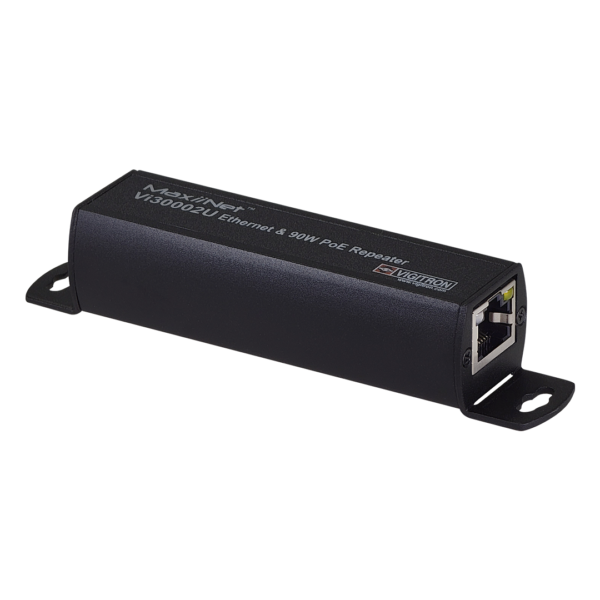

The Vi30002U is an Ethernet and 90W PoE repeater that provides a cost-effective method for increasing distances beyond the Ethernet limit of 328 feet (100m) for IT or CCTV applications. It is EEE 802.3bt compliant up to 90W PoE. By using 2 units it can provide 60W at 900ft (275m). The Vi30002U is a high-performance device that meets the demand for the highest PoE-powered PTZ domes and LED lighting eliminating the need for local power.
The Vi30002U is extremely compact in size and can be easily installed in the smallest environments such as wire conduits and weather-proof enclosures. Removable mounting brackets make installation an easy process. Multiple units up to 8 units can be combined to achieve a distance of 2,950 feet (900m) for IP video, PoE, and data transmission.
The Vi30002U is powered by PoE only and requires no external power supply. It is an ideal solution for extending data, IP video, and PoE from PoE switches and Midspans to PoE-powered devices.
Features:
- Extends UTP video and 90W PoE up to 656ft (200m)
- PoE powered with no need for local power
- No network configuration required
- Built-in network switch technology for reliable transmission
- Full network bandwidth 10/100Mbps for transmitting the highest megapixel cameras
- PoE power up to 90W for high power PTZ without the need for local power
- Compliant to IEEE 802.3af, at, bt PoE standards
- Extremely compact size enables easy installation
- Multiple Vi30002Us can be used to extend IP video and PoE at distances up to 2,950ft.
- Complies with NEC standards for use in 3, 3 ½, and 4-inch conduit
| Specification | |
| Electrical | |
| Data Rate | 10/100Base-TX (10/100Mbps), Auto configuring |
| Power Transmission Standard | IEEE 802.3af (15.4W) IEEE 802.3at (30W) IEEE 802.3bt (90W) |
| Network Connection | 2 x RJ-45 IEC 60603-7 |
| Wiring Support | 4 pair Cat 5/5e/6 |
| Power Consumption | 1W |
| LED | PoE: Green Link and Traffic: Orange |
| Data Interfaces and Compliances | RFC 768 UDP, RFC 2068 HTTP RFC 793 TCP, RFC 791 IP RFC 1783 TFTP, RFC 894 IP over Ethernet RFC 2544 TCP/IP Packet Transmission IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Regulatory | |
| NEC Code | For 3”, 3½”, and 4” Conduit at 40% Fill |
| Safety | CE |
| Environmental | RoHS, WEEE |
| Environmental | |
| Humidity | 0 to 95%, non-condensing |
| Temperature | Operating: -20°C to 75°C Storage: -40°C to +85°C |
| Mechanical | |
| Dimensions | 0.9x1.0x3.4 in., 2.3x2.5x6.9 cm (HxWxL) (without tabs) |
| Weight | 0.01 lb (4.5g) |
| Material | Extruded Aluminum |
