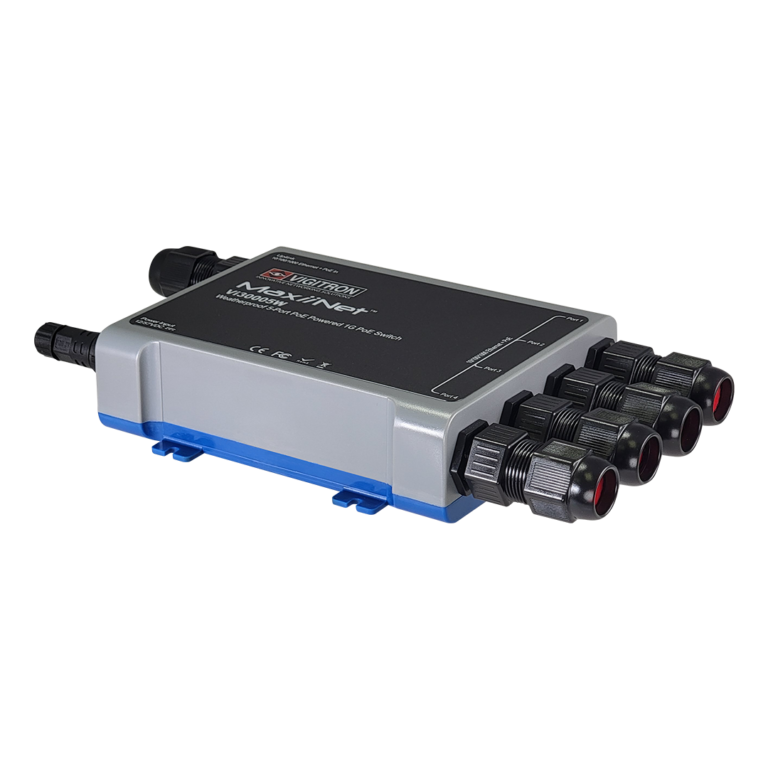

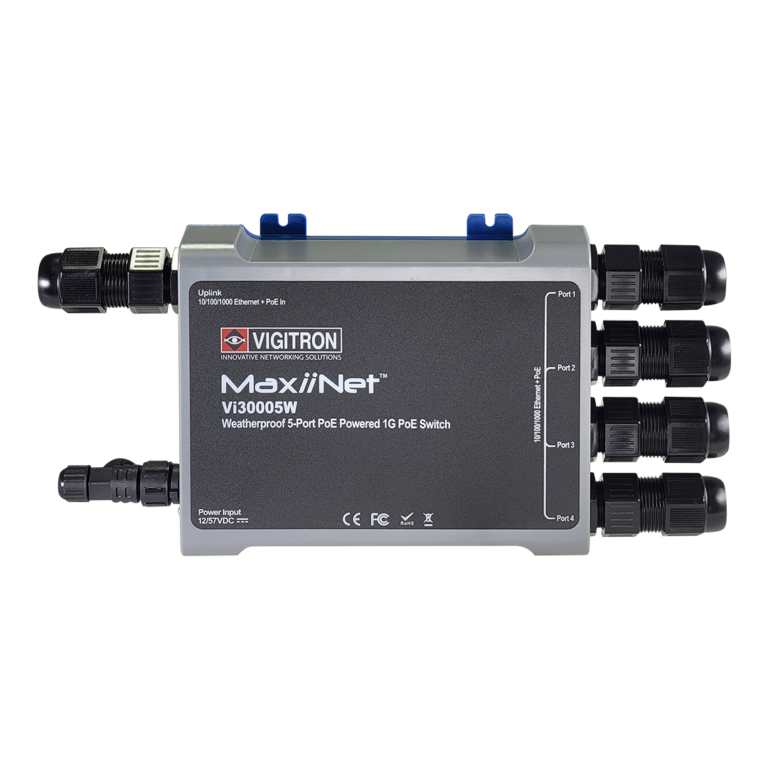

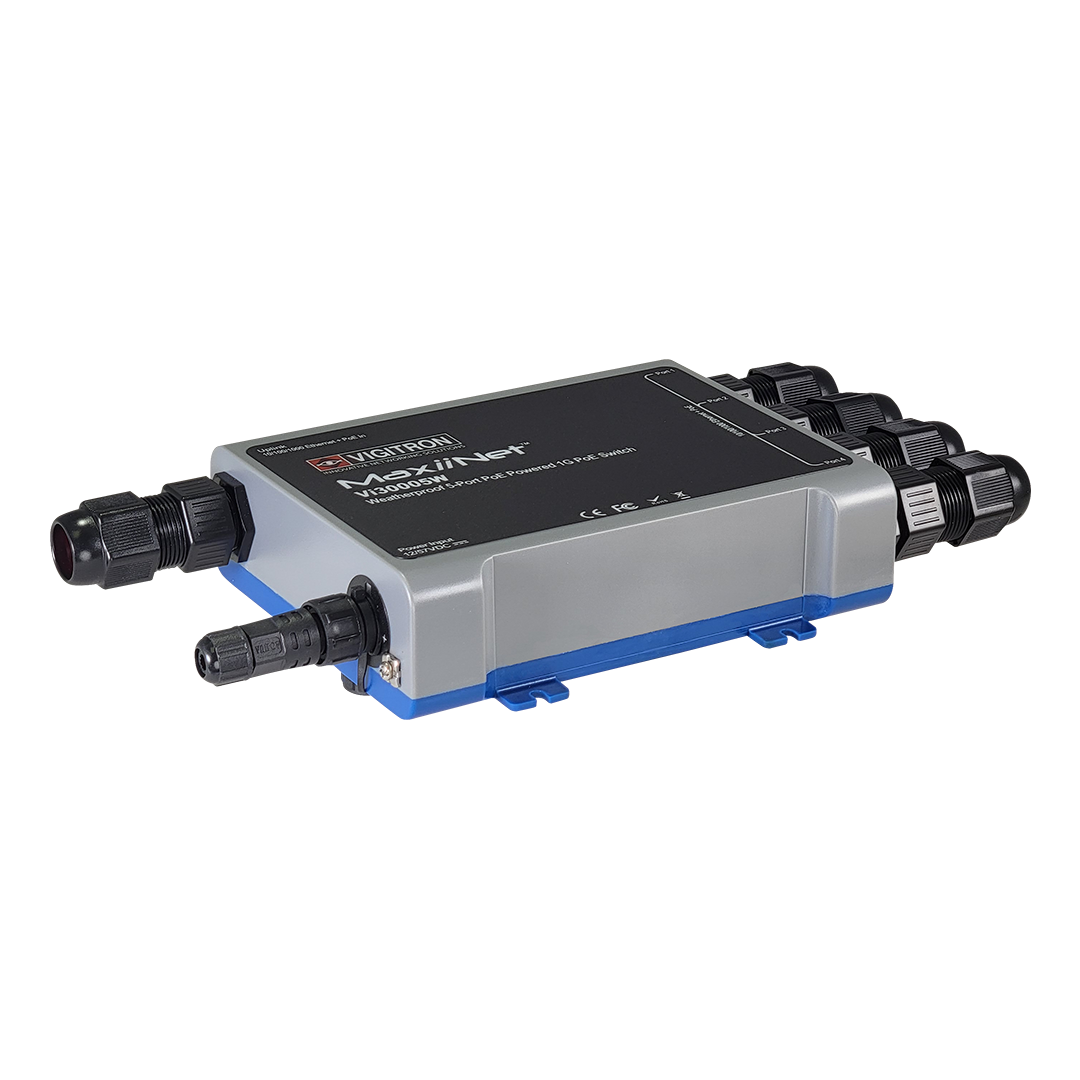

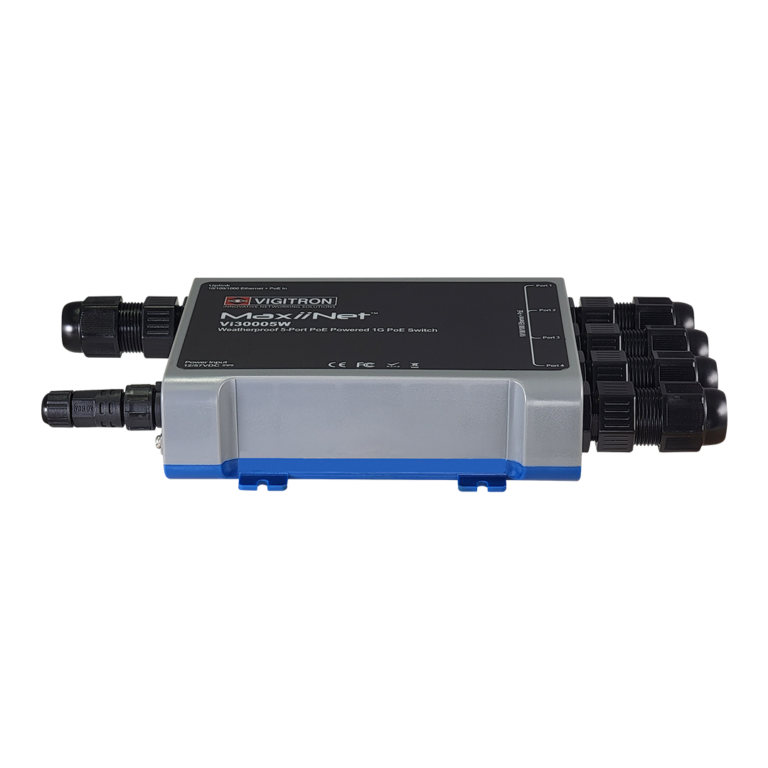

Vigitron’s MaxiiNet Vi30005W fixed managed 5-port 1000Mbps PoE switch brings new performance standards to the growing need for high speed transmission of high speed Ethernet. Local power is eliminated for the Vi30005W and the connected cameras. IP67 construction provides weatherproof and waterproof protection.
The Vi30005W can be powered by PoE sources up to 74W or locally by the Vi1120 to supply 802.3at, up to 37W to each port or up to 74W for two combined ports. The Vi30005W can be both powered by remote PoE through the uplink port and provide PoE to each of the four remaining ports. With an operating temperature range of -40°C to 75°C, the Vi30005W is the perfect solution for data and power transmission for warehouses, parking lots, campuses, casinos, and many more. The Vi30005W is MegaPixel Certified (MPC), type tested to network packet performance standards, and major manufacturer compatibility tested to assure you of quality and error free operations. Fixed managed L2 functions include 802.1p Qos, support of 2k MAC addressing, learning, aging, and a non-blocking switch fabric.
Installation cost savings, proven performance, and major camera manufacturer compatibility all go into making Vigitron’s MaxiiNet Vi30005W an ideal solution for standard distance data and power transmission.
Features:
- 100/1000Mbps network speeds, auto sensing RJ45 port
- 5-port PoE and Layer 2 network switch
- IP 67 weatherproof/Waterproof
- 6Kv surge protection
- Certified for IEC600068-2-52 for salt ladened environments
- Can be powered from a remote PoE source to provide PoE power to all 4 ports
- Up to 37W PoE per port, capable of combing each 2-ports for up to 74W
- Intelligent power sensing automatically allocates port power based on the number of connect ports and individual camera power requirements
- Automatic PoE port priority allocation
- Over current shut down protection if allocated PoE budget is exceeded
- Certified (MPC) high data rate for virtual loss free transmission of cameras
- Type tested to RFC 2544 TCP/IP network bandwidth packet transmission standards
- Type tested for -40°C to +75°C operating temperature range
- Complies with major IEEE standards and RFC network protocols for UTP, TCP/IP, HTTP/HTTPS
- Provides full Layer 2 network switch functionality
| Electrical | - |
| Ethernet Interface | Standard 100BaseT/1000BaseT/1000BaseFX 1000BaseT SFP |
| UTP | 100 Ohm +/- 20%, up to 328 ft. (100m) |
| Power Source | PoE: IEEE 802.3af (15.4W), IEEE 802.3at (30W), 72W UPoE Power Supply: 57VDC @ up to 120W or 12VDC @ 1A (non-PoE operation) |
| Connectors | Ethernet Interface: 5 x Waterproof RJ-45 connector Power: Waterproof Circular power connector |
| RFC | 2544 TCP/IP Packet Transmission 768 UDP, 2068 HTTP, 793 TCP 791 IP, 1783 TFTP, 894 IP over Ethernet |
| PoE Compatibility IEEE 802.3af, IEEE 802.3at | - |
| Jumbo Frame | Up to 9,600 bytes |
| Regulatory | - |
| FCC | Part 15, Subpart B, Class B 2010 |
| Emissions | EN 5502:2006+A1:2007 EN 61000-3-2:2006+A1:2009+A2:2009 EN 55024:1998+A1:2001+A2:2003 |
| Safety | CE |
| Environmental | RoHS, WEEE |
| Environmental | - |
| Humidity | 0 to 95%, non-condensing |
| Temperature | Operating: -40°C to +75°C Storage: -40°C to +85° |
| Mechanical | - |
| Dimensions | 1.2x5.42x6.61 in., 4.67x13.8x16.8 cm (HxWxL) |
| Weight | 2.06lbs (934g) |
| Housing | ABS plastic, UL rating of 94V-0 |
