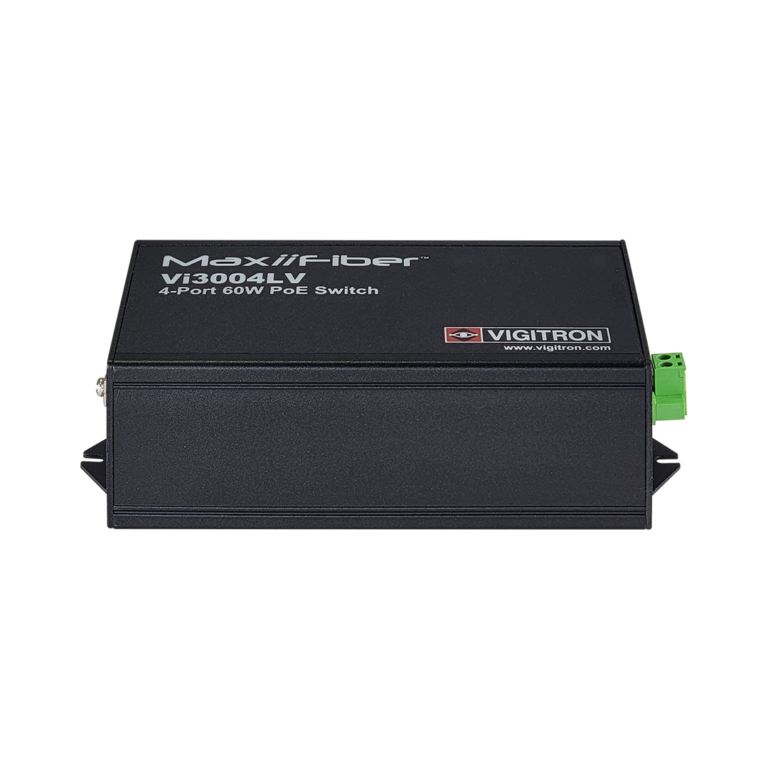

Vigitron’s MaxiiNet Vi3004LV provides solutions for upgrading existing analog systems to digital fiber, converting or adding Ethernet UTP cabling to existing fiber runs. With full layer 2 network switching, up to 60W PoE, and 1G bandwidth, the Vi3004LV is a cost-effective and reliable solution for any security application.
The Vi3004LV is a 4-port layer 2 network switch and fiber-to-copper media converter design for multiple applications and provides significant installation cost reduction. Powered by either 24VDC/24VAC, the Vi3004LV can be used in most existing CCTV applications without the need of replacing existing power supplies, especially for parking lot and perimeter applications. It offers the unique ability to install or upgrade any combination of single transmission lines with fiber, copper, or both. It can connect individual drops of fiber, copper, or both along while providing PoE up to 60W.
The Vi3004LV is MegaPixel Certified (MPC), the type tested to network packet performance standards, and major manufacturer compatibility tested to assure error-free, quality operations with the highest megapixel cameras. Fixed managed L2 functions include 802.1p Qos, support of 2k MAC addressing, learning, aging, and a non-blocking switch fabric making the Vi3004LV the perfect solution for connecting multiple network switches over fiber, copper, or both. Installation cost savings, proven performance, and major camera manufacturer compatibility all go into making Vigitron’s MaxiiNetVi3004LV an ideal solution for long-distance data and power transmission.
Features:
- Transmits Ethernet over Fiber Optic cables
- Uses Small Format Pluggable (SFP) to interface to a variety of fiber cables
- Able to provide up to 30W PoE power to the IP cameras
- Can interface directly to network switch connections
- Depending on the type of fiber cable and SFPs, distances of up to 80Km can be achieved
- Compliant to all network standards
- Compliant with the Multi-Standards Agreement for the SFP interface
- Extended temperature operation up to 0°C to +70°C
| Electrical | - |
| Data Interface | Fiber MSA Ports: 1000Mbps Fixed Copper Ports: 10/100/1000Mbps Auto sensing |
| Power Source | 24VDC/24VAC, 6 A Max. |
| Status LEDs | Power: Green Fiber Ports: Yellow, Link/Activity Copper Ports: Yellow, Link/Activity Green, PoE |

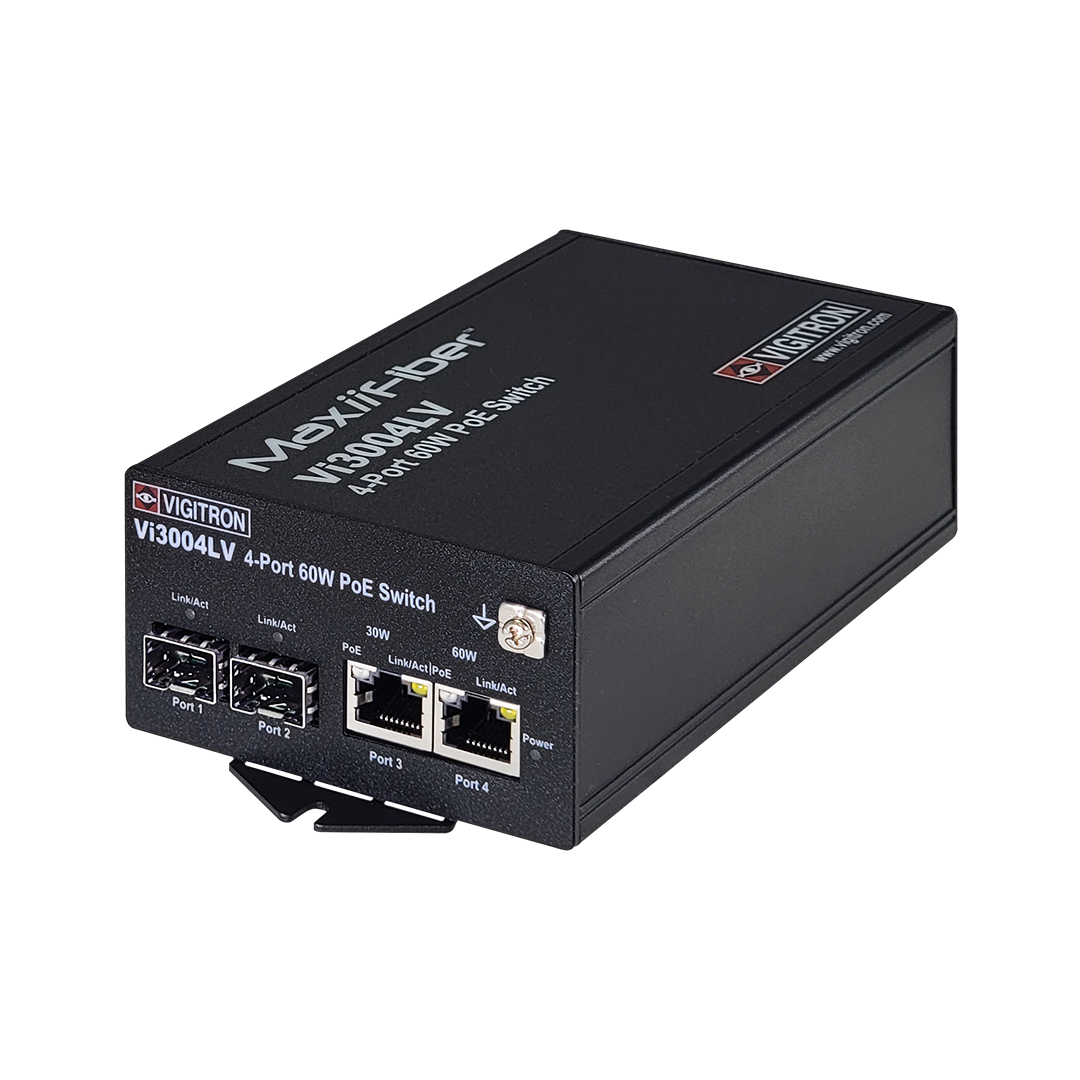

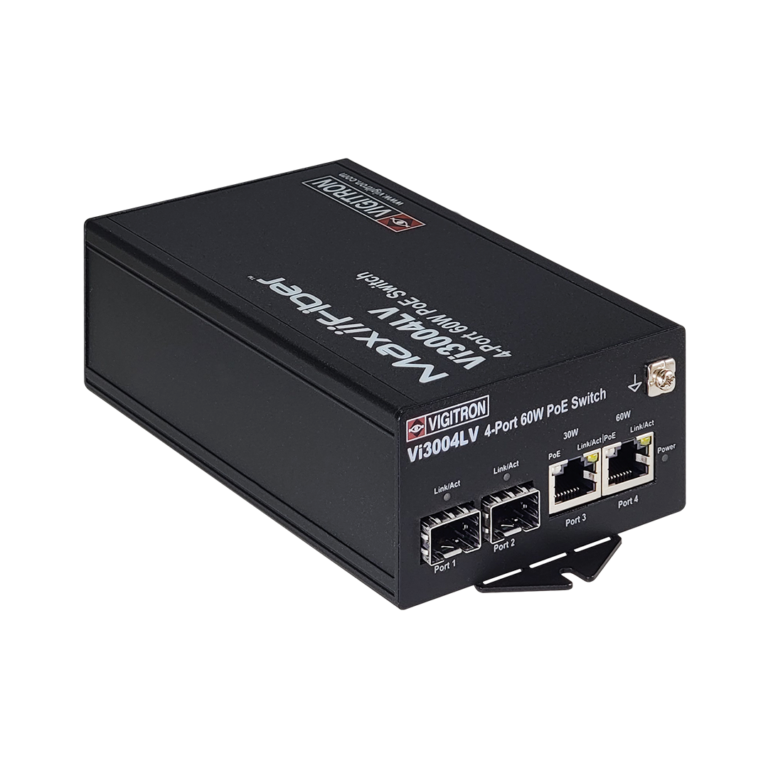

| Connectors | Fiber (x2): MSA compliant SFP socket Ethernet (x2): RJ45 connector Power: 2 Wire Terminal Strip |
| PoE Standards | IEEE 802.3af IEEE 802.3at 60W compliant to 802.3 PoE standards for Port 4 |
| Network Switch | Layer 2 |
| PoE Standards | Port 3: Up to 30W Port 4: up to 60W |
| Jumbo Frames | 10,000 Bytes |
| Regulatory | - |
| RFC | 2544 TCP/IP Packet Transmission 768 UPD, 2068 HTTP, 793 TCP 791 IP, 1783 TFTP, 894 IP over Ethernet |
| Emission | EN 5502:2006+A1:2007 EN 61000-3-2:2006+A1:2009_A2:2009 EN 50024:1998+A1:2001+A2:2003 |
| Safety | CE |
| Environmental | RoHS, WEEE |
| Environmental | - |
| Humidity | 0 to 95%, non-condensing |
| Temperature | Operating: -30°C to +70°C Storage: -30°C to +85°C |
| Mechanical | - |
| Dimensions | 1.9 x 3.45 x 5.6 in., 4.83 x 8.76 x 14.22 cm (HxWxL) |
| Weight | 0.99lb (450g) |
| Housing | Aluminum |
