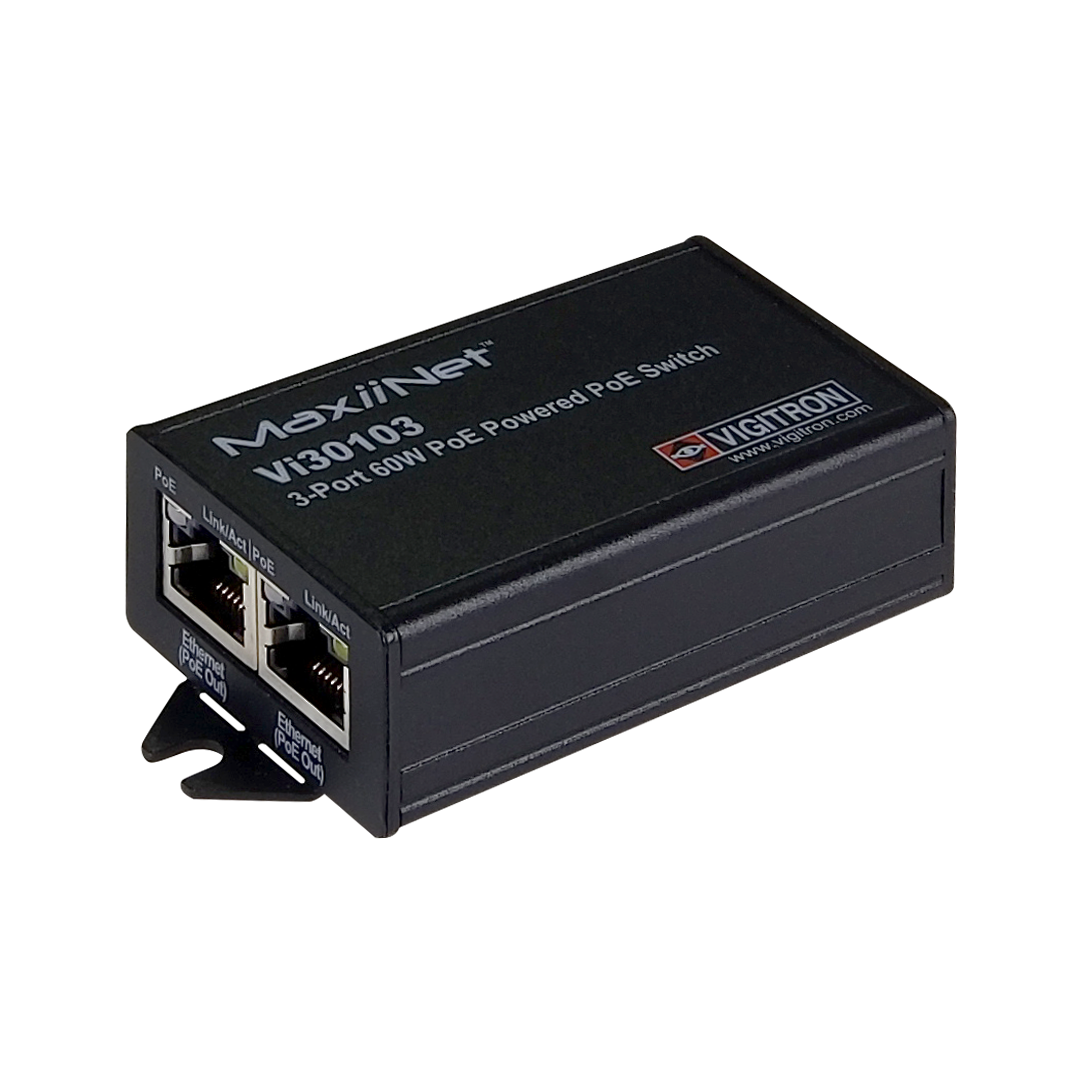

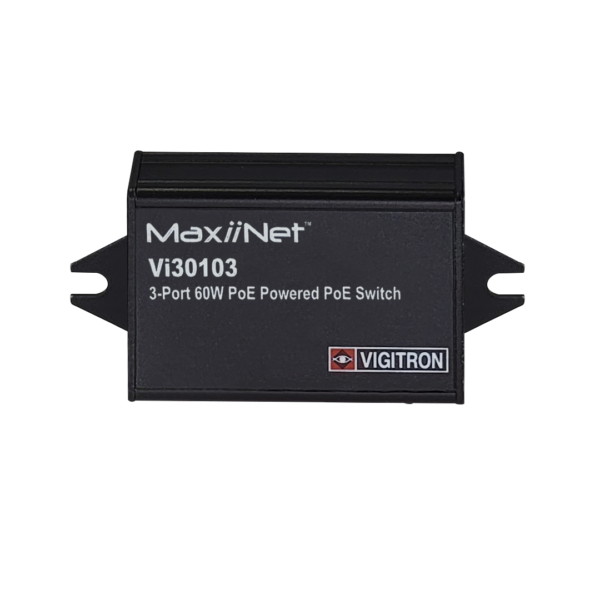

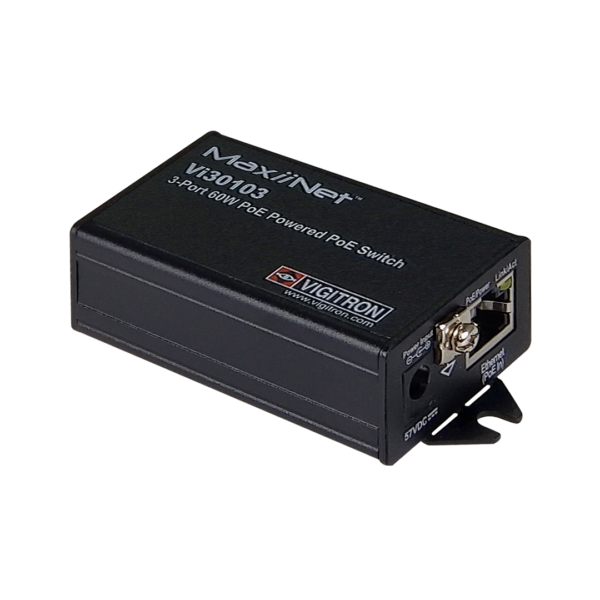

Vigitron - Vi30103 - 3-Port MaxiiNet 10/100 af/at 60W PoE Switch & Repeater
Part number:
Vi30103
Price:

The Vi30103 is a 3-port Layer 2 PoE switch providing drop and insert capability for connecting several IP devices along a single cable run. The Vi30103 provides a cost-effective method for increasing distances beyond the standard Ethernet limit of 328 feet (100m). Multiple units can be cascaded to provide up to nine IP cameras to be connected to a single network switch port over distances of up 3,000 feet (909m).



For small systems, the Vi30103's Layer 2 network capability can eliminate the need for network switches saving costs and rack space. It also can significantly decrease network switch costs by increasing the port capacity of the switch. As a mini-network switch, the Vi30103 avoids the potential for transmission collisions by complying with IEEE standards. It is an easy and quick solution to add an extra camera without requiring to have a new home-run cable.



The Vi30103 can be powered by a 60W PoE source or a local power supply. Additional power up to 60W can be inserted at any point along the cable run where power outlets are available and provide the ability to power IP cameras up to 30W per port.



Features:

  • Provides an easy way to add a second IP camera without requiring a new home-run cable
  • Each unit extends IP Video and PoE for an extra 328 ft. (100m)
  • Multiple units can be cascaded to transmit IP Video and PoE up to 3,000 ft. (909m)
  • Can be powered by 60W PoE or a local power source
  • Provides up to 30W PoE output per port
  • Automatically senses input data rate
  • Provides third port for drop and insert along a single cable run
  • Provides full IEEE Network layer 2 switching to avoid transmission conflicts
  • No network configuration required
  • Eliminates the need for multiple cable runs for perimeter and parking lot applications
  • Provides access up to 9 IP addresses eliminating the need for network switches in small systems
  • Hardened with wide range operating temperature of -20°C to +60°C
Specification
Electrical
PoE RatingPort 1 (PoE In): up to 60W
Port 2 & 3 (PoE Out): up to 30W
Network Connection3 x RJ-45 IEC 60603-7
Bandwidth10/100Mbps
Power Consumption1.5W
Supported Distance328ft (100m) per link
Status LEDsPort 1: Power (Green), Link/Activity (Orange)
Port 2: PoE (Green), Link/Activity (Orange)
Port 3: PoE (Green), Link/Activity (Orange)
Data Rate10/100Base-TX, Auto Configuring
Data Interfaces andRFC 768 UDP, RFC 2068 HTTP
CompliancesRFC 793 TCP, RFC 791 IP
RFC 1783 TFTP, RFC 894 IP over Ethernet
RFC 2544 TCP/IP Packet Transmission
IEEE802.3af, IEEE802.3at, 60W PoE (input)
IEEE Compliances802.3ab, 802.3z, 802.3af, 802.3at, 802.1p, 802.1Q,
802.1D, 802.1s, 802.3u, 802.3x, 802.3w
Service ComplianceIPv4 Type of Service (TOS) & Differentiated
Services (Diff-Serv)
IPv6 Traffic Class
Regulatory
SafetyCE
EnvironmentalRoHS, WEEE
Environmental
Humidity0 to 95%, non-condensing
TemperatureOperating: -20°C to +60°C
Storage: -40°C to +85°C
Mechanical
Dimensions0.97x1.76x2.7 in., 2.5x4.5x6.9 cm (HxWxL)
Weight0.19 lb, 86 g
MaterialExtruded Aluminum
