Vigitron - Vi30104U - 4-Port MaxiiNet Layer 2, 1G PoE Switch

Product Overview

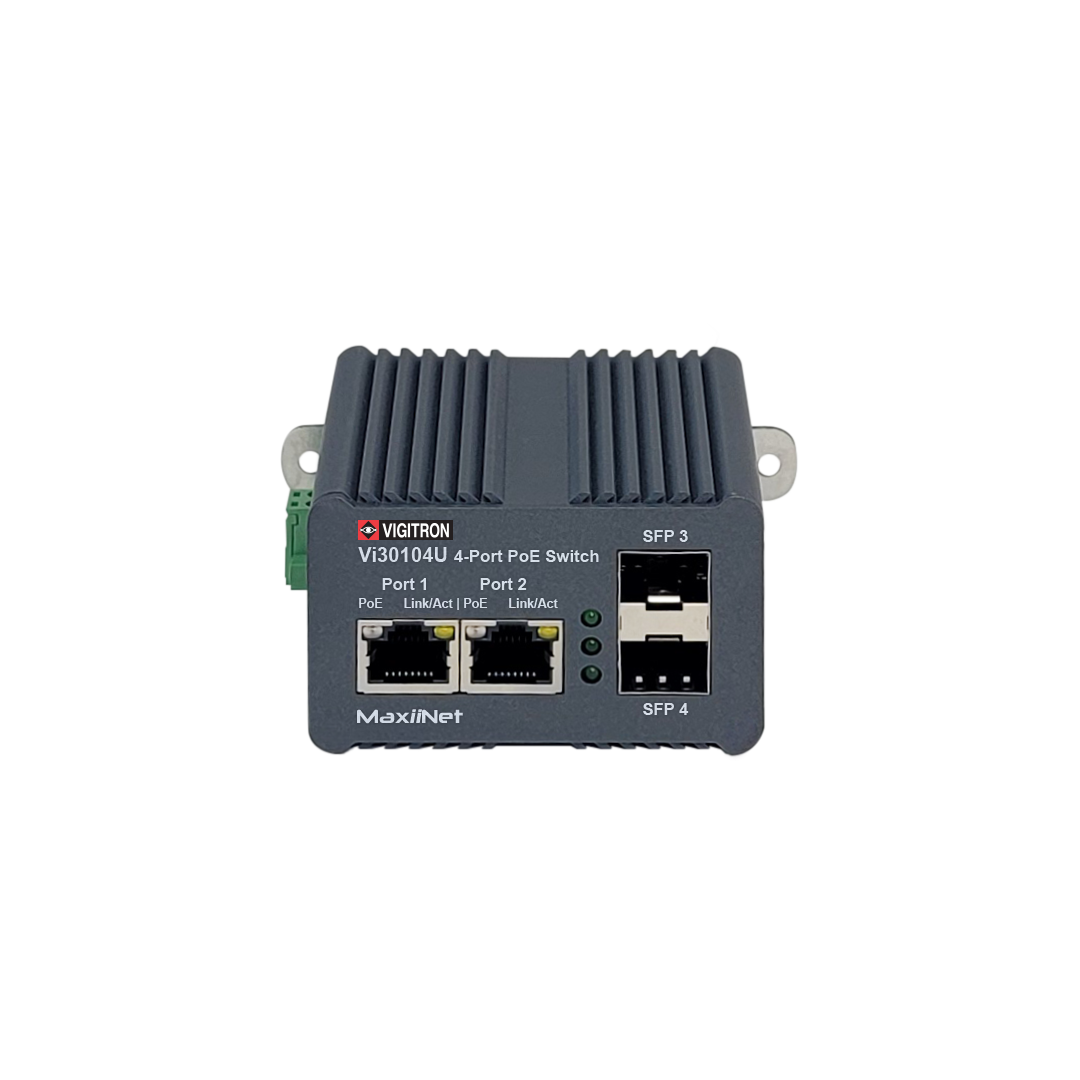

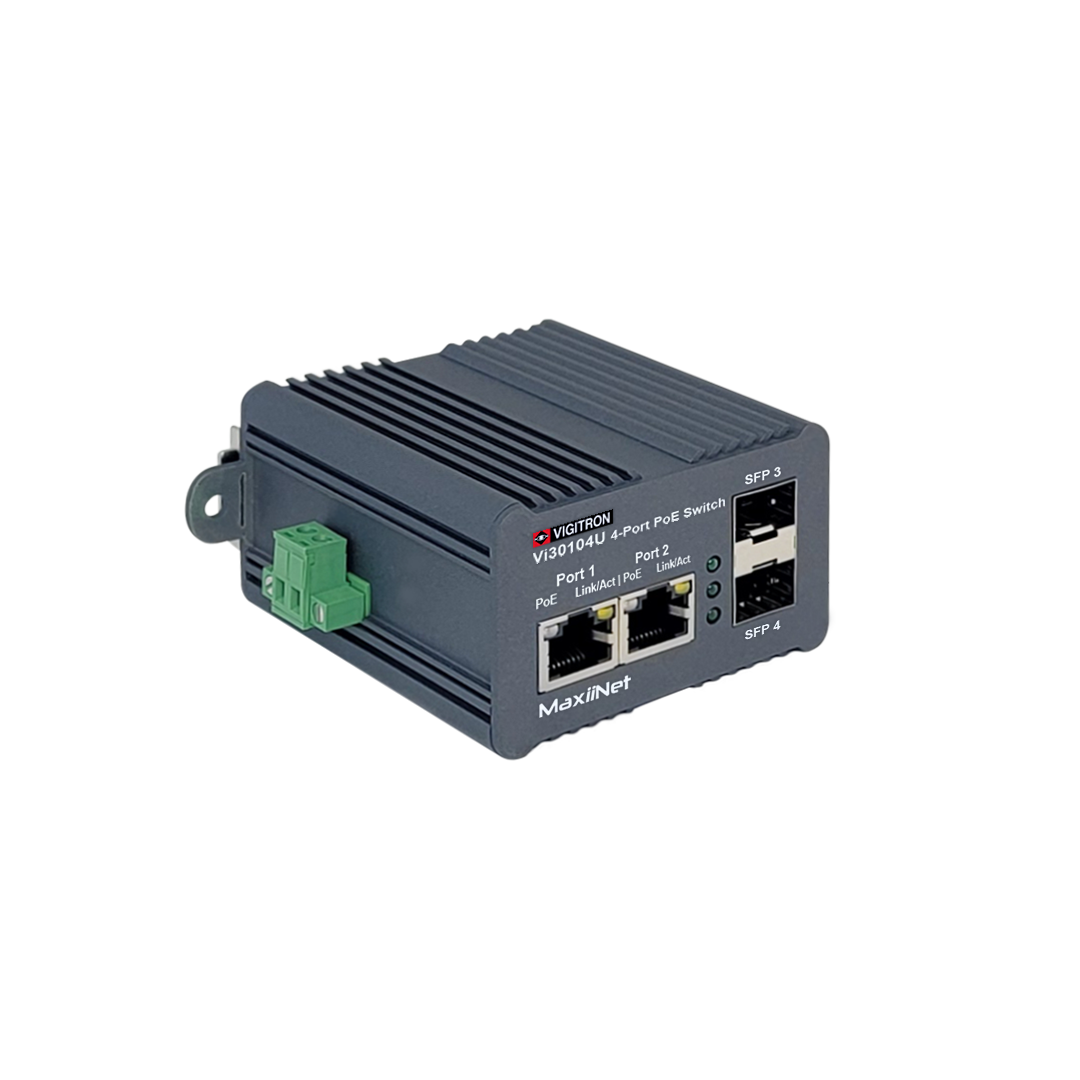

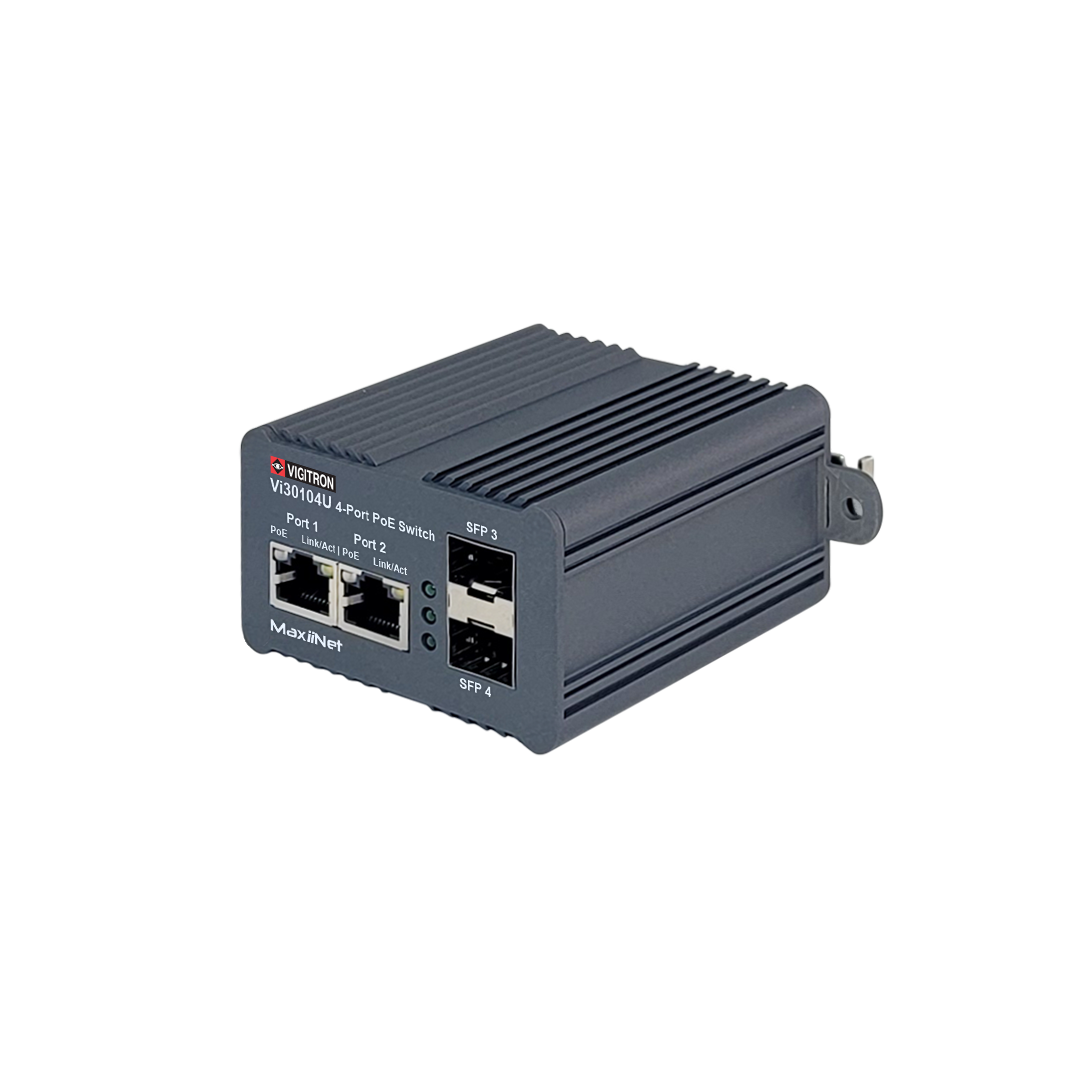

The Maxii Net Vi30104U is a hardened 4-port Layer 2 PoE switch equipped with two 1G MSA-compliant SFP fiber ports and two 1G copper ports. It delivers high-power 802.3bt PoE up to 90W on two ports, utilizing intelligent power and priority allocation to optimize performance.

Key Configuration

• • Data interface: fiber MSA ports (1000Mbps fixed); copper ports (10/100/1000Mbps auto-sensing)
• • PoE standards: IEEE 802.3af, 802.3at, 802.3bt up to 90W on 2 ports
• • Power source: 52-57VDC, 370W max
• • Jumbo frames: 10,000 bytes; network switch: fixed layer 2
• • Dimensions: 1.8" × 2.86" × 3.16" (4.6 × 7.3 × 8.0 cm); weight: 0.77 lb (349 g)

Key Features

Over-current shutdown protection and MPC™ certification to ensure virtually loss-free data transmission. Type-tested to RFC 2544 standards and compliant with major IEEE/RFC protocols. Supports full CE, RoHS, and WEEE compliance.

Technical Context

It provides a flexible interface with two male RJ45 connectors and one female RJ45, supporting data rates up to 1000Mbps. This ruggedized unit is designed for performance, meeting EN 55032 and FCC Part 15 Class B emission standards, while ensuring long-term reliability in demanding network environments.

Installation Notes

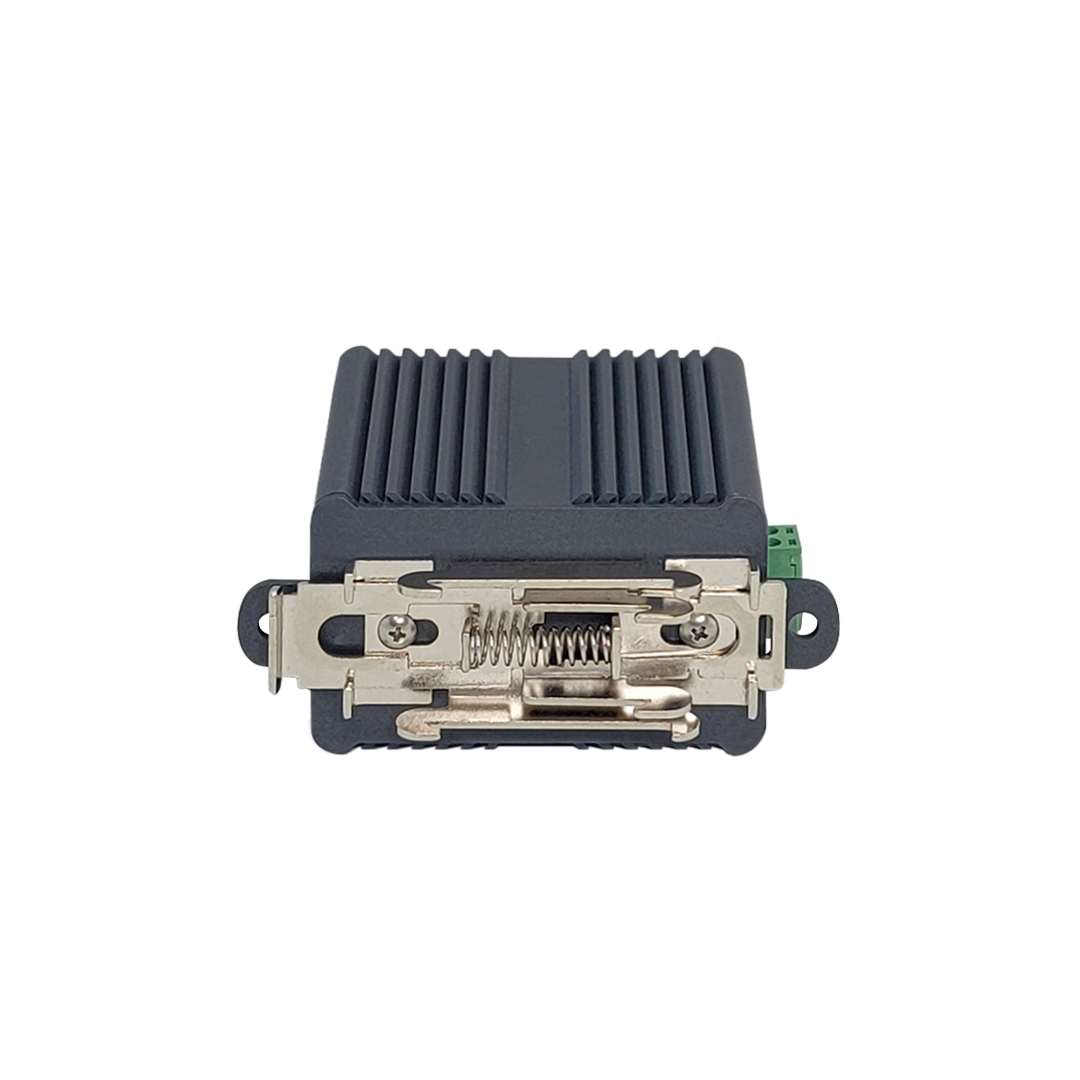

Housed in a durable aluminum casing and operates in temperatures ranging from -30°C to +70°C. It supports versatile installation via DIN rail, wall, or desk mounting and accepts a 52-57VDC power input through a 2-pin pluggable terminal block. Designed for reliability, it maintains performance in up to 95% non-condensing humidity.
