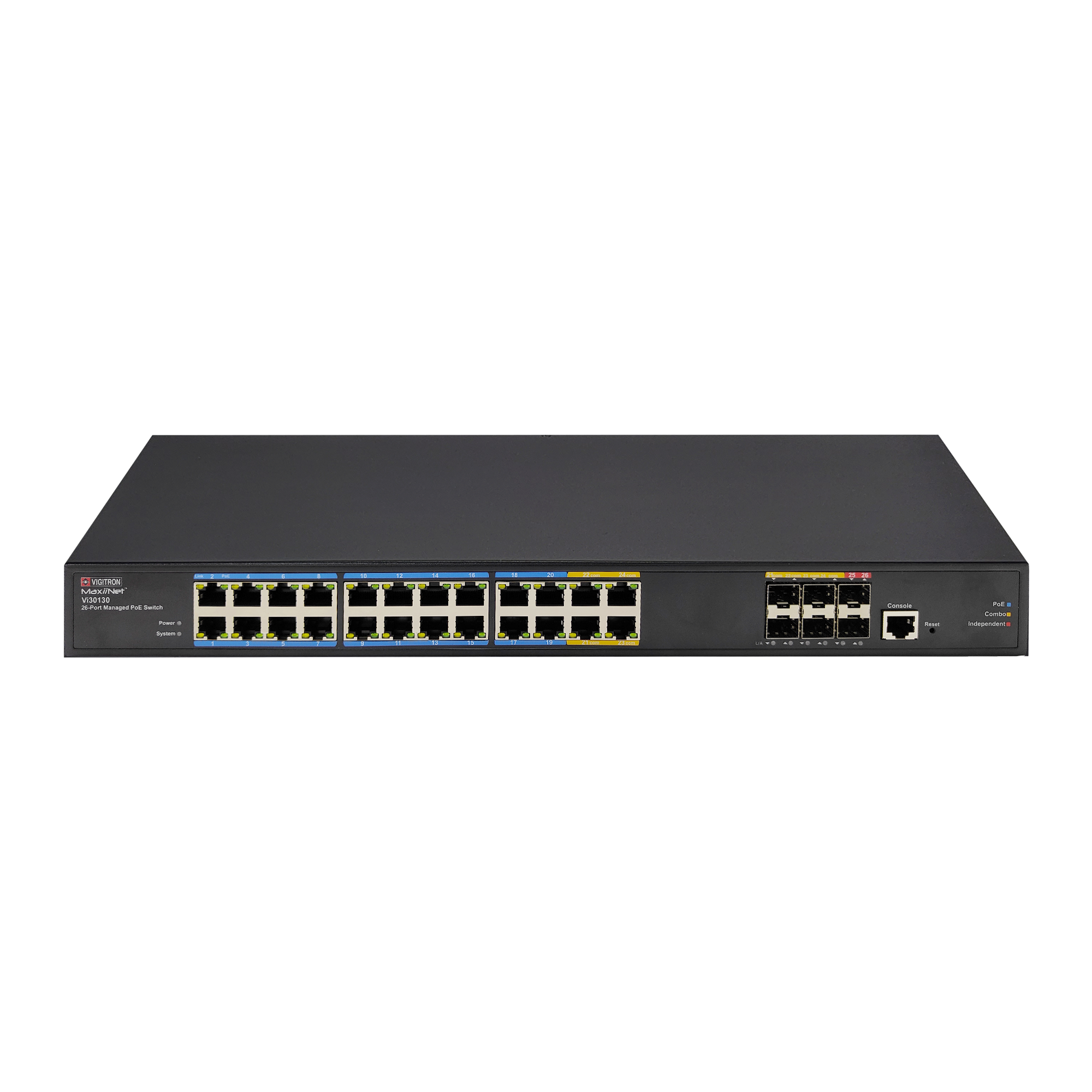

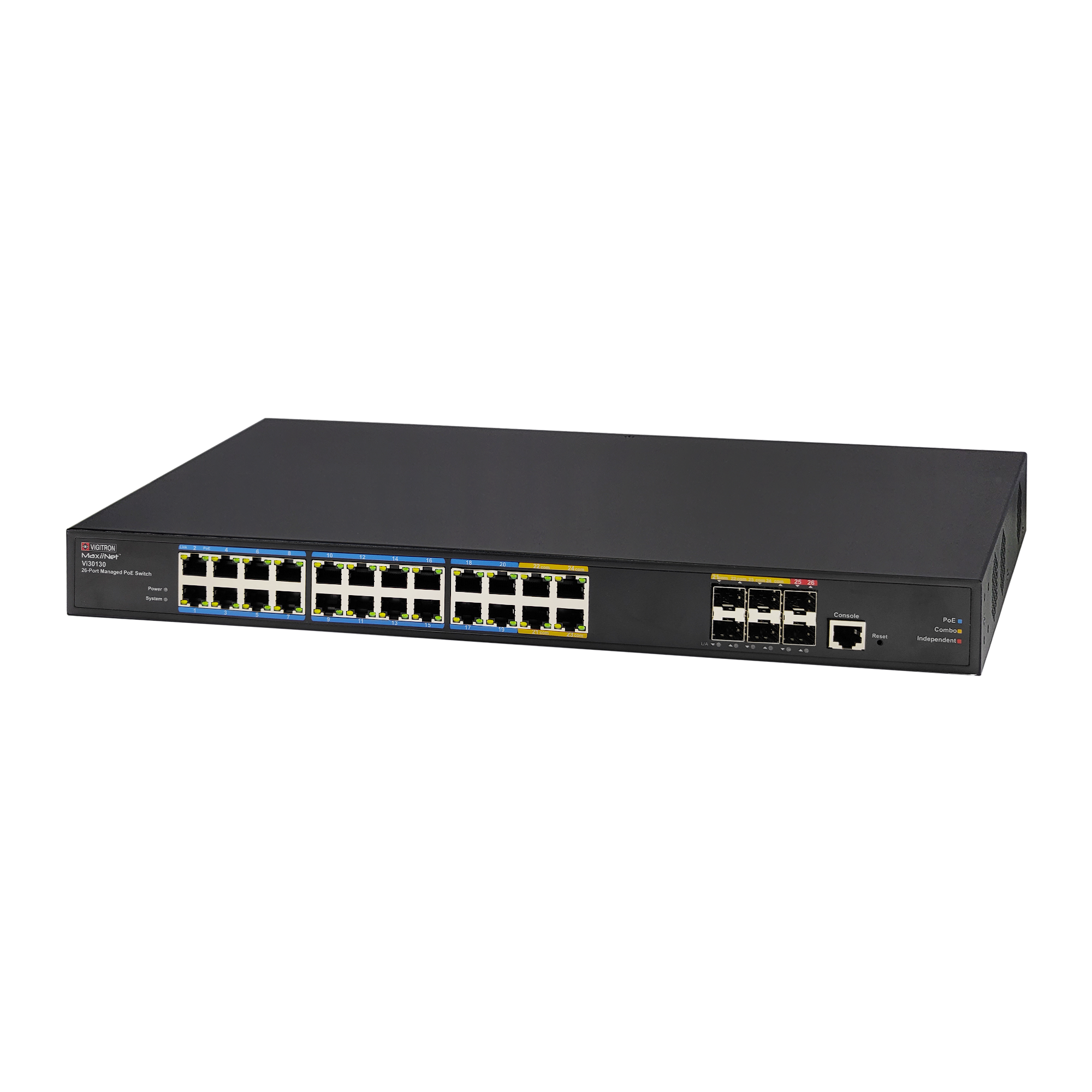

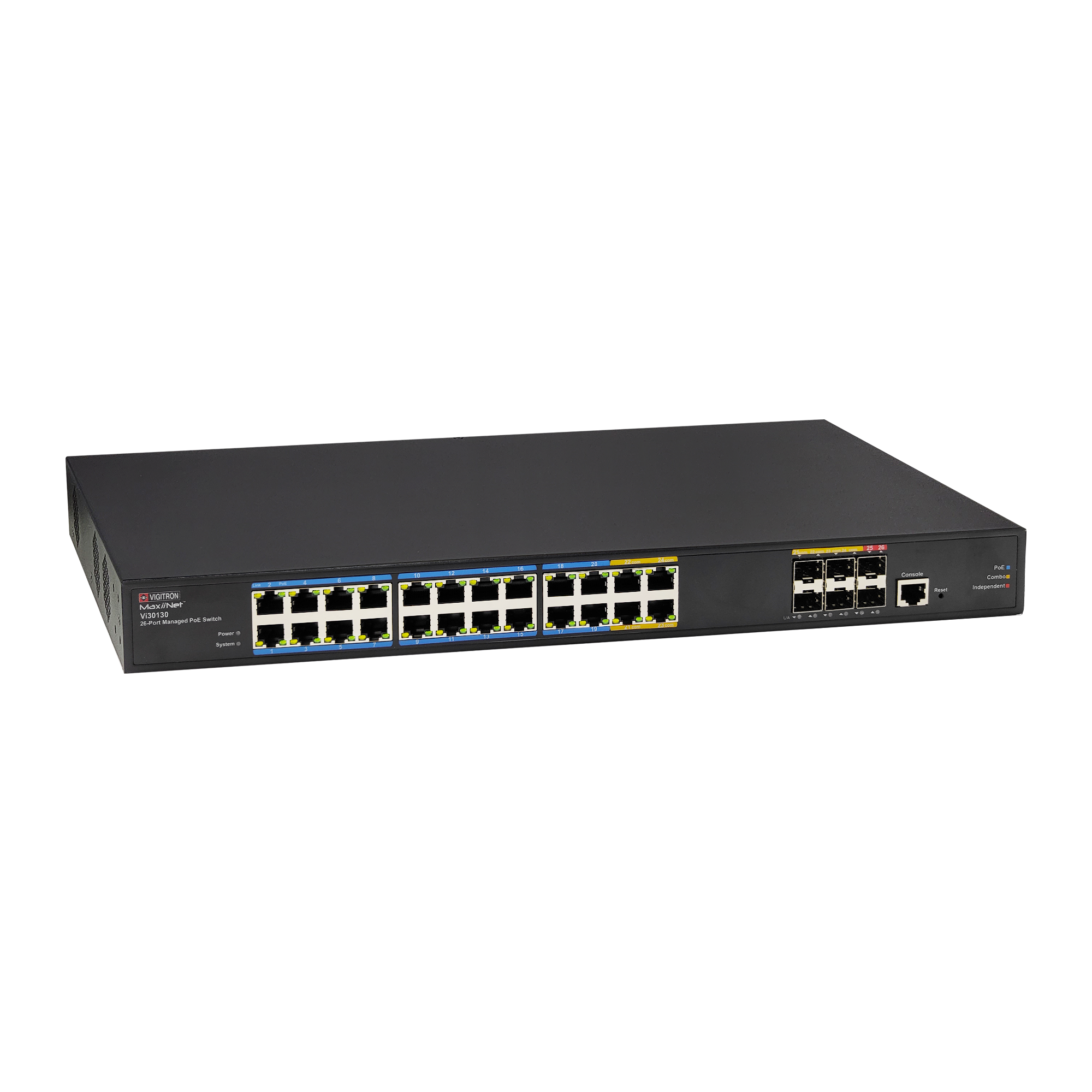

Vigitron’s Vi30130 is a high performance ,high power PoE switch. All copper ports can provide IEEE 802.3af/at/bt class 0-8 up to 90W. It is also compatible with some non-standard PoE up to 74W making the Vi30130 the perfect solution for powering cameras from any manufacturer and upgrading existing systems with devices requiring newer types of PoE. Up to 6 ports can be used for 1G fiber uplink connections.
It offers a unique TimeZone program setting references system time to connected devices such as computers and servers. This system provides synchronization for all events such as Syslog and SNMP messaging without the need of extra cost NTP servers or references outside of closed networks. Vi30130 has high internal bandwidth and is the perfect MDF solution to connect to remote switches.
- High PoE budget of total 770W with IEEE 802.3af/at/bt up to 90W PoE per port
- 6 x1G fiber uplink ports
- 52 Gbyte switch fabric
- G.8032 V1/V2 Rapid Ring protocol compliant
Features:
- 20 x 1G Copper, 4 x 1G Combo ports and 2 x 1G independent Fiber uplink ports.
- Redundant 48-57VDC 1000W backup power input.
- IEEE 802.3bt class 0-8 PoE up to 90W per port.
- Programmable PoE on 24 Ports.
- 770W PoE budget.
- 52.0 Gbps switch fabric for MP cameras.
- Built-in 6KV port surge protection.
- Unique TimeZone reference for setting system synchronization.
- G.8032 V1/V2 Rapid Ring protocol compliant.
- Jumbo frame programming at all bandwidth settings.
- Programmable port temperature settings.
- Detail Syslog with Health status messaging.
- LLDP and ACL status identification.
- Programmable port connection monitor with automatic link and PoE reconnection.
| Electrical | |
| Ethernet Interface | 20 x 10/100/1000BaseT Copper ports |
| Combo Interface | 4 x 10/100/1000BaseT, Combo UTP/Fiber ports |
| Uplink | 2 x 100/1000*BaseT, Independent Fiber ports |
| Packet Size | 9600@ 100Mbps/1000Mbps |
| Bandwidth Sensing | MDI/MDIX |
| Switch Fabric | 52 GB |
| Main Power | 120-240VAC |
| Secondary Power Source | 48-57VDC, 1000 W Maximum |
| PoE Output | IEEE 802.3af/at/bt, up to 90W per port |
| Power supply | 780W |
| PoE Budget | 770W |
| Power Consumption | 8W, no load |
| Status LEDs | Power: Grean System: Grean Link/Activity: Orange (Ports 1-20), Green (Ports 21-28) Data rate: Orange (ON for 1G) PoE: Green, Active Fiber Link: Green |

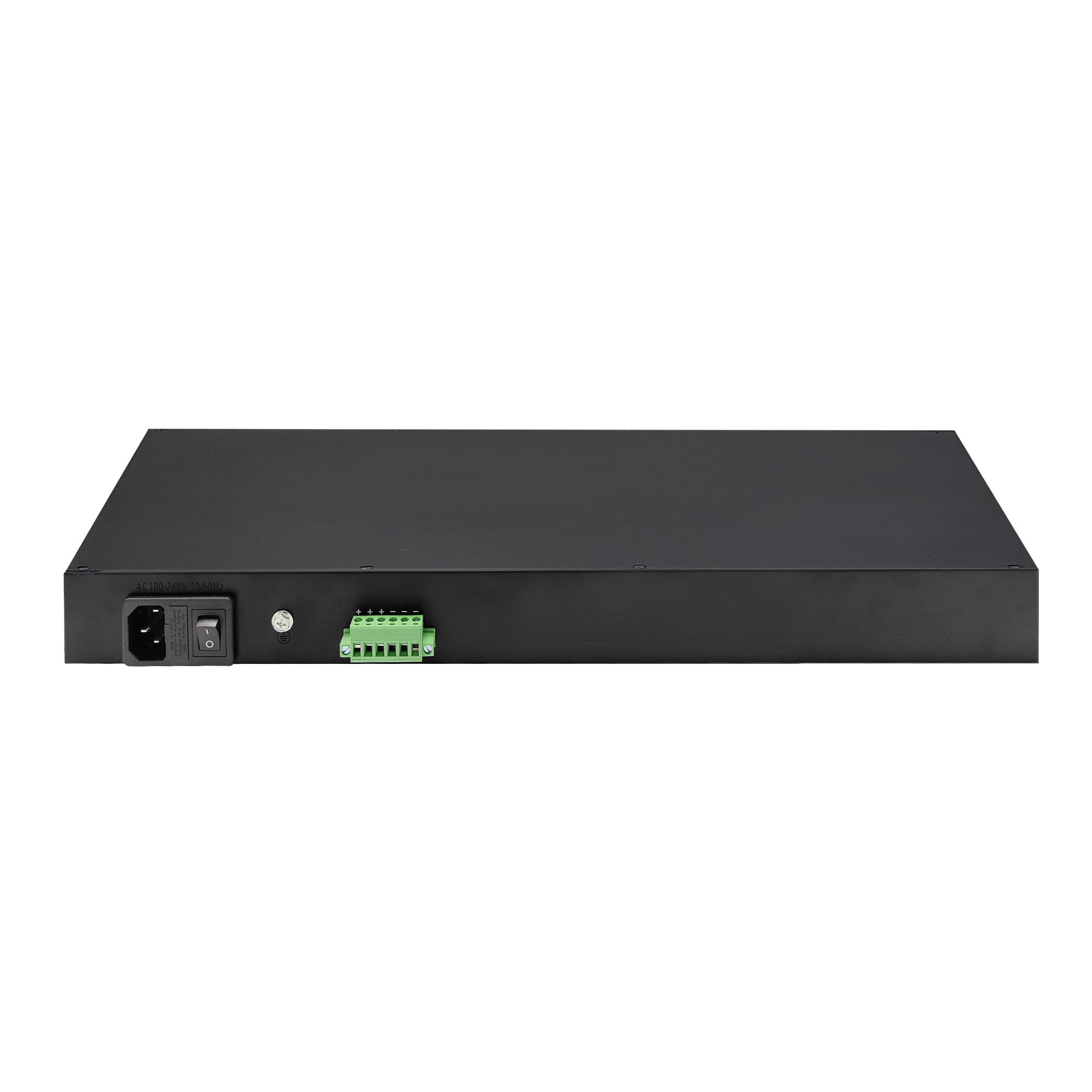

| Connectors | Standard Ethernet : 24 x RJ-45 Console: 1 x RJ45 Fiber Optics: 6 x MSA compliant SFP Main Power: IEC 320 –C14Connector Remote Power: Detachable terminal blocks |
| ESD Protection | IEC61000-4 +/-kv contact discharge/ +/-15kv air discharge |
| Lightning Prot. | 4Kv 8/20us with IP30 Protection Level |
| Surge Protection | IEC61000-4-5/Power CM +/- 4kv/DM +/-2kv Port +/-4kv |
| RFC | 2544 TCP/IP Packet Transmission, 768 UDP, 2068 HTTP 793 TCP, 791 IP, 1783 TFTP, 894 IP over Ethernet |
| PoE Compatibility | IEEE 802.3af/at/bt class 0-8 |
| ERPS (Ring) | G.8032 V1/V2 <=50ms |
| Regulatory | |
| FCC | Part 15, Subpart B, Class B 2010 |
| Emissions | EN 5502:2006+A1:2007, EN 61000-3, EN55032, 2:2006+A1:2009+A2:2009 EN55035, EN50121, EN50155, |
| Safety | CE, EN 62368 (Replacing EN60950-1) |
| LVD | EN 62368 (Replacing EN60950-1) |
| Environmental | RoHS |
| WEEE | Article 11 – Anex V Directive 2012 2012/19/EU |
| Environmental | |
| Humidity | Operating: 5 to 95%, RH |
| Temperature | Operating: 0° to 40° C Storage: -20° to 70°C |
| Mechanical | |
| Dimensions | 1.75 x 17.16 x 11.4 in., 4.45x 43.6 x29 cm (HxWxL) |
| Weight | 7.8 lb, 3.52kg |
| Housing | Sheet metal |
| Mounting | Desktop |
| Accessories | |
| Power Cord, Molded IEC 7 ft. (200 cm) | |
| Mounting Kit | |
| Console Cable | |
| USB Memory with Operations Manual | |
