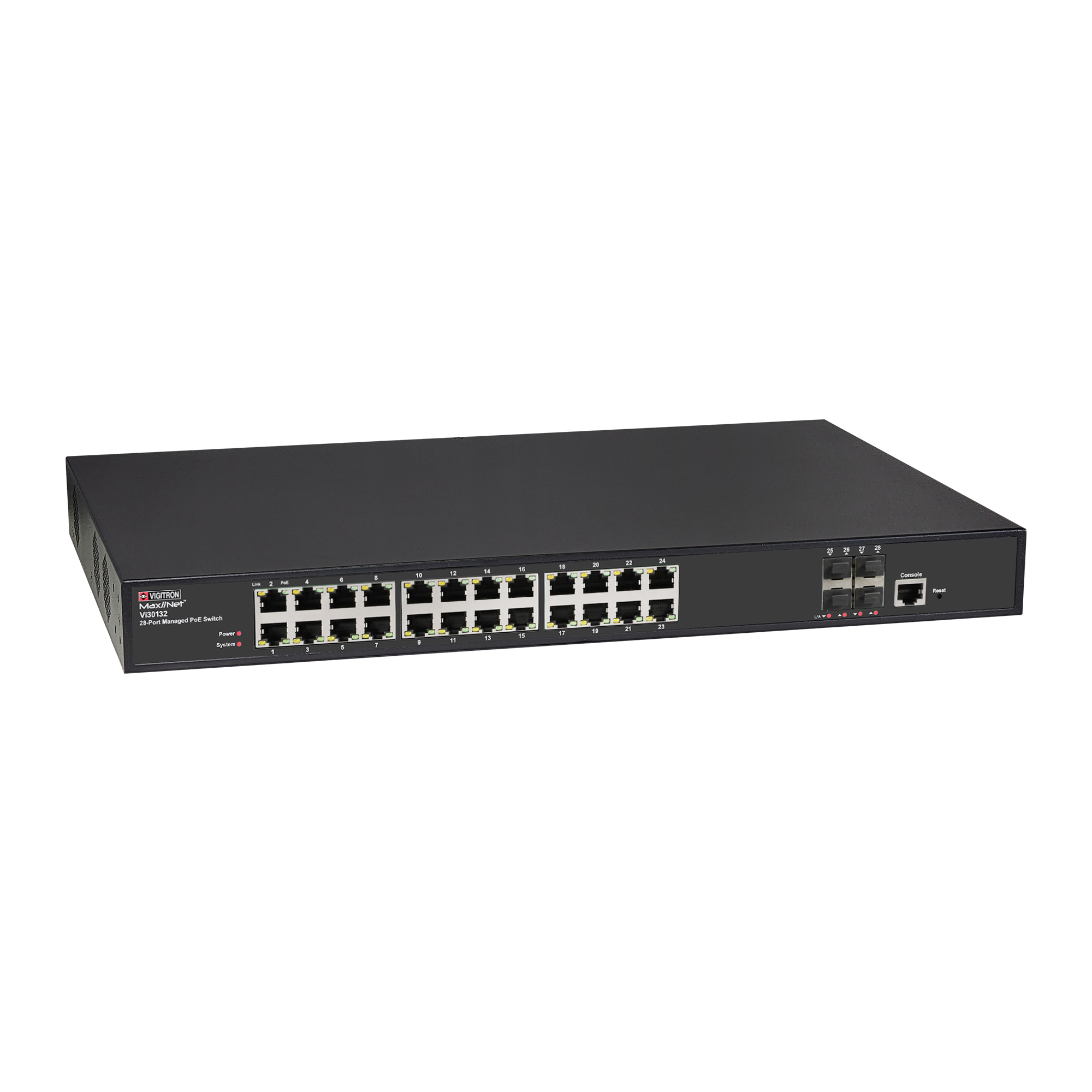

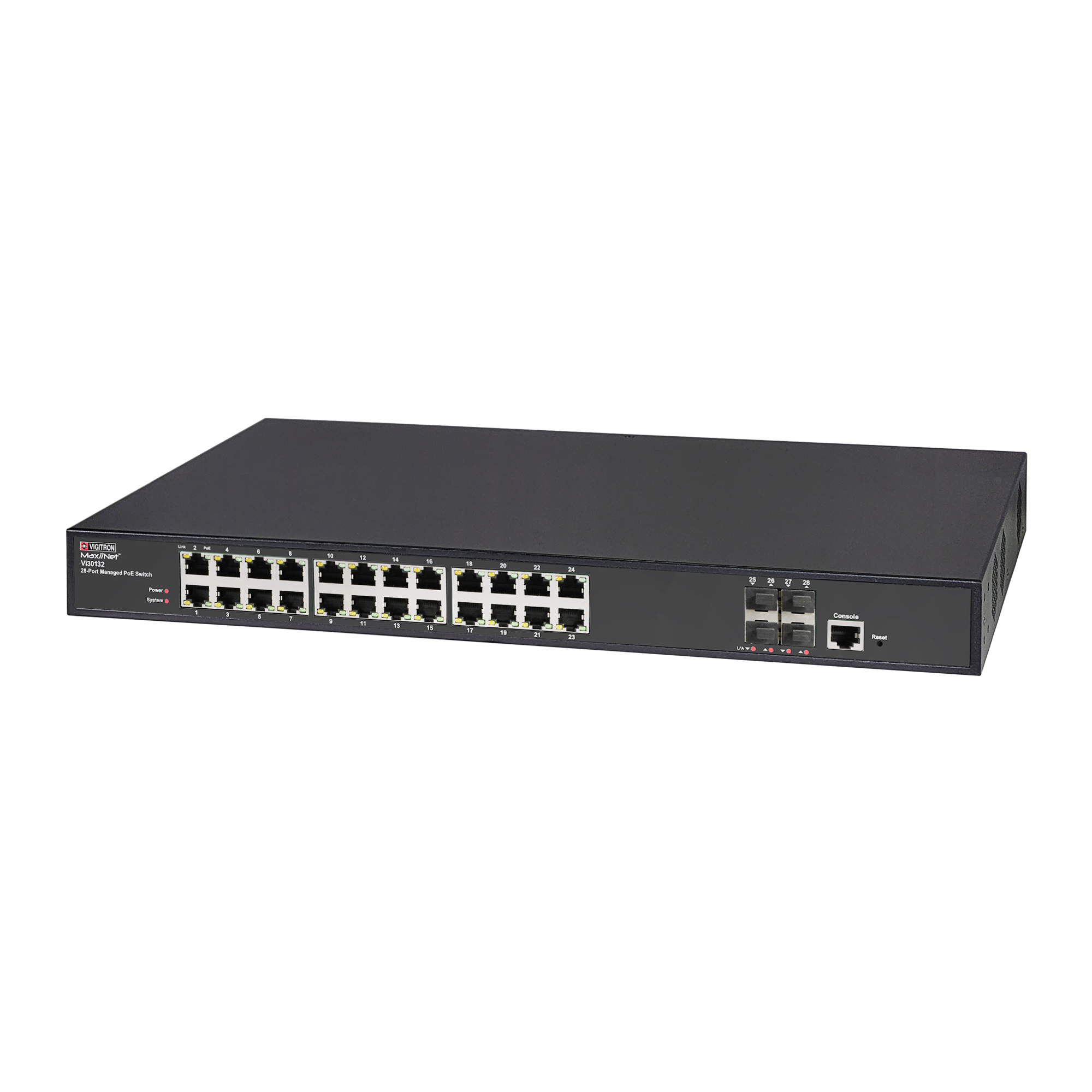

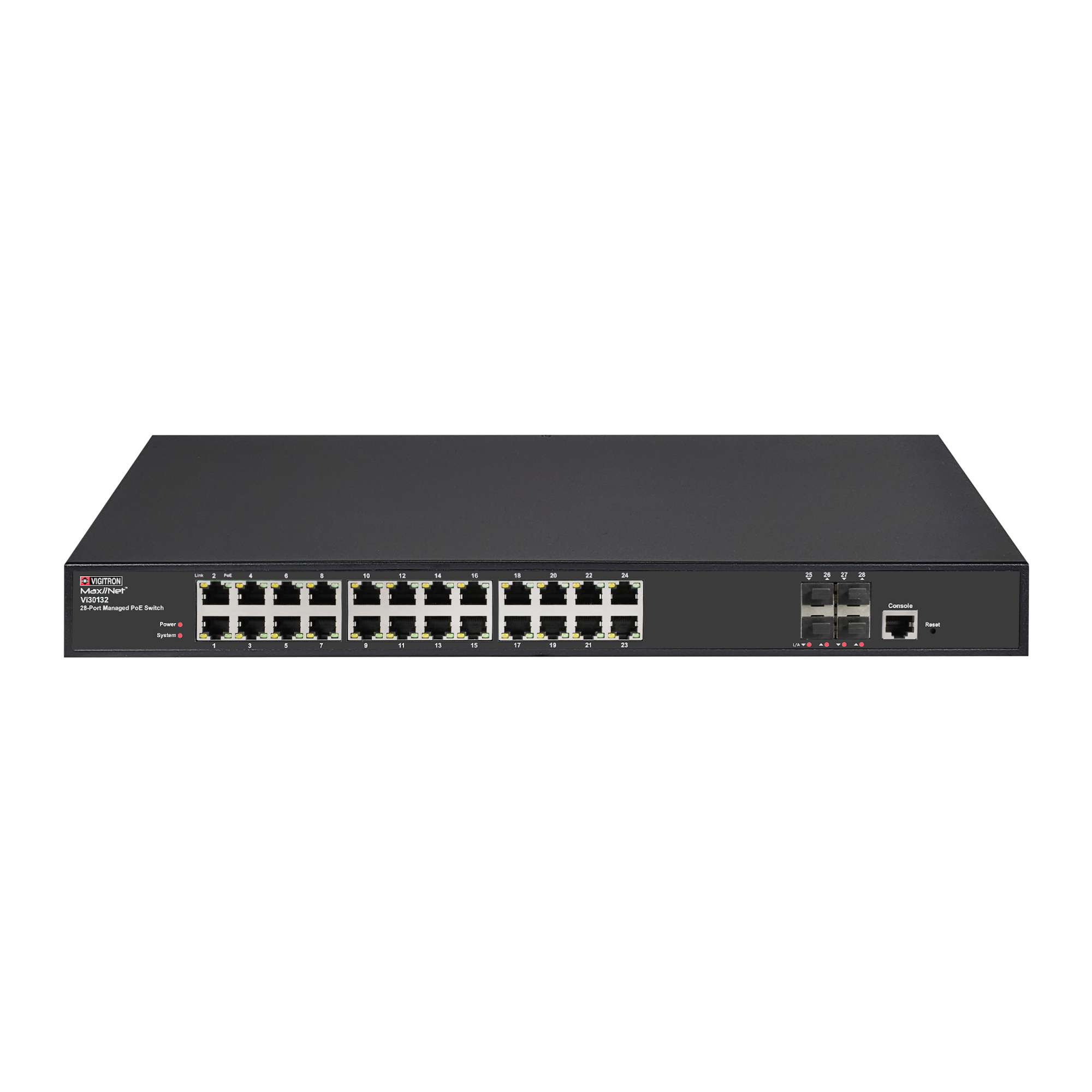

Vigitron’s Vi30132 is an L2+/L3 Static Routing Managed Network Switch answering the growing demands for higher
bandwidth, packet handling and PoE. The Vi30132 provides IEEE 802.3bt compatible PoE power up to 90W, Classes 0-8 on all ports up to total power of 770W.

A unique Time/Date reference allows NTP linked to central computer or server for time/Date related functions. Up to four 1G/2.5G/10G uplinks can be used for lossless transmission of the highest connected image resolution, core switch or daisy chain applications. A redundent power input can accept up to 1000W to provide back up power in the event of the main power failure.

Link status is continuously monitored and displayed. In the event a link is lost and not recovered within 2 minutes, the switch will attempt to re-apply PoE and re-establish the link.

Features:

• High power PoE 770W PoE budget with 90W per port
• 1000W redundant back up input
• 802.3bt, Class 0-8 Compliant
• Four 1G/2.5G/10G uplink ports
• 128Gbyte Switch Fibric
• Program port monitoring for automatic re-connection and PoE application
• Layer 3 Lite Trace Routing
• Standard V.8032 V1/V2 Ring Protocol
• Time/Date Link to central system references
• 24 1G ports with high power PoE up to 90W
• PoE power compatible with IEEE 802.3bt up to 90W per port
• 4 x 1G/2.5G/10G uplink fiber ports
• Switch fabric of 128Gbps
• Jumbo frame programming at all bandwidth settings
• Layer 3 static trace routing
• Automatic IP and PoE reconnection
• 770W PoE Budget
• Backup DC external power up to 1000W
• G8032 V1/V2 Standard Ring Protocol
• Built in 8Kv contact and 15Kv air surge protection on all ports
• Lighting protection to 4Kv @ 8/20us duration IP30
• Unique TimeZone reference for setting system synchronization
• Programmable port temperature settings
• Detail Syslog with Health status messaging
• LLDP and ACL status identification
• Programmable port connection monitor with automatic link and PoE reconnection
