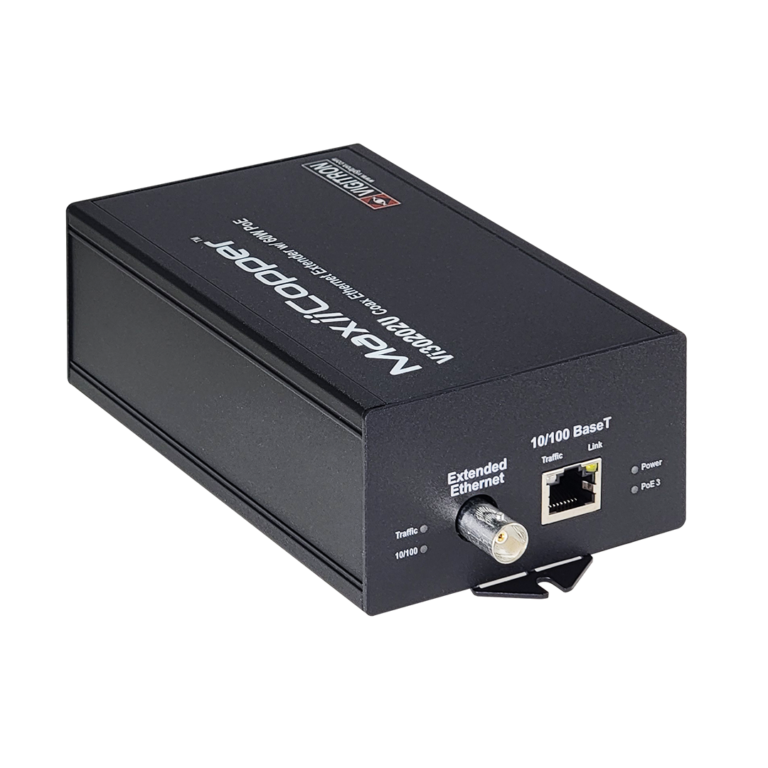

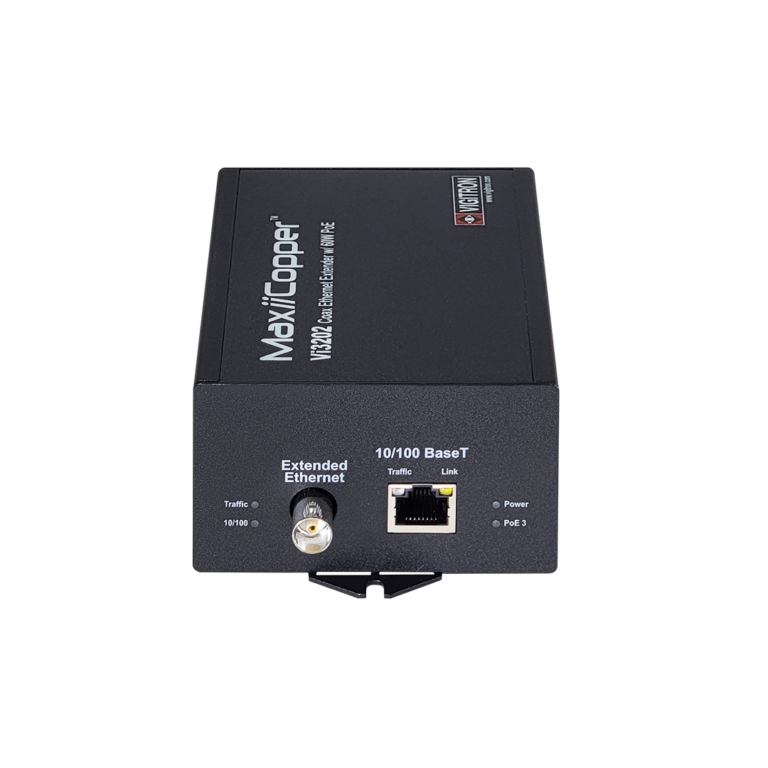

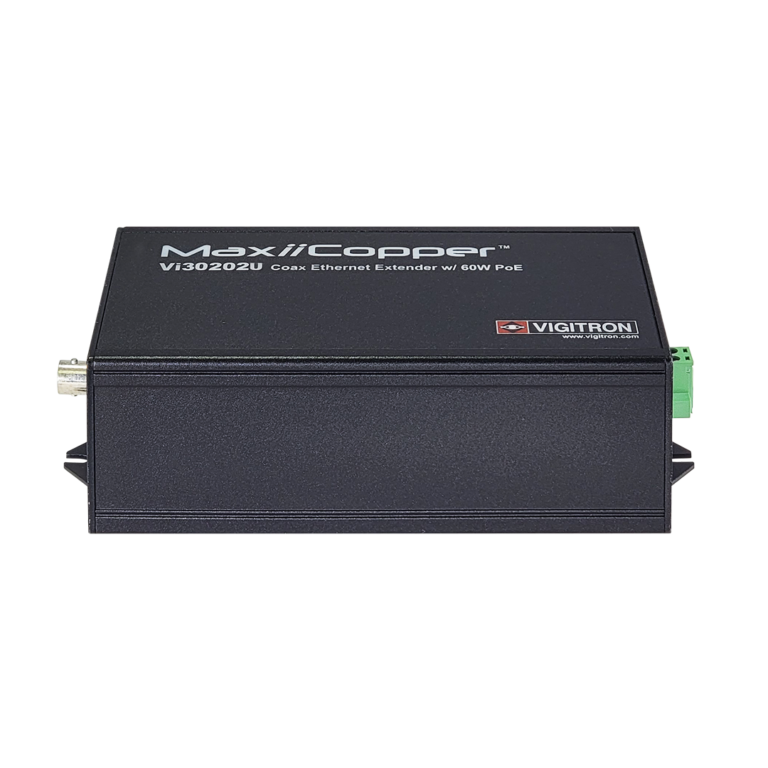

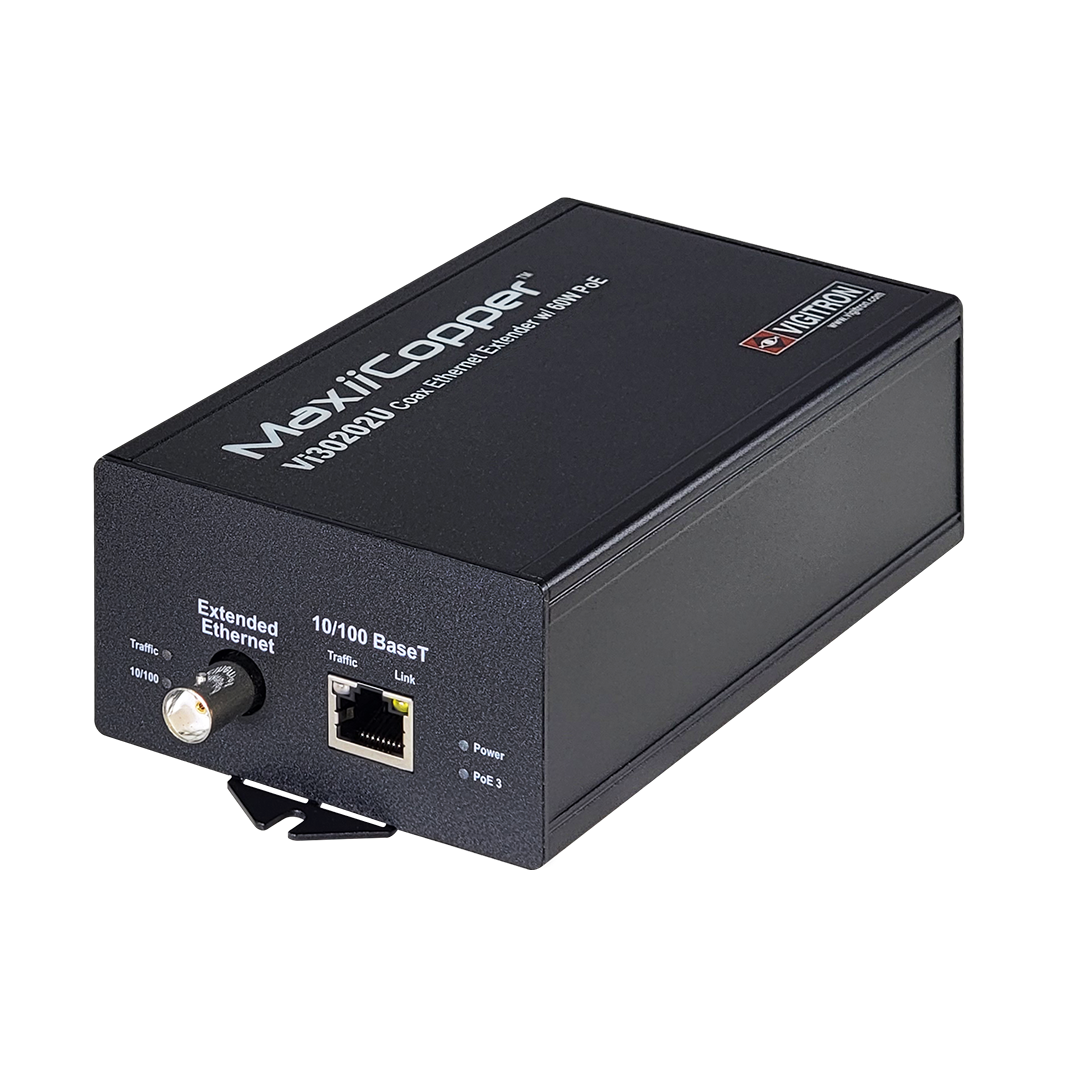

The Vi30202U is the perfect solution for replacing existing analog PTZ cameras with IP PTZ cameras. It uses the existing Coax cable for transmitting IP video up to 5,000 feet (1,515 m) and the existing 24VDC or 24VAC power supply as power input to provide up to 60W PoE to the cameras. Using the existing Coax cable and power supply provides great time and cost savings.
Its unique Symmetric Bandwidth (SBW) assures full bandwidth transmission is maintained over the entire operational distance for both uploads and downloads with Virtual Zero Packet Loss (VZPL). Type tested under NEMA-TS2 environmental standards for extended temperature operations between -40C° to +75C°. The Vi30202U is MegaPixel Certified (MPC), the type tested to network packet performance standards, and major manufacturer compatibility tested to assure you error-free and reliable operations. Its compact design allows being installed in many weatherproof and security houses or many types of camera mounts to further reduce installation costs. Installation cost savings, proven performance, and major camera brand compatibility all go into making Vigitron’s MaxiiCopper Vi30202U your best choice for extended distance data and power transmission.
Features:
- Coax Ethernet extender for distances up to 5,000 feet (1,515m)
- Uses 24VDC or 24VAC input power to provide IEEE 802.3bt and UPoE up to 60W PoE power
- Automatically senses PD power class and single or dual PD devices
- Compact size easily fits into most existing housings and camera mounts
- Hardened with a wide range of operating temperatures of -40°C to +75°C
- Symmetric Bandwidth(SBW™) provides consistent upload and download with Virtual Zero Packet Loss (VZPL™) over a total specified distance
- MegaPixel Certified (MPC™) High data rate, ideal for high bandwidth requirements of Mega-pixel cameras for Jumbo Frame transmission
- Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
- Fully transparent to Ethernet networks and higher layer protocols
- Data rate selectable for maximum bandwidth utilization
- Complies to major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPS
| Electrical | - |
| Ethernet Interface | Standard 10/100BaseT |
| Data Rate | Auto select 10/100 Mb/s Full speed / full duplex at maximum rated distance |
| Coax | 75 Ohm 5,000 feet (1,515 m) at 10BaseT 1,800 feet (546 m) at 100BaseT |
| PoE Output Power | 60W @ 56 VDC** |
| Input Power | 24VDC, 24 VAC, 2.7 A |
| Status LEDs | Power On PoE Standard Ethernet: Traffic, Link Extended Ethernet: Traffic, 10/100BaseT |
| Connectors | Ethernet Interface: Shielded RJ-45 Connector Extended Interface: Female BNC Power: Pluggable 2-pin connector |
| RFC | 2544 TCP/IP Packet Transmission |
| PoE Compatibility | IEEE 802.3af, at,bt and UPoE up to 60W PoE |
| RFC | 768 UDP, 2068 HTTP, 793 TCP 791 IP, 1783 TFTP, 894 IP over Ethernet |
| Jumbo Frame Support | Yes |
| Regulatory | - |
| Safety | CE |
| Environmental | RoHS, WEEE |
| Environmental | - |
| Humidity | 0 to 95%, non-condensing |
| Temperature | Operating: -40°C to +75°C per NEMA-TS2 testing Storage: -40°C to +85°C |
| Mechanical | - |
| Dimensions | 5.62 x 2.4 x 1.9 in., 14.27 x 6.1 x 4.83 cm (HxWxL) |
| Weight | 1.03 lb, 466 g |
| Material | Extruded Aluminum |
