Vigitron - Vi30208 - 4-Port Ethernet & PoE Receiverer over Single-Pair wires
- • 4 + 2 ports with 10/100/1000/2500Mbps data rate
- • Jumbo frame programming at all bandwidth settings
- • 90W 802.3bt Power over Ethernet compliant ports w/ 495W total input power
- • Operating temperature range -40ºC to +70ºC per NEMA-TS 2 standards
- • Tested for critical transportation and traffic applications
- • G.8032 V1/V2 Rapid Ring protocol compliant
- • Dual fiber/copper Uplink ports
- • Built-in 6kV surge protection on each port
- • 20Gb switch fabric for highest MP camera handling
- • NTP and Real-Time Clock (RTC)
- • Dual power input for backup power supply
- • Dual programmable Form C alarm outputs
- • Din Rail and Desktop mounting
- • Programmable Port Temperature monitoring
- • Detailed Syslog with Health status messaging
| Electrical | |
| Ethernet Interface | Standard: 10/100/1000BaseT Uplink: 100/1000/2500*BaseT- SFP |
| Data Ports | 6 Copper ports, 2 MSA Fiber Combo ports |
| Packet Size | 9600@ 100Mbps/1000Mbps/2500Mbps |
| Bandwidth Sensing | MDI/MDIX |
| Switch Fabric | 20GB |
| Surge Protection | 6KV |
| Power Source | 48-57VDC |
| Input Power | 495W Maximum |
| PoE Output | 802.3af/at/bt complaint, 90W Max.per port |
| PoE Budget | 480W |
| Power | 12.3W |
| Consumption | |
| Status LEDs | Power : Red LED System : Red LED Link/Activity: Green LED Data rate : Orange LED (ON for 1G) PoE : Green Active Fiber Link : Green LED Alarm: Red Flashing |
| Connectors | Standard Ethernet : 6 x RJ-45 Connectors Console : 1 x RJ45 Fiber Optics : 2 x MSA compliant SFP Connector Power : Detachable terminal blocks Alarm Output : 6-pin Terminal block |
| RFC | 2544 TCP/IP Packet Transmission 768 UDP, 2068 HTTP, 793 TCP 791 IP, 1783 TFTP, 894 IP over Ethernet |
| PoE Compatibility | IEEE 802.3af/at/bt |
| Regulatory | |
| FCC | Part 15, Subpart B, Class B 2010 |
| Emmissions | EN 5502:2006+A1:2007 EN 61000-3 EN55032 EN55035 EN50121 EN50155 2:2006+A1:2009+A2:2009 |
| Safety | CE EN 62368 (Replacing EN60950-1) |
| Environmental | RoHS IEC60068-2-32 (Free Fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) WEEE, Article 11 – Anex V Directive 2012 2012/19/EU |
| Environmental | |
| Temperature | Operating: -40°C to +70°C (at 240W PoE Output) -40°C to +55°C (at 480W PoE Output) Storage: -40°C to +85°C |
| Humidity | 0 to 95%, non-condensing |
| Mechanical | |
| Dimensions | 2x6.6x4.4 in., 5x16.8x11 cm (HxWxL) |
| Weight | 1.9 lb, 862 g |
| Mounting | Desktop, DIN Rail |
| Material | Aluminum |
| Accessories | |
| Accessories | DIN Rail Adapter, Desk Mount Brackets, Optional Accessories |
| Vi1120 | 120W/56VDC Desktop Power Supply |
| Vi10120 | 120W/56VDC DIN Rail Power Supply |
| Vi10240 | 240W/56VDC DIN Rail Power Supply |
| Vi10480 | 480W/56VDC DIN Rail Power Supply |

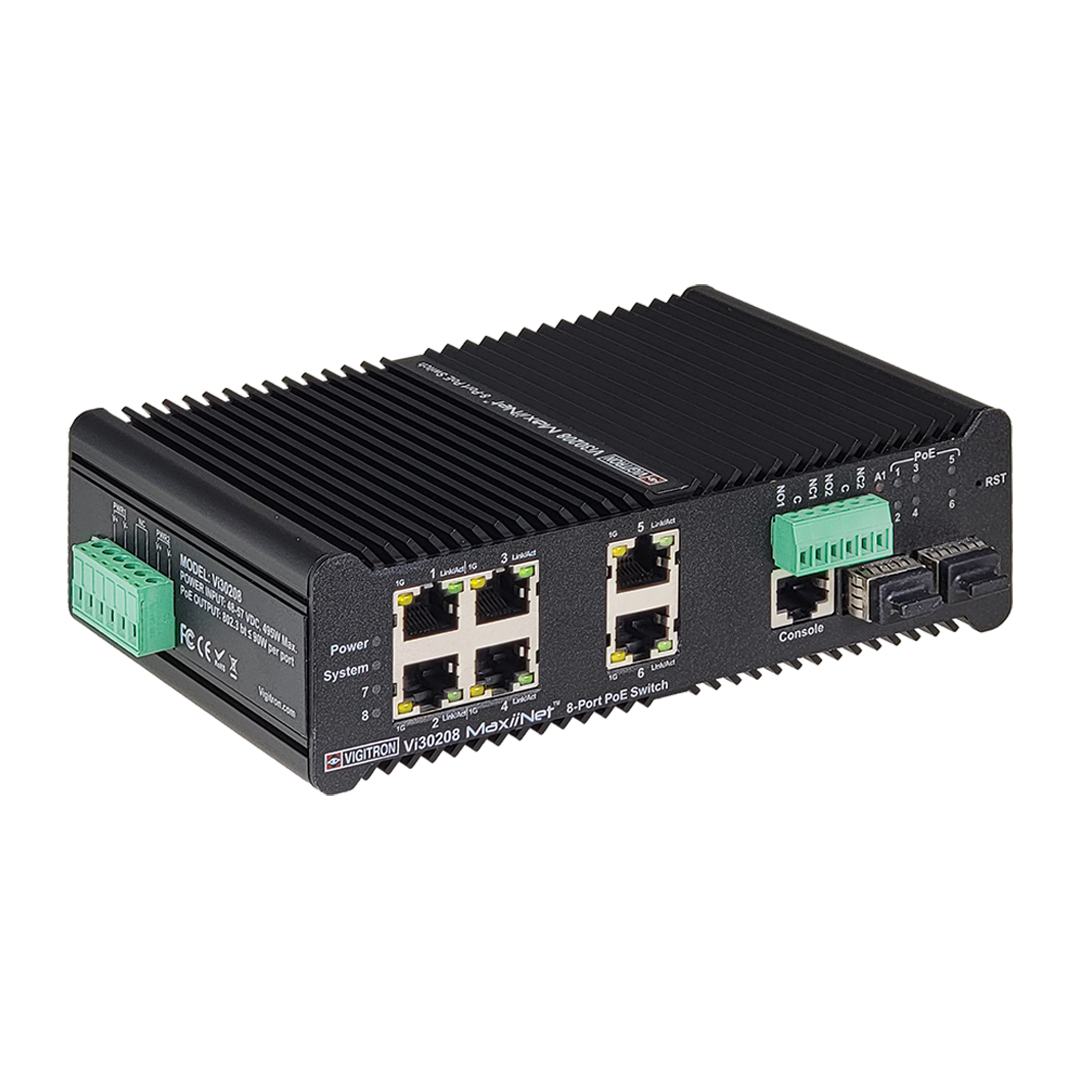

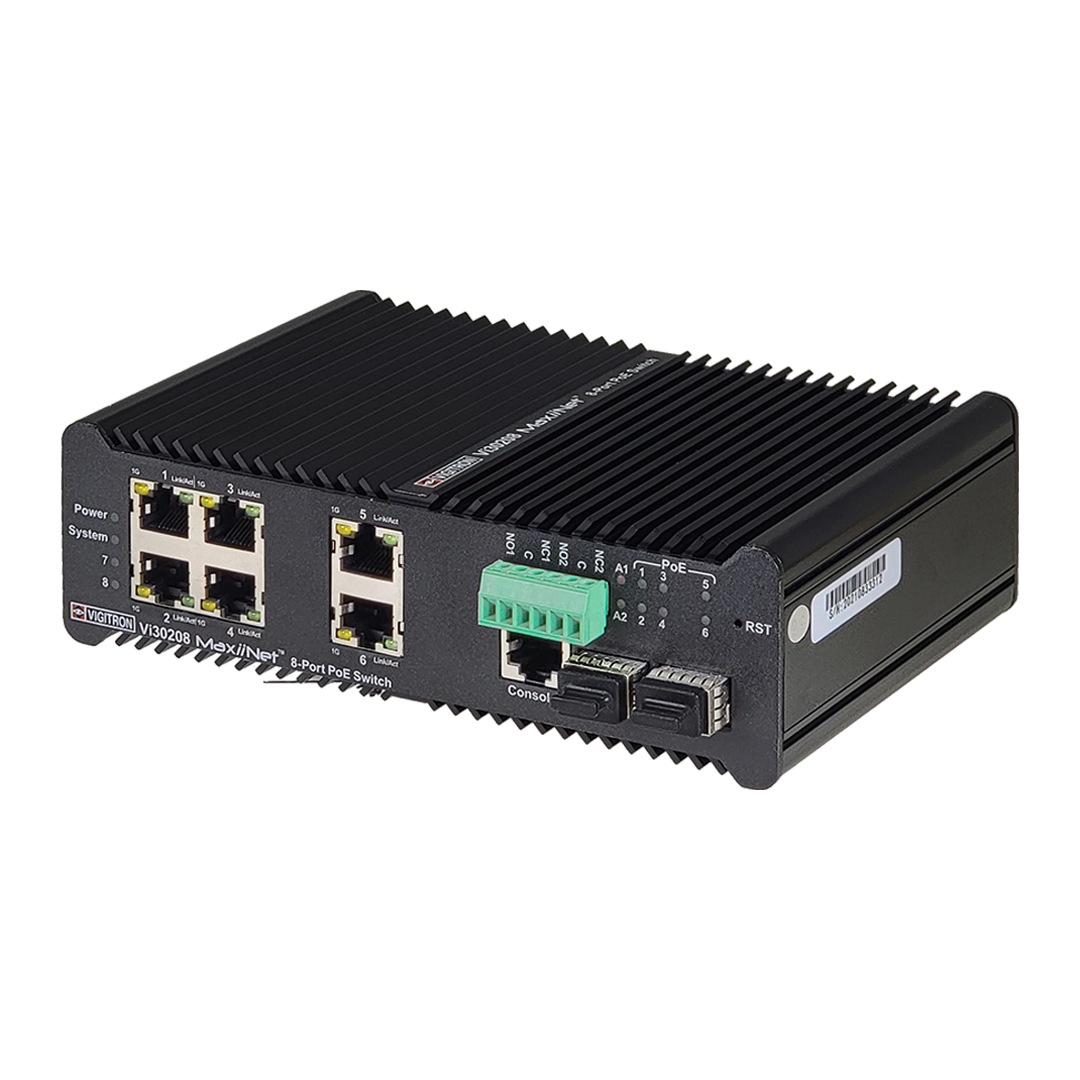

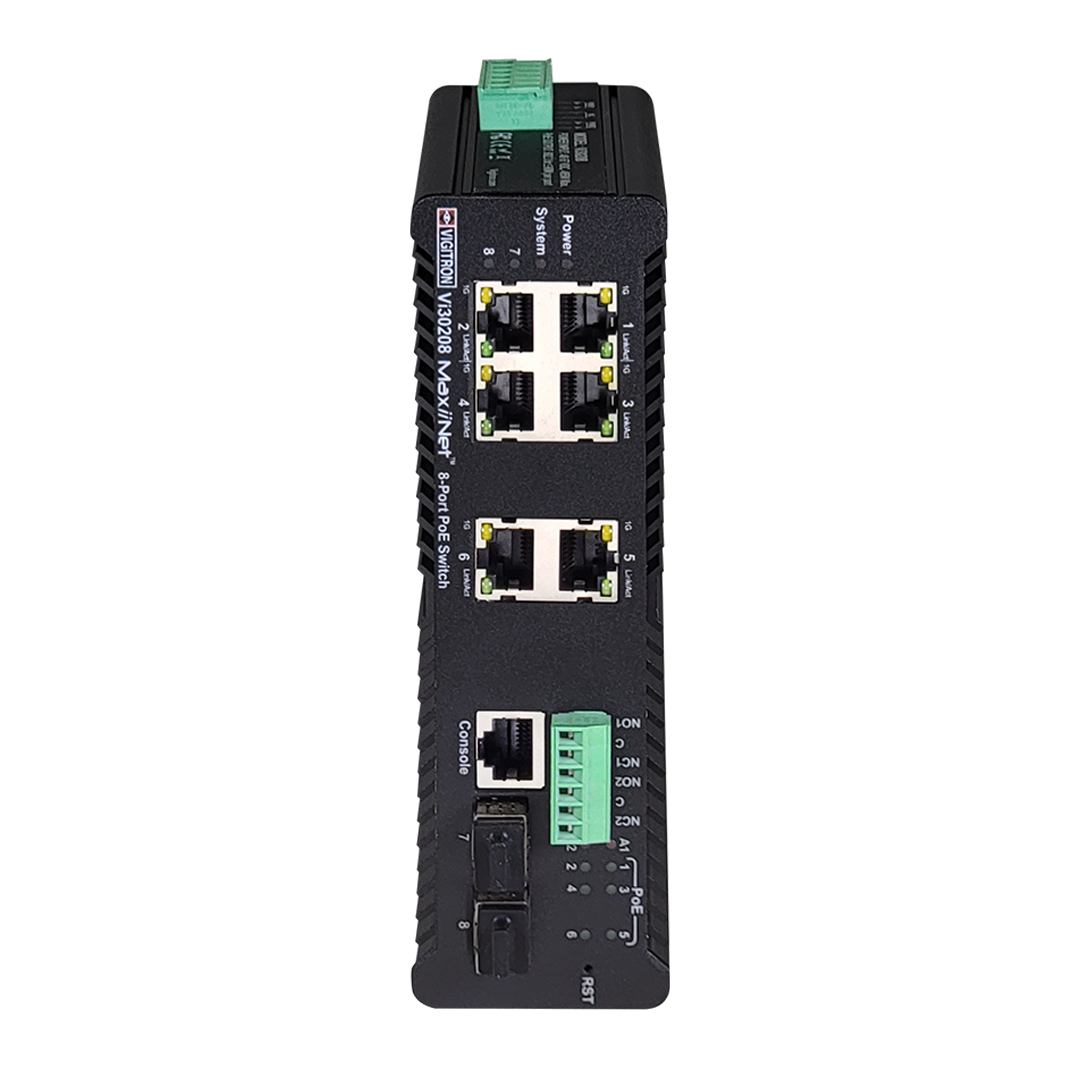

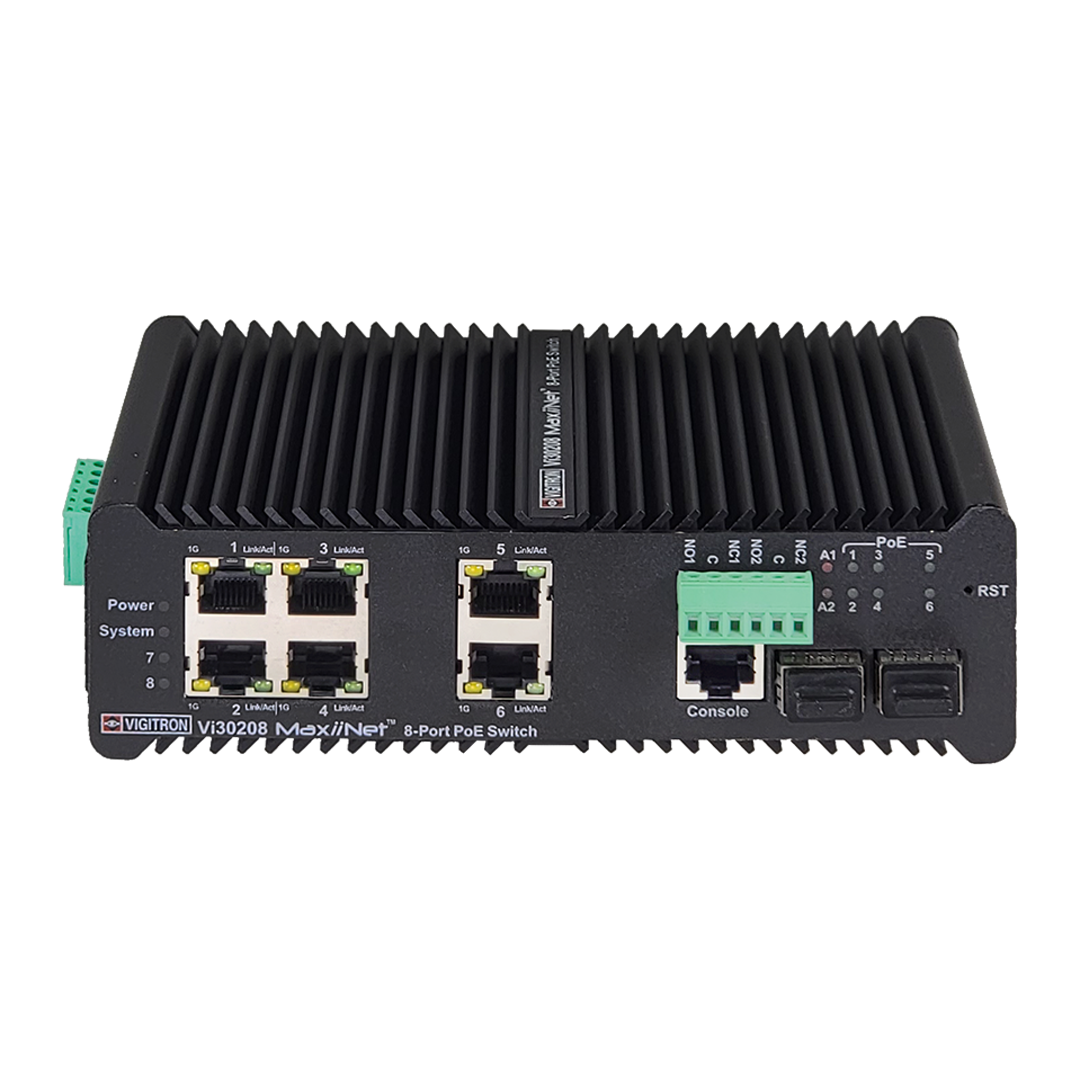

The Vigitron Vi30208 is a hardened industrial PoE switch with a data rate of up to 2.5 Gbps for handling fibre optic uplink ports. It supports program data for each fibre and copper port, as well as Power over Ethernet for copper ports. This provides flexibility in meeting application requirements for six independent PoE ports. The PoE network switch operates in temperatures ranging from -40°C to +70°C. The device can monitor and report on the temperature of each port individually.
The Vi30208 can accept up to 495 W of DC power. It provides 90W of IEEE 802.3bt-compliant PoE power on all six copper ports. It has a maximum total PoE power budget of 480 W. This enables it to power the most demanding PoE applications, such as PTZ domes, LED lighting and wireless products. Up to six ports can be programmed to provide PoE for maximum installation flexibility. The Vi30208 undergoes rigorous testing to ensure its suitability for critical transportation and traffic applications. Its intelligent PoE management system prioritises maximum power allocation from port 1 onwards. Dual copper and fibre uplinks allow for straightforward integration into ring network configurations, making it ideal for use in road and perimeter security applications.
