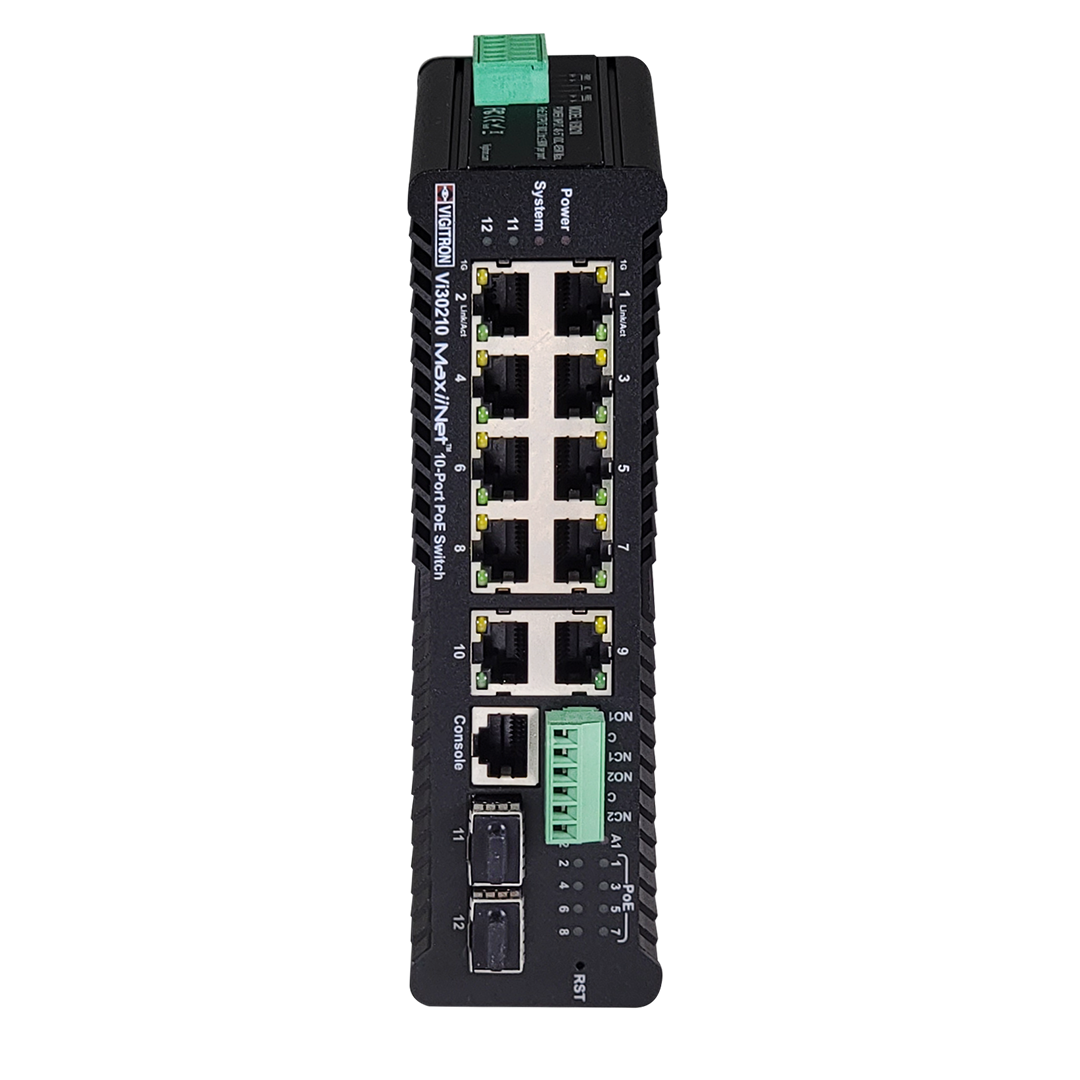

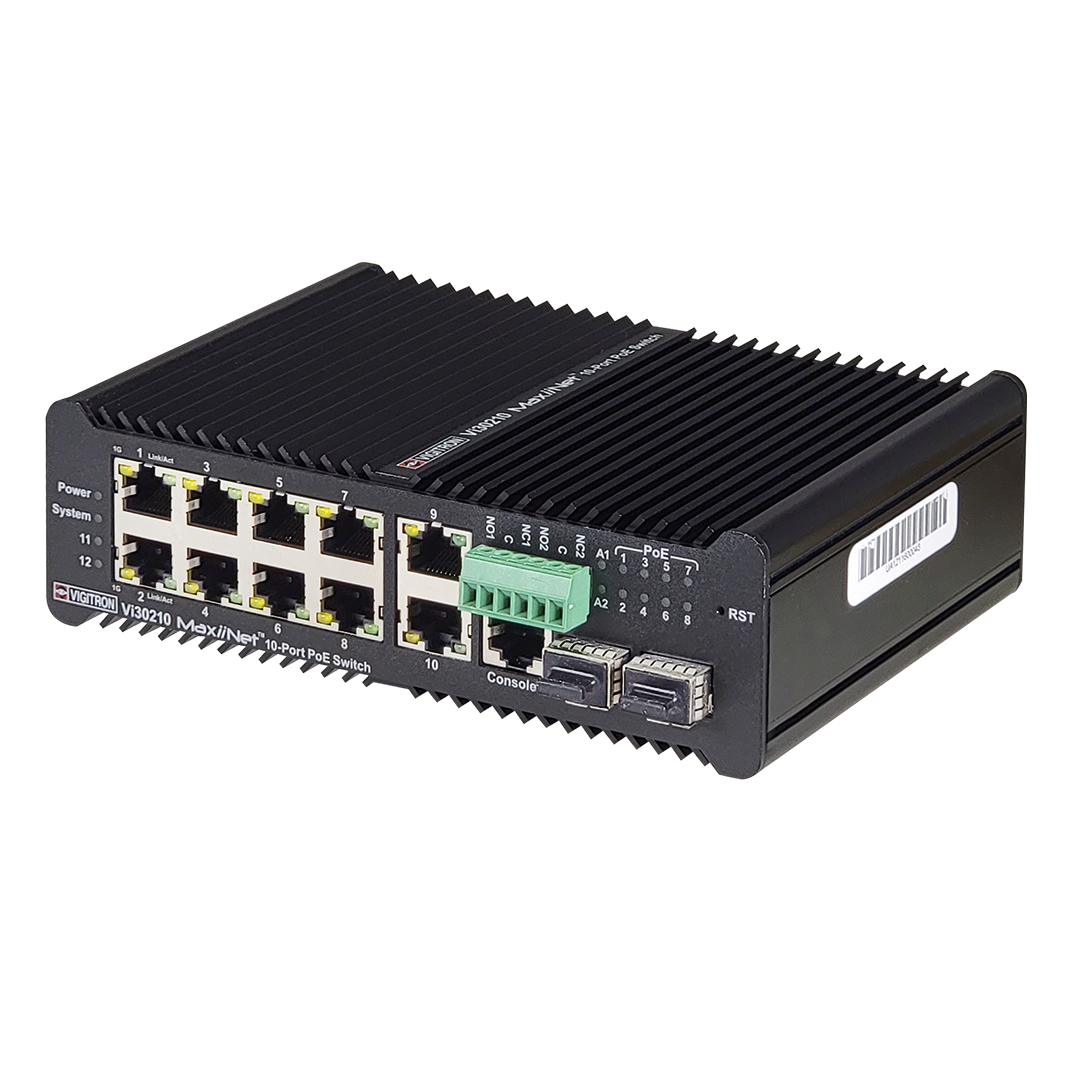

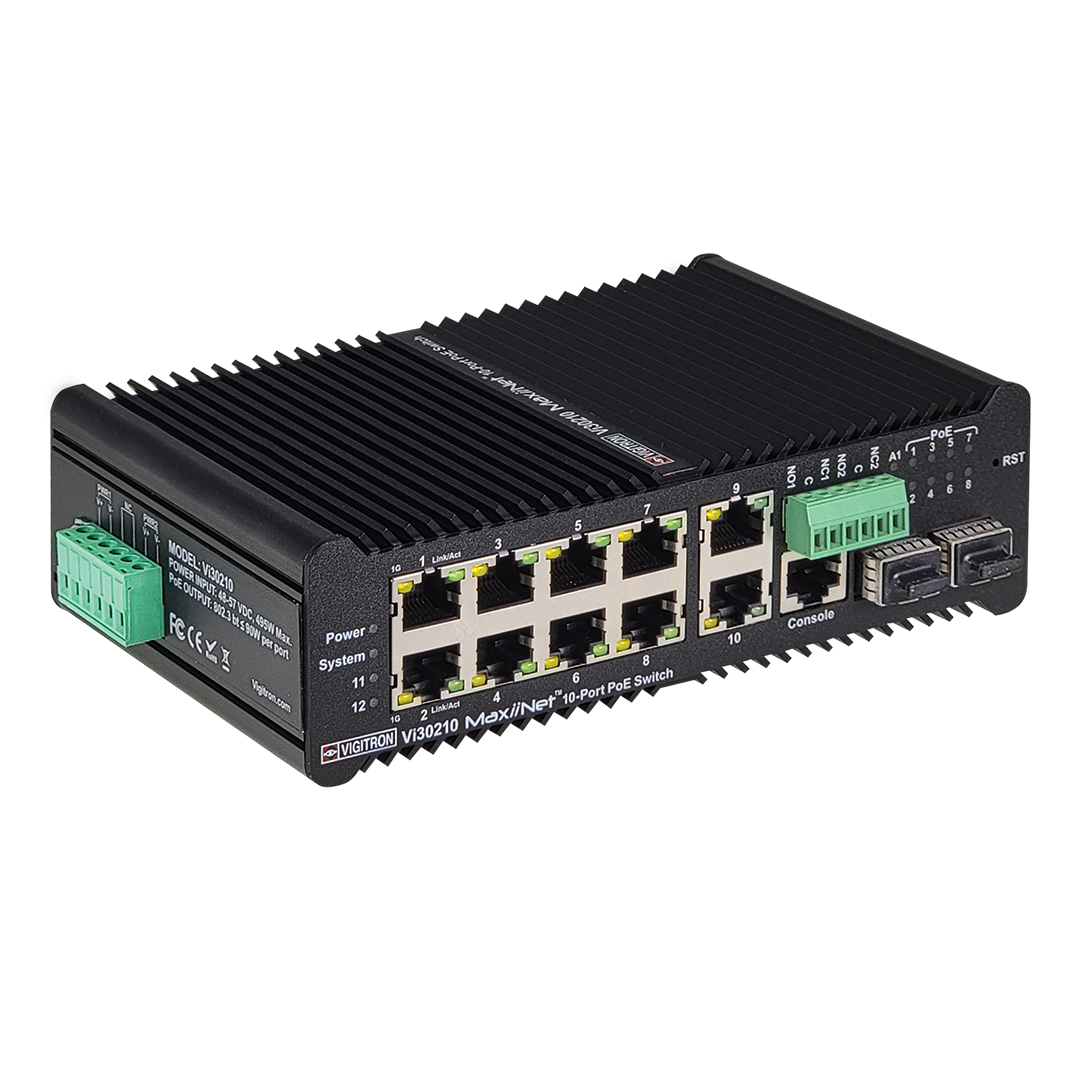

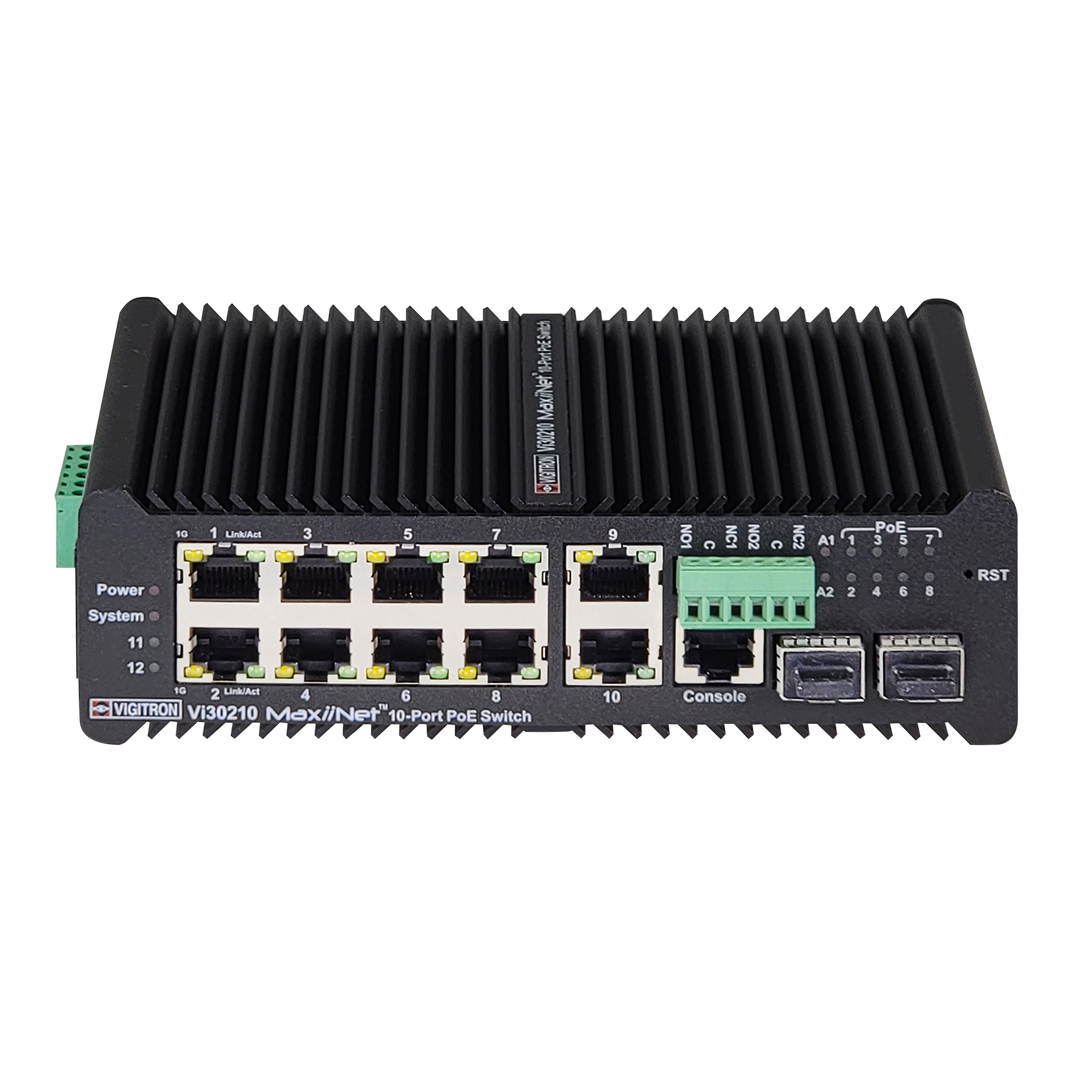

Vigitron's Vi30210 sets a new standard for Industrial Network Switches (INS) with data rate up to 2.5G* for handling fiber optics uplink ports. The Vi30208 operates at temperatures ranging from -40ºC to +70ºC and is able to monitor and report individual port temperature.
The Vi30210 accepts 57VDC power up to 495W to provides IEEE 802.3bt compliant up to 90W PoE power on 8 copper ports for total power of 480W. This enables it to provide power for the most demanding PoE applications for PTZ domes, LED lighting and wireless products. It is compliant to G.8032V1/V2 Rapid Ring protocol. Its intelligent PoE management allocates the maximum power priority starting from port 1. Dual copper and fiber uplinks enable drop and insert for Ring Network configurations to be used for roads and perimeter security applications.
The Vi30210 is uniquely designed for outdoor enclosure applications with a ribbed temperature disbursement chassis, 6KV surge protection and user programmable port thermal protection of over temperature shut down to prevent damage to the Vi30210 from excessive heat. The Vi30210 is an ideal solution for a wide veraiety of projects specially for IDF to MDF applications.
Features:
- 8 + 2 ports with 10/100/1000/2500Mbps data rate†
- Jumbo frame programing at all bandwidth settings
- 90W 802.3bt PoE compliant ports w/ 495W total input power
- Operating temperature range -40ºC to +70ºC
- G.8032 V1/V2 Rapid Ring protocol compliant
- Dual fiber/copper Uplink ports
- Built in 6kV surge protection on each port
- 20Gb switch fabric for highest MP camera handling
- NTP and Real Time Clock (RTC)
- Dual power input for back up power supply
- Dual programmable Form C alarm outputs
- Din Rail and Desktop mounting
- Programmable Port Temperature monitoring
- Detailed Syslog with Health status messaging
| Electrical | |
| Ethernet Interface | Standard: 10/100/1000BaseT |
| Uplink: 100/1000/2500*BaseT- SFP | |
| Data Ports | 8 Copper ports, 2 Copper/MSA Fiber Combo ports |
| Packet Size | 9600@ 100Mbps/1000Mbps/2500Mbps |
| Bandwidth Sensing | MDI/MDIX |
| Switch Fabric | 20GB |
| Surge Protection | 6KV |
| Power Source | 48-57VDC |
| Input Power | 495W Maximum |
| PoE Output | 802.3af/at/bt complaint, 90W Max.per port |
| PoE Budget | 480W |
| Power | 12.3W |
| Consumption | |
| Status LEDs | Power : Red LED |
| System : Red LED | |
| Link/Activity: Green LED | |
| Data rate : Orange LED (ON for 1G) | |
| PoE : Green Active | |
| Fiber Link : Green LED | |
| Alarm: Red Flashing | |
| Connectors | Standard Ethernet : 10 x RJ-45 Connectors |
| Console : 1 x RJ45 | |
| Fiber Optics : 2 x MSA compliant SFP Connector | |
| Power : Detachable terminal blocks | |
| Alarm Output : 6-pin Terminal block | |
| RFC | 2544 TCP/IP Packet Transmission |
| 768 UDP, 2068 HTTP, 793 TCP | |
| 791 IP, 1783 TFTP, 894 IP over Ethernet | |
| PoE Compatibility | IEEE 802.3af/at/bt |
| Regulatory | |
| FCC | Part 15, Subpart B, Class B 2010 |
| Emmissions | EN 5502:2006+A1:2007 |
| EN 61000-3 | |
| EN55032 | |
| EN55035 | |
| EN50121 | |
| EN50155 | |
| 2:2006+A1:2009+A2:2009 | |
| Safety | CE |
| EN 62368 (Replacing EN60950-1) | |
| Environmental | RoHS |
| IEC60068-2-32 (Free Fall) | |
| IEC60068-2-27 (Shock) | |
| IEC60068-2-6 (Vibration) | |
| WEEE, Article 11 – Anex V Directive 2012 2012/19/EU | |
| Environmental | |
| Temperature | Operating: -40°C to +70°C (at 240W PoE Output) |
| -40°C to +55°C (at 480W PoE Output) | |
| Storage: -40°C to +85°C | |
| Humidity | 0 to 95%, non-condensing |
| Mechanical | |
| Dimensions | 2x6.6x4.4 in., 5x16.8x11 cm (HxWxL) |
| Weight | 1.9 lb, 862 g |
| Mounting | Desktop, DIN Rail |
| Material | Aluminum |
| Accessories | |
| DIN Rail Adapter | |
| Desk Mount Brackets | |
| Optional Accessories | |
| Vi1120 | 120W/56VDC Desktop Power Supply |
| Vi10120 | 120W/56VDC DIN Rail Power Supply |
| Vi10240 | 240W/56VDC DIN Rail Power Supply |
| Vi10480 | 480W/56VDC DIN Rail Power Supply |
